The chain-link fence for the zoo, including the chain-link mesh, and the posts and frame system matched; BMP can produce the mesh, the frame system and all the accessories used for installation. Chain-link wire mesh is a commonly used material for fences; it is made of hot-galvanized or PVC-coated wire. The mesh holes of the chain-link mesh are uniform, and the surface is flat; the style of chain-link mesh is simple but looks very good and has a long service life.
This means chain-link wire mesh has a flexible surface, can absorb the impact and keep personnel safe, so it is very suitable to be used in stadiums, outdoor basketball courts, baseball fields, golf courses and other facilities that need very high wire mesh fences. And it can also be the protection of building roofs or other areas. The production width of chain-link mesh can be up to 5m, and the length of each roll can be up to 50m, which is very suitable for large-area installation.
Product Features:
- Large dimensions- the width can be 5m, and the length can be 50m, suitable for large areas.
- The flexible surface-the surface of the chain-link fence can absorb the impact and keep safety.
- Low price, reasonable quality-the cost of the chain-link fence is low, but the effect is perfect.
- Low cost for transportation-the mesh rolls, after being compressed, have a minimal volume and can reduce the transportation cost.
Chain Link Fencing is woven fencing of galvanized or PVC-coated steel wires to lower corrosion and rust. The wires run up and down and are bent right into a zig-zag pattern developing a ruby aperture. Of its longevity, inexpensive, less maintenance, safety, and security, chain link fence has been a crucial member of the zoo cable mesh. A heavy steel wire, equal to a bonded mesh panel or stainless steel rope mesh, fabricates our chain link fence. Besides developing zoo units for tigers, leopards and lions, chain web link cord mesh is more popular as a safety fence for residential, industrial and prison fence systems.

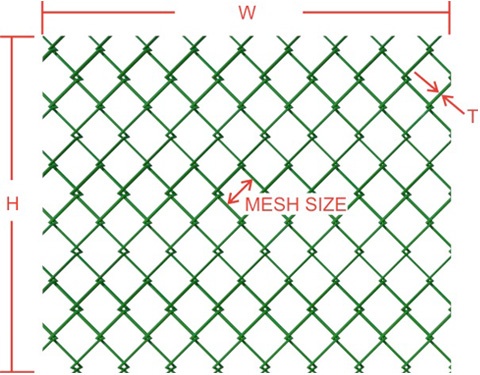

The main parameters of chain-link zoo mesh are wire diameter, opening size, mesh width and length. The edges e include bend edges and jagged edges. Following are the standard
specifications of chain link fabric
Common Specifications for Chain-link Wire Mesh Fence |
||||
Opening Size |
Wire Diameter |
Surface Treatment |
Mesh Width |
Mesh Length |
(mm) |
(mm) |
|||
200*200 |
4 |
Hot-dip galvanized |
0.5-5.0m |
1-50m |
150*150 |
3 |
|||
100*100 |
3.5 |
|||
80*80 |
3 |
|||
60*60 |
2.5 |
|||
50*50 |
2.5 |
|||
40*40 |
3 |
|||
30*30 |
2.5 |
|||
20*20 |
1 |
|||
80*80 |
3.0/4.0(PVC coated) |
PVC Coating chain link fence |
||
60*60 |
2.5/3.5(PVC coated) |
|||
55*55 |
2.0/3.0(PVC coated) |
|||
50*50 |
2.0/3.0(PVC coated) |
|||
45*45 |
3.0/4.0(PVC coated) |
|||
40*40 |
2.0/3.0(PVC coated) |
Chain Link Zoo Mesh Fence Specifications
Netting fencings (galvanized wire) | |||||
wire diameter mm | mesh size mm | roll length m | standard netting heights mm | standard post heights mm | |
1 | 5×5 | 10 | 500 | 1000 | |
1000 | 1500 | ||||
1.2 | 10×10 | 10 | 1250 | 2000 | |
20×20 | 1500 | 2000 | |||
1.4 | 20×20 | 10 | 2000 | 2500 | |
1.8 | 30×30 | 10 | 2500 | 3000 | |
2.5 | 40×40 | 10 | 3000 | 3500 | |
2.8 | 50×50 | 10 | 4000 | 4500 | |
3 | 50×50 | 10 | 5000 | 5500 | |
4 | 60×60 | 10 |
The chain-link zoo mesh is usually installed in frames, with two primary installation options.
Advantage
The main reason why people love chain link fencing for zoos is that it is very cost-effective. Chain link fabric is much cheaper than others, like vinyl and wood. Additionally, although the price is significantly low, it does not compromise quality and reliability. Furthermore, it is the most economical option regarding perimeter fencing. Therefore, this is the best fencing option if you are on a tight budget.
Why is chain link fabric as prominent as zoo mesh?
Low cost. The wire mesh fence is affordable for steel rope or welded panel fence. When the quantity of fence is required, minimising the cost will be fantastic.
Sturdiness. Thick zinc finishing or PVC layer offers superior resistance against rain, snow, and frost.
Security. A smooth surface will not hurt the pet or the site, visitors.
Easy installation as well as short task time.

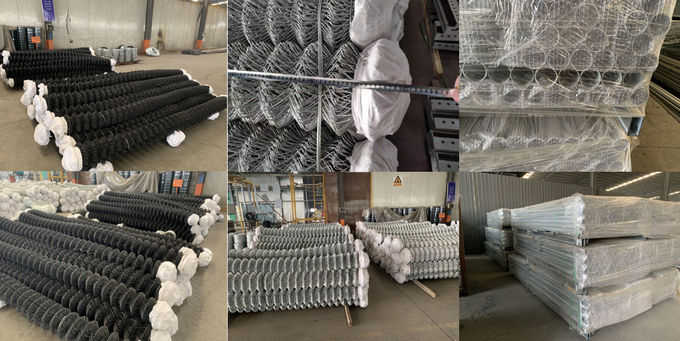

Packing chain link fence for zoo mesh
- 1> Panel and post all bulk in the container
- 2> Panel with pallet (steel or wooden material) post-packing using bubble film bulk in the containerThree3> Panel and post all packing with pallets in the container
- 4> All the chain link fence clips and caps packed in the carton box
lat-bars |
Cross-rod-type |
|

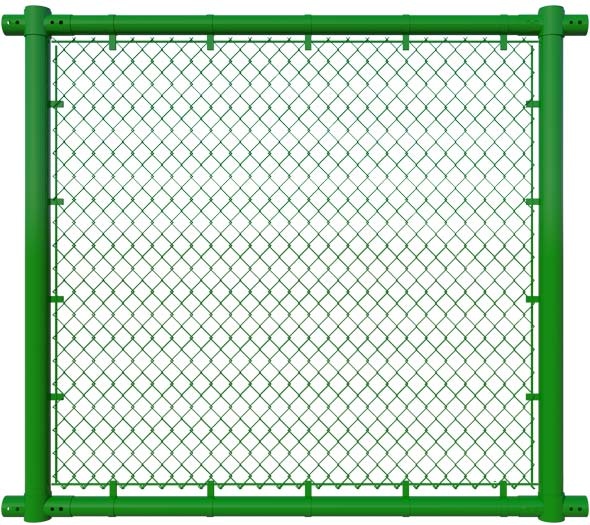

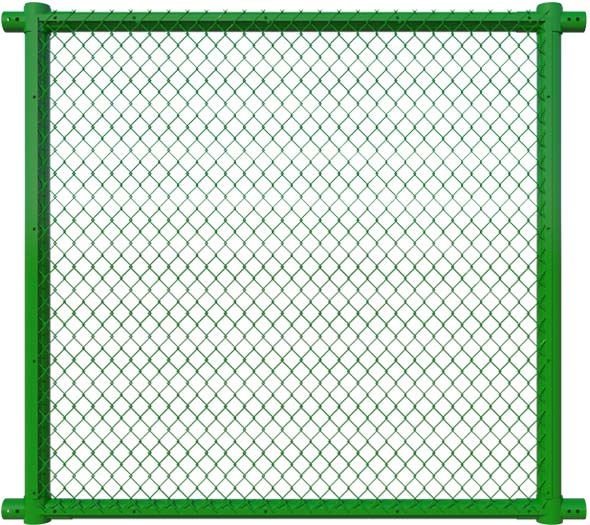

Cover flat bars type: This type is compressed and fixes the edge with flat bars; this can fill the mesh in the whole frame area. | Cross rod type: This type uses metal rods to cross the four sides of the chain-link wire mesh, then tense the mesh and install the metal rods to the frame by climbs. |
