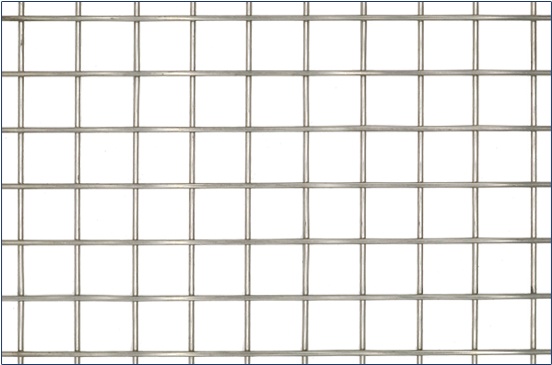

Stainless steel welded wire mesh has an extensive application range; it is used in industry, construction, transportation, breeding, mining and other areas. Welded wire mesh is typically used as a wire mesh fence for safety and isolation; it also can be produced in various turnover baskets, storage cages, breeding cages and other products. Welded mesh is also used as a construction material and reinforcement material in building exterior walls and bridges.

Material choice tips :

Stainless steel products will meet the demands if you need a welded mesh or fence in an area with prolonged exposure to corrosive. Type 316 is recommended for saltwater environments since it has a higher resistance to corrosion than type 304.



Stainless steel welded wire mesh for fencing feature:

• 1. Extra long lifetime. Lasting years longer than galvanized before weld.
• 2. Extreme strength, durability and resistance to rust, corrosion and harsh chemicals
• 3. Lowest long-term cost of ownership in harsh conditions
• 4. Ideal for hard-to-access areas where rust and corrosion are factors.



Stainless steel welded wire mesh panel application

Welded wire mesh with excellent corrosion and oxidation resistance is extensively used as fencing, decoration and machinery protection material in agriculture, construction transport,  mining,  sports field, and various industrial fields.

Details

Product Name	hot dip galvanized welded wire mesh panel, galvanized welded mesh
Wire diameter	3mm 4mm 4.8mm 5mm 6mm or as your requirement
Mesh size	75x75mm, 50x50mm 100x100mm, 150x150mm or as your request
Panel size	1000x2000mm, 1579 x 2254mm, 1000x3000mm , 2000X3000mm or as your request
Surface treatment	hot dip galvanized before/after welded, electro galvanized before/ after welded, PVC coated, and powder coated
Applications	Wire Fencing And Building Material

Welded Wire Mesh Feature:

• Smooth mesh surface and bright lustre
•  Well-proportioned meshes
•  Strong welded points
• High solid structure
• Corrosion-resisting
•  Oxidation-resisting

Stainless steel welded wire mesh features:

• Flat surface and uniform mesh holes.
• Tough welded points and good stability.
• Good resistance to weather and corrosion.
• Accessible to process and widely used.

According to the material, the welded mesh can be divided into stainless steel welded wire mesh and milled steel welded wire mesh. According to the surface treatment, the welded mesh can be divided into electro-galvanized welded wire mesh, hot-dip galvanized welded wire mesh, and PVC-coated welded wire mesh.

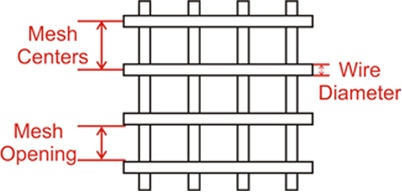

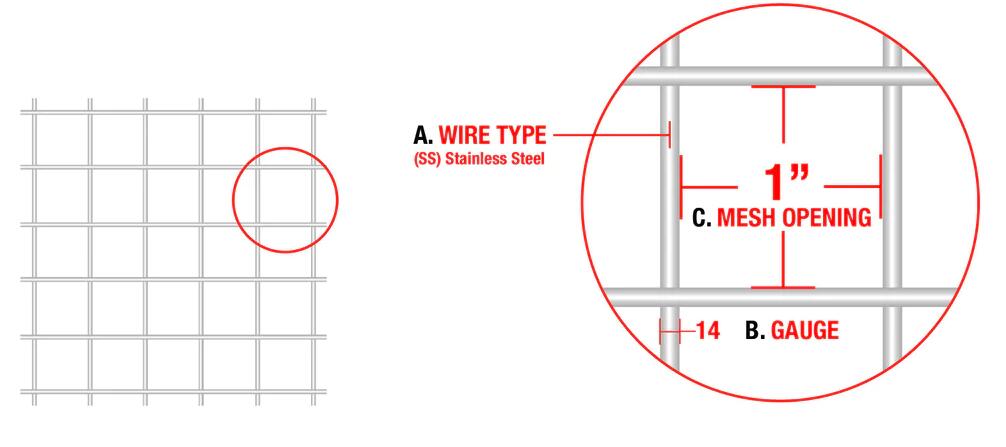

The parameters of welded mesh include wire diameter, size, and dimensions. And the mesh size can be centre distance or clear distance. BMP can provide the stainless steel welded mesh in rolls or panels for thin wire welded mesh typically produced in rolls, and if the wire diameter is too thick, the mesh can not be rolled up; it needs to produce into panels.

The mesh roll stock BMP is produced as mesh centre distance, and customized welded mesh panels can be produced as clear distance or centre distance. If the mesh is produced at a precise distance, the mesh size will be more prominent, and the cost will be lower.

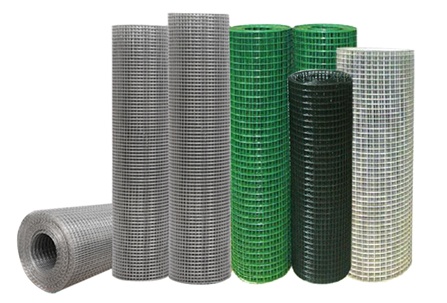

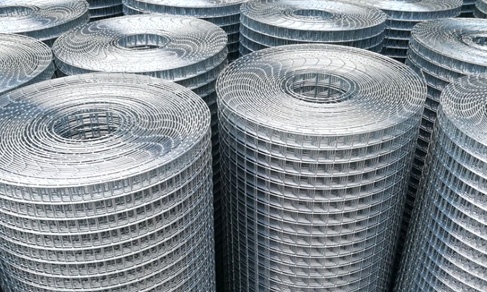

The width of welded wire mesh rolls is 1m, 1.2m, 1.5m, and 2.0m, and the length is 30m. The standard dimensions of mesh panels are 1.2m*2.4m; other dimensions can be produced according to the client's requirements.

The raw material of stainless steel welded wire mesh is hydrogen-annealed stainless steel wire, and the standard grade is SS304, SS304L, SS316, SS316L, and SS430. Carbon steel is generally used for welded wire mesh, except for stainless steel.

The following are the common specifications
