Stainless steel Bird Aviary mesh
Bird aviary wire mesh is also called stainless steel cable bird fence. It is made from high-quality stainless steel wire rope, with extreme anti-corrosion and resistance to UV rays, and has a long lifespan in harsh environments. And its most considerable benefit is particular resilience and flexibility. Our rope mesh may be knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favoured by fashion architects.
Stainless steel bird aviary wire mesh, also known as bird mesh, is ideal for maintaining various bird aviaries and poultry. We must consider the critical factor when selecting bird aviary mesh and birdcage mesh to protect birds ' feathers from damage in-flight collisions effectively. And the Stainless Steel Bird Aviary Mesh also needs good flexibility to provide more free flight and activity space for birds and build a comfortable "home" for them. Also, there are many birds of different body types.
Various open sizes of the stainless steel rope mesh can breed for various birds. As the best choice of aviation stainless steel bird aviary mesh, the advantages of stainless steel rope mesh are far beyond those. Stainless steel bird aviary mesh resists corrosion and does not rust. Strong adaptability to various climates, no maintenance, and long service life.Excellent flexibility for a variety of terrain and cage shapes. Soft, smooth surface protects birds from impact during flight. The diamond openings of the stainless steel aviary mesh create high visibility to reduce visual impairment. Light in weight and easy to install.
Bird aviary wire mesh application:
- 1. animal enclosure
- 2. drop safety
- 3. mesh for the playground, amusement park
- 4. stair railing, railing balustrade
- 5. safety net
- 6. safety on bridge, suspension bridge
- 7. protect the use of fence
- 8. Bird, animal etc.
Bird aviary wire mesh feature:
2. The hole size and diameter can be modified.
3. It can be made to customer orders and statically tested-especially suitable for facades.
4. High strength, strong toughness, free-angle curving and folding, easy transportation and instalment.
5. Anti-corrosive, resists rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7. This product can very much bear the heavy snow and gale.
8. Without toxic material, safety, environmental protection.
Bird mesh, also known as aviary mesh, is typically the mesh used in birds' paradise, aviaries and other buildings for bird breeding; it mainly includes flexible stainless steel cable mesh, welded mesh, expanded metal, chain-link wire mesh, and hexagonal wire mesh, the bird mesh can divide and protect the birds. The aviary mesh is typically used in the construction of aviaries in wild zoos or bird aviaries for breeding; the bird mesh can match wood, concrete and metal main structures very well.
The mesh holes are just the right size to let small or extra small birds in and allow sunlight and ventilation. Our bird mesh is galvanized after welding to maximize lifespan, and galvanized welded mesh is easier to clean and sanitize than wooden birdcages.
Aviary mesh is widely used in bird parks to provide a place large enough for exotic or extinct birds such as macaws, African grey parrots,
Specification
For measuring purposes, the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.
Product Features:
●Stainless steel material has good resistance to corrosion
●Stainless steel cable material has good strength and shock resistance
●Attractive appearance and good transparency
●Flexible surface and suitable for large-dimension installation

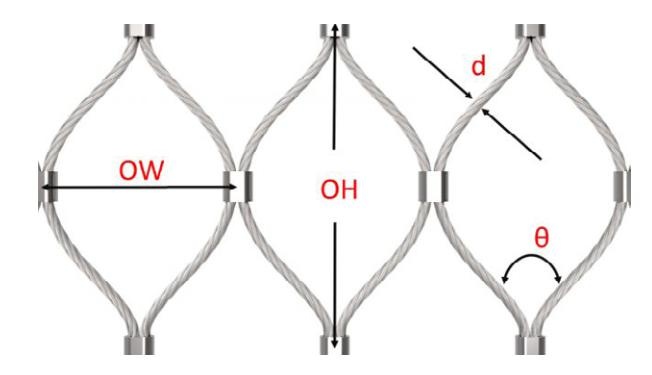

- OW = Opening Width
- OH = Opening Height
- d = Cable Diameter
- θ = 60° Angle
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 2×2 | 51×51 | 1600 |
| 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| 5/64 | 2.0 | 2×2 | 51×51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38×38 | 676 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38×38 | 480 |
| 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38×38 | 270 |
| 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |

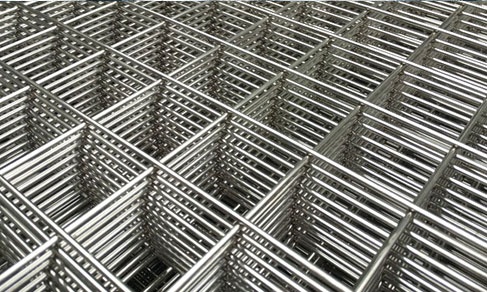

Welded Wire Mesh
Product Features:
- ●Flat surface with high strength
- ●Easy for cutting and welding, convenient for installation
- ●Low cost and long service life
- ●Various specifications suitable for many applications
|
|

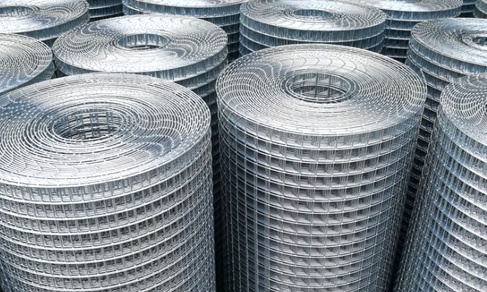

| Welded mesh rolls | Welded mesh panels |
The raw material of stainless steel welded wire mesh is hydrogen-annealed stainless steel wire, and the standard grade is SS304, SS304L, SS316, SS316L, and SS430. Carbon steel is also normally used for welded wire mesh, except for stainless steel wire.
The following are the common specifications of stainless steel welded wire mesh:
| Common Specifications of Stainless Steel Welded Wire Mesh | |||||
| Mesh Size（inch） | Wire Dia.（mm） | Width （m） | Mesh Size（inch） | Wire Dia.（mm） | Width （m） |
| 1/4"×1/4" | 0.4-1.2 | 0.3-1.5 | 3/4"×1.5" | 0.8-2.0 | 0.5-1.5 |
| 1/4"×1/2" | 0.4-1.2 | 0.3-1.5 | 1.5"×1.5" | 0.8-2.0 | 0.5-2.1 |
| 1/4"×1" | 0.4-1.2 | 0.3-1.5 | 1/2"×1/2" | 0.4-2.0 | 0.3-2.1 |
| 3/8"×3/8" | 0.4-1.2 | 0.5-1.5 | 1/2"×1" | 0.4-2.0 | 0.3-2.1 |
| 3/8"×3/4" | 0.4-1.2 | 0.5-1.5 | 1"×1" | 0.6-2.5 | 0.5-2.1 |
| 3/4"×3/4" | 0.8-2.0 | 0.5-1.5 | 2"×2" | 0.6-2.5 | 0.5-2.1 |
| Please Contact Us for Other Specifications | |||||
