Boss Metal And Plastic Co Limited
tempory fencing
We are one of the leading tempory fencing factories; New Zealand temporary fence is also known as temporary fence panels, portable fence, easy fence, and removable fence. Materials: High-quality mild steel wire. We are the Top 5 temporary fencing factories and own our eight welding platforms and one plastic feet machine to control the best quality, which will last ten years. When used in conjunction with our temp fencing feet, stays and clamps, you'll have a complete temp fencing system that will be durable and reliable. Every year, we export so many containers to the city of Adelaide, Brisbane, Melbourne, Perth, Sydney, and Auckland. Our Australian standard temp fence panel can last more than ten years in Tropical and subtropical climates. These high-quality temp fence panels withstand these coastal environments, extend service life, and prevent breakage.
Temporary fencing is popular with Australian. Its height safety services are crucial for industries where the injury is a constant risk. Employee and public safety is a priority for those in mining, construction, civil, residential, government, industrial, commercial, maintenance or special events.Building fence also called portable fence & removable fence.Easy to handle;Sample,one-person installation;Easy transportation.It is widely used for Security,Construction,Crowd control and civil projects,etc.
Specifications temporary fence
| Fence Panel Size(LxH) |
Tube Size (Φ-δ) |
Wire Thickness | Hole Size | Surface Treatment |
| 2400mmX2100mm | 32mm-1.35mmThickness | 3mm Horizontal wire/Vertical wire | 150mmX60mm | Hot-dip galvanized |
| 2400mmX2100mm | 32mm-2.00mmThickness | 4mm Horizontal wire/Vertical wire | 150mmX60mm | Hot-dip galvanized |
| 3300mmX2100mm | 32mm-2.00mmThickness | 4mm Horizontal wire/Vertical wire | 150mmX60mm | Hot-dip galvanized |
| 2400mmX2100mm | 40mm-1.40mmThickness | 3mm Horizontal wire/Vertical wire | 150mmX60mm | Hot-dip galvanized |
| 1200mmX2100mm | 32mm-1.40mmThickness | 3mm Horizontal wire/Vertical wire | 150mmX60mm | Hot-dip galvanized |
Building fence wire thickness and hole size and other information
Features:
-
The temporary fences are light and easy to handle while being robust at the same time;
-
The feet are removable, making transportation and storage much easier and more efficient.
-
Different specifications are available according to customers' particular inquiries or detailed drawings.
Application:
-
The Australian temporary fencing panel to secure construction sites and private property.
-
Temporary fencing panel of residential housing sites.
-
Temporary fencing panel and crowd control barriers for the significant public. Events, sports, concerts, festivals, gatherings etc.
-
Temporary fence panel safety fencing for swimming pools
Details
Fence panel
-
bubble plastic at the bottom of the pallet to keep the bottom panel not destroyed by the pallet.
-
Two metal tubes at the side of the pallet to make the whole pallet tight and strong enough.
-
Have an iron or carton plate under the plastic bandage to protect the panels.
Fence Feet
All fence feet are put tightly and well packed by a metal pallet.
Clamps & Bolts
The clamps and bolts are packed in the carton box.
Details
| Temporary Fence Common Specification | |
| Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as the request |
| Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
| Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc |
| Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as the request |
| Plastic Feet | 600*220*150mm, or 580*245*130mm |
| Surface Treatment | Hot-dipped galvanized or electric galvanized |
| Part | Welded mesh Panel, Round Tube Frames, Plastic feet Clamp, Stay Support |
| Australia Temporary Fence Popular Size | |
| Wire Diameter | 3mm |
| Mesh Opening | 60x150mm |
| Panel Size | 2100x2400mm |
| Vertical Pipe Size | O.D. 32mmx2.0mm, 150mm left at top and bottom |
| Horizontal Pipe Size | O.D. 32mmx2.0mm |
| Base Plate | 600x220x150mm |
| Part | Welded mesh Panel, Round Tube Frames, Plastic feet Clamp, StaySupport |
Application of the N.Z. Temporary Fence
-
Temporary fencing to secure construction sites and private property.
2. Temporary fencing of residential housing sites.
3 Temporary fencing for major public. Events, sports, concerts, festivals, gatherings, etc.
Features
A smart temporary fence can quickly and easily be installed without disturbing the surface area by digging holes or laying foundations.
Specification of tempory fencing
A smart temporary fence is an alternative to permanent fencing for storage, public safety or security, crowd control, or theft prevention. When used on construction sites, it is also called building hoarding. Other uses of the temporary fence include site division for significant events and public restrictions on industrial construction sites. Temporary fences are also frequently used in outdoor activities, parking lots, and emergency/disaster relief sites. It offers the benefits of affordability and flexibility.
Parameters Temporary Fencing Panels Cheapest
| HDG 60gram-80gram temporary fence panels specifications | |
| Dimensions | 2100mm(H)*2400mm(W) |
| Tubing | OD 32mm*1.00mm thick |
| Mesh Spacing | 60mm*150mm*2.70mm |
| Infill mesh size | 1736mm*2336mm |
| V wire number | 36 *sticks wire |
| H wire number | 17 *sticks wire |
| Finished 1300 temporary fence | 60gram-80gram |
| Weight of panels | 10kg |
| Service life | Salt spray testing results in at least five years |
| 40HC container | 560 unit if covered clamp and base |
| Packing | Metal Pallet Wrapped with plastic film as tempory fencing, we offer customized stillages |
| Productions Time | All stocked |
| Ocean time | 25 days to 35 days to any port of A.U. & N.Z. |
| What papers do you provide after shipping containers | |
|
Main: Packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For N.Z.: Containers Declaration For A.U.: PKD - Packing Declaration and Certificated of Original |
|
Parameters Temporary Fencing Panels Smart
| HDG 60gram-80gram temporary fence panels specifications | |
| Dimensions | 2100mm(H)*2400mm(W) |
| Tubing | O.D. 32mm*1.40mm thick |
| Mesh Spacing | 60mm*150mm*3.00mm |
| Infill mesh size | 1736mm*2336mm |
| V wire number | 36 *sticks wire |
| H wire number | 17 *sticks wire |
| Finished 1300 temporary fence | 60gram-80gram |
| Weight of panels | 14kg |
| Service life | Salt spray testing results in at least five years |
| 40HC container | 560 unit if covered clamp and base |
| Packing | Metal Pallet Wrapped with plastic film as tempory fencing, we offer customized stillages |
| Productions Time | All stocked |
| Ocean time | 25 days to 35 days to any port of A.U. & N.Z. |
| What papers do you provide after shipping containers | |
|
Main: Packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For N.Z.: Containers Declaration For A.U.: PKD - Packing Declaration and Certificated of Original |
|
Parameters Temporary Fencing Panels Standard
| HDG 60gram-80gram or HDG 42 microns equal to 300gram/m2 temporary fence panels specifications | |
| Dimensions | 2100mm(H)*2400mm(W) |
| Tubing | O.D. 32mm*1.40mm thick |
| Mesh Spacing | 60mm*150mm*4.00mm |
| Infill mesh size | 1736mm*2336mm |
| V wire number | 36 *sticks wire |
| H wire number | 17 *sticks wire |
| Finished 1300 temporary fence | 60gram-80gram |
| Weight of panels | 22kg |
| Service life | Salt spray testing results in at least five years |
| 40HC container | 560 unit if covered clamp and base |
| Packing | Metal Pallet Wrapped with plastic film as tempory fencing, we offer customized stillages |
| Productions Time | All stocked |
| Ocean time | 25 days to 35 days to any port of A.U. & N.Z. |
| What papers do you provide after shipping containers | |
|
Main: Packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For N.Z.: Containers Declaration For A.U.: PKD - Packing Declaration and Certificated of Original |
|

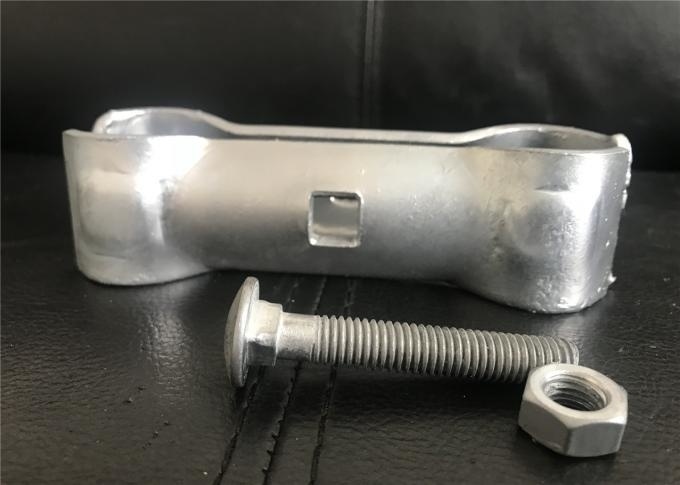

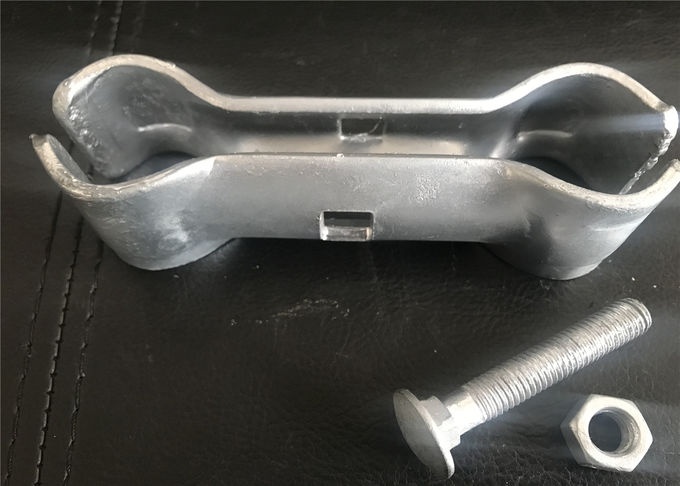

Temporary Fence Clamp
tempory fencing Clamps are used to secure the panels together. Heavy-duty 4mm thick steel clamps join the Temp Fence panels and attach. Support stays to the panels. Formed for strength to resist bending and twisting and keep your site secure, completed
with a bolt and nut.
Finish: Hot Dipped Galvanized – 42 Microns
32mm 38mm 40mm tube clamp available
| 3"/75mm center distance temporary fencing clips suit O.D. 25mm O.D. 32mm OD38mm O.D. 40mm O.D. 42mm outer pipes | |||
| Thickness of Clips | General Standard 3.75mm-4.00mm Available customized | ||
| Finish | Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM. | ||
| Bolts | Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter | ||
| Nuts | 15.9mm /17mm and so on, depending on customers' requirements | ||
| Packing | All packing in papers made carton available assemble | ||
| PHOTOS | |||
|
|
|
|
| 90mm/3.5" center distance temporary fencing clips tempory fencing factory direct supply | |||
| Thickness of Clips | General Standard 3.75mm-4.00mm Available customized | ||
| Finish | Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM. | ||
| Bolts | Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter | ||
| Nuts | 15.9mm /17mm and so on, depending on customers' requirements | ||
| Packing | All packing in papers made carton available assemble | ||
| PHOTOS | |||
|
|
|
|
|
|
| 100mm /4" center distance clips for Outer Diameter Temp Fence Post | |||
| Thickness of Clips | General Standard 3.75mm-4.00mm Available customized | ||
| Finish | Hot dipped galvanized in zinc bath pool minimum zinc coated 42 microns /300gram/SQM. | ||
| Bolts | Length available 100mm / 60mm/40mm with a 10mm and 8.00mm outer diameter | ||
| Nuts | 15.9mm /17mm and so on, depending on customers' requirements | ||
| Packing | All packing in papers made carton available assemble or tempory fencing customized | ||
| PHOTOS | |||
|
|
|
|
Temporary Fence Concrete Feet
-
High Visibility, Orange, U.V. treated.
-
Filled with concrete for 32mm panels, 41.2mm, 38mm 25mm available
-
weight approx 30kg
-
Hand grips and stackable
-
Use with the temporary fence panels, support stay, and pool fencing.
We are an actual blow molding temporary fencing base manufacturer. We sell temporary fencing bases not only to overseas but also to domestic fence manufacturers and trading companies, and they are maybe you temporary fencing suppliers such as XIANG YUAN also named YUELEI /PREMIUM Fence and XIANGMING, FANSI and so on; why you supplier buy from us cause good quality and reliable service and best price.
Compared with other HDPE Melbourne temporary fence block manufacturers, the advantage of
-
We are not only HDPE temporary fence foot manufacturers but also make temporary fencing systems, so we know what you need in the reality installation process.
-
We owned complete blow molding to make any center distance and the hole size from 25mm to 50mm or even 60mm to suit your temporary fencing post, such as 80mm/90mm/100mm center distance.
-
Buy from Melbourne temporary fence trail order 870 pcs weight of 1.25kg minimum available customized you owned logo and business name onto fence base this is free for we owned customers.
-
All burrs of outside and inside of holes were cleaning professional looking.
-
The highest U.V. added HDPE materials and put a specific quantity of BHT powder to avoid the color fading.
-
Strong R&D last year, we developed a patent Melbourne temporary fence base for Australia Customers.

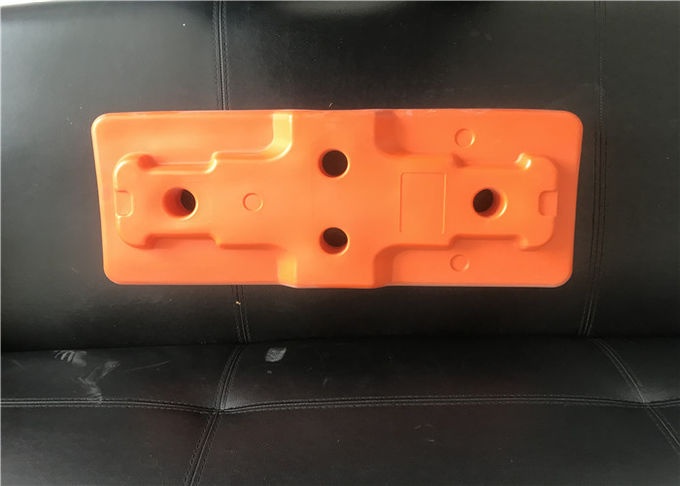

Specification of temporary fencing blocks
| TEMPORARY FENCE BASE -TOPFENCE004HDPE | ||||
| Length | 600mm | |||
| Width | 220mm | |||
| Height | 150mm | |||
| Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
| Color | We are elderly tempory fencing; our temporary fence blocks are available for all RAL. | |||
| Packing | Metal pallet wrapped with plastic film | |||
| Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
| Materials | HDPE | |||
| Photos | ||||
|
|
|
|
|
| TEMPORARY FENCE BASE -TOPFENCE002HDPE | ||||
| Length | 620mm | |||
| Width | 230mm | |||
| Height | 130mm | |||
| Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
| Color tempory fencing | RAL | |||
| Packing | Metal pallet wrapped with plastic film | |||
| Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
| Materials | HDPE | |||
| Photos | ||||
|
|
|
|
|
| TEMPORARY FENCE BASE -FENCE006 | ||||
| Length | 620MM | |||
| Width | 230MM | |||
| Height | 90MM | |||
| Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
| Color |
|
|||
| Packing | Metal pallet wrapped with plastic film | |||
| Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
| Materials | HDPE | |||
| Photos | ||||
|
|
|
|
|
| TEMPORARY FENCE BLOCK | ||||
| Length | 600mm | |||
| Width | 228mm | |||
| Height | 150mm | |||
| Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
| Color |
|
|||
| Packing | Metal pallet wrapped with plastic film | |||
| Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
| Materials | HDPE | |||
| Photos | ||||
|
|
|
|
|
| TEMPORARY FENCE BASE -TOPFENCE003 | ||||
| Length | 620mm | |||
| Width | 230mm | |||
| Height | 130mm | |||
| Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
| Color |
|
|||
| Packing | Metal pallet wrapped with plastic film | |||
| Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
| Materials | HDPE | |||
| Photos | ||||
|
|
|
|
|
Injection Moulding Temporary Fence Blocks
polymer polypropylene temporary fence base was one of eldest fence base presented in Australia market since 2006 years it made by commercial-grade PPC the materials are durable and more flexible even drop from high positions without a crack of concrete due to inside would put rebar with 6.00mm thickness to support concrete with base
| TEMPORARY FENCE BASE -FENCE009 | ||||
| Length | 560mm | |||
| Width | 245mm | |||
| Height | 150mm | |||
| Empty Weight options | 0.90kg /1.0kg/1.2kg/1.4kg/2.00kg | |||
| Color |
|
|||
| Packing | Metal pallet wrapped with plastic film | |||
| Feature | parallel hole 25mm 28mm 42mm 38mm 40mm 42mm 48mm and so on | |||
| Materials | PPC/polymer polypropylene | |||
| Photos | ||||
|
|
|
|
|
Recycled Rubber Fence Blocks
|
Temporary Fencing Block --Recycled Rubber Foot | Suit pipes | |
| Materials | Recycled rubber foot |
32mm to 48mm |
|
| Color | Green, Yellow, Black | ||
| Weight | 17kg | ||
| Packing | Stacking together a pallet | ||
| Treatment | Oil painted | ||
| Size of foot | 767 x 192 x 126mm | ||
| Packing | Metal pallet | ||
Temporary Fencing Brace
Temporary fence brace or stay used to support the temporary fence panel in high wind area finish by hot dipped galvanized 42 microns thickness, per stay required two fence clamp and three concrete feet the additional strength to secure fence panel stand well in high wind per 4.8meter or7.2 meter one stay live. Bracing is an essential part of a sturdy temporary fencing system. It adds safety and stability and ensures your fencing is well balanced and will not topple under light stress, such as wind or workers leaning on the fence. BMP can provide specialist advice and assistance in calculating the bracing you may need for your site and the quantity.
| 1530mm bracing | 1830mm bracing |
|
 |
Temporary Fence Gate
| Temporary Fence Gates | |
|
|
|
|
