The Introduction of Hexagonal wire mesh

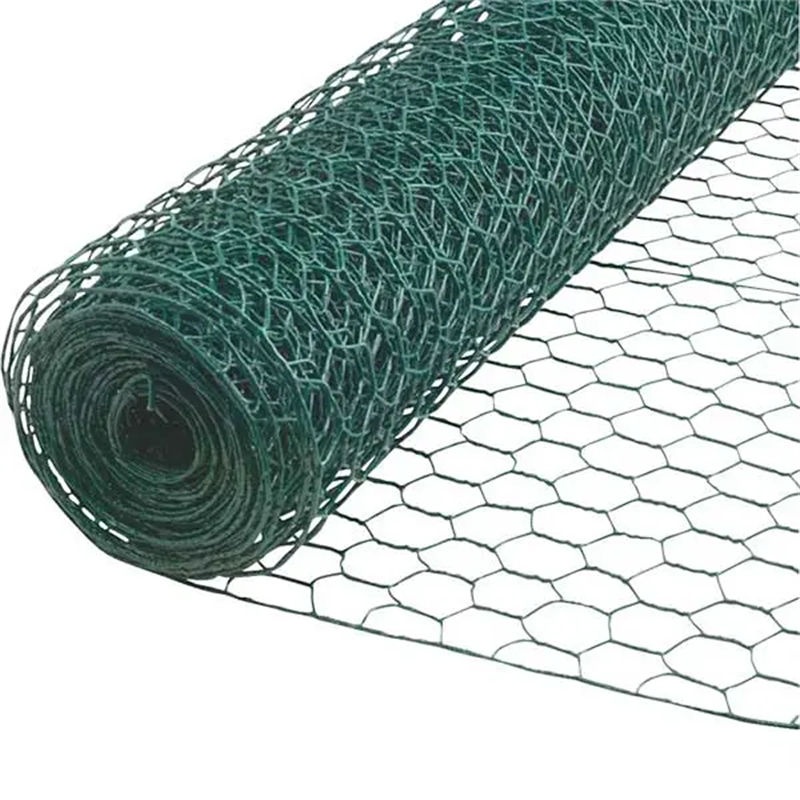

PVC coating chicken wire mesh is also known as hexagonal wire netting. It is zoo mesh. Pvc-coated chicken wire mesh is made of low-carbon steel wire. With the straight twist, reverse twist processing. Pvc coating chicken wire mesh is used as poultry netting. The PVC protective layer will significantly increase the service life of the network in an anti-ultraviolet, anti-aging and weathering role. The choice of different colours can beautify the surrounding environment. Usually, the popular colour is green.
- Item: Hexagonal Wire Mesh, Chicken Wire Mesh
- Material: Carbon Steel, Stainless Steel, Galvanized Steel, PVC coated wire.
- Woven Type: Continuous twist, Double-direction twist
- Surface Treatment: Hot-dip galvanizing, Electro-galvanizing, Galfan coating, PVC coating, etc.
Surface Coating Option :
- Option1: Surface coating before woven
- Option2: Surface coating after woven
Advantages Of Galvanized Hexagonal Wire Mesh
- 1. The name of chicken wire, gabion mesh and hexagonal wire netting, also known as hexagonal wire mesh.
- 2. Wire materials are low carbon steel, stainless steel, zinc-5% aluminium alloy (Galvan), and iron.
- 3. Surface treatments are galvanized, PVC coating or galvanized plus PVC coating.
- 4. Galvanized hexagonal wire mesh is usually used as a fence for chickens, rabbits, ducks, geese, etc.
- 5. Stable structure, smooth surface, uniform mesh size, high tensile strength.
- 6. The galvanized hexagonal wire mesh is easy to transport and install, unroll, and cut easily.
- 7. Ensure good airflow and convenience feeders to feed poultry.
- 8. Flexible in all directions and would not spread when it is broken.
- 9. Electro galvanized wire mesh has a lower cost and bright colour than hot dipped galvanized.
- 10. Galvanized before weaving hexagonal wire meshes offer the better performance of rust and corrosion resistance than galvanized after weaving.
- 11. Galvanized and PVC-coated hexagonal wire mesh have a longer life and low cost.
Product Application
- 1. Hexagonal wire mesh has a wide application range, such as feeding chicken, rabbit, duck, geese, fish and other poultry or small animals. Style can be fence and cage.
- 2. Protect vegetables, flowers or small plants from poultry and small animals.
- 3. Fruit cage, defence mouse, bird, cat, dog, squirrel and fox, zoo mesh
- 4. Indoor decoration, window screen, door screen, children's playground fence.
- 5. Arts, crafts and sculptures.
- 6. Sieve, filter and mould control.
- 7. Hold plaster and cement on the roof, wall, ceiling, floor or tile to reinforce them.
- 8. Equipment and machine protection, highway fence, tennis court fence, protection fence for road greenbelt.
- 9. Prevent rocks and debris from falling onto roads and railways.
- 10. Used for gabion to control and guide water or flood, it also can use as a retaining wall and channel lining.
- 11. Gauge 16 galvanized wire 1-inch mesh opening hexagonal wire netting for paddle tennis and platform tennis wire fence.
- 12. Fixing, heat preservation and insulation of building wall
- 13. The binding of pipes in power plants and chemical plants, thermal insulation for the boilers.
- 14. Anti-freezing, residential and landscaping protection
- 15. Raising chickens and ducks, isolating and protecting poultry houses.
- 16. Protect and support seawall, hillside, road and bridge and other water and woodworks.

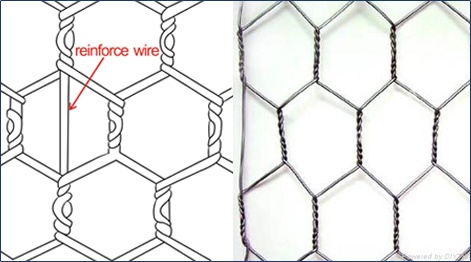

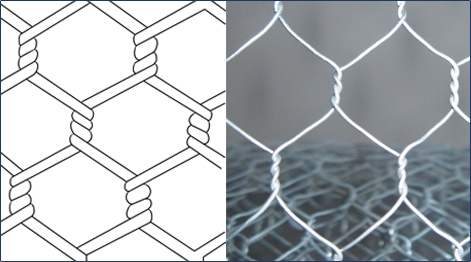

Continuous twist | Double-direction twists |
The Parameters and Specifications of Hexagonal Wire Mesh
The wire diameter of hexagonal wire mesh varies according to the mesh apertures; for the galvanized material, the wire diameter is from 0.3mm to 2.0mm, and for the PVC-coated material, the wire diameter is from 0.8mm to 2.6mm.
Following are the standard specifications of hexagonal wire mesh.
Mesh size |
Wire (BWG) |
Standard roll height (m) |
Roll length (m) |
3/8' |
BWG27 - BWG24 |
0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 | 10 m / 20 m / 30 m / 50 m |
1/2' |
BWG27 - BWG23 |
0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 |
10 m / 20 m / 30 m / 50 m |
5/8' |
BWG26 - BWG22 |
0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 | 10 m / 20 m / 30 m / 50 m |
3/4'' |
BWG25 - BWG20 | 0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 | 10 m / 20 m / 30 m / 50 m |
1" |
BWG27 - BWG19 | 0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 | 10 m / 20 m / 30 m / 50 m |
1 1/4" | BWG23 - BWG19 | 0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 | 10 m / 20 m / 30 m / 50 m |
1 1/2" | BWG23 - BWG19 | 0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 | 10 m / 20 m / 30 m / 50 m |
2" |
BWG23 - BWG19 | 0.50/0.60/0.80/1.00/1.20/1.50/1.80/2.00 | 10 m / 20 m / 30 m / 50 m |
2 1/2" |
BWG21 - BWG19 |
0.80/1.00/1.20/1.50/1.80/2.00 |
10 m / 20 m / 30 m / 50 m |
3" |
BWG20 - BWG18 |
1.00/1.20/1.50/1.80/2.00 |
20 m / 30 m / 50 m |
4 " |
BWG19 - BWG17 |
1.00/1.20/1.50/1.80/2.0 |
20 m / 30 m / 50 m |
