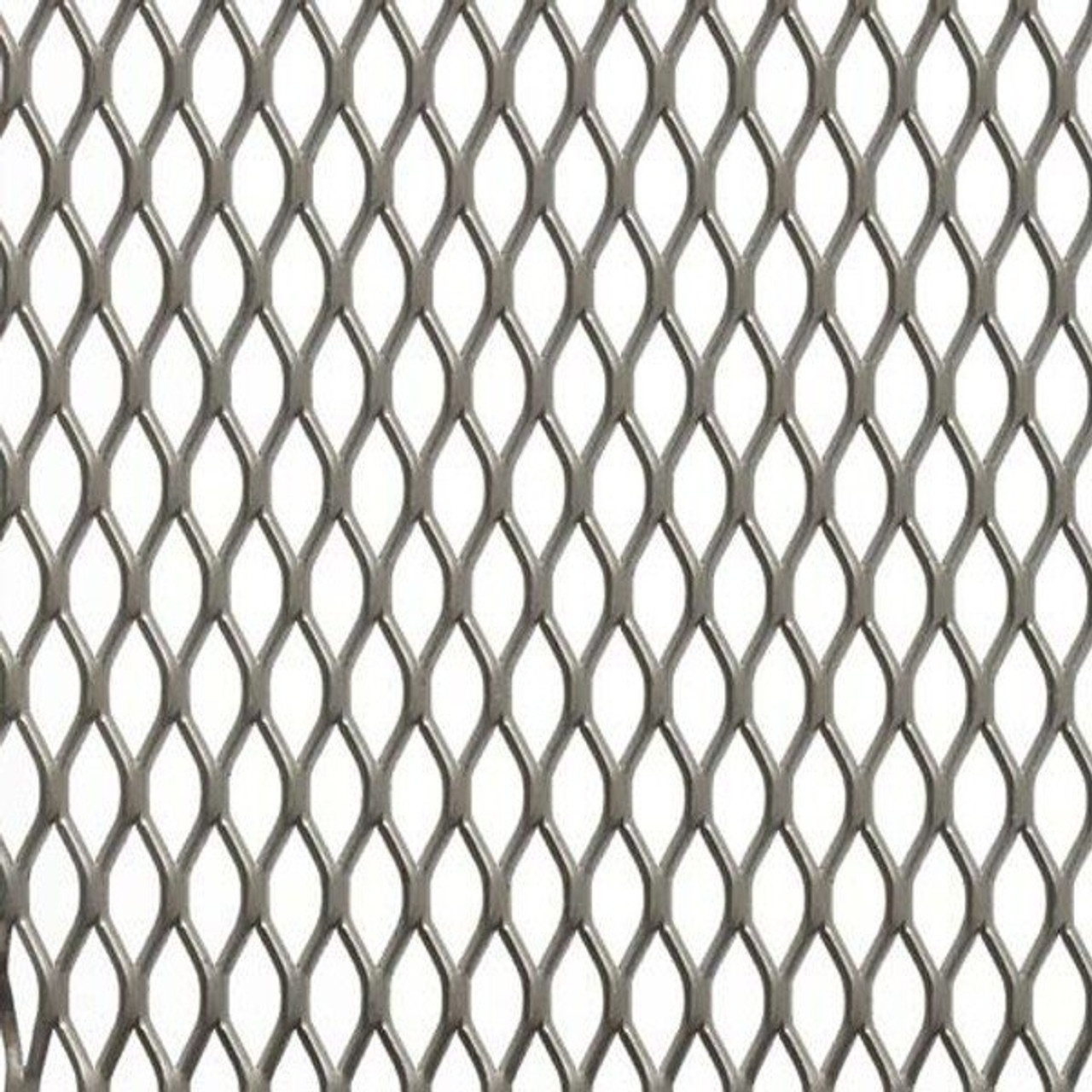

The expanded metal mesh for zoo mesh also called expanded metal or expanded metal sheet, is one of the most widely used metal wire mesh products. The expanded metal mesh is produced of a whole metal sheet by punching and expanding process; the material of expanded metal mesh can be stainless steel, carbon steel, galvanized steel or aluminium. The mesh holes of expanded metal mesh are uniform, and the mesh structure is firm and stable; this makes the mesh achieve very high strength with light weight.

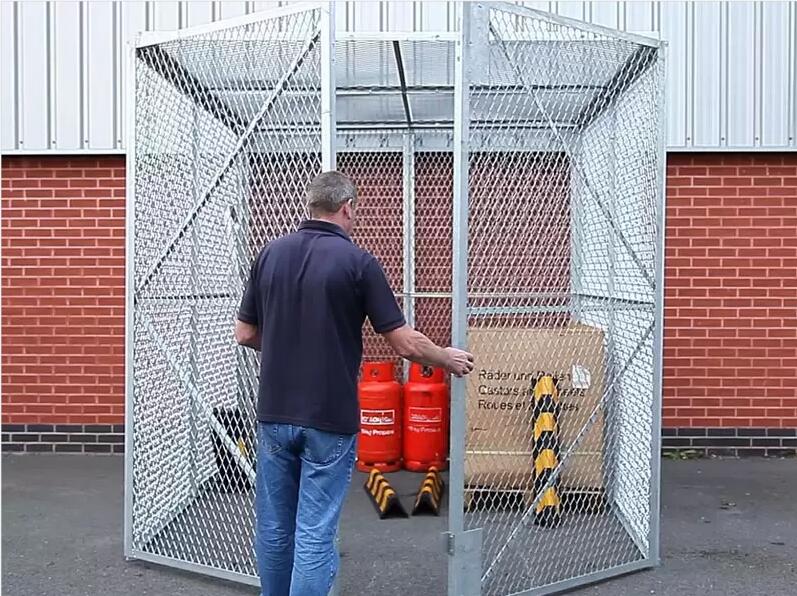

The expanded metal mesh has wide applications; the standard grade can be used as mechanical equipment protection shell, handicraft manufacturing, speaker cover net, zoo mesh green belt protection, etc. Heavy-grade expanded metal  can be used as a pedal net in heavy machinery, boiler, mine, locomotives and ship working platforms. Also, the expanded mesh can be used in industry, railway, shipbuilding, coal, light industry, textile, building materials, agriculture and sideline industry, breeding industry, landscape, mineral, petrochemical, household appliances, and also used in integrated ceiling, doors and windows, security channel, corridor, stair baffle, tables, chairs, benches, vents, various cargo bearing frames, shelves, etc.

The expanded metal mesh size and plate thickness range are vast, and various specifications are available. The standard range of plate thickness of expanded mesh that BMP produces is from 0.5mm~6mm, and the opening size is from 3*6mm to 56*150mm, which can meet various application requirements from our clients.

expanded metal mesh for zoo Product Features:

• ●Uniform mesh holes and attractive outlook.
• ●Strong mesh structure without welding points.
• ●Expanded by a whole metal plate, the weight is light.
• ● Extensive range of mesh holes and plate thickness.

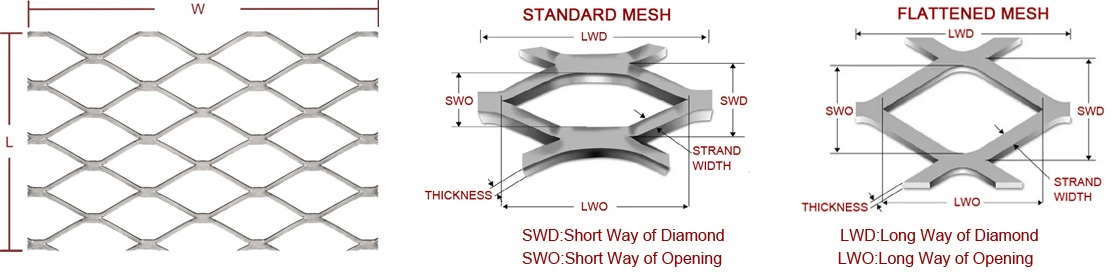

The parameters and specifications of Expanded Metal  Expanded metal mesh's main parameters are width, length, SWD*LWD, strand, and plate thickness.

The commonly used material is stainless steel, carbon steel, galvanized steel, aluminium etc.

The customarily used hole shapes are Diamond holes, Scalelike holes, Hexagonal holes and Complex types.

Diamond hole	Scalelike hole	Hexagonal hole	Complex types

Following are the standard specifications of expanded mesh(Diamond hole)

How to choose expanded metal

Expanded metal mesh reduces weight and metal, allowing light, liquid, sound and air to pass freely while providing a decorative or ornamental effect. Expanded metal is a cost-effective alternative to perforated metal since there is no metal loss during the expansion process.

Standard expanded metal

Standard expanded or raised metal mesh is the finished product from a press after dying, cutting, and expansion. It is a highly versatile and economical product. It is available in your choice of material, gauge and opening size. Standard expanded metal sheets are ideal when a raised, non-slip surface is required. It is available in aluminium, carbon steel, galvanized steel or stainless steel, providing maximum flexibility to meet project requirements.

Flat expanded metal mesh

Flattened expanded metal mesh is cold rolled through a machine that flattens the metal after the expansion process, which is ideal for architectural design trim applications that require flexibility while maintaining maximum strength and durability. It is the best choice when a smooth surface is required. BMP wire mesh stocks flat expanded metal in a variety of metal materials, thicknesses and opening sizes.

Custom expanded metal mesh.

Custom-expanded metals come in various patterns and can be manufactured in unique shapes and sizes. Materials that can be fabricated include aluminium, carbon steel, galvanized steel, and stainless steel.

Expanded metal finishes and unique treatments

• Polished
• Carbon steel: lightly oiled, requires cleaning with an acid or solvent bath and rinse with water before final surface preparation
• Aluminium: Clean with a non-etching chemical or cleaner, then rinse and dry thoroughly
• Hot Dip Galvanized: A protective layer of zinc; may have a rough, uneven appearance. Not available for patterns smaller than 1/4"
• Electro-galvanized: Galvanized sheet to provide weather resistance
• Deburring: Remove burrs and sharp edges with a wire brush.

Frequently Asked Questions

What are the benefits of expanded metal mesh?

Expanded mesh is a lightweight, versatile material with a higher strength-to-weight ratio than sheet metal. Expanding the metal from its solid sheet form strengthens the material. Because the mesh is made from a single piece of metal, further processing, such as shearing or pressing, is possible.

Expanded metal products are ideal for non-slip surfaces. The attractive diamond pattern also makes expanded metal ideal for architectural designs.

What materials are expanded metal  made of?

There are many kinds of materials from which expanded metal mesh can be made. BMP wire mesh can provide expanded aluminium sheets, carbon steel, galvanized steel, nickel, silver, copper and stainless steel sheets.

Why is the open area percentage significant for expanded metal?

The percentage of an open area determines the amount of space available for air, water and light to pass through the expanded metal panels.If you are looking for a high-quality expanded metal mesh from a trusted supplier, welcome to contact us for more information!
