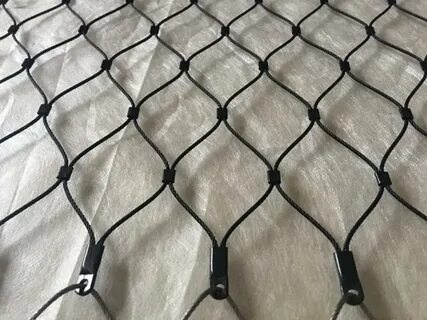

Black Oxide Zoo Mesh

Black Oxide Zoo Mesh is a reliable and long service life stainless steel zoo mesh product. Black oxide is widely applicated in stainless steel wire rope mesh and wire cable materials which provides a natural appearance in bird protection network environments such as black wire fences and bird reserves. The black oxide zoo mesh has many advantages over the stainless steel fence and bird protection net environment, which is crucial for appearance and cost savings. The stainless steel zoo mesh can be made as to any mesh opening size, customized as per clients' request, no matter small mesh or big mesh. So with this feature of any size of mesh opening, it is trendy and loved by designers and customers.

2.1Quick Information

Standard Black Oxide Wire cable structure: 7x7, 7x19 high-quality Stainless steel cable

Standard cable diameter(mm): 1.0 1.2 1.5 1.6 2.0 2.4 2.5 3.0 3.2 4.0 5.0

Popular materials: 304 304L 316 316L

2.2 Option of Wire Rope Mesh Types

Like other stainless steel cable mesh, the black oxide wire rope mesh available the ferruled ad is woven one while comparing with the ferruled type mesh due to totally workers hand woven, so the knotted mesh is expensive than ferruled mesh

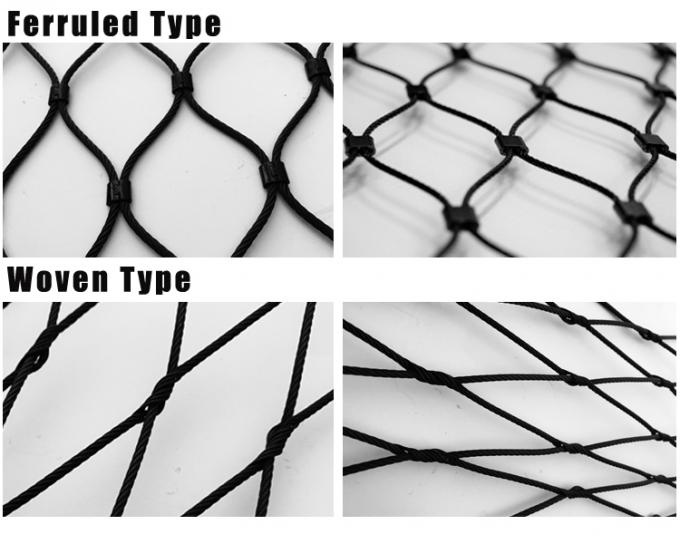

Knotted Type SS316 With Black Oxide Finished Wire Rope Mesh Fencing 1

2.3 Advantage

Stainless Steel Black Oxide Zoo Mesh with the following advantage

Black oxide Zoo Mesh has the visual attraction of the natural appearance of animal exhibits
fewer interruptions
consistent coverage
rapid turnover
large oxidation tanks for more efficient production

2.4 Application Black Oxide Zoo Mesh

zoo net cover
bird nets for bird reserves
other black line fences for animal fences
stainless steel wire and cable
Animal Control Barriers

2.5 Application:

1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

2.6 Feature of Stainless Steel Black Oxide Zoo Mesh:

Flat and smooth mesh surface, Unique lines, Robust overall structure, and Beautiful appearance
Good toughness, anti-climb performance, shock proofing, and crash-resistant, not easy for deformation and damage, with good cushioning
Good decoration effect and protection function
Black oxide Zoo mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L.
Finished diamond mesh style when it is stretched at a 60-degree angle
Unique design idea, X tend mesh style
Flexible, elegant, discreet, filigreed, multifunctional.
Corrosion-resistant allows strong airflow.
Fully pro-environment, recyclable, no toxic, and flammable.
Easy installation
Once steel cable black oxide mesh is used, maintenance-free, don't ask for any special cleaning or coating.
Long use life

2.7 SPECIFICATIONS

Black stainless steel cable mesh is a special process surface treatment of stainless steel rope woven mesh, the deeper play a preservative effect, optimal stretched at 90-degree angle. Structure of Wire Cable:7X7,7X9 rope:1.2mm,1.6mm,2.0mm,2.4mm,3.0mm. opening ( OW ):20mm - 200mm. Horizontal and Vertical Opening Orientation.

Hole Size	1.2MM(3/64)	1.6MM(1/16)	2.0MM(5/64)	2.4MM(3/32)	3.2MM(1/8)
20 x 35mm	LNF-1235
25 x 42mm	LNF-1225	LNF-1625
30 x 52mm	LNF-1230	LNF-1630	LNF-2030
35 x 60mm	LNF-1235	LNF-1635	LNF-2035
38 x 66mm	LNF-1238	LNF-1638	LNF-2038	LNF-2438
40 x 69mm	LNF-1240	LNF-1640	LNF-2040	LNF-2440	LNF-3040
50 x 86mm	LNF-1250	LNF-1650	LNF-2050	LNF-2450	LNF-3050
60 x 104mm	LNF-1260	LNF-1660	LNF-2060	LNF-2460	LNF-3060
70 x 120mm	LNF-1270	LNF-1670	LNF-2070	LNF-2470	LNF-3070
76 x 131mm	LNF-1276	LNF-1676	LNF-2076	LNF-2476	LNF-3076
80 x 138mm	LNF-1280	LNF-1680	LNF-2080	LNF-2480	LNF-3080
90 x 154mm	LNF-1290	LNF-1690	LNF-2090	LNF-2490	LNF-3090
100 x 173mm	LNF-12100	LNF-16100	LNF-20100	LNF-24100	LNF-30100
120 x 206mm	LNF-12120	LNF-16120	LNF-20120	LNF-24120	LNF-30120

2.7-1 Wire Rope Mesh Details

Stainless steel black oxide cable mesh is also known as a safety netting system. It is widely used in slope reinforcement. The system is mainly made up of wire, which enjoys the essential functions to cover (initiative protection) and intercept (passive protection) to defend against various geological disasters. It is widely used in Animal Enclosure mesh, animal cages, bird netting, Agriculture, Residential, Sports, Fall Security, Etc.

Mesh Type	Ferruled or Knotted
Mesh Angle	60 degrees in rhombus shape
Mesh Orientation	Horizontal or Vertical
Panel Measurement	Custom-made in width and length
Finished	Black Oxide
Application	Balustrade, Facade Cladding, Animal Enclosure, Aviary Netting

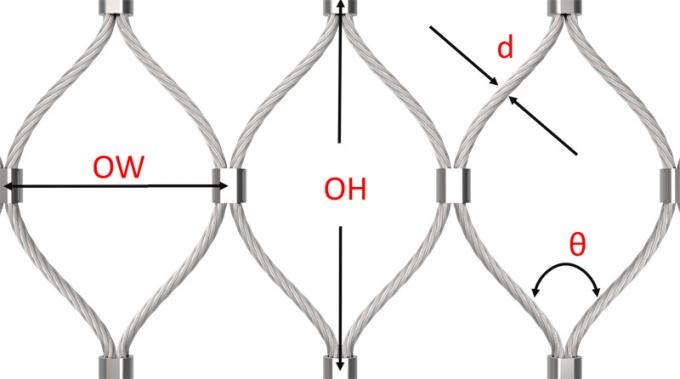

Black oxide zoo mesh design

2.8 RFQ Of Black Oxide Zoo Mesh

1. Advantage of black oxide zoo mesh

Unique design. 3D-structure, Flexible, Lightweight, Corrosion-resistant, Maintenance-free. Ten years rust guaranteed.

2. 304 or 316 stainless steel?

- Generally, the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 is almost identical. We suggest choosing 316 stainless steel.

3. What is the difference between cable and opening?

- The heavier cable or smaller the opening, the cost more expensive.

4. Is it safe?

- Full mesh meet test under EN1263.1.2014

5. How to install the black oxide zoo mesh!

- Full of our piece is manufactured with a unique edge design. Install by yourself easily.
