Stainless Steel Wire Rope Safety Mesh
A stainless steel wire rope safety mesh is an excellent solution to fix your problem. We all know that suicide is a topic no one likes to discuss, but it happens frequently. A statistical survey shows that about 10% of the population once think about committing suicide, especially those between the ages of 14 to 55. And jumping from height is considered the most common method to end their lives. Thus, Stainless Steel Safety Mesh should take various structural measures to minimize jumping accidents.
Typically, two prevention methods are chosen, one is a high railing, and the other is safety mesh, as shown below:
-
Method 1 - High fence and the "hotspots" such as winding staircases, winding roads, bridges and balconies. Although it can not prevent suicide, it may somewhat discourage jumpers.
-
Method 2 - stainless steel safety mesh. Mounted below the bridge or high buildings, stainless steel cable mesh is designed to catch jumpers and make the fatal falling futile. Meanwhile, it may give the jumper a strong impression that suicide is not the solution to their problems, and they may eventually change their minds. Most of all, it gains time for rescue and reduces falling accidents caused by juvenile overconfidence and dangerous recklessness.
Local circumstances should be considered when picking up optimal stainless steel wire rope safety mesh. Our stainless steel safety netting range is always a sensible option, fabricated from high-quality stainless steel. It is an incredibly flexible wire rope mesh absorbing the jumping energy and simultaneously ensuring the jumper's safety. Meanwhile, It will not degrade and rust even in the harshest environment. Thus, it exhibits long service life with low even no maintenance.
Specifications
Specifications Sheet :
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
20 x 35mm | BMP-1235 | ||||
25 x 42mm | BMP-1225 | BMP-1625 | |||
30 x 52mm | BMP-1230 | BMP-1630 | BMP-2030 | ||
35 x 60mm | BMP-1235 | BMP-1635 | BMP-2035 | ||
38 x 66mm | BMP-1238 | BMP-1638 | BMP-2038 | BMP-2438 | |
40 x 69mm | BMP-1240 | BMP-1640 | BMP-2040 | BMP-2440 | BMP-3040 |
50 x 86mm | BMP-1250 | BMP-1650 | BMP-2050 | BMP-2450 | BMP-3050 |
60 x 104mm | BMP-1260 | BMP-1660 | BMP-2060 | BMP-2460 | BMP-3060 |
70 x 120mm | BMP-1270 | BMP-1670 | BMP-2070 | BMP-2470 | BMP-3070 |
76 x 131mm | BMP-1276 | BMP-1676 | BMP-2076 | BMP-2476 | BMP-3076 |
80 x 138mm | BMP-1280 | BMP-1680 | BMP-2080 | BMP-2480 | BMP-3080 |
90 x 154mm | BMP-1290 | BMP-1690 | BMP-2090 | BMP-2490 | BMP-3090 |
100 x 173mm | BMP-12100 | BMP-16100 | BMP-20100 | BMP-24100 | BMP-30100 |
120 x 206mm | BMP-12120 | BMP-16120 | BMP-20120 | BMP-24120 | BMP-30120 |
Material of Safety Mesh: Stainless steel 304,304L,316,306L etc.
SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0~18.0, Ni:12.0~15.0 |
Recommended Balustrade Infill Stainless Steel Wire Rope Safety Mesh:
Material | Cable Diameter | Hole Size | Normal Break |
SS304/316/316L | 1/16" (1.6MM) | 2.5" x 2.5" | 480 LBS |
SS304/316/316L | 1/16" (1.6MM) | 2" x 2" | 480 LBS |
SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
Photo Stainless Steel Wire Rope Safety Mesh

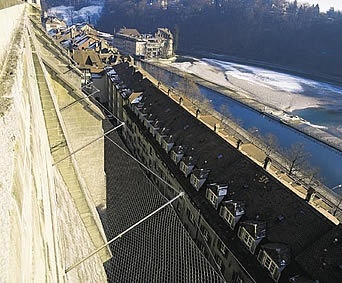

stainless steel wire rope safety mesh below a high building effectively catches self-slayers and small kids to save their lives.

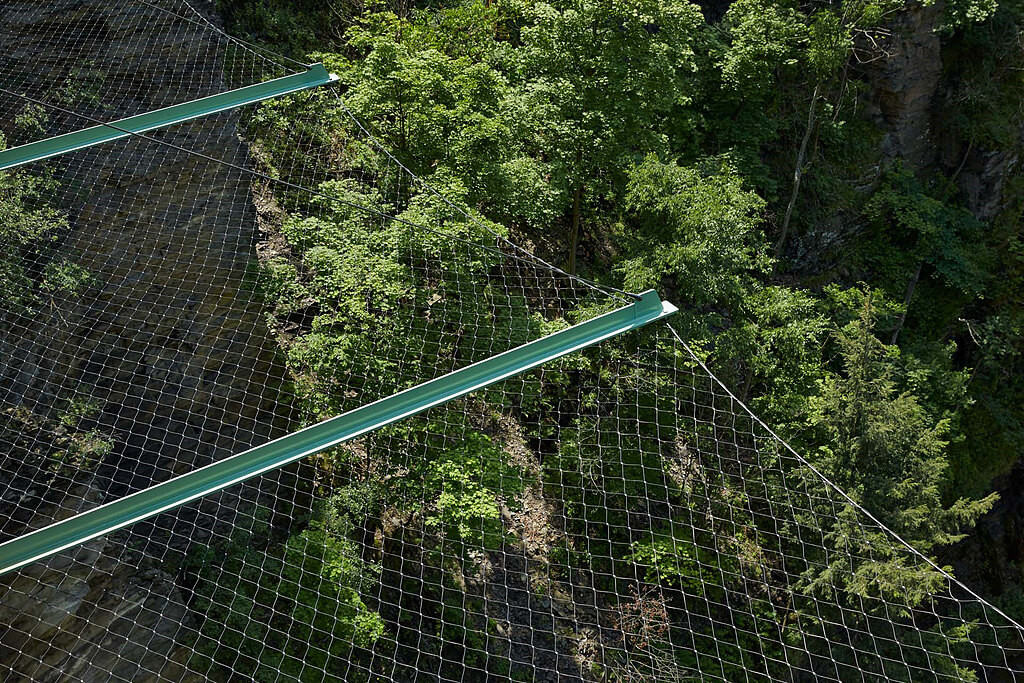

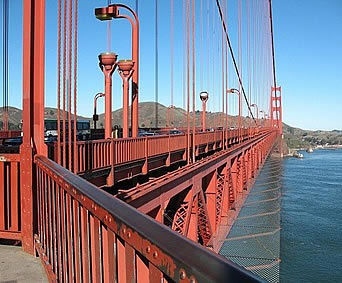

It can also use stainless steel safety nets below a bridge to minimize fall accidents for small kids and juveniles.

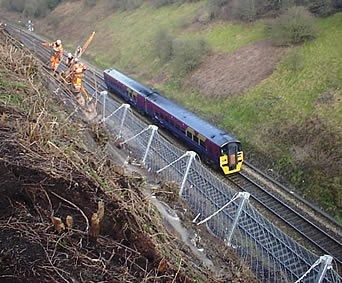

The stainless steel safety net is essential in preventing falling stones and rocks from damaging train tracks below.

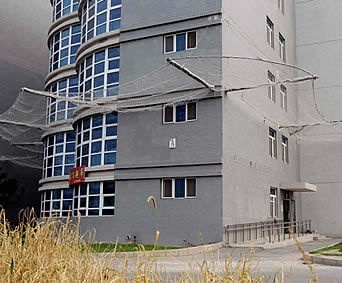

Stainless Steel Wire Rope Safety Mesh, mounted along with the teaching building, prevents falling objects from hurting students.
