Cable Mesh Netting
Cable Mesh Netting refers to a type of stainless steel cable mesh intended to restrict the activity places of animals. It is solid and flexible to absorb fierce impact energy - that is to say, it resists impacts from bad-tempered animals and avoids them being damaged simultaneously. Meanwhile, it has a smooth surface protecting animals' fur from being caught in the mesh. As most articles on zoo Cable Mesh Netting start, it is manufactured from two types of stainless steel mesh: knotted cable mesh and ferrule type cable mesh, as shown in the following picture:

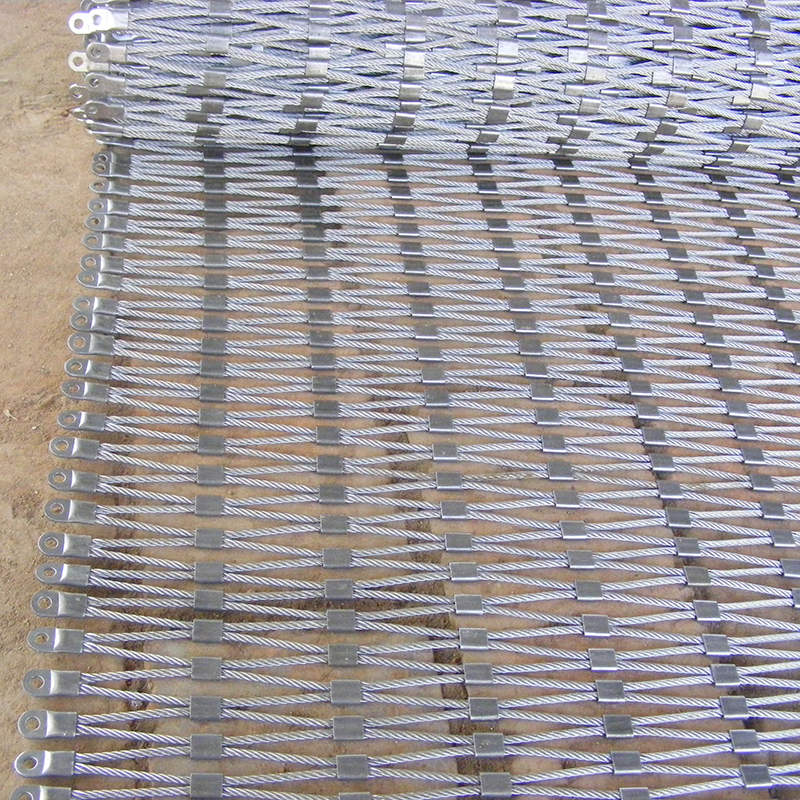

Ferrule-type Cable Mesh
These Cable Mesh Netting with diamond holes are incredibly transparent, which means the mesh permits good air circulation and lighting to let enclosed animals live at ease, even if they do not realise they are confined. In addition, they never lock visitors' sight and simultaneously keep them free of an animal attack. Most of all, Our Mesh Netting is strong enough to withstand chewing by rodents and other pests without affecting their health due to its non-toxic material. It suits for confining most animal species, whether it be small mammals, primates, tigers, pumas, leopards or large birds.
Our stainless steel flexible wire rope mesh netting range exhibits high strength, strong toughness, excellent corrosion resistance, lightweight structure, accessible transportation, and installation. Meanwhile, it allows for repeated use that enhances cost-efficient to the most significant extent.
Details of Cable Mesh Netting
-
Cable material: high-quality 304, 316 and 316L.
-
Cable diameter: 0.7 mm to 6 mm; thicker wire diameter is available to enclose large fierce animals.
-
Cable structure: 1 × 7, 7 × 7, 7 × 19, 1 × 19
-
Mesh size: 1" × 1", 5" × 5" or other mesh sizes based on the sizes and habits of enclosed animals.
-
Mesh type: knotted type mesh or ferrule type stainless steel cable mesh netting for zoo
Specification Cable Mesh Netting
Cable Wire Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | BMP-1235 | ||||
| 25 x 42mm | BMP-1225 | BMP-1625 | |||
| 30 x 52mm | BMP-1230 | BMP-1630 | BMP-2030 | ||
| 35 x 60mm | BMP-1235 | BMP-1635 | BMP-2035 | ||
| 38 x 66mm | BMP-1238 | BMP-1638 | BMP-2038 | BMP-2438 | |
| 40 x 69mm | BMP-1240 | BMP-1640 | BMP-2040 | BMP-2440 | BMP-3040 |
| 50 x 86mm | BMP-1250 | BMP-1650 | BMP-2050 | BMP-2450 | BMP-3050 |
| 60 x 104mm | BMP-1260 | BMP-1660 | BMP-2060 | BMP-2460 | BMP-3060 |
| 70 x 120mm | BMP-1270 | BMP-1670 | BMP-2070 | BMP-2470 | BMP-3070 |
| 76 x 131mm | BMP-1276 | BMP-1676 | BMP-2076 | BMP-2476 | BMP-3076 |
| 80 x 138mm | BMP-1280 | BMP-1680 | BMP-2080 | BMP-2480 | BMP-3080 |
| 90 x 154mm | BMP-1290 | BMP-1690 | BMP-2090 | BMP-2490 | BMP-3090 |
| 100 x 173mm | BMP-12100 | BMP-16100 | BMP-20100 | BMP-24100 | BMP-30100 |
| 120 x 206mm | BMP-12120 | BMP-16120 | BMP-20120 | BMP-24120 | BMP-30120 |
Material of Stainless Steel Zoo cable Wire Mesh Netting: Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Recommended Balustrade Infill Cable Mesh Netting:
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 1/16" (1.6MM) | 2.5" x 2.5" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 2" x 2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
Cable Mesh Netting, made of excellent quality stainless steel, is a fabric of specific durability and adaptability. Developed in 2000, it opens up a new globe of spatial possibility using cables. And also not question, it brushes up across the worldwide market promptly thanks to its high toughness, durability, and deterioration resistance.
BMP, one of the leading makers of Cable Mesh Netting in Asia, provides different cord mesh mostly in three styles: knotted cable television mesh, ferrule kind cable television mesh and square cable television mesh, as shown in the appropriate photo.
Both knotted and ferrule-kind Cable Mesh Netting rhombic attribute patterns; however, they are different in the combination method of wires. The cable televisions of the previous one are interwoven; on the other hand, the latter obtains its name for seamless ferrules for combining. As to square cable mesh, at least six kinds can be provided by our business to fit various requirements of your tasks. Typically, the knotted kind and clamp enter the right image and are much more invited by our clients.
Our Cable Mesh Netting is produced from high-tensile stainless-steel AISI 304, 304L, 316 or 316L. Meanwhile, these cable televisions are readily available in buildings of 7 × 7, 7 × 19 or 1 × 19 and have a diameter from 1mm to 4mm. Various other specifications can additionally be manufactured to match your design requirement.
