Stainless steel net mesh is made from premium AISI316 and 304 cable rope. Fit together aperture ranges from 10 mm to 200 mm or more significant, with wire rope thickness from 1.2 mm to 3.2 mm. Cable mesh, made of premium stainless steel, is a material of unquestionable durability and flexibility. Created in 2006, stainless steel net mesh opens up a new world of spatial possibility utilizing cords and no doubt that it sweeps across the global market promptly thanks to its high strength, longevity, and corrosion resistance.
Details stainless steel net mesh
stainless steel net mesh available a large of technical information changed you are welcome to contact us provide mesh aperture, rope diameter and materials
|
Material
|
SS304 , SS316
|
|
Rope Dia
|
1.2mm , 1.5mm , 1.6mm , 2.0mm ,
2.5mm ,3.0mm , 4.0 mm
|
|
Hole Size
|
30mm, 35mm , 35mm , 38mm , 40mm ,50mm , 60mm , 75mm , 100mm etc
|
|
Mesh Type
|
Seamless Ferruled & Clips Ferruled
|
|
Orientation
|
Horizontal & Vertical
|
|
Finished
|
PVC Coated, Black Oxide
|
as one of the leading suppliers of stainless steel net mesh in China, it provides multiple cable mesh primarily in 3 designs: knotted cable mesh, ferrule kind cable mesh and square cable mesh, as received the best picture. Both knotted and ferrule kind wire mesh feature rhombic patterns, but they are different in the combination way of cable televisions. The wires of the previous one are interwoven with each other; on the other hand, the last one gets its name for smooth ferrules for incorporation. As to square cable mesh, no less than six types can be supplied by our company to fit the different demands of your projects. Usually, the knotted and clamp types in the perfect photo are much more welcomed by our consumers.
|

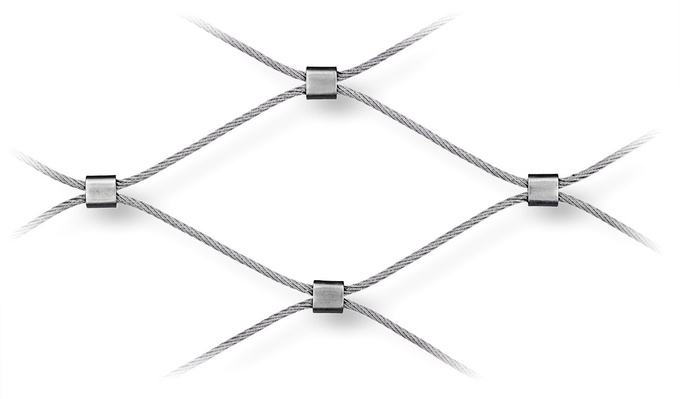

Ferruled Type |

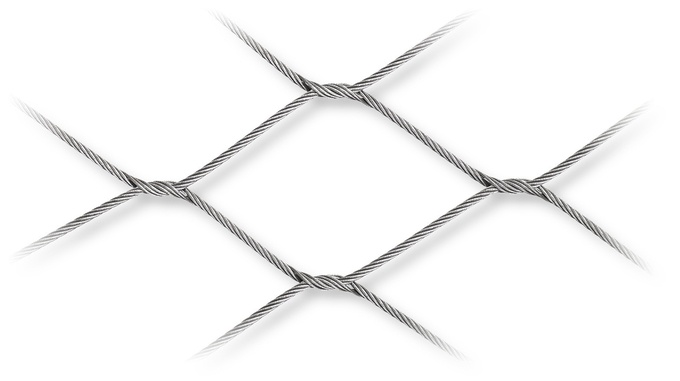

Knotted Type |
Specification

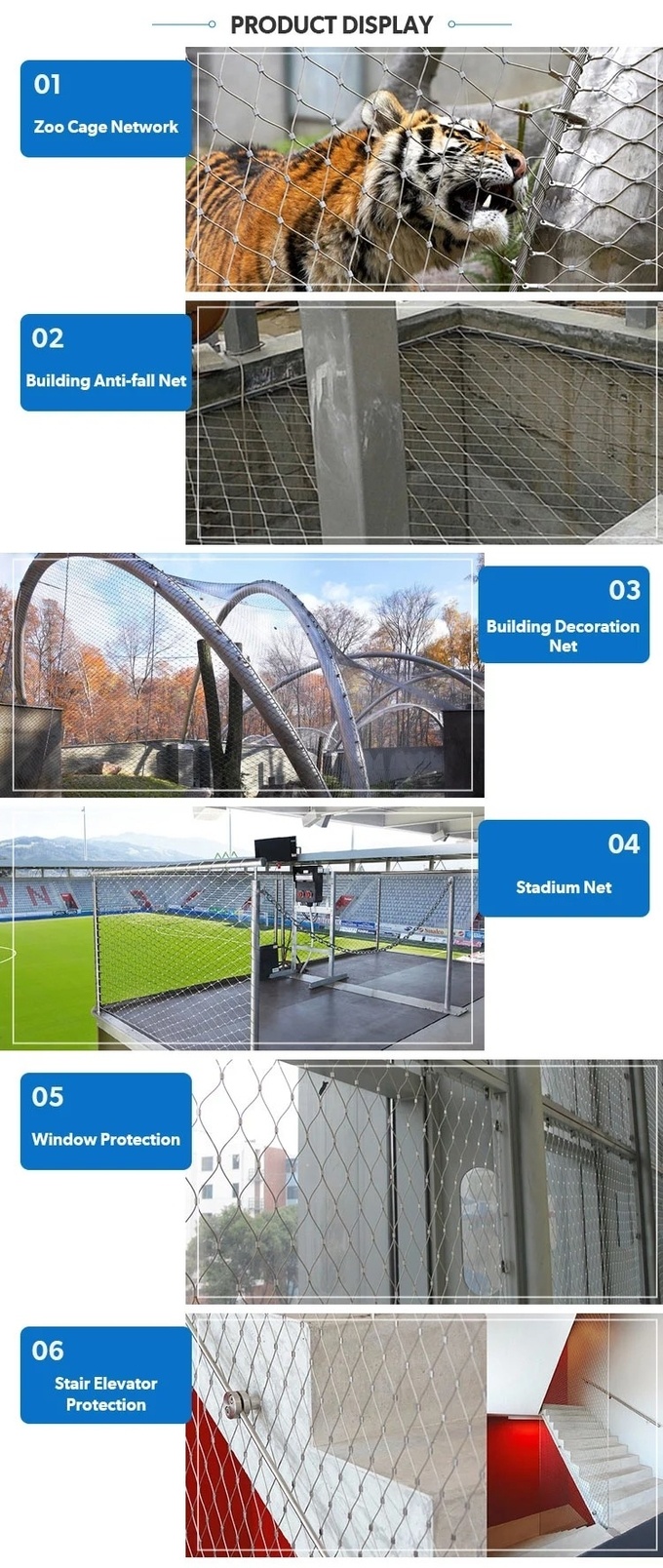

stainless steel net mesh is widely used in zoo mesh, stainless steel aviary mesh, green wall wire mesh, balustrade mesh and so on
Parameters
| Code | Wire rope construction | Cable diameter | Mesh opening size | Min. breaking load (lbs) | ||
| ZM-1 | 7 × 7 | 1/8" | 3.2 mm | 2" × 2." | 51 mm × 51 mm | 1600 |
| ZM-2 | 7 × 7 | 3/32" | 2.4 mm | 4" × 4." | 102 mm × 102 mm | 920 |
| ZM-3 | 7 × 7 | 3/32" | 2.4 mm | 3" × 3." | 76 mm × 76 mm | 920 |
| ZM-4 | 7 × 7 | 3/32" | 2.4 mm | 2" × 2." | 51 mm × 51 mm | 920 |
| ZM-5 |

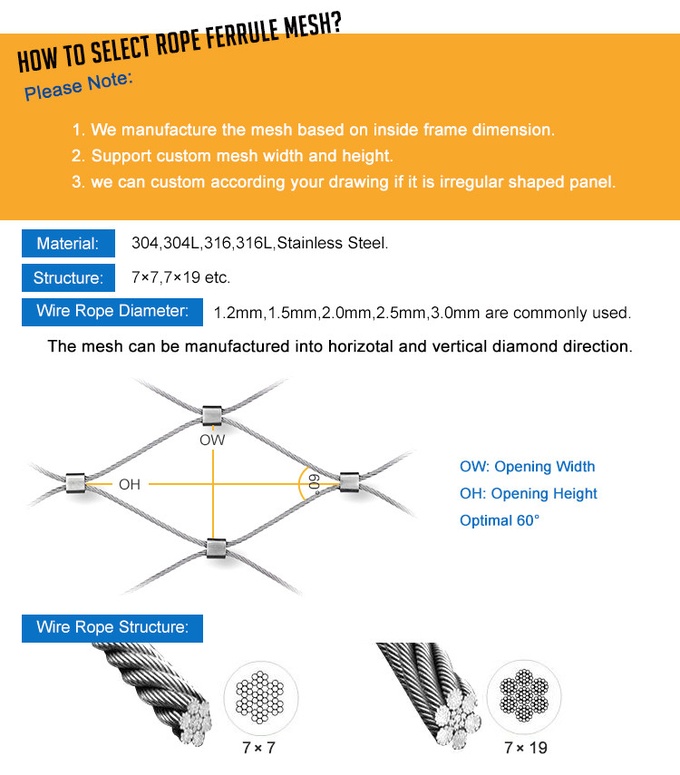

7 × 7-stainless steel net mesh for zoo recommended |
5/64" | 2.0 mm | 3" × 3" | 76 mm × 76 mm | 676 |
| ZM-6 | 7 × 7 | 5/64" | 2.0 mm | 2" × 2" | 51 mm × 51 mm | 676 |
| ZM-7 | 7 × 7 | 5/64" | 2.0 mm | 1.5" × 1.5" | 38 mm × 38 mm | 676 |
| ZM-8 | 7 × 7 | 1/16" | 1.6 mm | 3" × 3" | 76 mm × 76 mm | 504 |
| ZM-9 | 7 × 7 | 1/16" | 1.6 mm | 2" × 2" | 51 mm × 51 mm | 504 |
| ZM-10 | 7 × 7 | 1/16" | 1.6 mm | 1.5" × 1.5" | 38 mm × 38 mm | 504 |
| ZM-11 |
7 × 7-stainless steel net mesh for zoo recommended |
1/16" | 1.6 mm | 1" × 1" | 25 mm × 25 mm | 504 |
| ZM-12 | 7 × 7 | 3/64" | 1.2 mm | 2" × 2" | 51 mm × 51 mm | 306 |
| ZM-13 | 7 × 7 | 3/64" | 1.2 mm | 1.5" × 1.5" | 38 mm × 38 mm | 306 |
| ZM-14 | 7 × 7 | 3/64" | 1.2 mm | 1" × 1" | 25 mm × 25 mm | 306 |
| ZM-15 | 7 × 7 | 3/64" | 1.2 mm | 4/5" × 4/5" | 20 mm × 20 mm | 306 |
| ZM-16 | 7 × 19 | 1/8" | 3.2 mm | 4" × 4" | 102 mm × 102 mm | 1600 |
| ZM-17 | 7 × 19 | 1/8" | 3.2 mm | 3" × 3" | 76 mm × 76 mm | 1600 |
| ZM-18 | 7 × 19 | 1/8" | 3.2 mm | 2" × 2" | 51 mm × 51 mm | 1600 |
