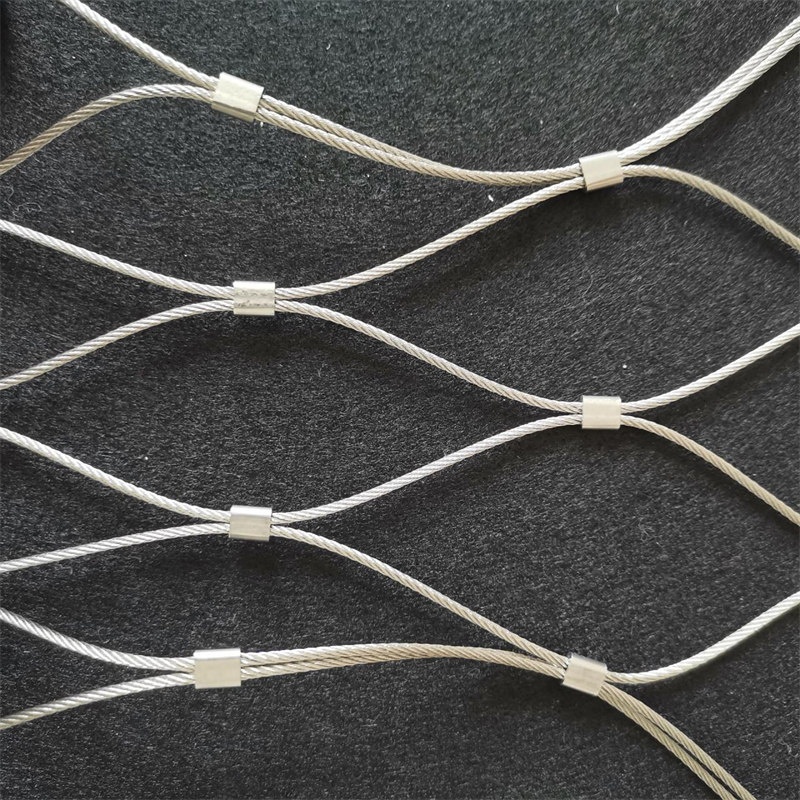

Stainless Steel Decorative Wire Mesh Rope Netting
Architectural decorative wire rope mesh brings infinite inspiration and gives more possibilities for architectural design. Widely used in a variety of interior and outdoor decoration. The stainless steel decorative wire mesh is rust-free, durable, and requires the lowest maintenance costs compared to other materials. In addition, the stainless steel decorative wire rope mesh is flexible, easy to shape and cut. It is widely used in building facades, room partitions, ceiling, sunshade, balcony and corridor, column decoration, leaf windows, stair passageways, etc.
- Architectural and decorative wire rope mesh features Rust resistance and corrosion resistance.
- High-quality stainless steel wire rope mesh material, corrosion resistance, and corrosion are ideal for exterior decoration.
- The flexibility of this product Grid dimensions and overall dimensions can be adjusted according to different environments.
- Service life is up to 50 years without any maintenance.
-
Aesthetic appeal Combined with a wide variety of designs, you can achieve an infinite decorative aesthetic effect.

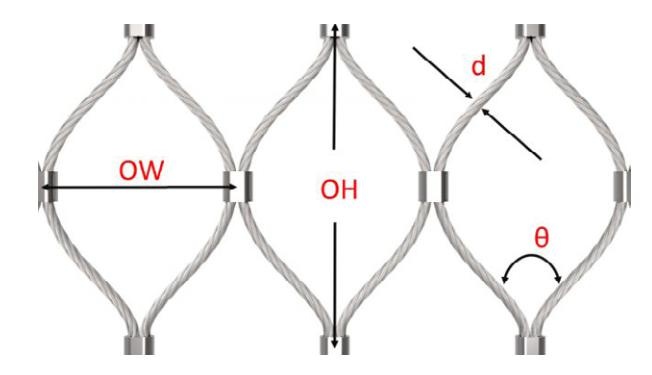

For measuring purposes, the ferruled mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.
- OW = Opening Width
- OH = Opening Height
- d = Cable Diameter
- θ = 60° Angle
Cable diameter | Mesh opening size | Nominal break | ||
inch | mm | inch | mm | lbs. |
1/8 | 3.2 | 2×2 | 51×51 | 1600 |
3/32 | 2.4 | 3×3 | 76×76 | 920 |
3/32 | 2.4 | 2×2 | 51×51 | 920 |
5/64 | 2.0 | 2×2 | 51×51 | 676 |
5/64 | 2.0 | 1-1/2x 1-1/2 | 38×38 | 676 |
1/16 | 1.6 | 1-1/2x 1-1/2 | 38×38 | 480 |
1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
3/64 | 1.2 | 1-1/2x 1-1/2 | 38×38 | 270 |
3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
