The barriers are composed of pedestrian Barriers and barrier bases, which are welded or bolted to the barrier. Our crowd control barriers are manufactured with fixed, flat, or bridge bases.
Specification pedestrian Barriers
Specification of Crowd Control Barrier | |||||
Pedestrian Barriers Frame | Infilled Pipe | Pane Width | Panel Height | Foot | Surface Treatment |
32x1.2/1.5/2.0mm 38x1.2/1.5/2.0mm 42x1.2/1.5/2.0mm 48x1.2/1.5/2.0mm |
12x0.7mm 14x1.0mm 16x1.0mm 20x1.2mm 25x1.2mm |
2.0m 2.1m 2.2m 2.4m 2.5m |
1.1m 1.25m 1.5m |
welded on the frame or removable |
hot dipped galvanized, galvanized + powder coated |

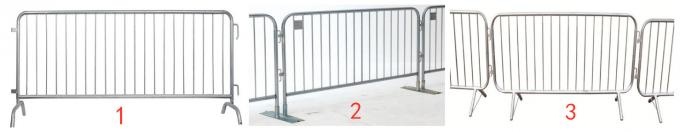

bridge foot
The bridge foot provides the best resistance, obstructing and diverting the crowd well. Therefore, if you have a parade, a rally or a concert, the sports events plan and choose Crowd control barriers - bridge foot can completely meet your needs.
flat-style foot
Pedestrian Barriers with a flat-style foot are the best choice for good planning of people and traffic behaviour in places or public places where special events happen.
The flat-foot design can reduce the risk of tripping pedestrians. Vehicle tires are easy to roll on their feet without damaging the roadblocks.
The flat foot distributes weight evenly, and rubber grommets are added; the provider is two holes; each screw can be fixed on the ground with screws.
V type foot
The stents make the whole system more stable and able to bear more weight. The product is more convenient to move, and the packaging is more straightforward. V foot pedestrian barriers can be quickly combined into a solid isolation belt to form an effective crowd control barrier.

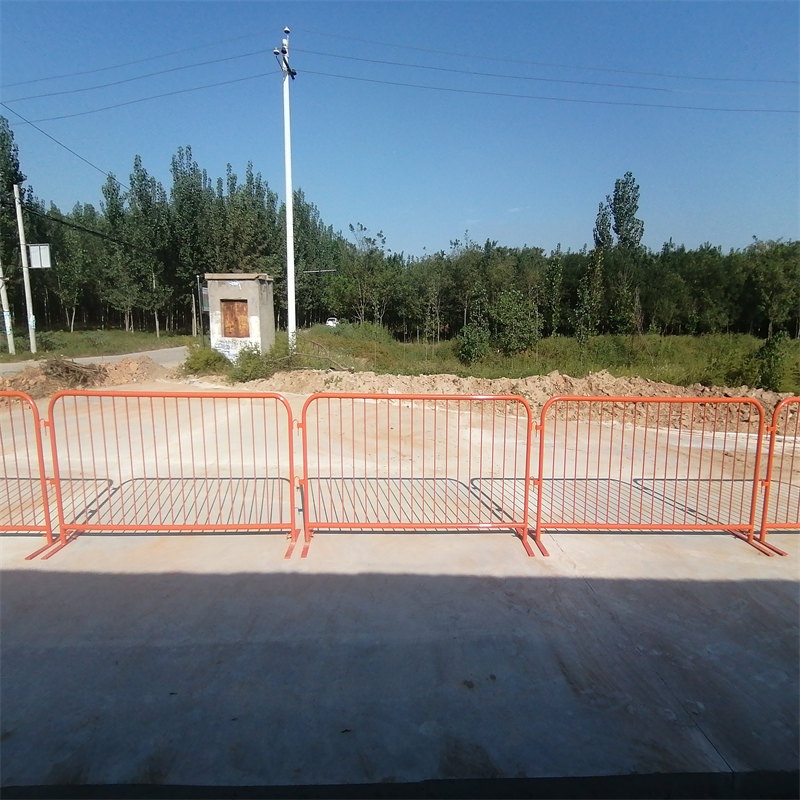

Application Pedestrian Barriers
A pedestrian barrier, also known as a crowd control barrier, is effective crowd control and site demarcation product extensively used in public areas, such as events, sports venues, public rallies, demonstrations, outdoor festivals, and concerts.
