WHAT IS ZOO MESH?
A Zoo mesh is a system surrounded by a fence or a wall surface. It is utilized for displaying animals to the general public, Normally used in zoos (briefly for zoological gardens or zoological parks) and additionally called a pet park or supervisor. And we supply many products, such as weld mesh, stainless-steel rope mesh, chain link fences, hexagonal wire mesh, crimped cord mesh and more.
Kinds of Zoo mesh
Kinds of Zoo mesh consisted of stainless steel rope mesh, stainless steel rope mesh, weld mesh, crimped cord mesh, chain link mesh, and chicken cord mesh.
First, the stainless steel cord rope mesh zoo unit comprises stainless-steel rope fencing and a sustaining structure.
Second Of All, the Weld Mesh unit, particularly the stainless-steel weld mesh, due to the measurement, is not just adaptable but usually pieced together.
Third, a Wire mesh fence is an adaptable layout. The Mesh can be customized depending on your preferred dimension, generally used in zoo mesh and commercial structures.
Fourth, The hexagonal cable mesh is generally utilized in bird aviary wire mesh from 1" to 3", such as in chicken-sized birds.
5th, Crimped Cable Mesh is woven from high-quality stainless steel or galvanized cable. Afterwards, be a zoo mesh.

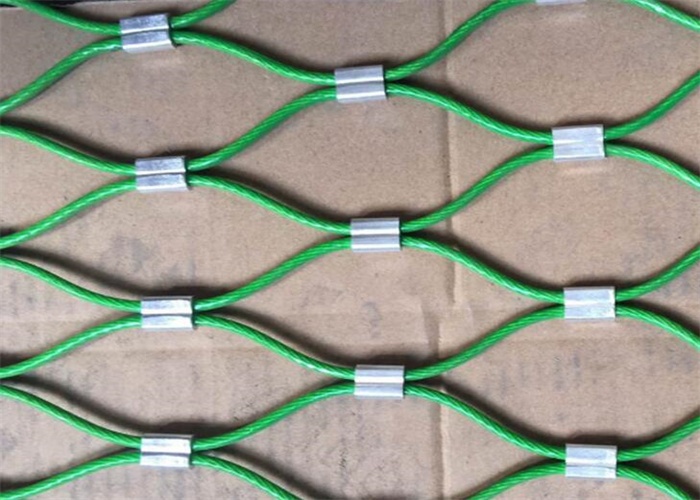

Stainless-steel Rope Zoo Mesh
Zoo mesh, likewise called stainless steel animal wire mesh and stainless steel wire rope fencing. It is constructed from premium stainless-steel cord rope. High tensile stamina, an effortless layer, resistance to UV rays, a lengthy life expectancy in severe settings, and anti-rust and anti-corrosion. So widely chosen by many clients.
Type of Zoo Mesh
|
The stainless steel ferrule rope zoo mesh has the same physical residential properties as the bound MMesh the only difference is in the mix style; the stainless wire rope is integrated with the ferrules, which are made of the same grade of stainless steel. |
Stainless steel knotted rope mesh is a plain weave; each warp cord rope goes across alternately above and below each weft cable rope. Warp and also weft cable ropes usually have the very same size. |
|
|
|
Production Video
|

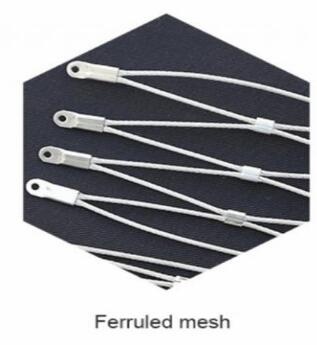

Ferrule rope mesh |

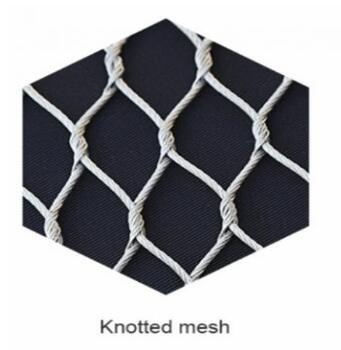

Inter-woven knotted cable mesh |
|
|
Cost Price
The zoo mesh rate ranges from $7 - $100 per square meter to $0.68 - $9.3 per square foot, and numerous factors affect the zoo mesh cost.
1. Fit Together Aperture Size; under the specific problem of the same wire diameter; the large mesh aperture wire rope mesh is constantly less costly than a smaller mesh aperture; as an example, a cord diameter of 1.20 mm as well as a Mesh aperture of 50mmx50mm is a lot more pricey than 1.20 mm cable diameter 60mmx60mm no mater ferrule mesh or bound inter-woven wire rope mesh,
2. Wire Gauge Dimension, on the premise of the very same mesh aperture, the smaller mesh Opening constantly costs you even more money than the larger mesh aperture stainless-steel wire mesh; for example, a Mesh aperture of 50mmx50mm one stainless steel wire mesh with 1.20 mm diameter and also an additional one 1.50 mm the 1.50 mm zoo mesh cost is high 1.20 mm.
3. Weaving types, on the same problems of wire gauge and also mesh aperture; stainless-steel knotted rope mesh (inter-woven wire rope mesh) rate is more significant than ferrule kinds rope mesh since the knotted Mesh is simply hand woven by women while ferrule rope mesh has a substantial component was finished by the maker.
4. Surface area therapy; black oxide zoo mesh and also vinyl-coated one is more pricey than the without layered primary stainless-steel rope mesh on the condition of very same mesh aperture and cable size and also weaving types.
5. Materials 316 are much more pricey than 304 products on the specific problem over 4 points.
Surface Treatment Zoo Mesh
| Primary Without Treatment |
Black Oxide Treatment |
Vinyl Coated |
|
|
|
|
QUICK DETAIL
Stainless-steel zoo mesh, Zoo stainless wire cord
Call: hand-woven stainless-steel cable rope mesh
Likewise referred to as stainless steel wire internet, stainless steel cord web, stainless steel rope web, steel cord rope internet, zoo mesh, hands-on stainless steel net
Fit together material: stainless-steel 304/ 316
Cord as well as cord diameter: 3.18 mm (1/ 8 ″), 3.0 mm, 3/ 32 ″ (2.4 mm), 1/ 16 ″ (1.6 mm), 1.5 mm, 3/ 64 ″ (1.2 mm).
Steel cable rope framework: 1/ 8 "and 3.0 mm-- 7 × 19； All others-- 7 × 7.
Harmonize size: 12.7 mm x 12.7 mm (1/ 2 "x 1/ 2"), 4/ 5 "x 4/ 5" (20mm x 20mm), 1 "x 1" (25mm x 25mm), 30mm x 30mm, 1-1/ 2 "x 1-1/ 2" (38mm x 38mm), 40mm x 40mm, 2 "x 2" (51mm x 51mm), 60mm x 60mm, 3 "x 3" (76mm x 76mm), 80mm x 80mm, 90mm x 90mm, 4 "x 120mm and also 102mm.
Fit together colour: natural/ Meshk/ Bronze.
Craft: hand-made as well as intertwined.
Makes use of Zoo internet, animal fencing internet, pet containment web, fencing web, bird net, sporting activities internet, climbing internet, etc.
DESCRIPTION OF ZOO MESH.
Stainless steel rope Stainless Steel Cord Rope Zoo Mesh is necessary for applying the zoo Stainless-steel Cable Rope Zoo Mesh. It has always been the best choice for zoo mesh and animal fences. It eliminated the restrictions on pets living in traditional cages and produced a much more harmonious partnership between males and nature. The stainless-steel zoo mesh creates a comfortable pet environment and safeguards visitors safely while stopping pet injuries. Stainless-steel zoo mesh offers exceptional visibility, which creates marginal visual impairment. It removes aesthetic barriers from fencing between people and animals, allowing visitors to better watch the animals from different angles.
Most importantly, the high-strength stainless-steel cable mesh enables it to stand up to the big impact of pet influences. This keeps visitors and animals risk-free, specifically when facing strong pets like tigers, lions, bears, and leopards. So visitors don't need to bother getting hurt in close contact with charming animals. At the same time, the stainless-steel zoo fence reveals vigorous stretching, flexibility, and cushioning to safeguard animals from damage.
Specification

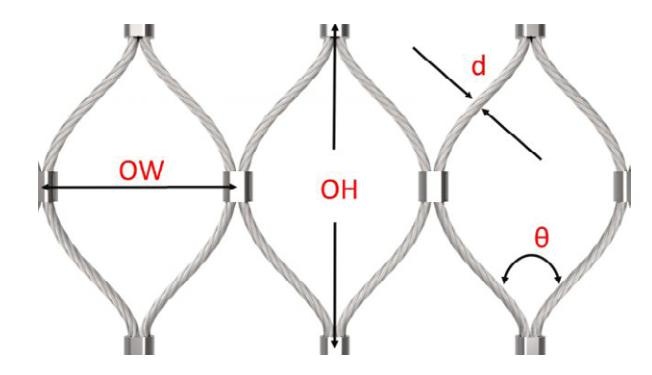

Stainless steel rope mesh, used as a zoo rope mesh for measuring purposes, the ferruled Mesh is assumed to be stretched to create a 60°angle at the top and bottom of the diamond.
- OW = Opening Width
- OH = Opening Height
- d = Cable Diameter
- θ = 60° Angle
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 2×2 | 51×51 | 1600 |
| 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| 5/64 | 2.0 | 2×2 | 51×51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38×38 | 676 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38×38 | 480 |
| 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38×38 | 270 |
| 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
Application Stainless Steel Rope Zoo Mesh
- 1. Aviary Mesh
- 2. Enclosure mesh
- 3. Zoo bird netting
- 4. Parrot mesh
- 5. safety net
- 6. safety on bridge, suspension bridge
- 7. protect the use of fence
- 8. Bird, animal etc.
Weld Wire Zoo Mesh
Stainless steel welded zoo mesh is made of high-quality stainless steel 316, SS316L, and SS304L and welded by high-quality, low-carbon steel wire; the material of this kind of wire is high-quality hot-rolled wire. The primary process is pickling, galvanizing and cold drawing, and the surface of this Mesh is very bright. Electro-galvanized wire mesh generally has a 15g/m2 zinc layer; the welded joints are solid, with solid anti-corrosion and anti-oxidation functions. High tensile strength, surface treatment, acid and alkali resistance, usually used in an external wall insulation system, concrete pouring, poultry breeding, petroleum, chemical, industrial, construction, tourism, mining, machinery and export. The weld mesh aviary panels were widely used in many zoo projects, such as bird cage mesh.
| Opening | Wire Diameter | |
| In inch bird cage wire | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |

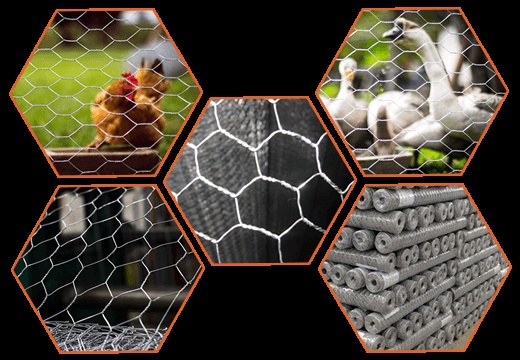

Hexagonal Zoo Wire Mesh
Chicken zoo wire mesh is a light task zoo cable mesh made of thin galvanized steel wire or PVC-covered cable with hexagonal gaps. In the zoo, poultry mesh is usually used to house peacocks, tiny lovebirds, cockatiels, budgies, and parakeets. Our poultry zoo mesh can be found in numerous sizes ranging from 1 inch to 2 inches and 3/4 inch and cable, determined from 16 gauge to 27 gauge. The hexagonal netting can be extended a little to fit the size.
Specification
| Hexagonal Wire Netting Specification | |||
| Mesh Size | Wire Diameter | Width & Length | |
| 3/8" | 9.52mm | 0.42mm - 0.50mm |
Width: 0.5m-1.8m Length: 25m, 30m Other sizes of Hexagonal bird cage wire zoo mesh can be made as per the customer's request |
| 1/2" | 12.7mm | 0.38mm - 0.80mm | |
| 5/8" | 16mm | 0.38mm - 1.0mm | |
| 3/4" | 19mm | 0.38mm - 1.2mm | |
| 1" | 25.4mm | 0.38mm - 1.2mm | |
| 5/4" | 31mm | 0.55mm - 1.2mm | |
| 3/2" | 38.1mm | 0.55mm - 1.4mm | |
| 2" | 50.8mm | 0.55mm - 1.5mm | |
| 3" | 76.2mm | 0.65mm - 1.5mm | |
| 4" | 101.6mm | 1.2mm - 2.0mm | |
Hot Sales Hexagonal Zoo Wire Mesh
A few meters of 5 to 10 m hen wire mesh 3/4" fit together, opening up 10 mm, 24 scales, 2 m elevation for building up a residence in the backyard for your poultry.
Chicken cord mesh, a piece 3 ft × 4 feet to do kitchen cabinet, 20 mm Mesh opening, 19 scales and 2 m height.
1.5" fit together with an opening, 11 wire scale, 4 m size and 25 m size for raising chicken.
Galvanized poultry cable with 1/2 inch openings, 25 gauge, 2 m large and 15 m size for poultry room.
Chicken cable mesh, light obligation, 1" mesh opening, 19 scales with 2 m elevation.
To maintain moles from consuming your garden. Holes in the Mesh can be less than 1 inch in diameter, 2 rolls 36 inches × 50 ft.
1/2 inch aviary wire in hexagonal wire mesh format
Chain Link Wire Zoo Mesh
Chain link zoo mesh is woven fencing of galvanized or PVC-coated steel cables to minimize corrosion and also corrosion. The cables run vertically and are curved into a zig-zag pattern forming a diamond aperture. Of its resilience, low cost, much less maintenance, and safety, chain link fence has been an important participant of zoo wire mesh. Our wire mesh fence is made by heavy steel cord, comparable to a welded mesh panel or steel rope mesh. Besides creating zoo units for tigers, leopards and lions, chain web link cable mesh is much more prominent as protection fencing for property, commercial and jail systems.
Why is chain-link bird cage wire as famous as zoo mesh?
Low cost. A chain-link fence is an affordable option to steel rope or welded panel fencing. When the amount of fencing is needed, the cost minimized will undoubtedly be substantial.
Toughness. Thick zinc or PVC coating provides excellent resistance against rainfall, snow, and frost.
Security. A smooth surface will certainly not hurt the animal or the visitors.
Easy instalment and also brief task time.
Specification
|
Chain Mesh bird cage wire Specifications |
|
| Fence Height: | 5ft, 6ft, 8ft, etc. (1.5m, 1.8m, 2.0m, 2.4m, etc.) |
| Fence Length: | 9m, 12m, 15m, 20m, 30m |
| Wire Thickness: | 2.5mm, 3.0mm, 3.15mm, 3.5mm, 4.0mm |
| Opening size Types of bird cage wire : | 25x25mm, 50x50mm, 75x75mm, 80x80mm |
Stainless Steel Crimped Wire Mesh For Zoo
Our Stainless Steel Crimped Wire Mesh Can Be a zoo mesh Materials are stainless steel wire 201, 301, 302, 304, 304L, 316, 316LFeatures of the finished product: heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance, comprehensive structure. Braiding is characterized by rolling before braiding, bi-directional bending, wave separation bending and unidirectional bending.
| Wire Diameter (mm) | Aperture (mm) | Mesh | Length (M) | Weight (Kg) |
| 4.00 | 40 | 0.58 | 30 | 142 |
| 4.00 | 30 | 0.75 | 30 | 182 |
| 4.00 | 25 | 0.87 | 30 | 213 |
| 3.2 | 25 | 0.87 | 30 | 141 |
| 3.2 | 20 | 1.1 | 30 | 169 |
| 2.6 | 20 | 1.12 | 30 | 116 |
| 2.6 | 18 | 1.23 | 30 | 127 |
| 2.6 | 15 | 1.44 | 30 | 173 |
| 2.0 | 15 | 1.49 | 30 | 92 |
| 2.0 | 12 | 1.8 | 30 | 110 |
| 2.0 | 10 | 2.12 | 30 | 127 |
| 2.0 | 8 | 2.54 | 30 | 155 |
| 1.8 | 7 | 3 | 30 | 149 |
