Stainless steel rope mesh ferrule is a type of mesh made from stainless steel cables and ferrule connectors. The ferrule connectors are used to secure the cables in place and create a grid pattern. The resulting mesh is strong, durable, and resistant to corrosion, making it ideal for a variety of applications, including architectural, safety, and decorative purposes.
The mesh is commonly used in building facades, animal enclosures, green walls, and safety barriers. It can also be used in zoos, aquariums, and other areas where a strong and durable mesh is required.
Stainless steel rope mesh ferrule is available in a variety of sizes and configurations, making it easy to customize for specific applications. The mesh is typically made from high-quality stainless steel, such as 316 or 316L, which provides excellent resistance to corrosion and other forms of damage.
Overall, stainless steel rope mesh ferrule is a versatile and reliable option for a wide range of applications that require a strong and durable mesh material.
Stainless steel rope mesh is a versatile material that has a wide range of applications, from architectural and decorative purposes to protective and safety applications. The high-quality stainless steel wire rope used in its manufacturing provides excellent durability, strength, and flexibility.
About Us
Moreover, the fact that BOSS METAL Mesh has obtained CE and ROHS certificates is a great indicator of the quality and safety of our products. The CE certificate is a mandatory conformity mark for products sold within the European Economic Area, indicating that the product meets certain health, safety, and environmental protection standards. The ROHS certificate, on the other hand, confirms that the product is free from hazardous substances, making it safe for human health and the environment.
BOSS METAL Mesh's Stainless Steel Rope Mesh Ferrule is a reliable and high-performing product that can meet the needs of various industries and applications.
Porduction Standard
AISI 316 stainless steel, Complied with EN1.4401, is a high-quality grade of stainless steel that is widely used in marine and corrosive environments. It has excellent resistance to corrosion and oxidation, making it ideal for applications where the material will be exposed to harsh conditions.
The OW and OH refer to the opening width and opening height of the mesh, respectively. These dimensions can vary depending on the specific application and customer requirements. The Stainless Steel Rope Mesh Ferrule is likely available in various sizes and configurations to meet the needs of different projects and installations.
Overall, the use of high-quality materials and attention to detail in the product's design and manufacturing suggest that the Stainless Steel Rope Mesh Ferrule is a durable and reliable product that can provide excellent performance in various settings.
specifications for the Stainless Steel Rope Mesh Ferrule:
-
Material: The Stainless Steel Rope Mesh Ferrule is made from high-quality AISI 316 stainless steel, also known as EN1.4401. This material is known for its excellent resistance to corrosion and oxidation, making it ideal for use in harsh environments.
-
Rope diameter: The mesh is available in four different rope diameters: 1.0 mm, 1.5 mm, 2.0 mm, and 3.0 mm. The choice of rope diameter will depend on the specific application and the required strength of the mesh.
-
Rope structure: The rope structure for the Stainless Steel Rope Mesh Ferrule is 7 x 7, which means it is made up of seven strands, each consisting of seven individual wires. This construction provides good strength and flexibility.
-
Test break loading: This specification refers to the maximum load that the mesh can withstand before it breaks. The test break loading varies depending on the rope diameter, with the 3.0 mm diameter mesh being the strongest, with a test break loading of 700 KG.
-
Mesh: The mesh is described by its opening width (OW) and opening height (OH) in millimeters, along with the stainless steel wire rope ferrule mesh designation (CD). The mesh is available in a range of different sizes, from 20 x 35 to 200 x 350, and with rope diameters ranging from 1.0 mm to 3.0 mm. The mesh is designed to be extremely durable and long-lasting, with excellent resistance to corrosion and UV rays. It is ideal for use in a wide range of applications, including animal enclosures, architectural facades, and safety barriers.
Technical Informations
Rope diameter | 1.0 mm | 1.5 mm | 2.0 mm | 3.0 mm |
Rope Structure | 7 x 7 | same | ||
Test Break Loading | 81 KG | 168KG | 290 KG | 700 KG |
Mesh | Rope Diameter | |||
OW X OH | 1.0 mm | 1.5 mm | 2.0 mm | 3.0 mm |
20 x 35 | CD1020 | |||
25 x 45 | CD1025 | CD1525 | ||
30 x 52 | CD1030 | CD1535 | ||
35 x 61 | CD1035 | CD1535 | CD2035 | |
40 x 70 | CD1040 | CD1540 | CD2040 | CD3040 |
50 x 90 | CD1050 | CD1550 | CD2050 | CD3050 |
60 x 105 | CD1060 | CD1560 | CD2060 | CD3060 |
70 x 120 | CD1070 | CD1570 | CD2070 | CD3070 |
80 x 140 | CD1080 | CD1580 | CD2080 | CD3080 |
100 x 175 | CD10100 | CD15100 | CD20100 | CD30100 |
120 x 210 | CD10120 | CD15120 | CD20120 | CD30120 |
160 x 280 | CD10160 | CD15160 | CD20160 | CD30160 |
180 x 315 | CD10180 | CD15180 | CD20180 | CD30180 |
200 x 350 | CD10200 | CD15200 | CD20200 | CD30200 |
Stainless Steel Rope Mesh Ferrule has a wide range of applications and advantages. Here are some of them:

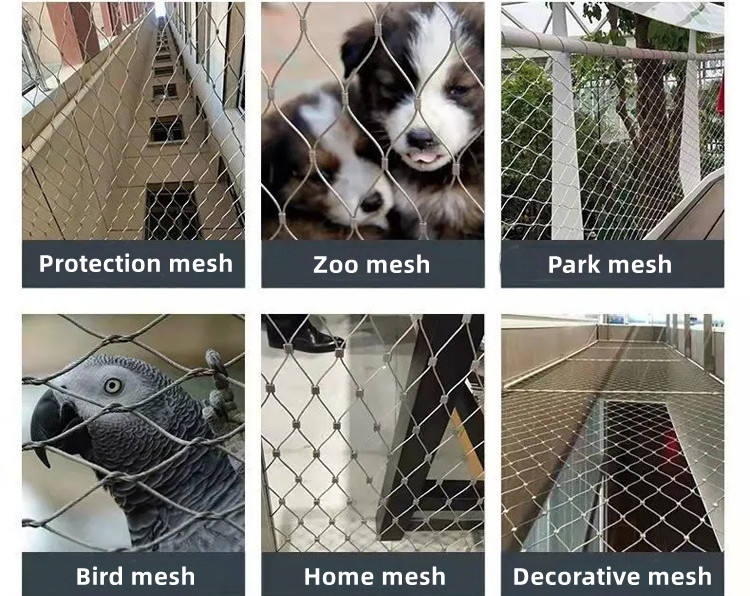

Applications:
-

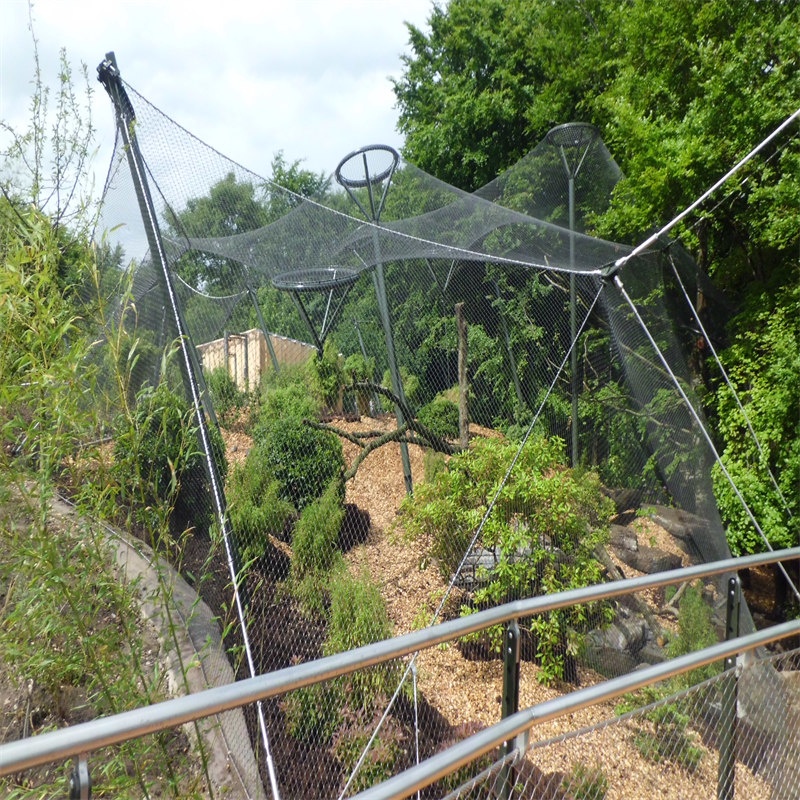

Animal enclosures: The mesh can be used to create enclosures for birds, primates, and other animals in zoos, parks, and other outdoor spaces. It allows for excellent visibility and air flow, while also providing a secure barrier to prevent escapes.
-
Architectural facades: The mesh can be used as a decorative element in building facades, providing a unique and modern look. It can also be used as sun shading, privacy screening, and noise reduction.
-
Safety barriers: The mesh can be used as a safety barrier on bridges, walkways, and other elevated structures. It is strong and durable, and its flexibility allows it to absorb impact energy, making it an ideal solution for preventing falls.
-
Green wall trellises: The mesh can be used as a support structure for climbing plants, creating a beautiful green wall effect.
Advantages:
-
Corrosion resistance: The Stainless Steel Rope Mesh Ferrule is made from high-quality stainless steel that is resistant to corrosion, making it ideal for use in outdoor environments.
-
UV resistance: The mesh is also resistant to UV rays, which can cause other materials to degrade and lose strength over time.
-
Flexibility: The mesh is flexible and can be easily installed on curved or irregular surfaces, making it a versatile solution for a wide range of applications.
-
Transparency: The mesh is transparent, allowing for excellent visibility and air flow. This makes it ideal for applications where unobstructed views are important.
-
Durability: The mesh is designed to be extremely durable and long-lasting, even in harsh environments. It is resistant to damage from impact and abrasion, and it requires little maintenance.

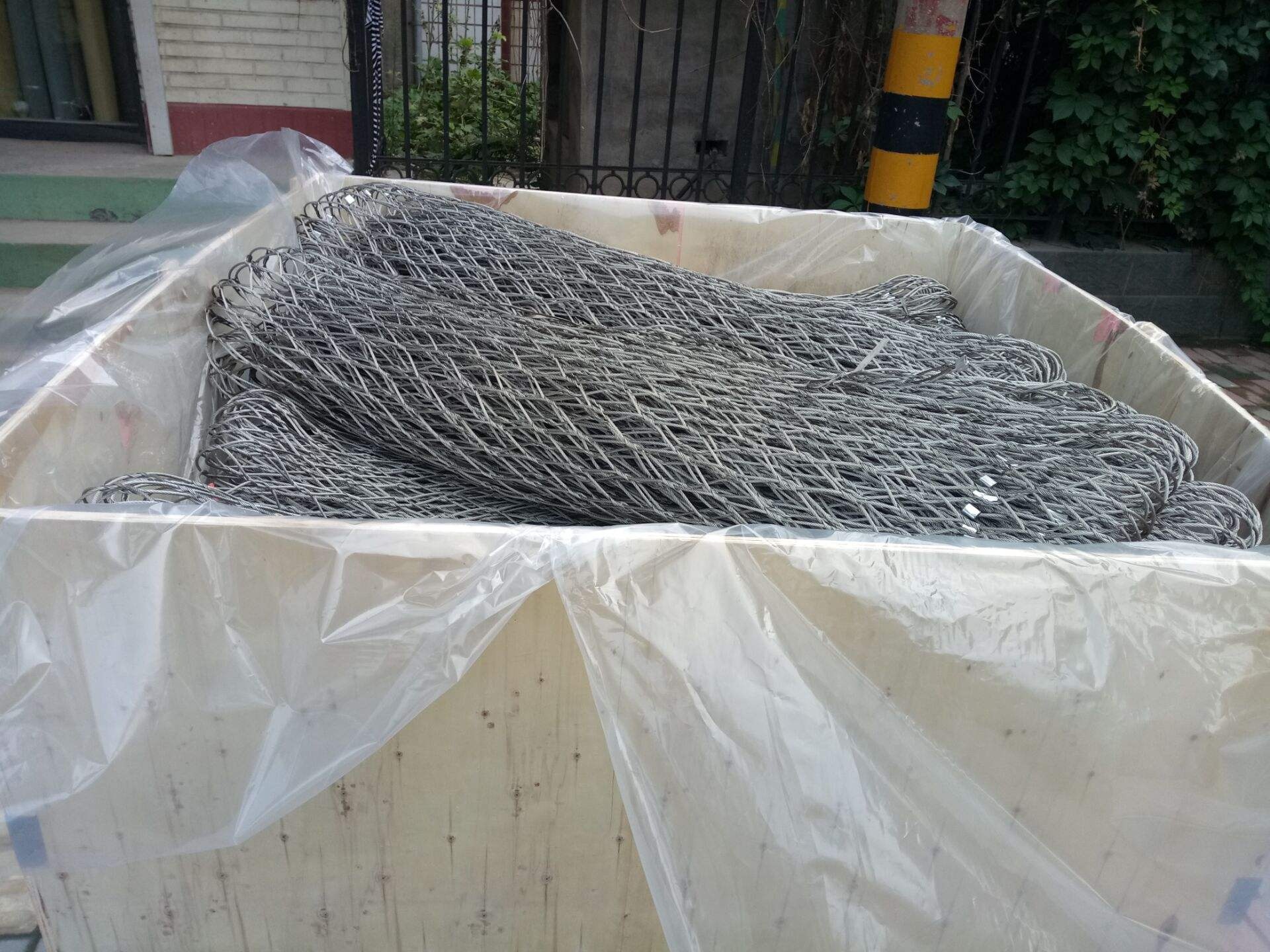

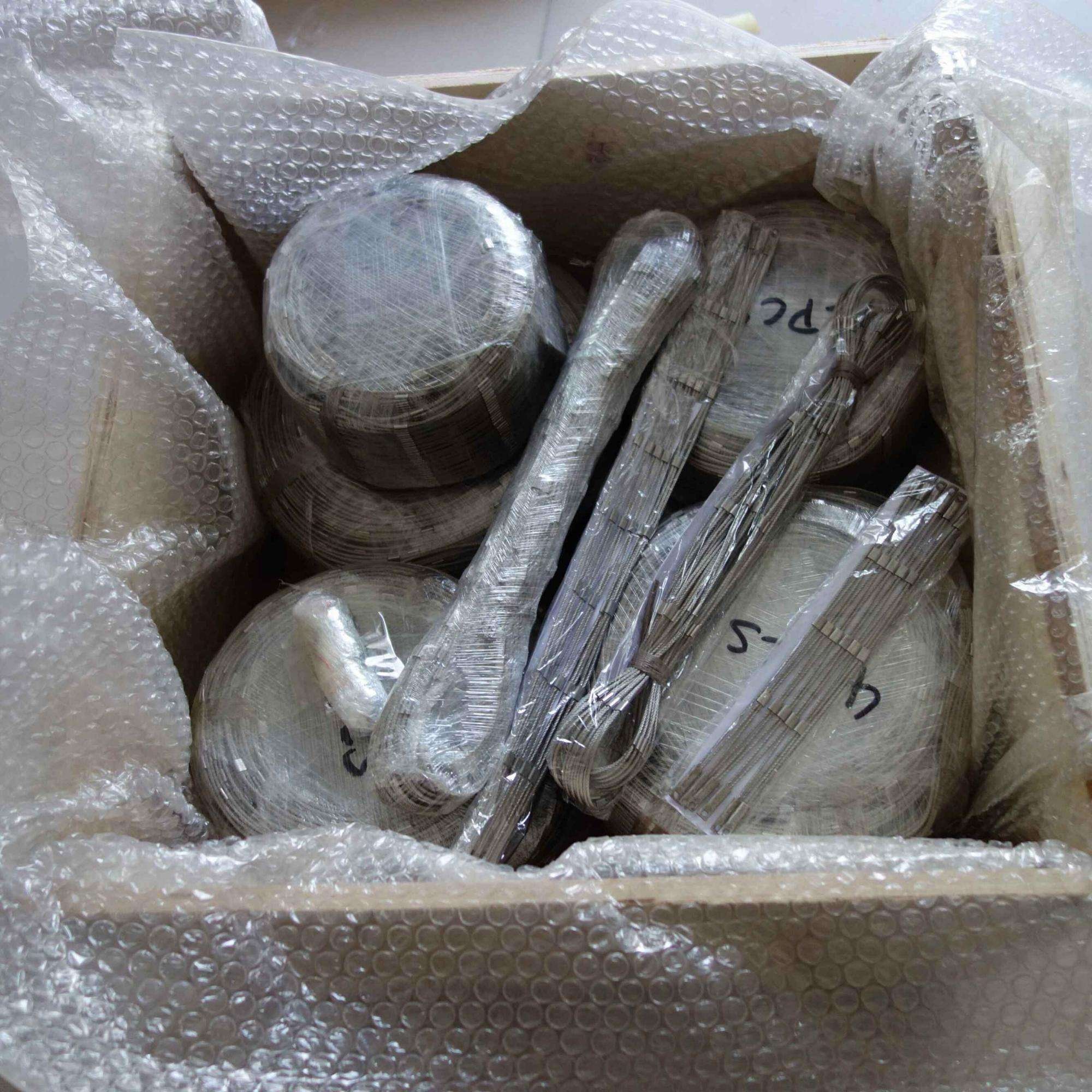

Stainless steel rope mesh ferrule packing can be done in either a strong PP (polypropylene) bag or a fumigation wooden box, depending on the requirements and preferences of the customer.
A strong PP bag is a popular packing option as it is lightweight, durable, and cost-effective. It can be used to pack smaller sizes of stainless steel rope mesh ferrules, and it can be easily transported and stored. PP bags are also recyclable and eco-friendly.
On the other hand, a fumigation wooden box is a more robust packing option that can be used for larger sizes of stainless steel rope mesh ferrules. It provides better protection during shipping and handling, especially for long-distance transport. The wooden box is also treated with fumigation to eliminate any insects or pests that might be present in the wood.
Ultimately, the choice between a strong PP bag and a fumigation wooden box will depend on the specific requirements of the customer, such as the size and quantity of the stainless steel rope mesh ferrules, the mode of transportation, and the destination.
