stainless steel wire rope net

stainless steel wire rope net included ferrule rope mesh and knotted types cable mesh also the finished available primary and black oxide,vinyl-coated and so on

Application

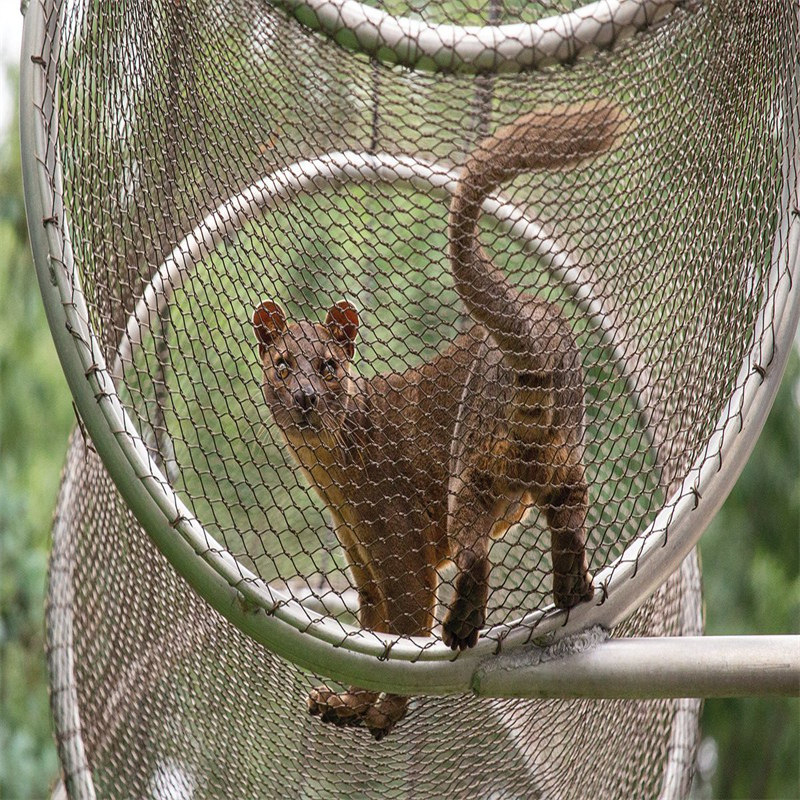

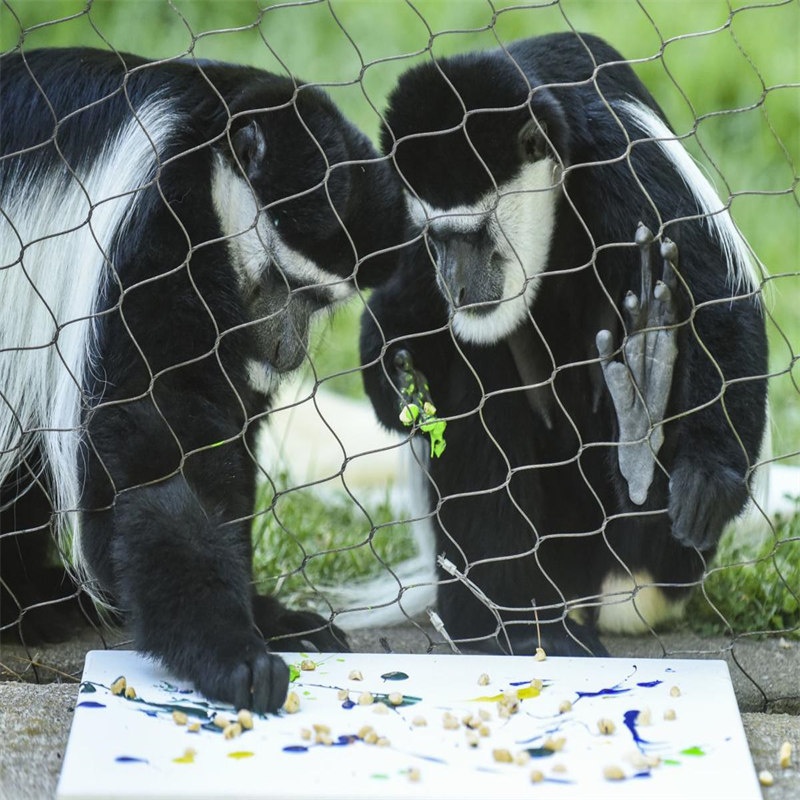

Stainless Steel Wire Rope Net Widely Applies In Animal Enclosure mesh, animal cages, bird netting, Agriculture, Residential, Sports, Fall Security, Ocean Park Zoo construction: animal enclosures, aviary mesh, birdcage, wildlife park, marine park, etc. Protective device: playground fence, acrobatic show protection net, wire rope mesh fence, etc Architecture safety net: stair/balcony railing, fence, bridge safety net, anti-fall net, etc. Decorative net: garden decoration, wall decoration, interior decoration net, outdoor decoration, green wall (plants climbing support)

Stainless Steel Wire Rope Net Specification

Material: SUS302, 304, 316, 316L
Wire diameter:1.0mm-3.0mm
Structure:7*7,7*19.
Mesh Opening Size:1"*1",2"*2",3"*3",4"*4".
Weaving Types
Handwoven, Open type buckle, Closed type buckle.

Material	stainless steel 304 316 316L etc.
Wire diameter	1.0 - 3.0mm
Feature	flexible, high-Strength
Technique	woven wire mesh
Mesh rolls size	1x30m 2x30m 4x30m or according to clients' requirements
Structure	7*7 or 7*19
Surface	flat and bright

Recommended Handrail Railing Specification

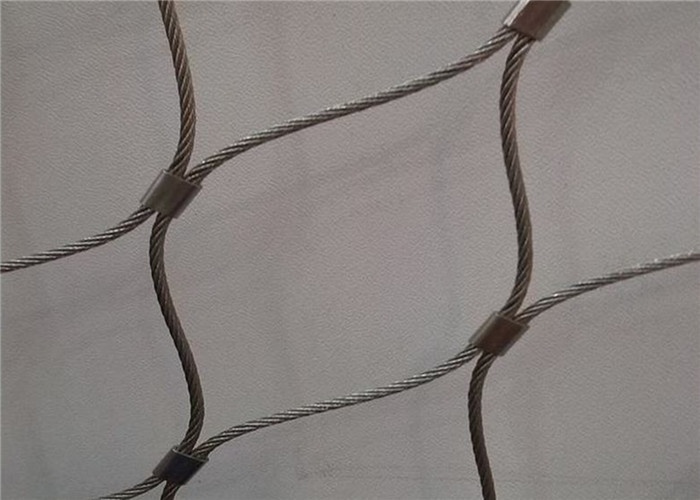

Ferruled mesh is of the same physical properties as the knotted mesh; the only difference is in the combination style, the stainless wire rope are combined by the ferrules, which are made of the same grade stainless steel.

Material	Cable Diameter	Hole Size	Normal Break
SS304/316/316L	1/16" (1.6MM)	2.5" x 2.5"	480 LBS
SS304/316/316L	1/16" (1.6MM)	2" x 2"	480 LBS
SS304/316/316L	5/64" (2.0MM)	2.5" x 2.5"	676 LBS
SS304/316/316L	5/64" (2.0MM)	2" x 2"	676 LBS
SS304/316/316L	5/64" (2.0MM)	3" x 3"	676 LBS

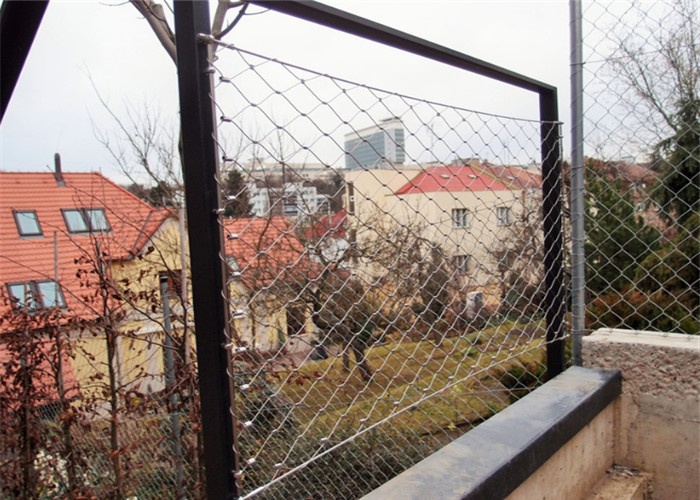

Balustrade Infill cable Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L; X-tend type cable mesh is custom manufactured to suit your fence, railing or architecture application; Mesh can be applied in either a vertical or horizontal direction, again dependent on the handrail or railing design; Diagonal and irregular shapes can also be supplied.

Stainless Steel Wire Rope Net Feature

1. Excellent flexible performance.
2. Virtually indestructible.
3. Most impacting resistant and breaking resistant force, most resisting rain, snow, hurricane
4. High strength, strong toughness, free angles curving and fold easy transportation and instalment.
5. Service life is over 30 years.
