Stainless Steel Cable Mesh

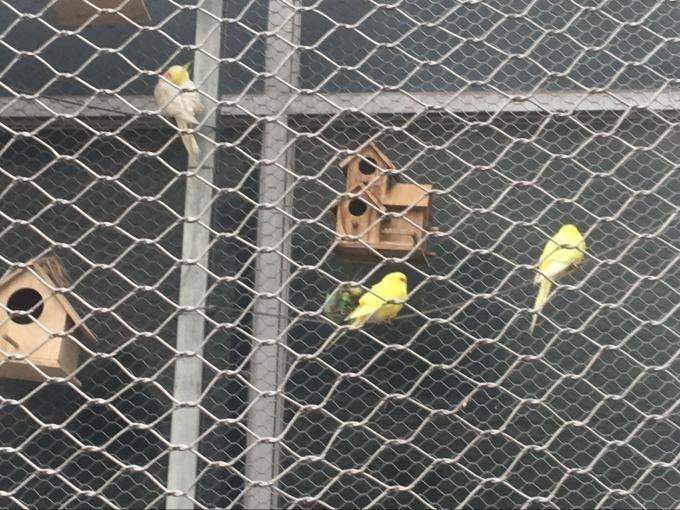

China Stainless Steel Cable Mesh manufacturer, factory, stainless steel cable mesh, Knotted Mesh-Twisted Mesh-Woven Cable Mesh diamond opening when you stretched at 90-degree angle, unique design, widely used as security fencing, security screens, Animal cage, safe net etc.

Stainless steel rope mesh

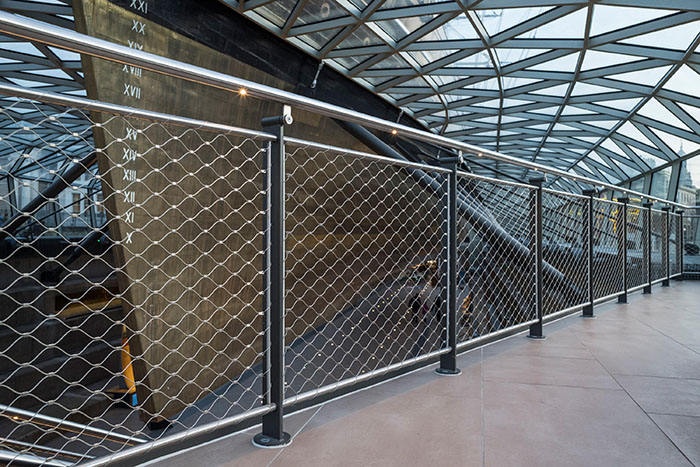

Is used for railing infills or as a substitute for standard railings，Site requirements with respect to the loadbearing capability of the web can be accommodated by the selection of different rope diameters and mesh apertures.

Feature of stainless steel cable mesh:

Unique design idea
Flexible,elegant,discreet,filigreed,multifunctional
Light
Corrosion resistance allows heavy airflow
Total pro-environment,recyclable,no toxic,non-flammable
Once stainless steel cable mesh is installed, maintenance-free, don't ask for any special cleaning or coating.
Long using life
Available 304 and 316 stainless steel.

Details

Cable diameter: from 1mm - 4mm
Structure: 7x7,7x19
Mesh size: Opening width ( OW ) from 20mm - 120mm,opening height ( OH ) from 20mm - 120mm
Variety of loops solution
Customised cable mesh width and length

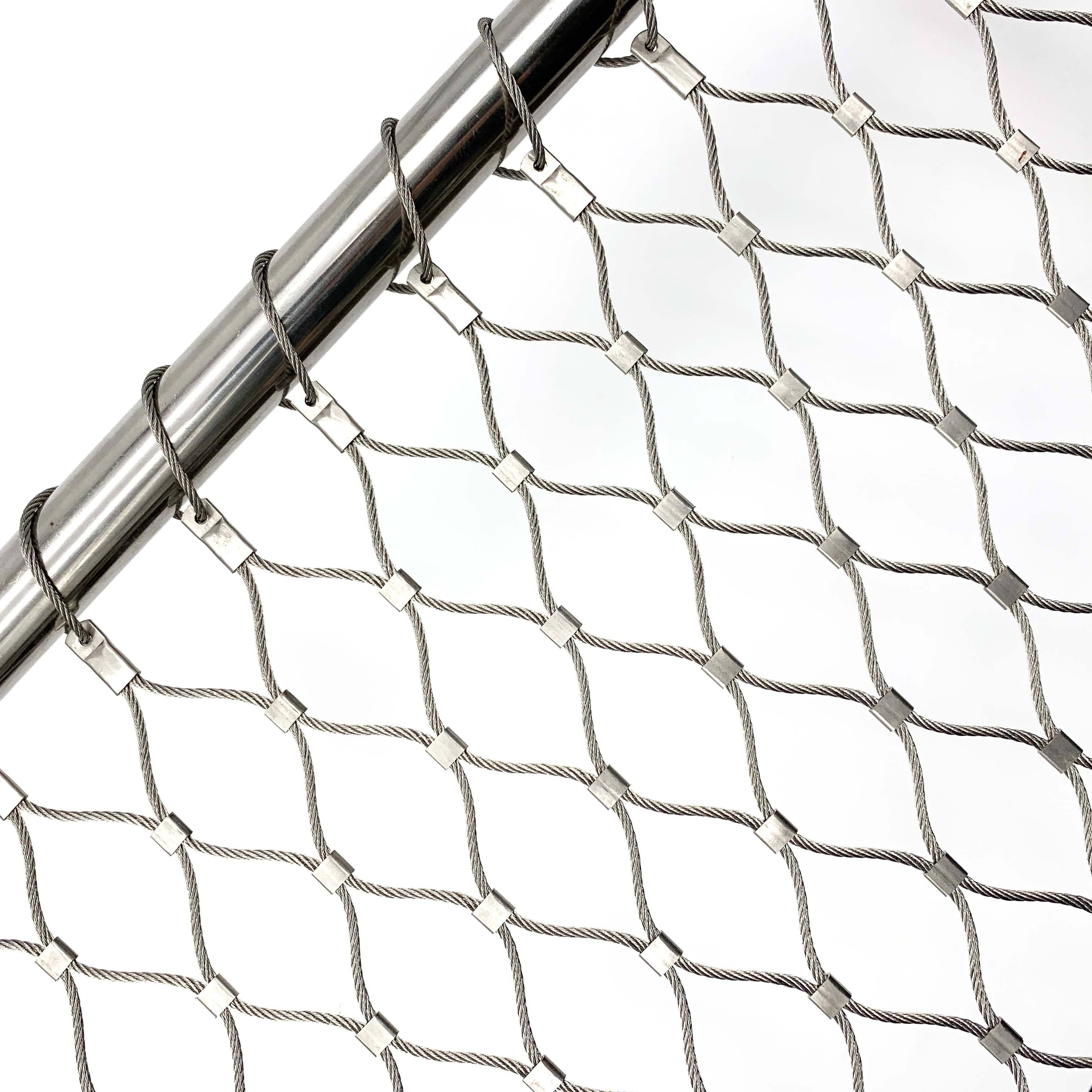

Quickly installed, stainless steel rope mesh can be fixed on stainless steel tube (frame) or tensioned with stainless fitting.

Standard specification:

OW X OH	Wire Diameter
OW X OH	1.2 mm	1.6mm	2.0 mm	2.4 mm	3.2 mm
25 mm x 25 mm	WD1225	WD1625
30 mm x 30 mm	WD1230	WD1630
38 mm x 38 mm	WD1238	WD1638	WD2038
51 mm x 51 mm	WD1251	WD1651	WD2051	WD2451	WD3251
60 mm x 60 mm stainless steel cable mesh	WD1260	WD1660	WD2060	WD2460	WD3260
76 mm x 76 mm	WD1276	WD1676	WD2076	WD2476	WD3276
90 mm x 90 mm	WD1290	WD1690	WD2090	WD2490	WD3290
102 mm x 102 mm	WD12102	WD16102	WD20102	WD24102	WD32102
120 mm x 120 mm	WD12120	WD16120	WD20120	WD24120	WD32120

What needs to know for design?

316-grade stainless steel rope mesh is a high-performance cost ratio.
Heavier wire rope (d) offers a higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.
A border solution of mesh is necessary for installation.
The exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. Safety. Maintenance cost etc.

Raw Material Of The Stainless Steel Cable Netting:

Stainless steel woven cable netting is hand-woven from Material 304 or 316 stainless steel ropes by moulds. It is an innovative product ideally used in gardens as decoration and plant climbing mesh.
