stainless steel wire rope net

stainless steel wire rope net, also called cable mesh made from high-quality stainless steel wire rope, with the features of highly anti-corrosion and resistance to UV rays. Has a long lifespan in harsh environments. And its most significant benefit is particular resistance and flexibility; our rope mesh may be in knotted, ferrule type mesh, woven square or square mesh with cross clamps. They are all favoured. Stainless steel cable mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used to produce the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of the mesh that can even stand up to heavy loads.

features:

• 1. The stainless steel wire rope net is clipped to the cable
• 2. The hole size and diameter can be modified
• 3. It can be made to customer orders and statically tested--especially suitable for faces
• 4. High strength, strong toughness,free-angles curing and folding, easy transportation and installation.
• 5. Anti-corrosive, resist the rust, can be repeated use.
• 6. Resists chewing by rodents and other pests
• 7. This product can bear the heavy snow and the gale very much
• 8. Without toxic material, environmental safety protection.

Specification Stainless Steel Wire Rope Net

Material	Stainless steel wire 304 304L 316 316L
Structure	7*7 rope 7*19 rope
Rope diameter	1.2mm 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm 5.0mm
Aperture	20*20mm 30*30mm 40*40mm 50*50mm 60*60mm 80*80mm 90*90mm 120*120mm
Feature	Flexibility,high strength,rust resistance,recyclable,maintenance-free.
Advantage	Superior quality, factory price, strict quality inspection, fast delivery

The type of stainless steel rope mesh

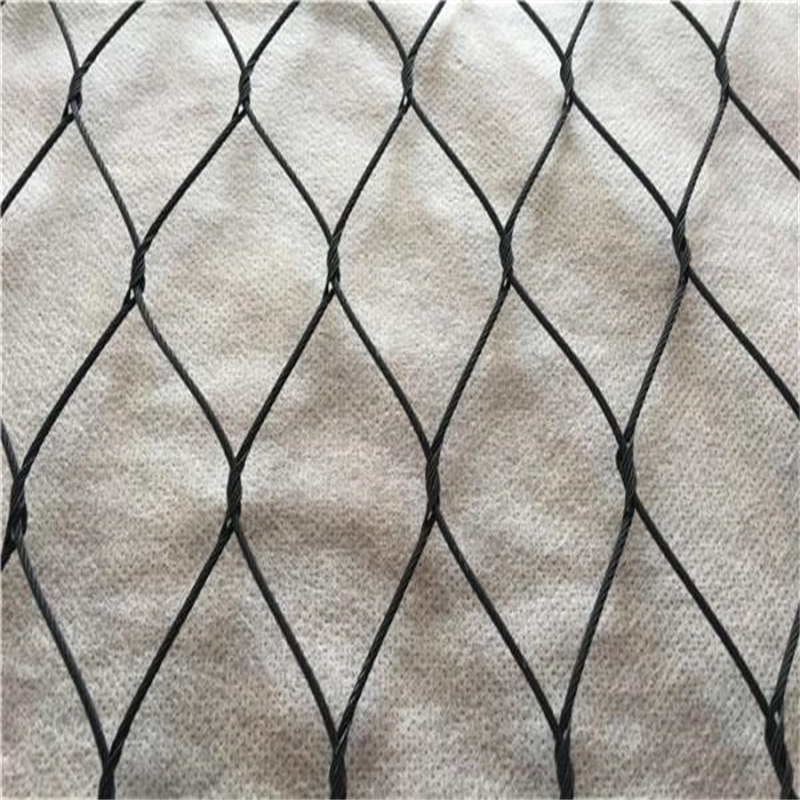

• 1. Knotted mesh is a plain weave; each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

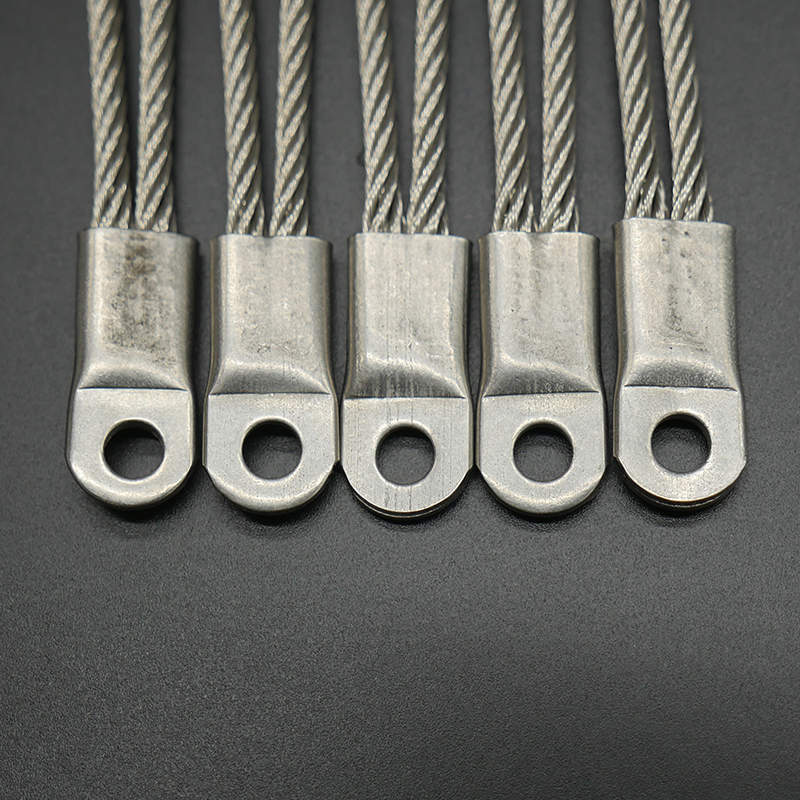

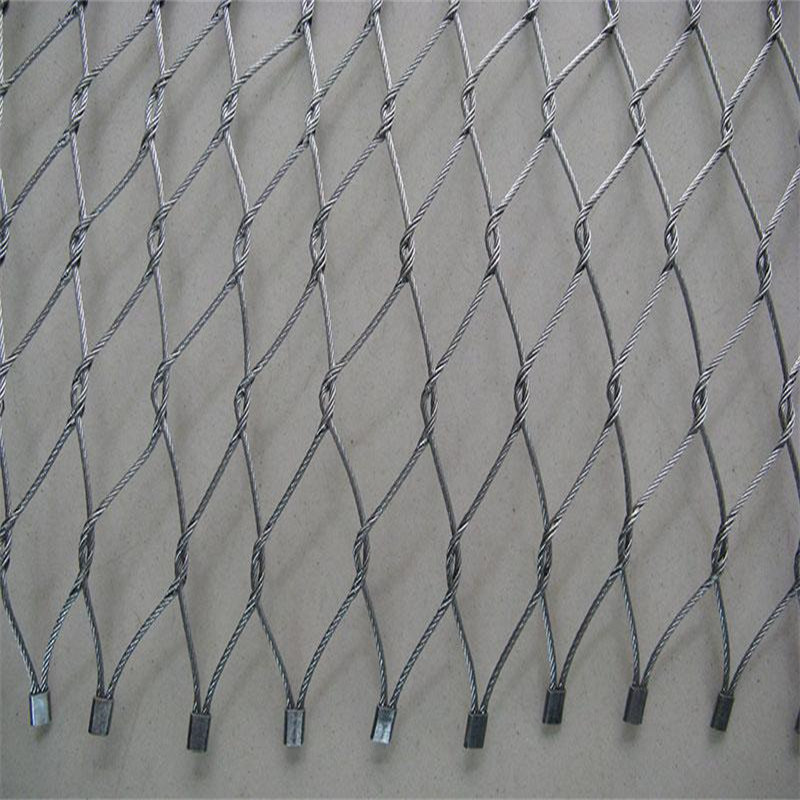

• 2. Ferruled mesh has the same physical properties as the knotted mesh; the only difference is the combination style. The stainless wire rope is combined with the same grade stainless steel ferrules.

application:

stainless steel wire rope net is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as slope protection rope mesh.zoo mesh, green wall rope mesh, balustrade mesh, safety rope mesh, suspension bridge railing mesh,anti-theft backpack protector.
