stainless steel ferrule rope mesh
Stainless Steel Ferrule rope mesh Railings can prevent falling as a protection net. Children often climb to the railings to play. There are many kinds of stainless steel cable mesh specifications for choice to meet your requirements.
Specifications :
Stainless steel cable mesh detailed description:
- Cable Diameter : 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm,3.2mm,customizable
- Mesh Hole Size : 40x40mm,50x50mm,60x60mm,80x80mmcustomized
- Cable Structure: 7 x7,7x19
- The breaking load (lbs): 270 to 1600
-
Mesh type: Inter-woven type (Sleeveless Webnet) and Ferrule Type (Stainless steel ferrule)
Ferruled Stainless steel Rope Mesh(Ferruled Type) |
|||||
Item | Cable Diameter | Mesh Hole Size | Normal Break | ||
inch | mm | inch | mm | lbs | |
YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Different Stainless Steel Cable Mesh Types :

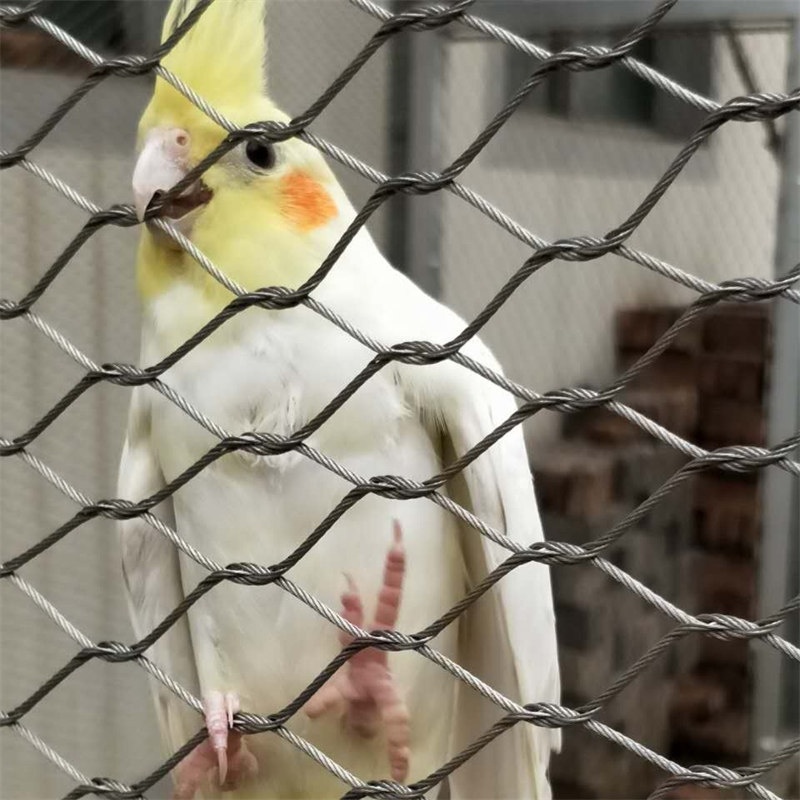

There are two kinds of mesh types: ferrule type, other is knotted, and inter-woven type. You can choose anyone you prefer.

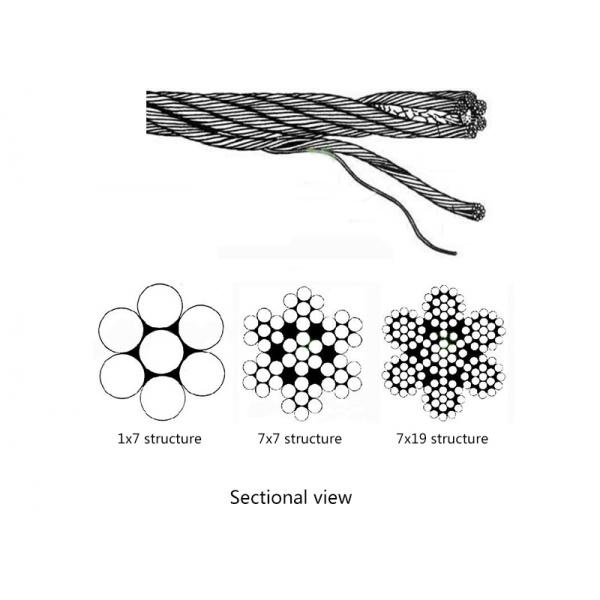

Cable Structure Show:
Stainless Steel Cable Mesh Application :

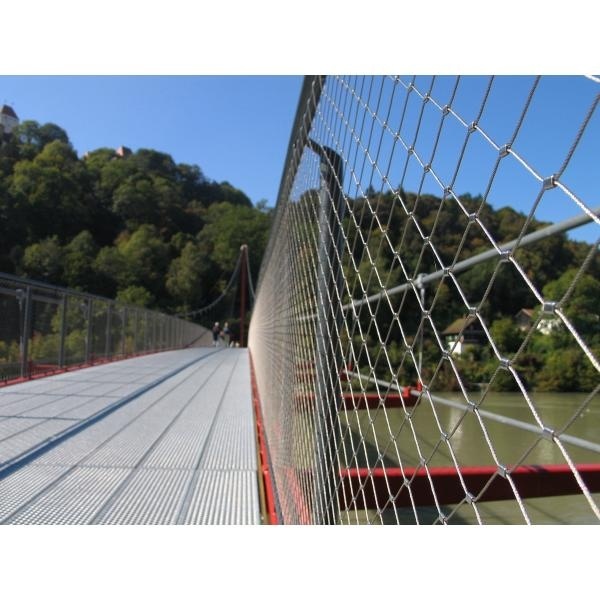

Stainless steel cable mesh can be used in many areas, like stadium fence mesh, stair protection cable mesh, bridge balustrade mesh, road safety mesh fence, balcony protection mesh etc. The following is the standard various railing mesh for kinds situations:

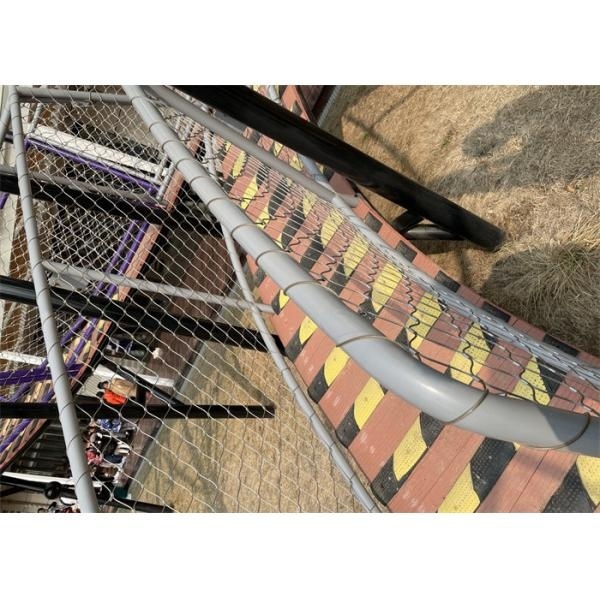

- railing cable mesh for spiral staircases
- fall protection railing infill mesh
-
cable mesh for balcony protection
Packing And Delivery stainless steel ferrule rope mesh:
- All stainless steel ferrule rope mesh Plastic foam and Water-proof Cloth for inter packing, Fumigated wooden cases for outer packing.
- Delivery: by FedEx, DHL, UPS, TNT EMS, air, Door-to-Door or sea.
- Lead time: The order could be arranged within 24hours; lead time is between 7-15 days depending on the quantum of order.
- As customer's requirements
Our Services stainless steel ferrule rope mesh :
- Stainless steel cable mesh is customizable in widths and length to suit the place; where will you install the cable mesh.
- Diagonal and irregular shapes can also be supplied.
- Mesh Aperture is from 25mm x 25mm to 200mm x 200mm or more significant.
- The cable Diameter is from 1.2mm to 4.0mm.
