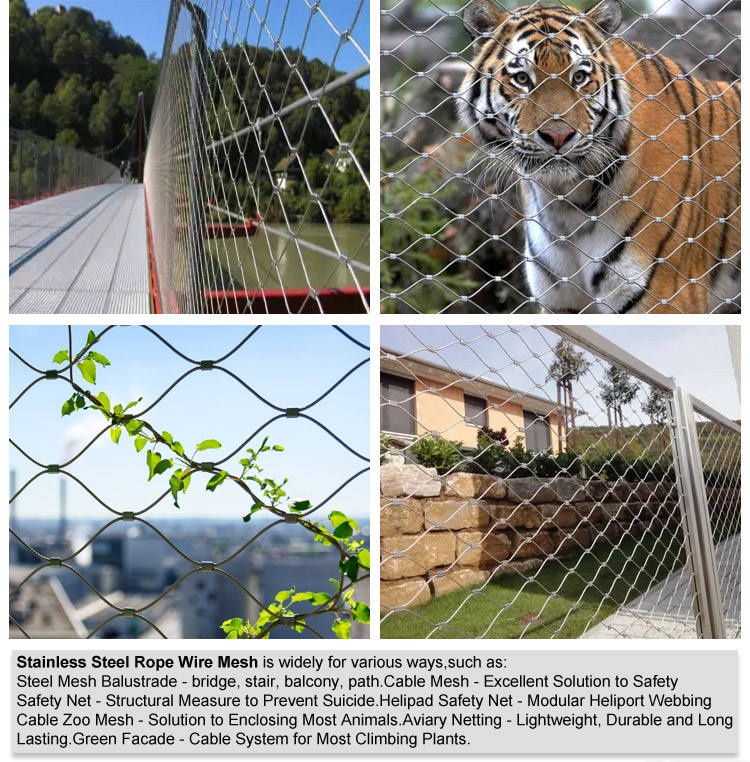

Stainless steel cable rope mesh is often used as a safety and security measure in various applications due to its strength and durability. It is commonly used in areas such as children's play areas, balconies, bridges, paths, and stairs to prevent fall accidents.

The high tensile strength and impact resistance of stainless steel cable rope mesh make it an ideal safety measure. The mesh can withstand the impact of a fall and prevent people from falling to the ground. Additionally, the mesh is resistant to corrosion and weathering, making it suitable for outdoor applications.

In addition to safety applications, stainless steel cable rope mesh can also be used for decorative purposes. Its contemporary and discreet appearance can enhance the aesthetic appeal of a building or landscape.

Overall, stainless steel cable rope mesh is a versatile material that offers both safety and aesthetic benefits, making it a popular choice for various applications.

Features

Stainless steel cable rope mesh. It appears to be a versatile and durable material with various applications, such as in entertainment facilities safety mesh, handrail balustrade mesh, and zoo enclosures. The mesh is available in different mesh types, including ferruled and inter-woven, and can be made from different materials, such as SS304, SS316, SS304L, and SS316L.

The mesh features a flexible and soft texture with a long service life, and it supports customization to meet different requirements. It also comes in different cable structures, including 7x7 and 7x19, and can be treated with polish or PVC coating for additional protection.

The mesh is available in different sizes and hole shapes, with wire diameters ranging from 1.2mm to 4.0mm and mesh openings from 25x25mm to 100x100mm. It also comes in various colors, including white, stainless steel primary color, black, red, blue, and custom colors.

Customers can request a free sample, but they will need to pay for the shipping cost. The mesh is certified with CE and SGS standards, indicating that it meets certain quality and safety requirements.

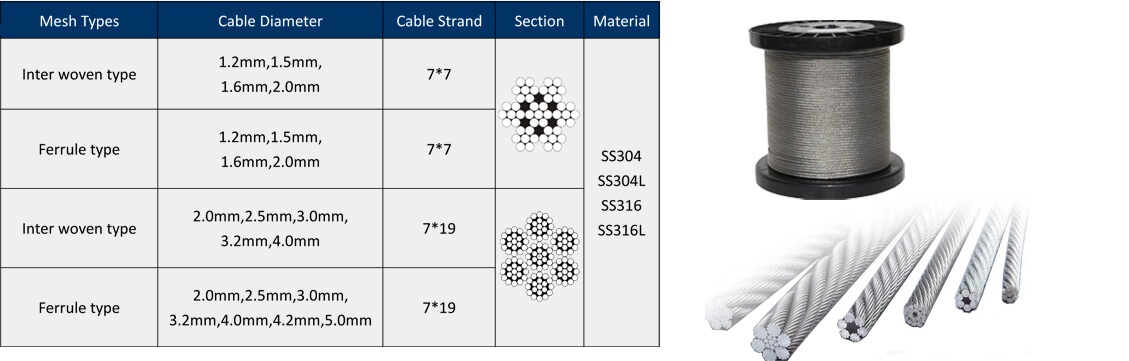

Stainless steel cable rope mesh parameters can be summarized as follows:

1. Material: High tensile stainless steel AISI 304, 304L, 316 or 316L.

2. Constructions: Available in 7 × 7, 7 × 19 or 1 × 19.

3. Diameters: Available in diameters from 1mm to 4mm.

4. Other specifications: Other specifications can also be manufactured to match specific design requirements.

The choice of material and construction will depend on the application and specific design requirements of the stainless steel cable rope mesh. AISI 304 and 304L are commonly used for applications where corrosion resistance is required but not in harsh environments, while AISI 316 and 316L are more corrosion-resistant and are used for applications in harsher environments such as marine or industrial settings.

The choice of construction will depend on the desired flexibility, strength, and aesthetic appearance. The 7 × 7 and 7 × 19 constructions offer good flexibility and are commonly used for decorative applications such as balustrades and facades. The 1 × 19 construction offers greater strength and is typically used for applications such as zoo enclosures or safety nets.

The diameter of the stainless steel cable rope mesh will also depend on the desired strength and flexibility. Thicker diameters offer greater strength but less flexibility, while thinner diameters offer greater flexibility but less strength. The diameter chosen should be appropriate for the specific application and load requirements.

SPECS
Item	Wire Diameter		Mesh Aperture		Normal Break
	inch	mm	inch	mm	lbs
BM-3212F	1/8	3.2	4.75 x 4.75	120 x 120	1600
BM-3210F	1/8	3.2	4 x 4	102 x 102	1600
BM-3290F	1/8	3.2	3.55 x 3.55	90 x 90	1600
BM-3276F	1/8	3.2	3 x 3	76 x 76	1600
BM-3250F	3/32	2.4	2 x 2	51 x 51	1600
BM-2410F	3/32	2.4	4 x 4	102 x 102	920
BM-2490F-stainless steel cable rope mesh	3/32	2.4	3.55 x 3.55	90 x 90	920
BM-2476F	3/32	2.4	3 x 3	76 x 76	920
BM-2460F	3/32	2.4	2.4 x 2.4	60 x 60	920
BM-2450F	3/32	2.4	2 x 2	51 x 51	920
BM-2076F	5/64	2.0	3 x 3	76 x 76	676
BM-2060F	5/64	2.0	2.4 x 2.4	60 x 60	676
BM-2050F	5/64	2.0	2 x 2	51 x 51	676
BM-2038F-stainless steel cable rope mesh	5/64	2.0	1-1/2 x 1-1/2	38 x 38	676
BM-1676F	1/16	1.6	3 x 3	76 x 76	480
BM-1650F	1/16	1.6	2 x 2	51 x 51	480
BM-1638F	1/16	1.6	1-1/2 x 1-1/2	38 x 38	480
BM-1630F	1/16	1.6	1.2 x 1.2	30 x 30	480
BM-1625F	1/16	1.6	1 x 1	25.4 x 25.4	480
BM-1238F	3/64	1.2	1-1/2 x 1-1/2	38 x 38	270
BM-1230F	3/64	1.2	1.2 x 1.2	30 x 30	270
BM-1225F-stainless steel cable rope mesh	3/64	1.2	1 x 1	25.4 x 25.4	270

The main difference between 304/316 and 304L/316L stainless steel cable rope mesh is the carbon content.

304/316 stainless steel contains a higher amount of carbon, typically around 0.08%, while 304L/316L stainless steel has a lower carbon content of around 0.03%.

The lower carbon content in 304L/316L stainless steel makes it more resistant to sensitization, which is a process where chromium carbides can form at high temperatures, reducing the corrosion resistance of the material. This makes 304L/316L stainless steel more suitable for use in high-temperature environments where sensitization is a concern.

Additionally, the lower carbon content in 304L/316L stainless steel can also make it more resistant to corrosion in certain environments, particularly those that are acidic. This makes it a better choice for use in environments near the sea, where saltwater and other corrosive elements can be present.

In summary, 304/316 stainless steel cable rope mesh may be suitable for many applications, but for high-temperature environments and places near the sea, 304L/316L stainless steel cable rope mesh is a better choice due to its lower carbon content and improved corrosion resistance.

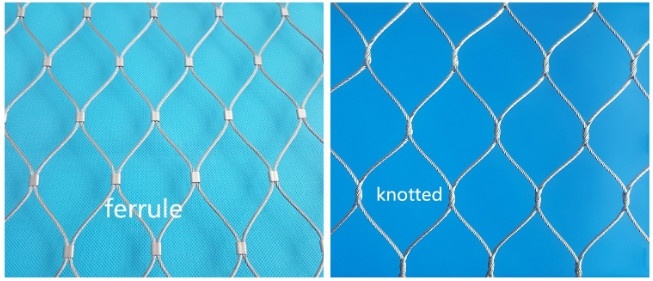

there are two main types of stainless steel cable rope mesh: ferrule type and knotted (inter-woven) type.

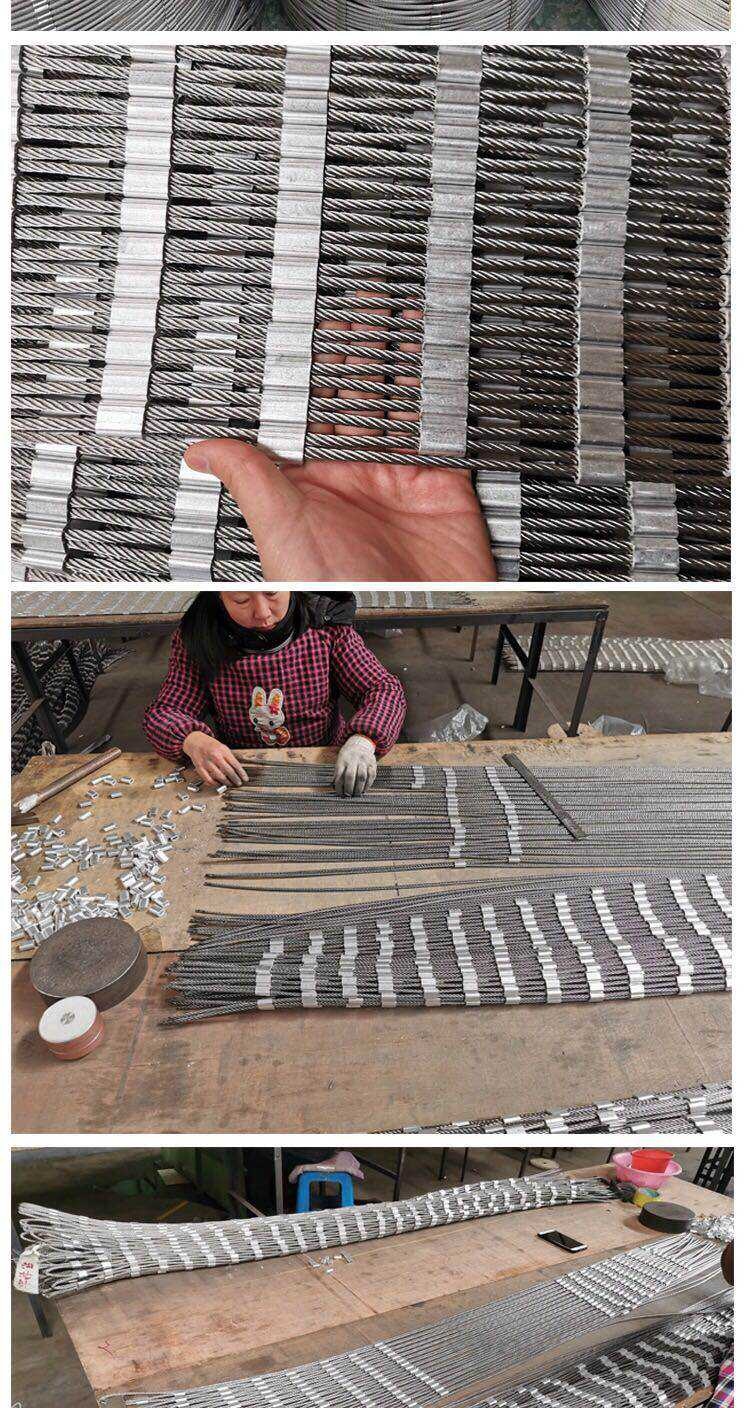

1. Ferrule Type: Ferrule type stainless steel cable rope mesh is made up of individual wire ropes that are placed through ferrules (metal sleeves) and then crimped to form a mesh pattern. This type of mesh is popular due to its clean, modern look, and flexibility in terms of size and shape.

2. Knotted (Inter-woven) Type: Knotted (inter-woven) type stainless steel cable rope mesh is made up of wire ropes that are interwoven and knotted together to form a mesh pattern. This type of mesh is generally stronger than ferrule type and can be more suitable for larger, heavier applications. It can also provide a more natural look, which may be preferred in certain applications.

Both types of mesh have their advantages and disadvantages, and the choice between them will depend on the specific requirements of the application. Ferrule type mesh is generally more flexible in terms of design and size, while knotted (inter-woven) type mesh is generally stronger and more suitable for heavier applications.

It is important to choose the right type of mesh for the application to ensure optimal performance and safety.

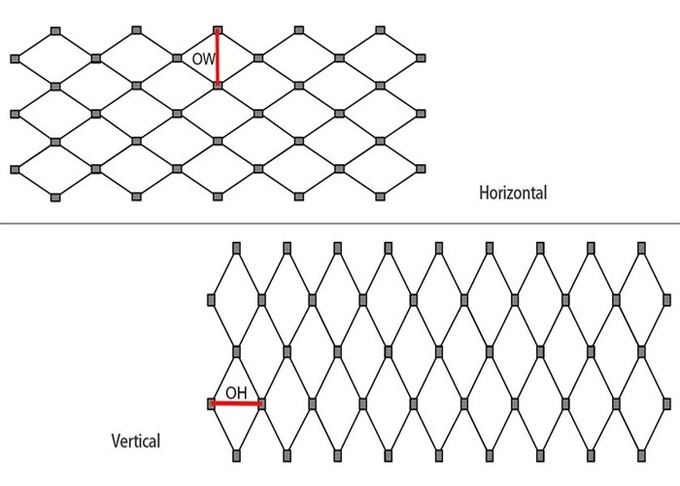

the orientation of the mesh can be customized based on the specific requirements of the application. The two main orientations for stainless steel wire rope mesh are horizontal and vertical.

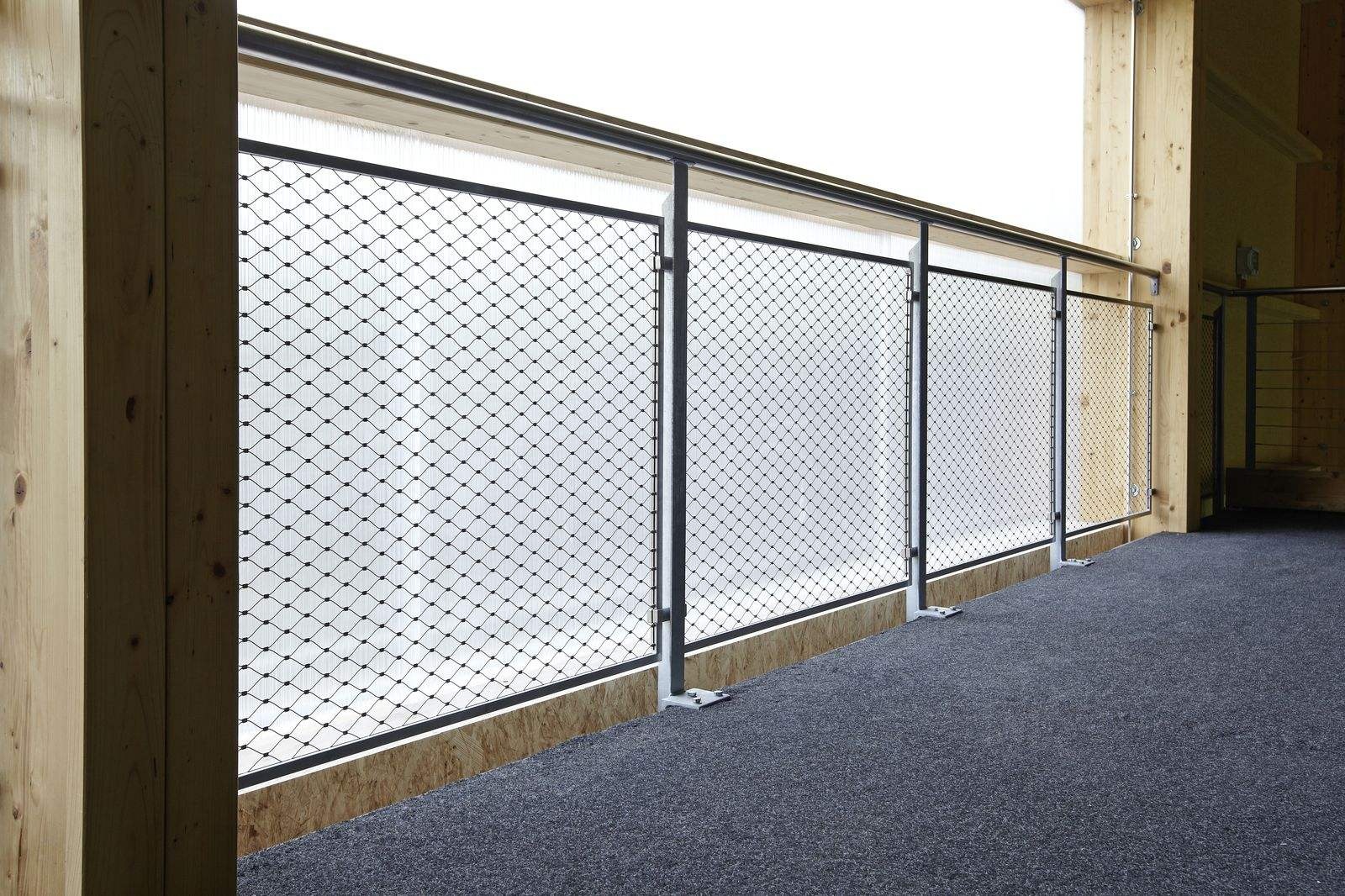

1. Horizontal Mesh Orientation: Horizontal mesh orientation refers to the orientation of the wire rope mesh where the wires are arranged horizontally. This orientation is often used for applications such as balustrades, fences, and railings where the main concern is preventing falls or providing a barrier.

2. Vertical Mesh Orientation: Vertical mesh orientation refers to the orientation of the wire rope mesh where the wires are arranged vertically. This orientation is often used for applications such as facades, green walls, and animal enclosures where the main concern is providing a support structure for climbing plants or animals.

The choice between horizontal and vertical mesh orientation will depend on the specific requirements of the application, such as the load capacity, aesthetic preferences, and functionality of the mesh. It is important to choose the appropriate orientation for the specific application to ensure optimal performance and safety.

The entertainment facilities' stainless steel cable rope mesh has several features that make it a popular choice for various applications. Some of its notable features include:

1. 100% Recyclable: Stainless steel cable rope mesh is 100% recyclable, which makes it an environmentally friendly choice. When the mesh has reached the end of its life cycle, it can be recycled and repurposed without losing any of its original physical properties.

2. Wide Range of Applications: Stainless steel rope mesh has a wide range of applications, including but not limited to fences, safety netting, zoo enclosure mesh, aviary mesh, green wall mesh, helicopter mesh, deck mesh, and many others. Its flexibility and durability make it a versatile material for various projects.

3. Flexibility: The stainless steel cable rope mesh is highly flexible, which means it can be used to design a plane surface or tensioned into three-dimensional forms, square, round, parallelogram, or irregular shapes, making it ideal for projects with unique and complex designs.

4. Reduced Maintenance Costs: Due to its solid construction and high-performance under severe environmental conditions, stainless steel cable rope mesh protects against corrosion and rust, requiring very little maintenance over the product's life. This reduces maintenance costs and increases the product's lifespan.

Overall, the entertainment facilities' stainless steel cable rope mesh is a reliable and versatile material that provides an excellent solution for a wide range of projects.

The entertainment facilities' stainless steel cable rope mesh has various applications in different industries. Here are some of its main applications:

1. Ceilings and Safety Barriers: The stainless steel cable rope mesh is commonly used as a ceiling material in ferrule or knotted patterns, providing safety barriers for falling objects while also allowing for good lighting. It can be used in various architectural designs and shapes, providing a durable and visually appealing safety solution.

2. Parking Garage Fencing: Stainless steel  rope mesh is also used for parking garage safety fencing. The high-quality stainless steel rope netting is ideal for covering large capacity structures, preventing birds from flying in and vandalizing cars. It provides a durable and secure safety solution for parking garages.

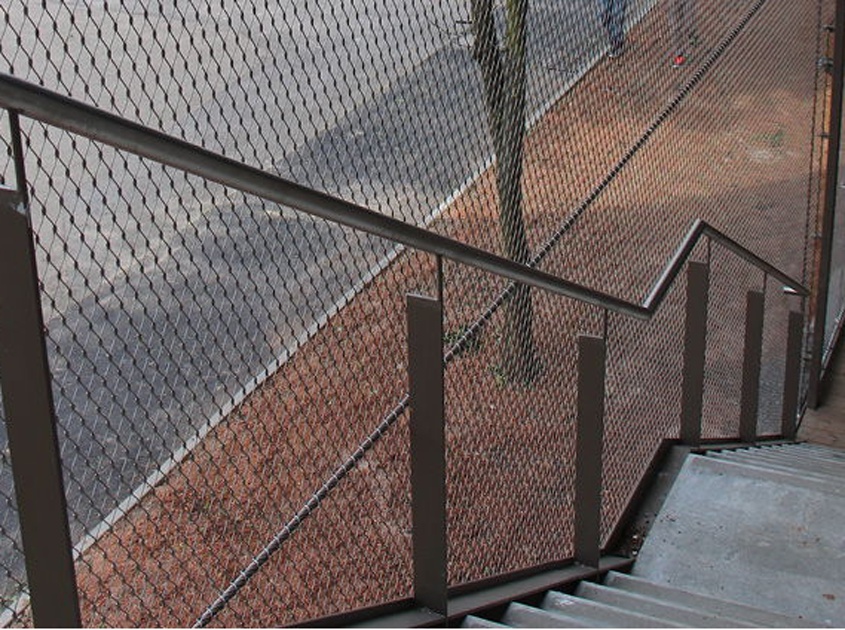

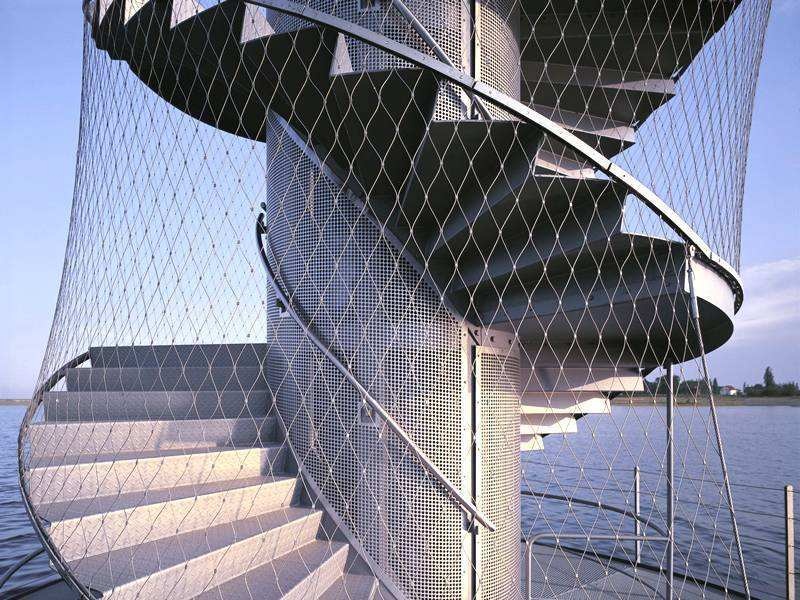

3. Stairwell Guidance: Stainless steel rope mesh can be used as guidance on stairwells, providing a durable and flexible safety solution. Its strength and flexibility make it reliable enough to protect people from falling off while also keeping birds from flying around the stairwells.

Overall, the entertainment facilities' stainless steel cable rope mesh has many other applications, including zoo enclosure mesh, aviary mesh, green wall mesh, and helicopter mesh. Its versatility, strength, and durability make it an excellent solution for various safety and aesthetic needs.

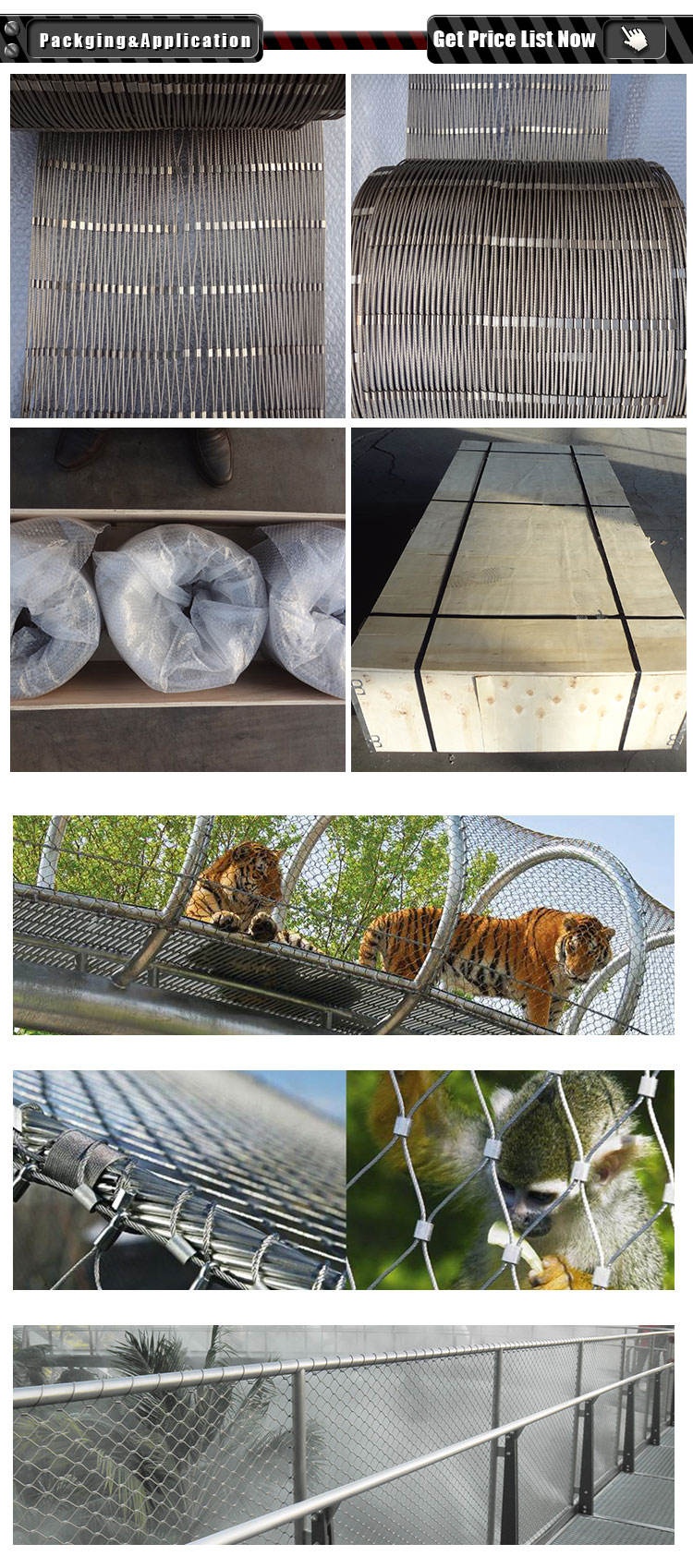

stainless steel cable rope mesh is carefully packed and shipped to ensure that it reaches its destination safely and in good condition. Here are the packing and shipping details:

1. Packing:

• The stainless steel cable rope mesh is first wrapped in plastic foam to provide cushioning and protection during transit.
• Next, it is wrapped in waterproof cloth to protect it from moisture and damage.
• Finally, the mesh is packed in fumigated wooden cases for additional protection during transportation.

1. Shipping:

• The stainless steel rope mesh can be delivered by various shipping methods, including FedEx, DHL, UPS, TNT, EMS, air, door-to-door, or sea.
• The shipping method chosen depends on the customer's preference and urgency of delivery.
• The lead time for delivery is typically between 7-15 days, depending on the quantum of the order and the shipping method chosen.

1. Customer Requirements:

• The packing of the stainless steel rope mesh can also be customized as per customer requirements.
• If customers have any specific packing or shipping requests, the supplier can arrange accordingly.

Overall, the packing and shipping of the entertainment facilities' stainless steel cable rope mesh are done with utmost care and attention to ensure that the product reaches the customer safely and in good condition.
