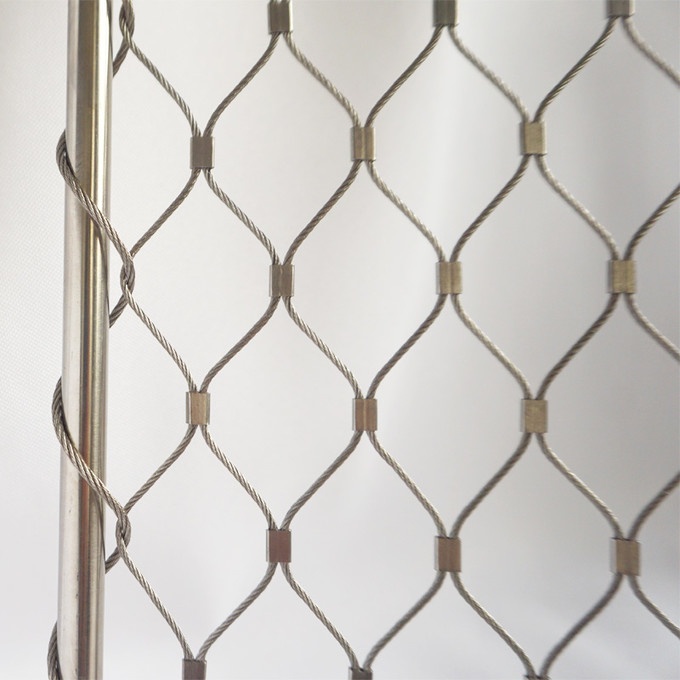

X-TEND stainless steel mesh is a type of flexible mesh made from stainless steel wire rope that is knotted to form a grid pattern. The mesh is available in various material types, such as SUS304, SUS304L, SUS316, SUS316L, and is manufactured to order to meet individual requirements.
One common application for this type of mesh is in animal or bird cages, as it has high tensile strength, flexibility, transparency, and can span large areas. It offers many advantages over other types of mesh, including practicality, security, aesthetic appeal, and durability.
Overall, X-TEND stainless steel mesh is a versatile and high-performance product that can be used in a range of applications where strength, flexibility, and transparency are required.
X-TEND stainless steel mesh. Here are some additional points about the product specifications mentioned:
- The stainless steel wire rope diameter options range from 1.2mm to 3.2mm, allowing for a variety of strength and flexibility requirements.
- The mesh aperture options range from 25x25mm to 60x60mm, with custom sizes available as well, giving customers flexibility in choosing the right size for their specific needs.

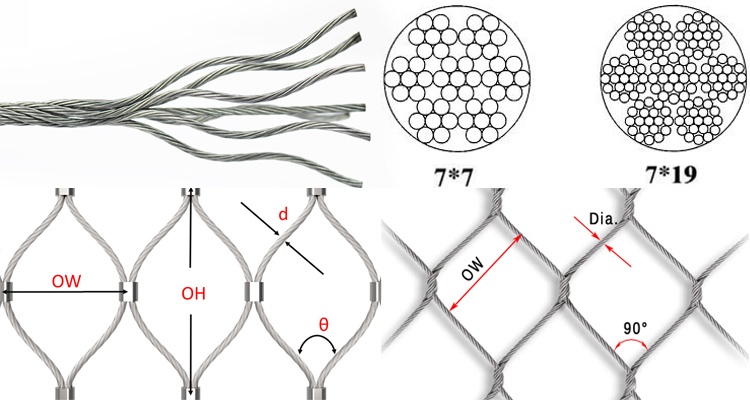

- The wire rope structure options are 7x7 and 7x19, which can affect the strength, flexibility, and weight of the mesh.
- The breaking load range of 270 to 1600 lbs indicates the amount of weight the mesh can withstand before breaking, which is an important consideration for safety and durability.

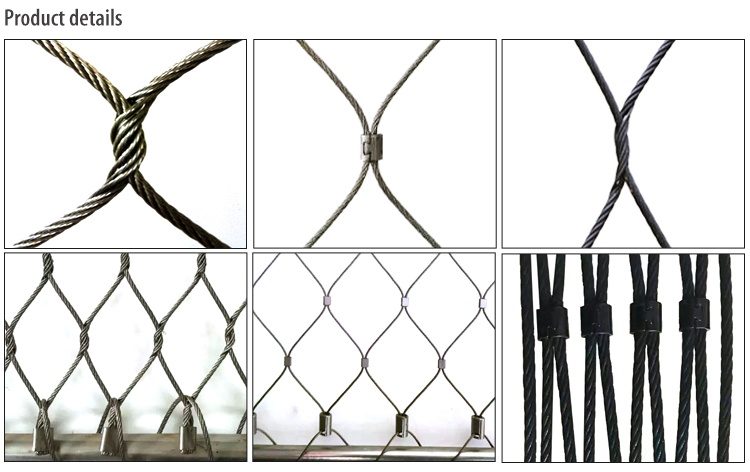

- There are two types of X-TEND mesh: woven type (sleeveless webnet) and ferruled type (stainless steel ferrule). These different types have different installation methods and aesthetic appearances, allowing customers to choose the one that best suits their preferences and needs.
Overall, the specifications of X-TEND stainless steel mesh demonstrate its versatility and suitability for a range of applications where strength, flexibility, and durability are important considerations.
Item | Cable Diameter | Mesh Hole Size | Normal Break |
---|---|---|---|
3212W | 1/8 inch (3.2 mm) | 4.75 x 4.75 inch (120 x 120 mm) | 1600 lbs |
3210W | 1/8 inch (3.2 mm) | 4 x 4 inch (102 x 102 mm) | 1600 lbs |
3290W | 1/8 inch (3.2 mm) | 3.55 x 3.55 inch (90 x 90 mm) | 1600 lbs |
3276W | 1/8 inch (3.2 mm) | 3 x 3 inch (76 x 76 mm) | 1600 lbs |
3250W | 3/32 inch (2.4 mm) | 2 x 2 inch (51 x 51 mm) | 1600 lbs |
2410W | 3/32 inch (2.4 mm) | 4 x 4 inch (102 x 102 mm) | 920 lbs |
2490W | 3/32 inch (2.4 mm) | 3.55 x 3.55 inch (90 x 90 mm) | 920 lbs |
2476W | 3/32 inch (2.4 mm) | 3 x 3 inch (76 x 76 mm) | 920 lbs |
2460W | 3/32 inch (2.4 mm) | 2.4 x 2.4 inch (60 x 60 mm) | 920 lbs |
2450W | 3/32 inch (2.4 mm) | 2 x 2 inch (51 x 51 mm) | 920 lbs |
2076W | 5/64 inch (2.0 mm) | 3 x 3 inch (76 x 76 mm) | 676 lbs |
2060W | 5/64 inch (2.0 mm) | 2.4 x 2.4 inch (60 x 60 mm) | 676 lbs |
2050W | 5/64 inch (2.0 mm) | 2 x 2 inch (51 x 51 mm) | 676 lbs |
2038W | 5/64 inch (2.0 mm) | 1-1/2 x 1-1/2 inch (38 x 38 mm) | 676 lbs |
1676W | 1/16 inch (1.6 mm) | 3 x 3 inch (76 x 76 mm) | 480 lbs |
1650W | 1/16 inch (1.6 mm) | 2 x 2 inch (51 x 51 mm) | 480 lbs |
1638W | 1/16 inch (1.6 mm) | 1-1/2 x 1-1/2 inch (38 x 38 mm) | 480 lbs |
1630W | 1/16 inch (1.6 mm) | 1.2 x 1.2 inch (30 x 30 mm) | 480 lbs |
"X-tend mesh" is a type of architectural mesh that is made from stainless steel cables. It is sometimes also referred to as "stainless steel cable mesh" because of its construction. X-tend mesh is made by interweaving stainless steel cables to create a flexible and strong mesh structure that can be used in a variety of architectural and design applications.
Some advantages of using X-tend mesh include:
-
Durability: X-tend mesh is made from high-quality stainless steel, which makes it resistant to corrosion and wear. This means that it can withstand harsh weather conditions and retain its structural integrity over time.
-
Flexibility: Because of its cable construction, X-tend mesh is very flexible and can be shaped to fit a variety of architectural forms and structures. This allows architects and designers to create unique and innovative designs that would not be possible with other materials.
-
Transparency: X-tend mesh has a very open and transparent appearance, which allows for maximum visibility and light transmission. This is particularly useful in applications such as facades, where natural light is desired.
-
Low maintenance: Because of its resistance to corrosion and wear, X-tend mesh requires very little maintenance over its lifespan. This can result in significant cost savings over time.
-
Sustainability: Stainless steel is a highly sustainable material that can be recycled at the end of its lifespan. This makes X-tend mesh a more environmentally friendly choice compared to other materials that may end up in landfills.
Applications
X-tend mesh, also known as stainless steel cable mesh, is a versatile material that can be used in a wide variety of applications, particularly in the field of architecture and design. Some common applications of X-tend mesh include:
- Façade cladding: X-tend mesh can be used as an architectural façade material to create a unique and visually appealing look. Its transparency allows for natural light to enter the building, while also providing a level of privacy.
- Safety barriers: X-tend mesh can be used as a safety barrier to prevent falls or to protect people and animals from danger. For example, it can be used in zoos or wildlife parks to create enclosures for animals, or as a safety barrier on bridges or walkways.

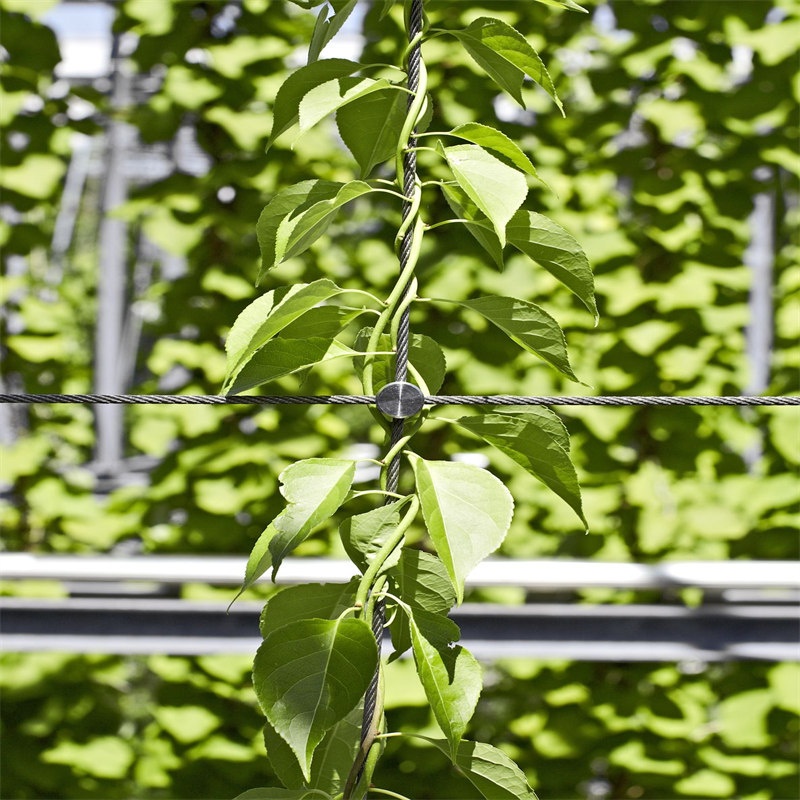

- Green facades: X-tend mesh can be used as a support structure for green facades, allowing plants to grow and climb up the mesh. This can help to reduce the temperature of the building, provide insulation, and improve air quality.
- Interior design: X-tend mesh can be used in interior design applications, such as room dividers or decorative elements. Its flexibility and transparency allow for a wide range of design options.
- Acoustic panels: X-tend mesh can also be used as a material for acoustic panels, helping to reduce noise levels in buildings.
- Balustrades: X-tend mesh can be used as a balustrade material for staircases, balconies or other elevated areas.
Overall, the versatility of X-tend mesh makes it a popular choice for architects, designers, and engineers looking for a material that is both functional and aesthetically pleasing.
