Boss Metal And Plastic Co Limited
Stainless steel wire rope mesh, also known as knotted rope mesh or woven rope mesh, is a type of mesh made from stainless steel wire ropes. It is commonly used in a wide range of applications due to its strength, durability, and resistance to corrosion.

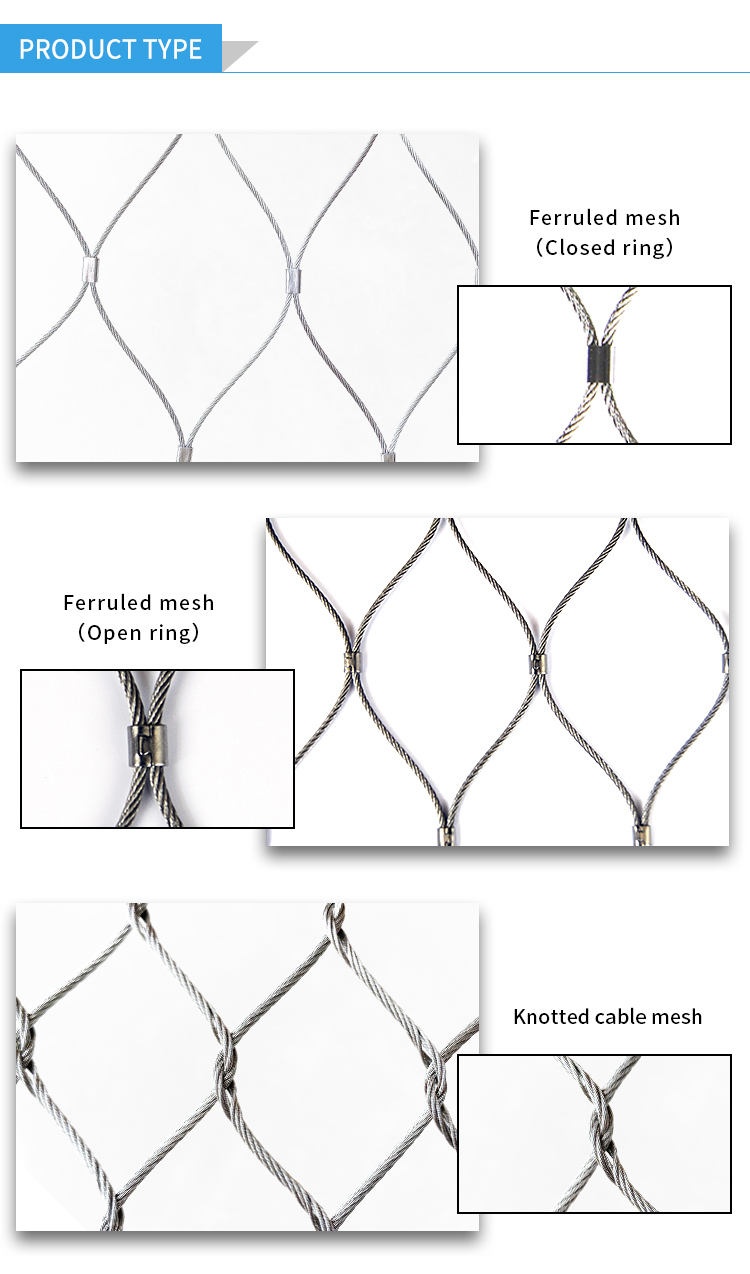

The mesh is available in two main types: inter-woven and ferrule type. The inter-woven mesh is hand-woven from fine stainless steel wire ropes, typically constructed in 7 x 7 or 7 x 19 configurations using AISI 304 or AISI 316 material group. The mesh has high tensile strength, flexibility, and transparency, making it ideal for use in various applications.
The ferrule type mesh is constructed by weaving stainless steel wire ropes through a series of ferrules, creating a net-like structure. This type of mesh is commonly used for architectural applications, such as building facades and sunscreens.
Stainless steel wire rope mesh has a range of features that make it an ideal choice for various applications, including high strength, strong toughness, free-angles curving and folding, ease of transportation and installation, anti-corrosion properties, and resistance to rust. It can be used for applications such as green facades, aviary netting, cable zoo mesh, helipad safety nets, safety nets, steel mesh balustrades, architectural decoration, protective netting, and zoo mesh.
Overall, stainless steel wire rope mesh is a versatile and reliable product with a wide range of applications. Its strength, durability, and resistance to corrosion make it ideal for use in challenging environments, and it offers excellent aesthetic properties for use in architectural applications.
Features of stainless steel wire rope mesh:
- High strength and durability.
- Strong toughness that can withstand high stress and pressure.
- Free-angles curving and folding for flexible use.
- Easy to transport and install.
- Anti-corrosive and rust-resistant, making it ideal for long-term use.

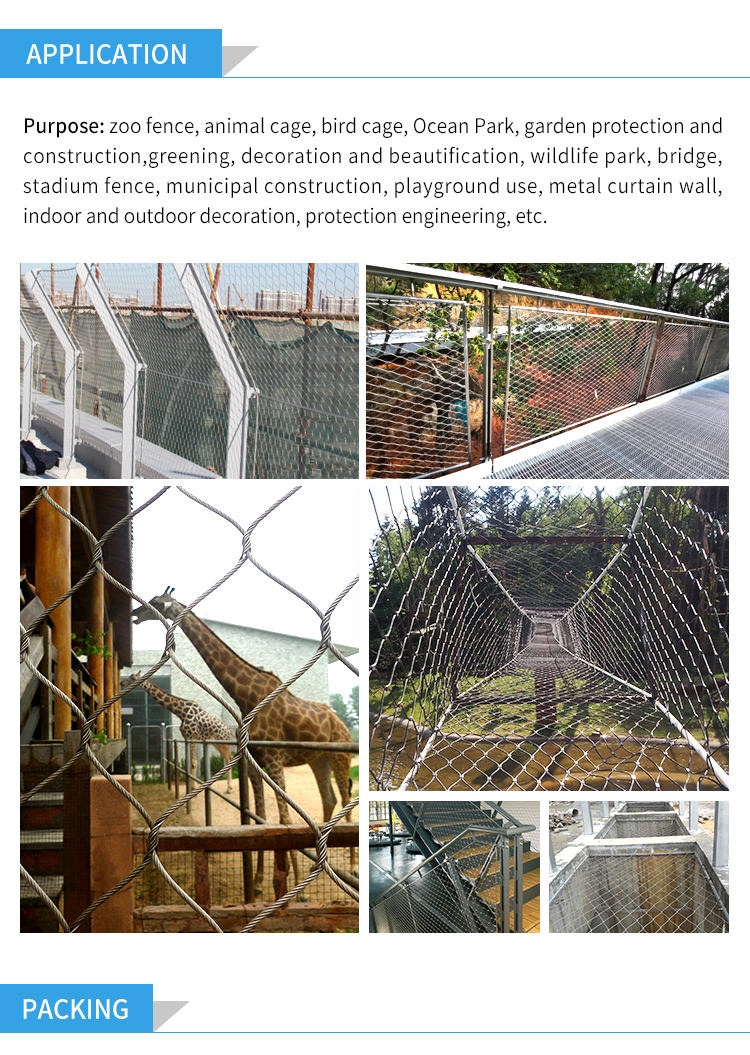

Applications
- Green facade - used as a cable system for climbing plants.
- Aviary netting - lightweight, durable, and long-lasting.
- Cable zoo mesh - ideal for enclosing most animals.
- Helipad safety net - modular heliport webbing for increased safety.
- Safety net - used as a structural measure to prevent suicide.
- Stainless steel wire rope mesh - an excellent safety solution for various applications.
- Steel mesh balustrade - used for bridge, stair, balcony, path, and deck railing.
- Architectural decoration - used for building facades, sunscreens, and cladding.
- Protective netting - used for fall protection, debris containment, and safety barriers.
- Zoo mesh - used for enclosures for large animals, birds, and reptiles.
Overall, stainless steel wire rope mesh is a versatile and reliable product with a wide range of applications. Its strength, durability, and resistance to corrosion make it ideal for use in challenging environments. It also offers excellent aesthetic properties, making it a popular choice among architects and designers.
Speicifcations Stainless Steel Wire Rope Mesh
| Code | Rope Construction | Rope Diameter (inch) | Rope Diameter (mm) | Opening Size (inch) | Opening Size (mm) | Breaking Force (KN) |
|---|---|---|---|---|---|---|
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
Installing stainless steel wire rope mesh involves several steps:
- Measure the area: Before installation, you need to measure the area where the mesh will be installed. This will help you determine the amount of mesh and other materials required for the installation.
- Fix the support structure: The mesh is usually fixed onto a support structure, such as a steel frame or wooden posts. The support structure should be strong enough to hold the weight of the mesh and any load that will be placed on it.
- Cut the mesh: The mesh should be cut to the appropriate size, leaving some excess material for tightening and adjustment.
- Attach the mesh: Attach the mesh to the support structure using stainless steel wire ropes or clips. The mesh should be pulled tight to remove any wrinkles or sagging.
- Secure the mesh: Once the mesh is attached, it should be secured tightly using stainless steel turnbuckles or tensioners. The tension should be adjusted evenly across the mesh to prevent any deformation.
- Trim the excess: After installation, any excess wire or mesh should be trimmed to give a clean and neat finish.
Packing

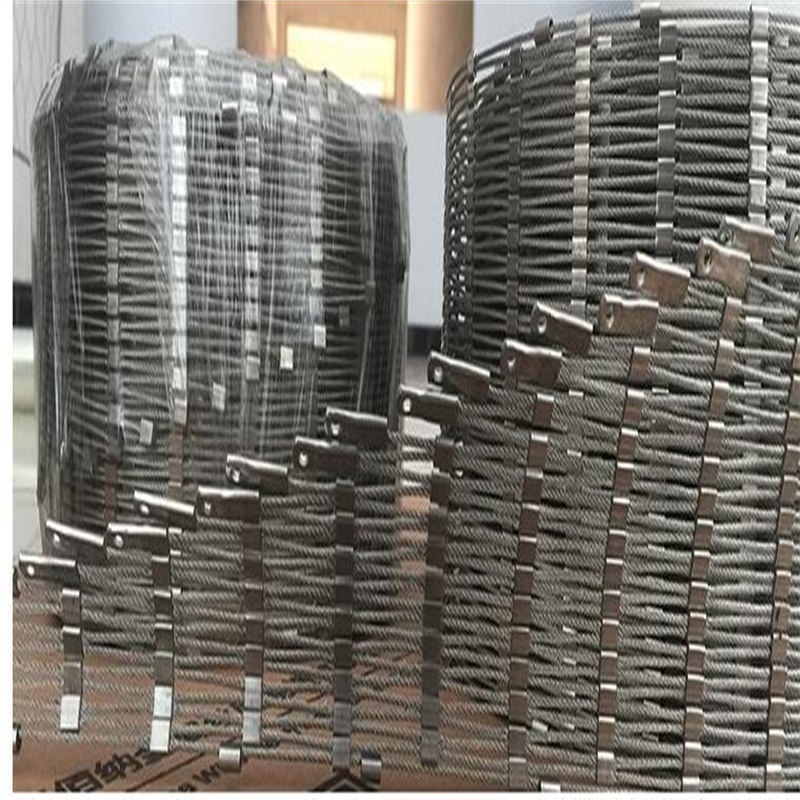

The packing of wire rope mesh may vary depending on the supplier, but typically it is packed in rolls or sheets. The mesh is usually wrapped in plastic or paper to protect it from scratches and other damages during transportation. Some suppliers may also use wooden crates or pallets to pack the mesh for added protection.
When you receive your stainless steel wire rope mesh, be sure to inspect the packaging and the mesh itself for any damages that may have occurred during shipping.
