316 stainless steel mesh can be divided into woven wire mesh and welded wire mesh two types
| 316 Stainless Steel Weld Mesh |
Plain Woven 316 Stainless Steel Weld Wire Mesh |
|
|
|
Stainless Steel Feature:
Corrosion resistance
Anti-acid and alkali
Anti-high temperature
Good filter performance
316 stainless steel mesh are Long using life
Weave Type
- Plain weave: The most popular industrial production and civil life preparation method is widely used.
- Twill weave: Mainly for 150 mesh to 600 stainless steel wire mesh weaving purposes.
- Dutch weave: In this method, the stainless steel wire mesh weaving has good tensile strength, mainly used for liquid and slurry
Parameters
|
Material |
Mesh |
Warp wire diameter | Shute wire diameter. |
Weave type |
Normal filtration |
||
|
inch |
inch | mm | inch | mm |
microns |
||
|
aisi316 |
12x64 |
0.023 |
0.58 |
0.0165 |
0.42 |
Plain dutch |
300 |
|
aisi316 |
14x88 |
0.019 |
0.48 |
0.012 |
0.3 |
Plain dutch |
200 |
|
aisi316 |
24x110 |
0.014 |
0.355 |
0.01 |
0.25 |
Plain dutch |
150 |
|
aisi316 |
30X150 |
0.009 |
0.23 |
0.007 |
0.18 |
Plain dutch |
80 |
|
aisi316 |
40X200 |
0.007 |
0.18 |
0.0055 |
0.14 |
Plain dutch |
60 |
|
aisi316 |
50X250 |
0.0055 |
0.14 |
0.0045 |
0.11 |
Plain dutch |
40 |
|
aisi316 |
80X700 |
0.004 |
0.1 |
0.003 |
0.076 |
Twill dutch |
25 |
|
aisi316 |
165X800 |
0.0028 |
0.071 |
0.002 |
0.05 |
Twill dutch |
16 |
|
aisi316 |
165X1400 |
0.0028 |
0.071 |
0.0016 |
0.04 |
Twill dutch |
10 |
|
aisi316 |
200X1400 |
0.0028 |
0.071 |
0.0016 |
0.04 |
Twill dutch |
5 |
|
aisi316 |
325X2300 |
0.0014 |
0.035 |
0.001 |
0.025 |
Twill dutch |
2 |

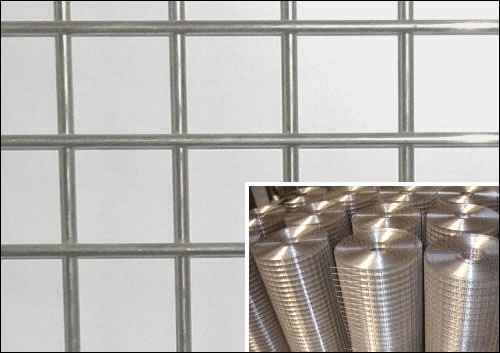

316 stainless steel weld mesh
316 stainless steel welded wire mesh is a trendy and versatile item that many customers use for various applications. Darby specializes in high-quality stainless steel welded wire mesh, available in 316 stainless steel. Stainless steel welded wire mesh is corrosion resistant uniform in appearance. Aside from stainless steel's corrosion resistance and clean look, another benefit of selecting a stainless steel welded wire mesh is that the mesh will remain intact and rigid because the wires are physically welded at each intersection. Solid and consistent welds make stainless steel welded wire mesh ideal for general industrial use. The welded mesh can be cut down to smaller sizes, like rectangles, squares or discs, without fraying, which can occur when fabricating with a woven mesh. Some customers know Stainless Steel Welded Wire Mesh as welded wire or mesh. This kind of wire mesh structure is strong, lasting, and rust-resistant.
Specification Stainless Steel Weld Mesh
| Mesh size | Wire Dia(BWG) | |
| In inch | In mm | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm |
12,13,14,15,16 |
