Stainless steel crimped wire mesh is crimped before weaving, and it has a strong structure, good loading capacity and beautiful appearance. The pre-crimped weaving method can ensure the open area and make the structure stable and smooth. The crimped woven wire mesh has various applications. The heavy-duty crimped woven wire cloth can be used as a vibrating screen in the mining, coal, crusher and other industries. The light crimped woven wire mesh with thinner wire diameter, and small opening size can be used as barbecue grill mesh, pig feeding, protective fences for the equipment and stairs. Crimped wire mesh can serve as quarry screen, infill panel, filter element, grill, etc. And it plays an essential role in mining, chemical, petroleum, construction industries.
Crimped Types

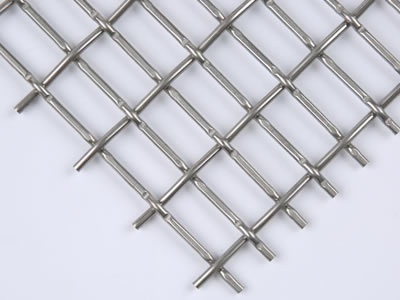

Flat top crimped woven wire meshFlat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles are on the underside. The structure is cumbersome and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen. It is widely used in vibrating screens... |

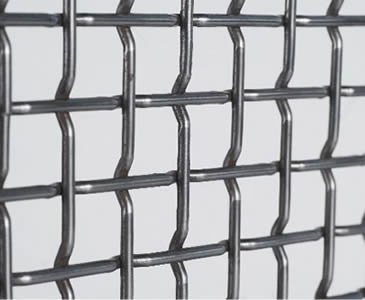

Lock crimped woven wire mesh.Lock crimped is a refinement of the intermediate crimped. It can lock the wire at its position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh. |
|
|

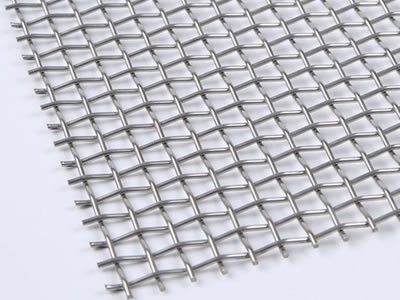

Intermediate crimped woven wire meshDouble crimped is also called plain weave. Unlike the intermediate crimped, both the warp wire and weft wire are woven directly by straight wire. We can get a rigid construction through evenly crimping in warp and weft wire. The wires are under-crimped and sprung together, thus giving a tight mesh. This is used mainly with lighter wires to ensure tension in a light screen. |

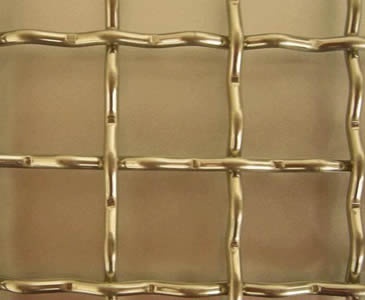

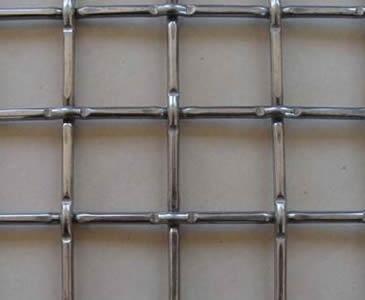

Double crimped wire meshIntermediate crimped can be divided into single intermediate crimped, and double intermediate crimped. The single intermediate crimped means the weft wire is pre-crimped, and the warp wire is directly woven. The double intermediate crimped means both the weft and warp wires are pre-crimped and then woven together. The intermediate crimped wire is pre-crimped by the rotary dies using the precision machine. The pre-crimped wire can assure the spacing of the wires. When the wires are woven together, the structure can ensure the wires will lock firmly together at the intersections. |
|
|
Edge Types
Included plain, bent and reinforced hooked.

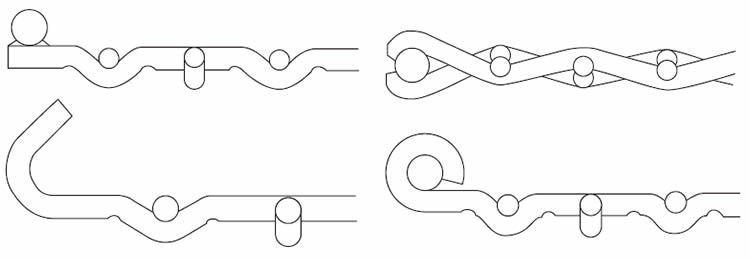

Plain edge and bent edge |

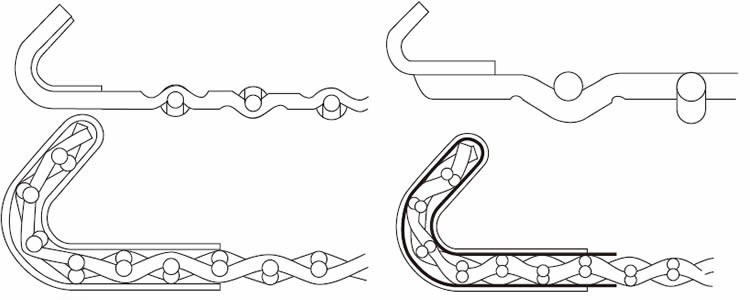

Reinforced hooked edge |
|
Common Stainless Steel Crimped Mesh Specifications
- Materials: stainless steel 301, 302, 304, 304L, 316, 316L, 321.
- Mesh width: up to 2000 mm.
- Aperture width: 10–120 mm in the case of multi-notch meshes and 4–40 mm in the case of single-notch meshes.
- Weaving method: crimped before weaving.
- Surface treatment: pickling and passivation, polishing, galvanized.
-
Frame:
- Cut the edges;
- Bent edges;
- Sheathed hooks.
-
Packing:
- Sheets on pallets or in wooden cases;
- Rolls wrapped with waterproof paper and plastic film.
Stainless Steel Crimped woven wire mesh is made of stainless steel wire. It has various weaving methods, such as the double crimped, flat top crimped, intermediately crimped and locked crimped. The crimped woven wire mesh has a square and rectangle opening, with different wire diameters and applications.
Wire Gauge (SWG ) | Wire diameter (mm) | Mesh holes / inch | Aperture (mm) | Weight(kg) |
6 | 4.8 | 1 | 20.6 | 11.5 |
8 | 4.05 | 2 | 9 | 16.5 |
10 | 3.2 | 2 | 10 | 10.5 |
12 | 2.6 | 3 | 5.9 | 10.5 |
14 | 2.0 | 3 | 6.5 | 6 |
16 | 1.6 | 4 | 5 | 5.5 |
17 | 1.4 | 5 | 5.1 | 5.0 |
18 | 1.2 | 5 | 4 | 3.6 |
19 | 1.0 | 6 | 3.2 | 3.0 |
21 | 0.8 | 7 | 2.8 | 2.3 |
22 | 0.7 | 8 | 2.5 | 2 |
Stainless steel crimped wire mesh features:
- Excellent strength and solid structure;
- Good rust and corrosion resistance;
- High loading capacity;
- Long service life;
- Beautiful surface.
Stainless steel crimped wire mesh applications:
- Serves as vibrating screen, filter element, infill panel, barbecue grill, baking rack;
- Used in mining, chemical, petroleum, construction industries;
- Designed into the decoration artwork.
