1/2" flexible stainless steel wire rope mesh net provides the ideal aesthetic and functional alternative to fencing; stainless steelz00 mesh is a cost-ft safety. certified, weather-resistant and highly durable material that requires virtually no maintenance. When architects and engineers plan new animal enclosures, zoo mesh allows designs to be built to virtually any shape and size as the size and resilience of the mesh structure can be adjusted to suit specific requirements simply by choosing wire ropes of the appropriate diameter.
Details

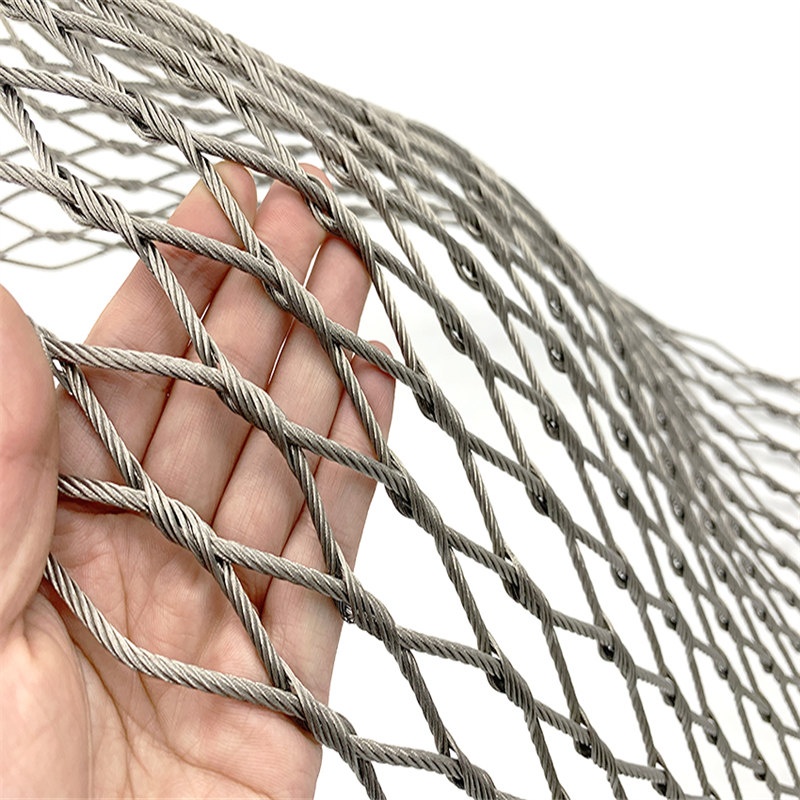

stainless steel wire rope mesh net is a mesh structure object made of high-quality 304/304L/316/316L stainless steel wire rope.
Common specifications: mesh 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, etc. But there is no specific specification because it can weave mesh of any size. Designers and users have loved this.
We can provide references according to customer requirements. Its overall mesh width and length can be made in any size.
There are commonly used wire rope structures: 7x7 and 7x19 high-quality stainless steel wire rope.
Common rope diameter: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 Common materials are: 304, 304L, 316, 316L stainless steel wire rope.
Application 1/2" flexible stainless steel wire rope mesh net
Specification
| Product ID |
Wire cable diameter Inch |
Wire cable diameter mm |
Mesh hole size Inch |
Mesh hole size mm |
Weight (kg/m2) |
| BM32120 | 1/8" | 3.18 | 120mm x 120mm | 120mm x 120mm | 0.85 |
| BM32102 | 1/8" | 3.18 | 4" x 4" | 102mm x 102mm | 0.96 |
| BM3290 | 1/8" | 3.18 | 90mm x 90mm | 90mm x 90mm | 1.10 |
| BM3280 | 1/8" | 3.18 | 80mm x 80mm | 80mm x 80mm | 1.30 |
| BM3276 | 1/8" | 3.18 | 3" x 3" | 76mm x 76mm | 1.40 |
| BM3260 | 1/8" | 3.18 | 60mm x 60mm | 60mm x 60mm | 1.65 |
| BM3250 | 1/8" | 3.18 | 2" x 2" | 51mm x 51mm | 2.10 |
| BM30120 | 3.0mm | 3.0 | 120mm x 120mm | 120mm x 120mm | 0.75 |
| BM30102-1/2" 1/2" flexible stainless steel wire rope mesh net | 3.0mm | 3.0 | 4" x 4" | 102mm x 102mm | 0.84 |
| BM3090 | 3.0mm | 3.0 | 90mm x 90mm | 90mm x 90mm | 0.97 |
| BM3080 | 3.0mm | 3.0 | 80mm x 80mm | 80mm x 80mm | 1.14 |
| BM3076 | 3.0mm | 3.0 | 3" x 3" | 76mm x 76mm | 1.23 |
| BM3060 | 3.0mm | 3.0 | 60mm x 60mm | 60mm x 60mm | 1.45 |
| BM3050 | 3.0mm | 3.0 | 2" x 2" | 51mm x 51mm | 1.85 |
| BM24120 | 3/32" | 2.38 | 120mm x 120mm | 120mm x 120mm | 0.45 |
| BM24102 | 3/32" | 2.38 | 4" x 4" | 102mm x 102mm | 0.54 |
| BM2490 | 3/32" | 2.38 | 90mm x 90mm | 90mm x 90mm | 0.60 |
| BM2480 | 3/32" | 2.38 | 80mm x 80mm | 80mm x 80mm | 0.68 |
| BM2476- 1/2" flexible stainless steel wire rope mesh net | 3/32" | 2.38 | 3" x 3" | 76mm x 76mm | 0.72 |
| BM2460 | 3/32" | 2.38 | 60mm x 60mm | 60mm x 60mm | 0.87 |
| BM2450 | 3/32" | 2.38 | 2" x 2" | 51mm x 51mm | 1.07 |
| BM20120 | 5/64" | 2.00 | 120mm x 120mm | 120mm x 120mm | 0.30 |
| BM20102 | 5/64" | 2.00 | 4" x 4" | 102mm x 102mm | 0.40 |
| BM2090 | 5/64" | 2.00 | 90mm x 90mm | 90mm x 90mm | 0.44 |
| BM2080 | 5/64" | 2.00 | 80mm x 80mm | 80mm x 80mm | 0.48 |
| BM2076 | 5/64" | 2.00 | 3" x 3' | 76mm x 76mm | 0.50 |
| BM2060 | 5/64" | 2.00 | 60mm x 60mm | 60mm x 60mm | 0.76 |
| BM2050 | 5/64" | 2.00 | 2" x 2" | 51mm x 51mm | 0.80 |
| BM2040-1/2" 1/2" flexible stainless steel wire rope mesh net | 5/64" | 2.00 | 40mm x 40mm | 40mm x 40mm | 1.02 |
| BM2038 | 5/64" | 2.00 | 1.5" x 1.5" | 38mm x 38mm | 1.10 |
| BM16120 | 1/16" | 1.60 | 120mm x 120mm | 120mm x 120mm | 0.2 |
| BM16102 | 1/16" | 1.60 | 4" x 4" | 102mm x 102mm | 0.26 |
| BM1690 | 1/16" | 1.60 | 90mm x 90mm | 90mm x 90mm | 0.30 |
| BM1680-1/2" 1/2" flexible stainless steel wire rope mesh net | 1/16" | 1.60 | 80mm x 80mm | 80mm x 80mm | 0.35 |
| BM1676 | 1/16" | 1.60 | 3" x 3" | 76mm x 76mm | 0.37 |
| BM1660 | 1/16" | 1.60 | 60mm x 60mm | 60mm x 60mm | 0.45 |
| BM1650 | 1/16" | 1.60 | 2" x 2" | 51mm x 51mm | 0.50 |
| BM1640 | 1/16" | 1.60 | 40mm x 40mm | 40mm x 40mm | 0.62 |
| BM1638 | 1/16" | 1.60 | 1.5" x 1.5" | 38mm x 38mm | 0.65 |
| BM1630 | 1/16" | 1.60 | 30mm x 30mm | 30mm x 30mm | 0.90 |
| BM1625 | 1/16" | 1.60 | 1" x 1" | 25.4mm x 25.4mm | 1.10 |
| BM12120- 1/2" flexible stainless steel wire rope mesh net | 3/64" | 1.20 | 120mm x 120mm | 120mm x 120mm | 0.12 |
| BM12102 | 3/64" | 1.20 | 4" x 4" | 102mm x 102mm | 0.15 |
| BM1290 | 3/64" | 1.20 | 90mm x 90mm | 90mm x 90mm | 0.17 |
| BM1280 | 3/64" | 1.20 | 80mm x 80mm | 80mm x 80mm | 0.18 |
| BM1276 | 3/64" | 1.20 | 3" x 3" | 76mm x 76mm | 0.19 |
| BM1260 | 3/64" | 1.20 | 60mm x 60mm | 60mm x 60mm | 0.22 |
| BM1250 | 3/64" | 1.20 | 2" x 2" | 51mm x 51mm | 0.25 |
| BM1240 | 3/64" | 1.20 | 40mm x 40mm | 40mm x 40mm | 0.38 |
| BM1238 | 3/64" | 1.20 | 1.5" x 1.5" | 38mm x 38mm | 0.40 |
| BM1230 | 3/64" | 1.20 | 30mm x 30mm | 30mm x 30mm | 0.45 |
| BM1225 | 3/64" | 1.20 | 1" x 1" | 25.4mm x 25.4mm | 0.55 |
| BM1220 | 3/64" | 1.20 | 4/5" x 4/5" | 20mm x 20mm | 0.73 |
| BM10012-1/2" flexible stainless steel wire rope mesh net | 1.00 | 1.00 | 12.7mm x 12.7mm | 12.7mm x 12.7mm | 0.80 |
