Construction Fence is also called portable fencing, removable fencing and portable fencing. It is easy to install and dismantle, so it is convenient for a short time using. The temp fence system consists of panels, clamps, molded plastic feet or metal stands, and portable fences with bracing and barbed wire. The site fencing nz panels are the essential part of them, so site fencing nz panels should be designed with high rigidity and firm structure.
Features:
Our site fencing nz panels with the following features included
-
High strength. construction fence panels are made of high-quality low-carbon steel.
-
Easy to install and dismantle. Our panels are free-standing, so there is no need to dig holes or damage the land.
-
Easy to move. The construction fence panel is convenient to remove for an urgent need.
-
Anti-corrosion. The surface of the site fencing nz can be treated with hot-dipped galvanized, electric galvanized, PVC coated and so on, so the panel has good corrosion resistance.
-
Various types. The temp fence panels can be made of welded mesh and chain link mesh.
-
Various colors. The site fencing nz panels can be coated with different colors for different occasions, like blue, gray, yellow, red, etc.
-

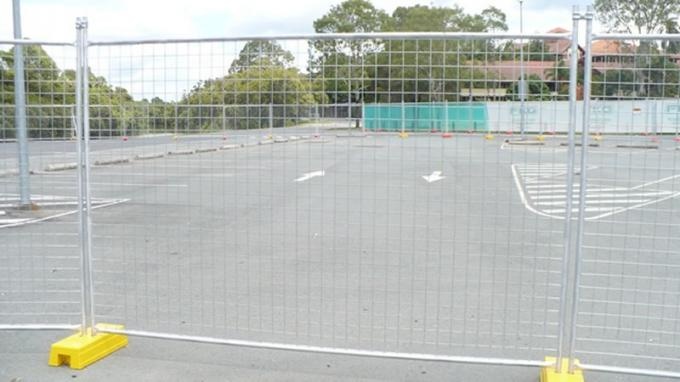

Good adaptability. The temporary fence panels can be installed on any surface, including ground, asphalt and concrete.
Photo site fencing nz

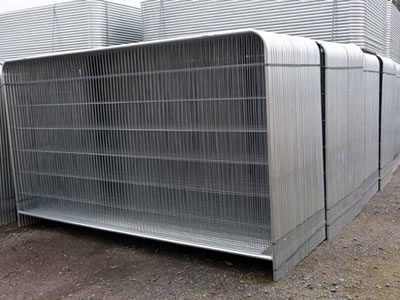

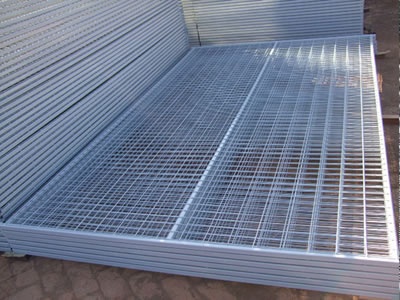

TFP-1: The welded site fencing nz panels can be made with a round frame. |
TFP-2: Canada temp fence panels are made of a square frame and have a square top. |

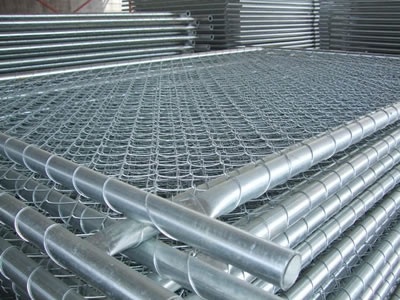

TFP-3: The infilled woven mesh of a small chain link temporary fence panel can be directly attached to the tubes. |
TFP-4: Large size chain link temporary fence panel with cross reinforced pipe at the infilled mesh to improve stability. |

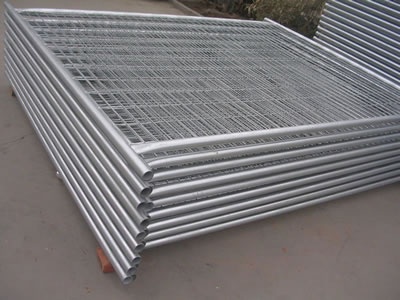

TFP-5: The welded temporary fence panel can also be made into a round top type. |
Specifications site fencing nz :
The New Zealand site fencing nz panels have many types, and different specifications are available according to your needs.

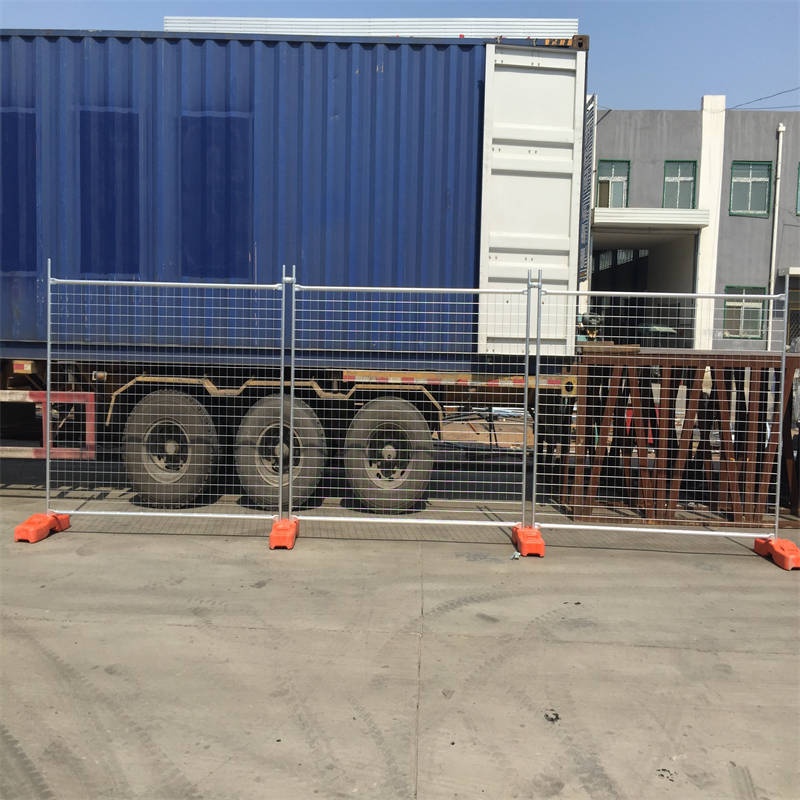

site fencing nz -14 microns zinc layer HDG before weld PRE GALVANIZED -ECONOMIC | |
Pipes | OD 32 x 1.4mm |
Mesh | 60mm x 150mm |
Diameter | 3.00mm |
Panels Size | 2100mm x 2400mm |
Temporary Fence-14 microns zinc layer HDG before weld PRE GALVANIZED -Standard | |
Pipes | OD32 x 2.00mm |
Mesh | 60mm x 150mm |
Diameter | 4.00mm |
Panel Size | 2100mm x 2400mm |
site fencing nz -42 microns zinc layer HDG before weld PRE GALVANIZED -Standard | |
Pipes | OD 32 x 2.00mm |
Mesh | 60mm x 150mm |
Diameter | 4.00mm |
Panel Size | 2100mm x 2400mm |

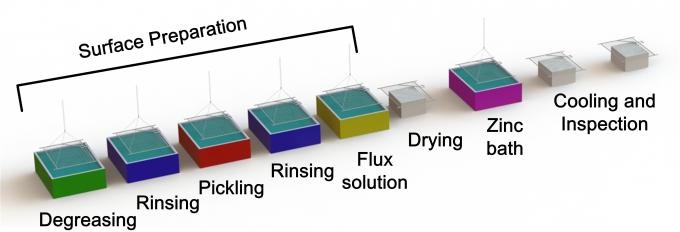

Full hot dipped galvanized temporary fence /HDG after fabricating 84 microns zinc layer | |
Pipes | OD 32 x 2.00mm |
Mesh Opening | 60mm x 150mm |
Diameter | 4.00mm |
Panel Size | 2100mm x 2400mm |
Canada site fencing nz panel
Material | Low carbon steel |
---|---|
Wire diameter | 3 mm, 3.5 mm (popular), 4 mm |
Mesh opening | 2" × 4" |
Panel size | H: 3.75', 4', 6', 8'; L: 8', 8.5', 9', 9.5', 10', etc. |
Pipe shape | Square |
Reinforced pipe | 20 mm × 20 mm, 25 mm × 25 mm, etc. |
Outside frame | 1" × 1", 1.5" × 1.5" |
Frame thickness | 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm |
Surface treatment | Galvanized with powder coated or painted |
PVC coating colors | Green, blue, red, orange, yellow |

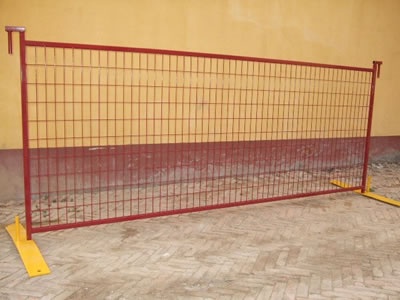

TFP-7: Canada temporary fence. |

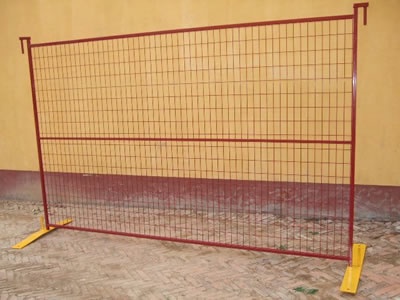

TFP-8: Canada temporary fence with a reinforced pipe. |
USA temporary chain link fence
Material | Low carbon steel |
---|---|
Surface treatment | Hot-dipped galvanized or PVC coated |
Zinc thickness | 42 micros |
site fencing nz Wire diameter | 2-5 mm |
Mesh size | 50 mm × 50 mm, 60 mm × 60 mm, 70 mm × 70 mm, etc. |
H × L | 2.1 m × 2.4 m (regular size), 1.8 m × 2.4 m, 1.8 m × 2.9 m, 2.25 m × 2.4 m, 2.1 m × 2.6 m, 2.1 m × 3.3 m |
Outside & reinforced pipe | 25 mm, 32 mm, 38 mm, 40 mm, 42 mm, 48 mm |
Pipe thickness | 2.0 mm, 2.2 mm, 2.3 mm, 2.5 mm, 2.75 mm, etc. |
Applicationssite fencing nz panels can be purchased at different sites for various applications.
|

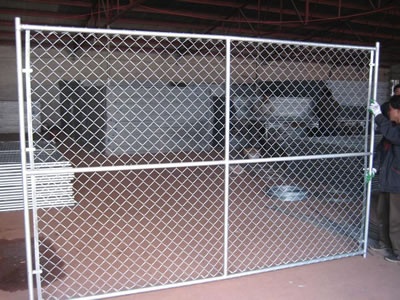

TFP-9: Chain link temporary fence panel with the reinforced pipe. |
