Stainless steel ferrule wire rope mesh is extruded by stainless steel wire rope and stainless steel buckle. Stainless steel wire ropes are commonly used in structures 7x7 and 7x19. The materials are stainless steel 304, 316, 304L and 316L. Secondly, we can also provide hot-dip galvanized steel wire rope products. The steel buckle is mainly made of stainless steel, and other aluminium and copper buckles are available for customers.
Stainless steel ferrule rope mesh, also called cable mesh, is almost similar to stainless steel knotted rope mesh in physical properties. And the only difference is that ferrules combine the two neighbouring ropes of stainless steel cable mesh to form diamond openings. And ferrules are made of the same material as rope wire. The standard angle is 60°, but other angles are available, such as 10° and 90°. Stainless steel mesh is very flexible, and its width and length can be modified. Therefore, it is widely used in various fields of our daily life, such as stainless steel rope mesh green wall and stainless steel balustrade mesh.
Mesh is solid and firm. | Fixed on a fixture, making it resistant to impact. |
Features:
-
Lightweight and high flexibility. Stainless steel ferrule rope mesh is light, and its width, length, rope diameter and opening size can be modified. What's more, diagonal and irregular shapes are also available. So stainless steel wire rope mesh is easy to install in any condition and is widely used in many places.
-
High strength, resistant to fatigue and impact.
Ferrules combine stainless steel ropes firmly, making the mesh form a strong whole. Therefore, ferrule rope mesh is resistant to fatigue and impact. -
Good softness.
The rope construction is seven × 7 or 7 × 19, making Stainless steel ferrule rope mesh very soft. Therefore, it can be curved and folded easily, making it effortless to transport. And this property also makes it easy to install. Above all, it will not hurt hands. -
Excellent rust-resistance, recyclable and durable.
Stainless steel ferrule cable mesh comprises 304, 316, 304L or 316L, so it is resistant to rust. Its life span can be up to more than 30 years. -
Outstanding perspectivity and grand appearance.
Ferrule mesh has diamond-shaped openings and ferrules, giving it a great perspectivity and appearance. Therefore, it is widely used as bird aviaries, animal enclosures, animal cages, building decorations, etc. And the rope mesh itself is an extensive landscape. -
Maintenance-free and environmentally friendly.
There is no toxic material in Stainless steel ferrule rope mesh. With time going by, it will not rust and deform. Therefore, there is no need to maintain it. Once it is installed, it can be used forever.
High flexibility can be used in many conditions. | Tight and firm. | Uniform mesh holes feature a grand appearance. |
Packaging Details:
-
The inner packing is water-proof cloth, and the outer packing is wooden cases.
-
Fixed stainless steel rope mesh into a bundle with strings.
-
Packed according to customers' requirements.
2.1 Feature stainless steel ferrule rope mesh
- 1. Lightweight, high strength, never rust, good flexibility, fatigue resistance, impact resistance, high breaking strength, solid and durable overall structure, the service life of more than 30 years.
- 2. Close to nature, green and environmental protection. It can be used in any climate and environment, does not change colour under long-term sunlight, and does not rust in the rain, snow, or fog.
- 3. The stainless steel rope net has a smooth surface, good air permeability and a complete user environment. Luxury appearance, novel style, unique, itself is an extensive landscape.
- 4. The design is not limited, and the designer can design the diameter of the hole rope at will. It is easy to install and can be applied to any construction in progress. No later maintenance is required.
- 5. Good elasticity and buffering of solid force. Especially when using the cages in the zoo, Flexible Design Stainless Steel Ferrule mesh did not hit the animals, and the nets and animals were not injured.
2.2 Applications
A flexible stainless steel ferrule rope net is suitable for constructing animal cages, bird nets, animal fences, and garden decorations in zoo mesh, wildlife parks, Ocean Park, and similar environments. In addition, stainless steel rope net is also suitable for sports, acrobatics, home decoration, architectural decoration and other fields.
2.3 Specification Stainless Steel Ferrule Rope Mesh
Stainless Steel Rope Mesh with Ferrule |
|||||
Item No. |
Rope Diameter |
Mesh Opening Size |
Normal Break |
||
inch |
mm |
inch |
mm |
lbs. |
|
Stainless Steel Wire Rope Mesh200 |
1/8 |
3.2 |
4.75×8.23 |
120×207.8 |
1,600 |
Stainless Steel Wire Rope Mesh201 |
1/8 |
3.2 |
4×6.9 |
102×176.7 |
1,600 |
Stainless Steel Wire Rope Mesh202 |
1/8 |
3.2 |
3.55×6.15 |
90×156 |
1,600 |
Stainless Steel Wire Rope Mesh203 |
1/8 |
3.2 |
3×5.2 |
76×131.6 |
1,600 |
Stainless Steel Wire Rope Mesh204 |
1/8 |
3.2 |
2×3.46 |
51×88.3 |
1,600 |
Stainless Steel Wire Rope Mesh205 |
3/32 |
2.4 |
4×6.9 |
102×176.7 |
920 |
Stainless Steel Wire Rope Mesh206 |
3/32 |
2.4 |
3.55×6.15 |
90×156 |
920 |
Stainless Steel Wire Rope Mesh207 |
3/32 |
2.4 |
3×5.2 |
76×131.6 |
920 |
Stainless Steel Wire Rope Mesh208 |
3/32 |
2.4 |
2.4×4.16 |
60×104 |
920 |
Stainless Steel Wire Rope Mesh209 |
3/32 |
2.4 |
2×3.46 |
51×88.3 |
920 |
Stainless Steel Wire Rope Mesh210 |
5/64 |
2.0 |
3×5.2 |
76×131.6 |
676 |
Stainless Steel Wire Rope Mesh211 |
5/64 |
2.0 |
2.4×4.16 |
60×104 |
676 |
Stainless Steel Wire Rope Mesh212 |
5/64 |
2.0 |
2×3.46 |
51×88.3 |
676 |
Stainless Steel Wire Rope Mesh213 |
5/64 |
2.0 |
1-1/2×2.6 |
38×65.8 |
676 |
Stainless Steel Wire Rope Mesh214 |
1/16 |
1.6 |
1.2×2.08 |
76×131.6 |
480 |
Stainless Steel Wire Rope Mesh215 |
1/16 |
1.6 |
2×3.46 |
51×88.3 |
480 |
Stainless Steel Wire Rope Mesh216 |
1/16 |
1.6 |
1-1/2×2.6 |
38×65.8 |
480 |
Stainless Steel Wire Rope Mesh217 |
1/16 |
1.6 |
1.2×2.08 |
30×52 |
480 |
Stainless Steel Wire Rope Mesh218 |
1/16 |
1.6 |
1×1.73 |
25.4×44 |
480 |
Stainless Steel Wire Rope Mesh219 |
3/64 |
1.2 |
1-1/2×2.6 |
38×65.8 |
270 |
Stainless Steel Wire Rope Mesh220 |
3/64 |
1.2 |
1.2×2.08 |
30×52 |
270 |
Stainless Steel Wire Rope Mesh221 |
3/64 |
1.2 |
1×1.73 |
25.4×44 |
270 |
Stainless Steel Wire Rope Mesh222 |
3/64 |
1.2 |
4/5×1.39 |
20×34.6 |
270 |

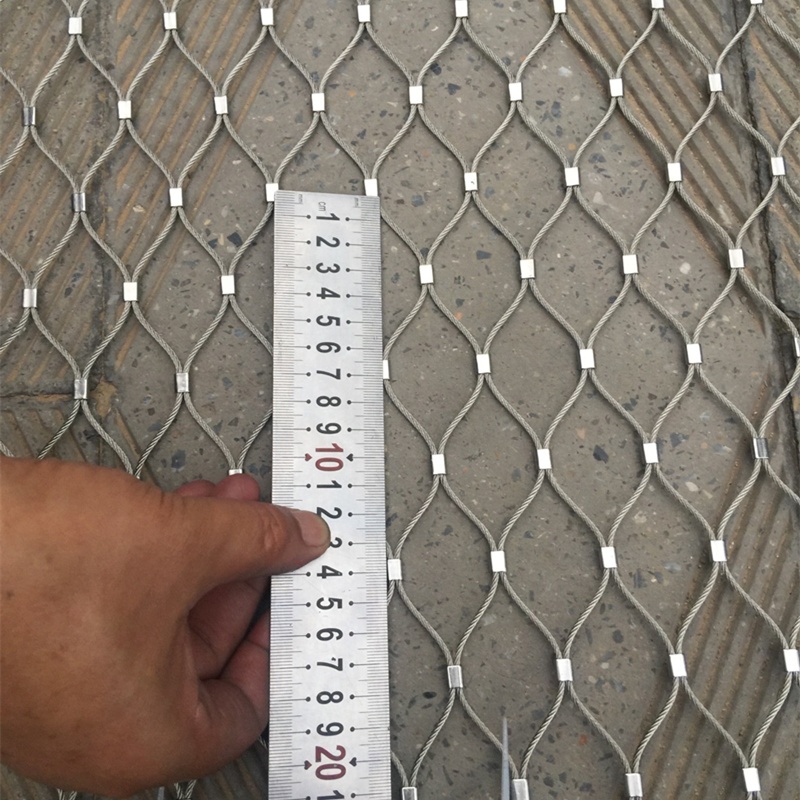

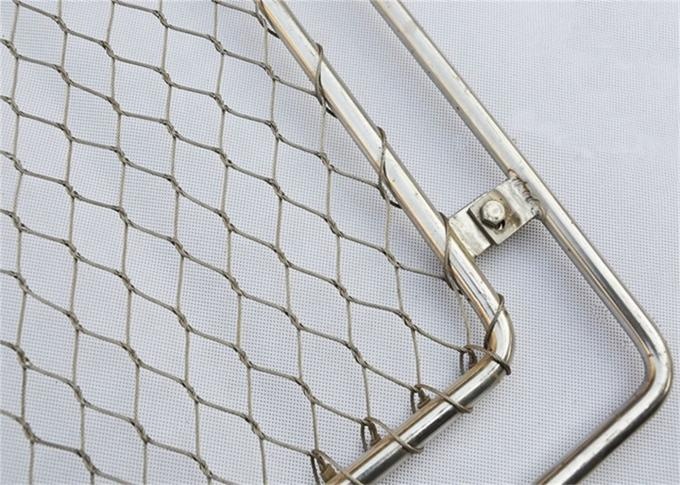

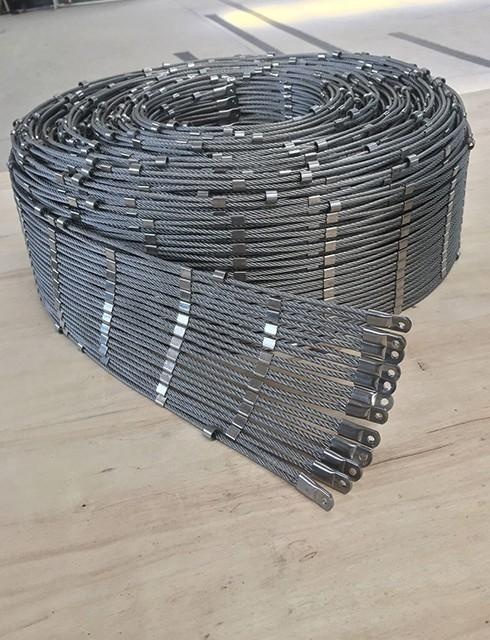

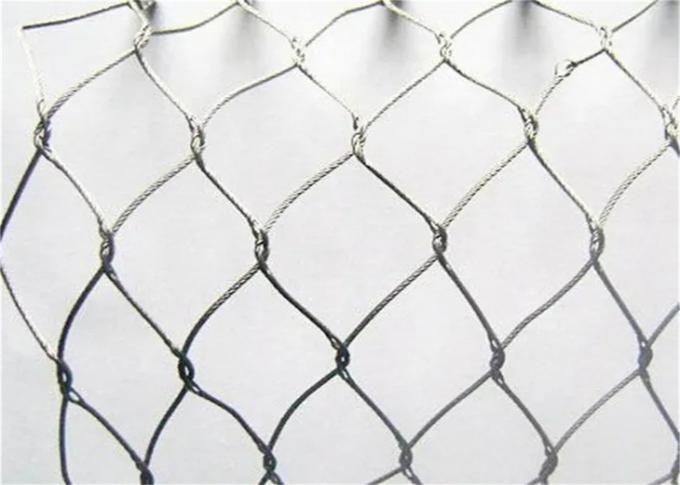

2.4 PHOTO Stainless Steel Ferrule Rope Mesh

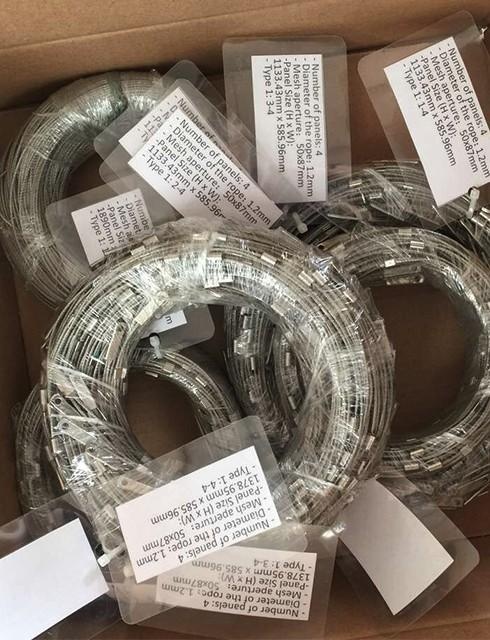

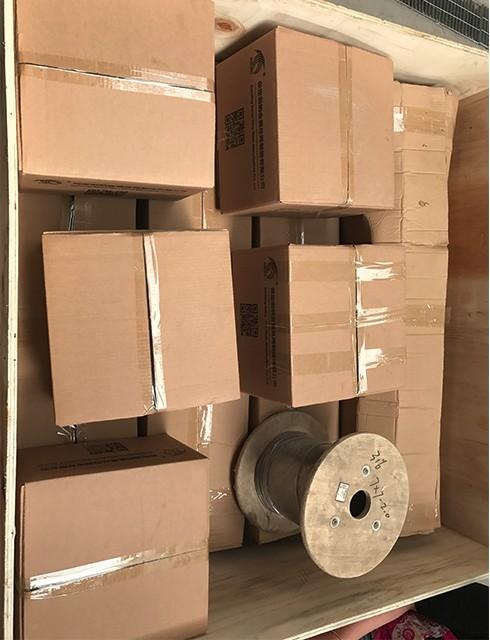

Packing
- Wrapped with plastic film, then out in the wooden box.
- Package could also be customized.
