mesh storage containers, also known as foldable wire mesh containers or collapsible wire mesh baskets, are versatile storage and transportation solutions widely used in various industries. These containers are made of welded wire mesh panels and steel frames that are durable and long-lasting.

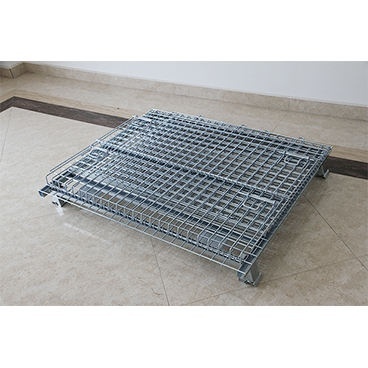

One of the primary advantages of collapsible wire mesh containers is their collapsible design, which allows them to be easily stored and transported when not in use. This design saves valuable storage space and reduces shipping costs, making them an ideal choice for companies looking to optimize their supply chain.

Collapsible wire mesh containers also offer excellent visibility, ventilation, and accessibility, allowing for easy inventory management and quick identification of goods. They can be easily stacked and transported by forklifts or pallet jacks, further streamlining the handling and movement of goods.

Other advantages of collapsible wire mesh containers include their high load capacity, sturdy construction, and ease of assembly. They are also reusable and can be recycled, making them an environmentally friendly option for companies looking to reduce their carbon footprint.

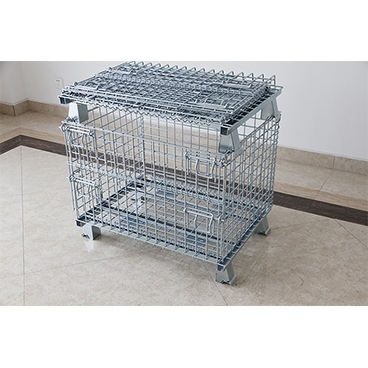

Photo mesh storage containers

Standard Specification
Model mesh storage containers	External Size (LxDxH mm)	Internal Size (LxDxH mm)	Wire Dia. (mm)	Grid (mm)	Weight (kg)	Loading (kg)
HG-A1	800*600*640	750*550*500	5.6	50*50	27	700
HG-A2			5.8		28	800
HG-B1	1000*800*840	950*750*700	5.6	50*50	42	1000
HG-B2 mesh storage containers			5.8		44	1200
HG-C1	1200*1000*890	1150*950*750	5.6	50*50	56	1300
HG-C2			5.8		58	1500
HG-C3			5.6	50*100	48	800
HG-C4			5.8		50	1000
mesh storage containers Material	Steel Q235
Available	Top Lid / Wheels / Hollow Sheet / Bar Runner / Forklift / Inner divider
Finish	Zinc / Hot dipped galvanized / Cold galvanized / Powder coating
Remark	Customized or OEM support

Collapsible wire mesh containers and cages are versatile and practical tools that offer many benefits for industrial and commercial use. These containers, also known as wire mesh baskets or collapsible cages, are made from high-quality metal materials with mesh grids that provide durability and strength. They can be customized to meet different storage demands and adapt to various environments. Here are some of the most common usages and advantages of mesh storage containers:

1. Storage and Transportation: Mesh storage containers and cages are primarily used for storing and transporting goods in warehouses and distribution centers. Their collapsible design saves storage space when not in use, making them an ideal solution for businesses with limited storage space. These containers are available in a variety of sizes, types, and modes, making them adaptable to different storage demands.

2. Recyclable and Environmentally Friendly: Metal mesh baskets are recyclable, which reduces packaging consumption and resource waste. By using these containers, businesses can contribute to a more sustainable environment.

3. Display and Organization: Mesh storage containers are also widely used in supermarkets and retail stores for displaying and organizing merchandise. These containers can store different sizes of goods and be easily stacked, providing easy access to products while maximizing space.

4. Protection and Security: In factories and distribution centers, wire mesh containers can store small or irregular items and stack up to 4 layers, providing additional protection and security for goods. These containers can also be located on shelves for added protection and storage space.

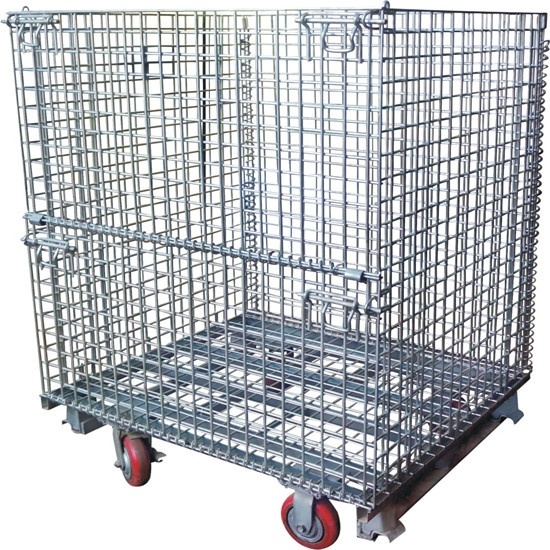

5. Mobility and Flexibility: Wire mesh containers designed with wheels can move freely in distribution centers, allowing for fast and efficient order picking and sorting. These containers can also be handled by vehicles such as forklifts, elevated cranes, and pallet trucks, making them flexible for industrial applications.

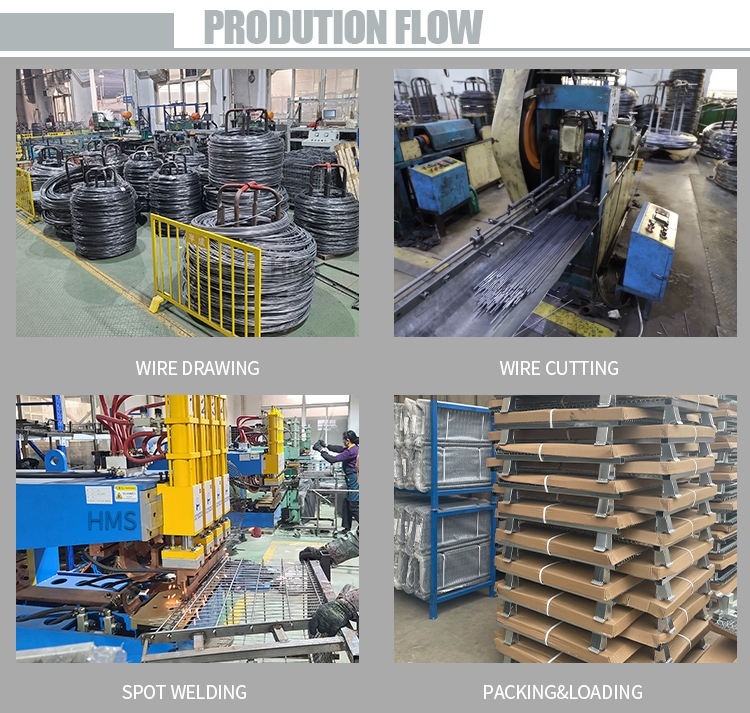

The production flow of mesh storage containers involves several stages that are essential to create high-quality and durable products. The following are the typical production flow for mesh storage containers:

1. Material chooseion: The first step in the production flow of mesh storage containers is to choose the right materials, including high-quality metal wires, mesh grids, and other required materials.

2. Wire drawing: The chooseed metal wires are then drawn through dies to achieve the desired diameter and quality.

3. Mesh welding: The drawn wires are then fed into a mesh welding machine, which welds the wires together to create mesh grids. These mesh grids are then trimmed to the required size.

4. Frame bending: The next step is to bend metal rods into the desired shape to create the frame of the container. This process is done by machines or by hand, depending on the size and complexity of the container.

5. Frame welding: Once the frame is bent into shape, it is welded together to create a sturdy structure.

6. Mesh installation: The welded frame is then fitted with the mesh grids to create the container body.

7. Surface treatment: The completed mesh storage containers are then treated to prevent rust and corrosion, typically through painting or galvanizing.

8. Quality inspection: The final step in the production flow is a rigorous quality inspection to ensure that the mesh storage containers meet the required standards and specifications.
