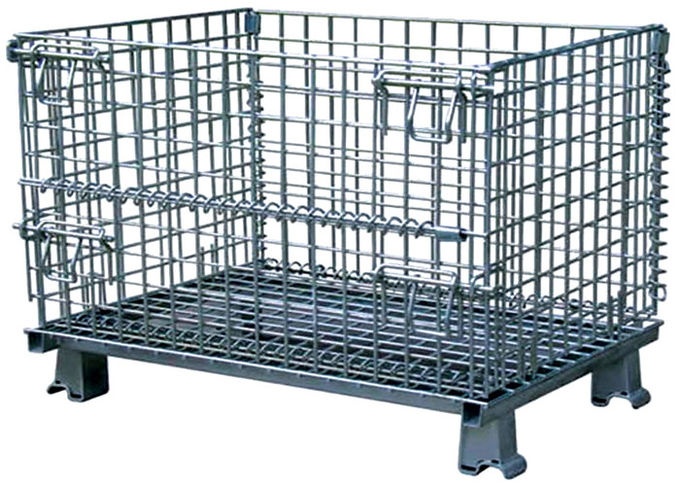

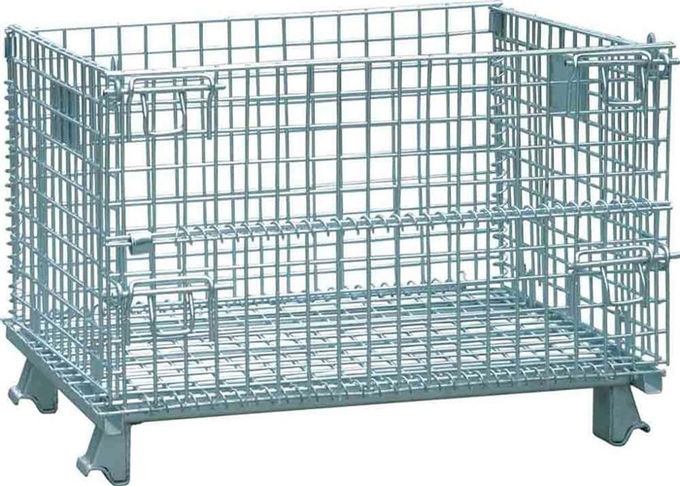

wire mesh storage container is ideal for better bulk material handling, better shipments return, and space-saving storage. Wire baskets are solid, returnable container systems that deliver high visibility savings and efficiently handle, transport, and store bulk parts and material. Baskets are self-cleaning, Light and strong with a low weight-to-load ratio, which means you move more stock, less container. These rugged, welded wire containers provide quick content identification, better material flow, and more efficient stock control. Our company can offer various wire mesh storage container, including collapsible wire mesh containers, lifting type wire mesh containers, wire mesh containers with a wheel, etc. In many manufacturing and warehousing applications, galvanized wire mesh containers are recommended for applications requiring maximum ruggedness and durability. The unique fold-down feature collapses this container to approximately 10 inches when not in use.
Specification of wire mesh storage container
Parameter-1
|
Mode
|
Diameter
(mm)
|
Mesh Grid
(mm)
|
Specification(mm)
|
Weight
(kgs)
|
Capacity
(kgs)
|
Volume
(litre)
|
QTY in 40'GP
|
||
|
Length
|
Wide
|
Height
|
|||||||
|
A-3
|
6
|
50*50
|
800
|
600
|
640
|
32
|
700
|
0.22
|
652
|
|
A-5
|
6
|
50*50
|
1000
|
800
|
840
|
49
|
1200
|
0.52
|
440
|
|
A-7
|
6
|
50*50
|
1200
|
1000
|
890
|
66
|
1500
|
0.84
|
270
|
|
B-6
|
6.4
|
50*50
|
800
|
600
|
640
|
35
|
800
|
0.22
|
652
|
|
B-5-wire mesh storage container
|
6.4
|
50*50
|
1000
|
800
|
840
|
54
|
1500
|
0.52
|
440
|
|
B-9
|
6.4
|
50*50
|
1200
|
1000
|
890
|
84
|
2000
|
0.9
|
270
|
|
S-5-2
|
6
|
50*100
|
1000
|
800
|
840
|
42
|
900
|
0.56
|
440
|
|
S-7-2
|
6
|
50*100
|
1200
|
1000
|
890
|
57
|
900
|
0.9
|
252
|
|
S-5
|
6.4
|
50*100
|
1000
|
800
|
840
|
46
|
1000
|
0.56
|
462
|
|
S-7
|
6.4
|
50*100
|
1200
|
1000
|
890
|
63
|
1000
|
0.9
|
270
|
Parameter-2
| wire mesh storage container | |||||||
| Item No. | Specification | Wire diameter | Mesh gauge | Load capacity | Self-weight | Feet height | |
| External size (L*W*H)(mm) | Internal size (L*W*H)(mm) | (mm) | (mm) | (kg) | (kg)±2% | (mm) | |
| A1-800 | 800*600*640 | 750*550*500 | 5.8 | 50*50 | 800 | 29 | 100 |
| A1-700 | 5.6 | 50*50 | 700 | 27.8 | |||
| A1-600 | 5.3 | 50*50 | 600 | 23 | |||
| A1-400 | 4.8 | 50*50 | 400 | 20.6 | |||
| A2-600 | 5.8 | 50*100 | 600 | 25 | |||
| A3-1000 | 6.3 | 50*50 | 1000 | 32 | |||
| B1-1200 |
1000*800*840-wire mesh storage container
|
950*750*700 | 5.8 | 50*50 | 1200 | 44.8 | 100 |
| B1-1000 | 5.6 | 50*50 | 1000 | 42.8 | |||
| B1-800 | 5.3 | 50*50 | 800 | 35.2 | |||
| B1-600 | 4.8 | 50*50 | 600 | 30.8 | |||
| B2-1000 | 5.8 | 50*100 | 1000 | 39 | |||
| B3-1500 | 6.3 | 50*50 | 1500 | 51 | |||
| C1-1500 | 1200*1000*890 | 1150*950*750 | 5.8 | 50*50 | 1500 | 60.8 | 100 |
| C1-1300 | 5.6 | 50*50 | 1300 | 55.8 | |||
| C2-1000 | 5.8 | 50*100 | 1000 | 53.8 | |||
| C2-800 | 5.6 | 50*100 | 800 | 48.4 | |||
| C3-2000 | 6.3 | 50*50 | 2000 | 68 | |||
| Remark: the size, wire diameter, mesh gauge can be customized as your design. | |||||||

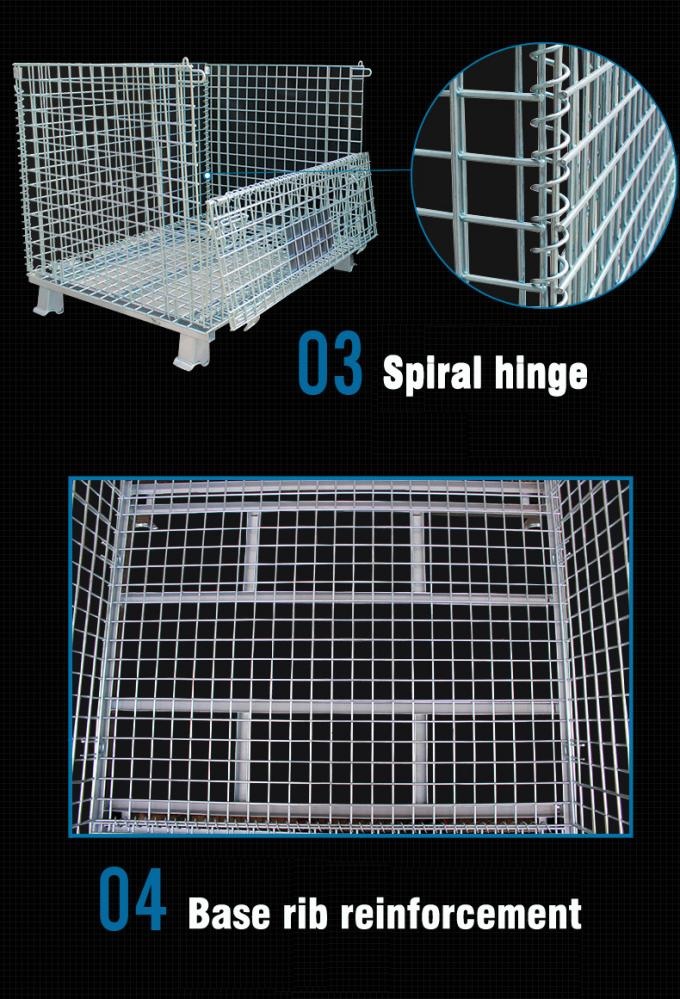

Feature
- 1. Wire container is made of solid steel, welded with U channel steel at the bottom to guarantee the Load capacity;
- 2. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;
- 3. Wire containers use bolt structure, providing easy access to products even when they are stacked;
- 4. Stackable: Wire containers can be stacked in 4 layers to achieve three-dimensional storage; When not used, wire containers can be collapsed and piled to save space;
- 5. With united specification and fixed capacity, it's convenient for identification of goods and inventory Count;
- 6. Casters can be equipped to make it convenient to move;
- 7. Cardboard or BMP board can be equipped in the wire container to protect the surface of goods During storage and transportation;
- 8. Worked with hydraulic trucks, forklifts, elevators, and other handling equipment, simple operation
- 9. Euro-style wire container is widely used in transportation, loading & unloading, storage and other logistics links. Low cost and high efficiency.
|
|
