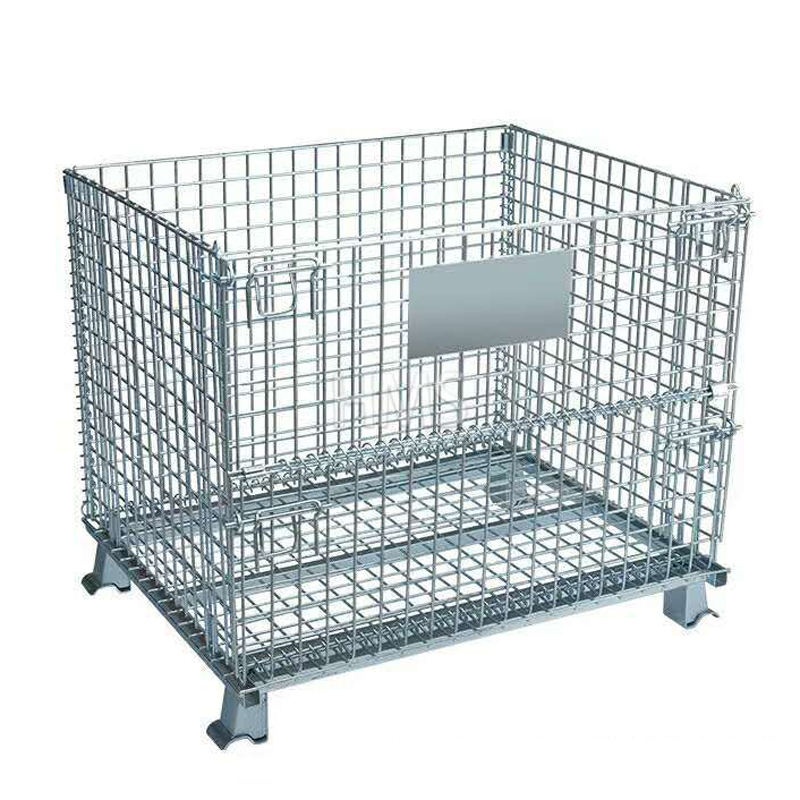

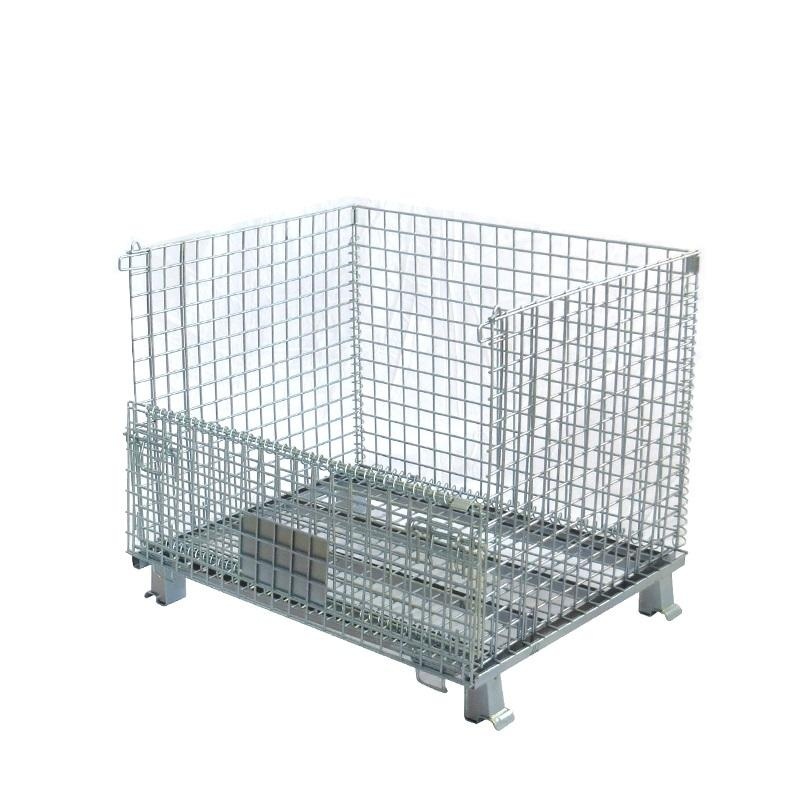

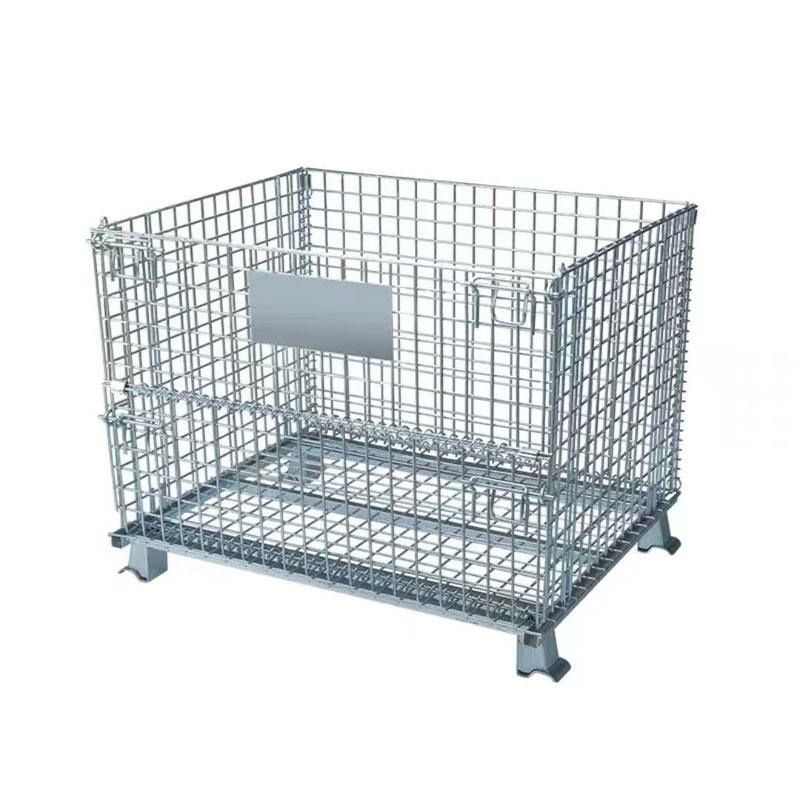

Wire mesh storage containers, also known as foldable metal storage cage butterfly cages, are becoming increasingly popular in the industrial sector. They are made from high-quality steel that has been hardened by cold welding, giving them a high strength and load capacity. These containers are rugged and convenient for transportation, and can be re-used, reducing storage and packaging costs for enterprises.
One of the key advantages of wire mesh storage containers is that they offer precise placement and volume, making it easy to check the amount of materials being stored. They can be easily transported by forklifts, elevators, and cranes, and are designed for easy operation and long service life.
Wire mesh storage containers are welded with a solid steel bar, and a "U" shaped channel galvanized steel is used at the bottom to increase solidity. They can be used in logistics circles, such as transportation, assembly, disassembly, and storage, by integrating transportation equipment. In addition, cardboard can be equipped in the basket to protect the surface of materials and ensure the completeness of materials during storage and transportation, reducing costs and increasing efficiency.
These containers are suitable for use in warehouses and supermarkets, and are designed to be foldable, taking up minimal space when not in use. The wire mesh container is solid and can withstand heavy loads, making it perfect for bulk storage.
Overall, wire mesh storage containers are a durable and cost-effective solution for storage and transportation needs in a variety of industrial settings. They comply with international standards and can be used as a replacement for wooden cases, making them an environmentally friendly option as well.
Wire mesh storage containers, also known as wire mesh containers or foldable metal storage cages, are durable and high-capacity storage solutions commonly used in warehouses, manufacturing plants, and transportation.
Here are some technical specifications of wire mesh storage containers:
-
Materials: high-quality steel hardened by cold-welding
-
Wire diameter: ranges from 4.8mm to 6.0mm depending on the style
-
Wire mesh size: typically 50x50mm or 50x100mm, also depending on the style
-
Surface treatment: zinc plated for durability and corrosion resistance
-
Load capacity: ranges from 400kg to 1600kg depending on the style
-
Folding structure: allows for easy loading, rotating, and storing
-
Stackable: can be stacked to save space when not in use
-
Mobility: can be transported using forklifts, pallet trucks, and cranes
-

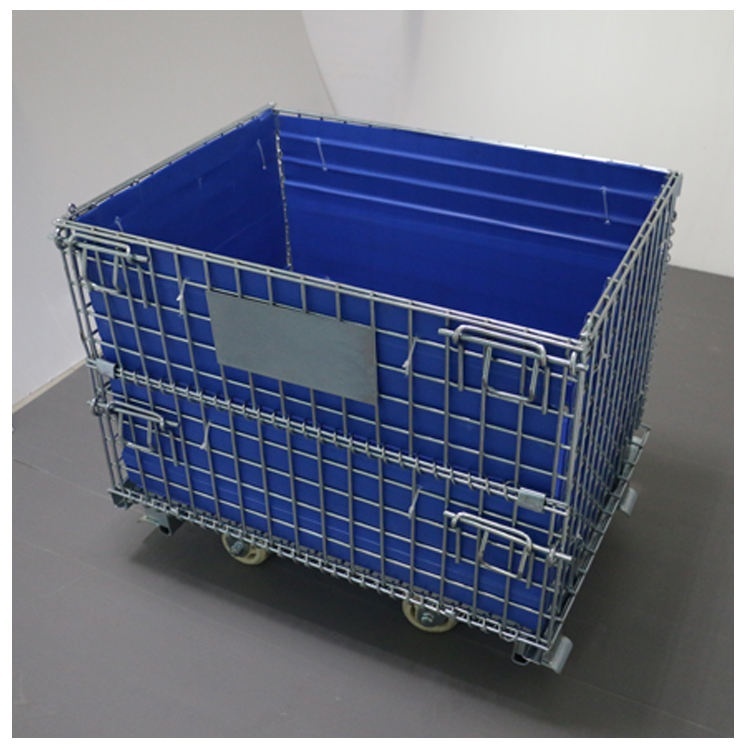

Cardboard lining: optional feature to protect materials during storage and transport
-
Compliant with international standards: can be used with containers and can replace wooden cases
Standard wire container | With wheels |
Specifications
Series | Style No. | Wire dia | Wire mesh | Outside dimension | Inside dimension | Load capacity |
---|---|---|---|---|---|---|
A | AP-A01 | 5.5mm | 50*50mm | 800x600x640mm | 750x550x500mm | 600kg |
A | AP-A02 | 4.8mm | 50*50mm | 800x600x640mm | 750x550x500mm | 500kg |
A | AP-A03 | 4.8mm | 50*100mm | 800x600x640mm | 750x550x500mm | 400kg |
B | AP-B01 | 6.0mm | 50*50mm | 1000x800x840mm | 950x750x700mm | 1200kg |
B | AP-B02 | 5.5mm | 50*50mm | 1000x800x840mm | 950x750x700mm | 1000kg |
B | AP-B03 | 5.5mm | 50*100mm | 1000x800x840mm | 950x750x700mm | 900kg |
B | AP-B04 | 4.8mm | 50*50mm | 1000x800x840mm | 950x750x700mm | 800kg |
B | AP-B05 | 4.8mm | 50*100mm | 1000x800x840mm | 950x750x700mm | 600kg |
C | AP-C01 | 6.0mm | 50*50mm | 1200x1000x890mm | 1150x950x750mm | 1600kg |
C | AP-C02 | 5.5mm | 50*50mm | 1200x1000x890mm | 1150x950x750mm | 1200kg |
C | AP-C03 | 5.5mm | 50*100mm | 1200x1000x890mm | 1150x950x750mm | 800kg |
C | AP-C04 | 4.8mm | 50*50mm | 1200x1000x890mm | 1150x950x750mm | 800kg |
C | AP-C05 | 4.8mm | 50*100mm | 1200x1000x890mm | 1150x950x750mm | 700kg |
C | AP-C06 | 4.8mm | 100*100mm | 1200x1000x890mm | 1150x950x750mm | 500kg |
Wire mesh storage containers have a wide range of applications across various industries due to their versatility, durability, and ease of use. Some of the common applications of wire mesh storage containers are:
-
Warehousing and Storage: Wire mesh storage containers are commonly used in warehouses for the storage of goods. They can be used to store a variety of products, including raw materials, finished goods, and even heavy equipment. Their durability and high load capacity make them ideal for this application.
-
Material Handling: Wire mesh storage containers are widely used in material handling applications. They can be used to transport goods within a facility or between different locations. Their stackability and compatibility with material handling equipment like forklifts and pallet jacks make them a popular choice for this application.
-
Retail Displays: storage containers are also used in retail displays. They can be used to display products in supermarkets or other retail stores. Their foldable design and ability to hold a significant amount of weight make them a versatile option for this application.
-
Recycling and Waste Management: Wire mesh storage containers are often used in recycling and waste management applications. They can be used to collect and transport recyclable materials or waste products. Their durability and easy-to-clean design make them ideal for this application.
-
Automotive Industry: Wire mesh storage containers are also used in the automotive industry for the storage and transport of automotive parts and components. Their high load capacity and compatibility with standard pallet jacks and forklifts make them an ideal choice for this application.
-
Agriculture: Wire mesh storage containers are used in the agriculture industry for the storage and transport of produce, fertilizers, and other agricultural products. Their foldable design and stackability make them easy to store when not in use, and their durability ensures they can withstand harsh agricultural environments.
