Wire mesh storage containers are containers made from wire mesh, which is a material composed of interlocking metal wires or fibers. These containers are commonly used in industrial settings for storage, transportation, and organization of various materials and products.

Wire mesh containers are popular for several reasons. Firstly, they are very durable and can withstand heavy loads and rough handling. Secondly, they allow for good ventilation and visibility, which is important when storing items that require airflow or when quick identification of items is needed. Thirdly, they are stackable, which makes them a space-saving solution for storing large quantities of goods.

Wire mesh containers are available in different sizes and shapes, and they can be customized to fit specific storage needs. They can also be fitted with various accessories such as lids, dividers, and casters to enhance their functionality.

Overall, wire mesh storage containers are a practical and cost-effective storage solution for various industrial applications.

Specifications

Specification	Wire Mesh Container
Standard size (LxWxH)	800x600x640 mm
Wire Diameter	5 / 6 mm
Mesh	50×50 / 50×100 mm
Load Capacity	700 kg
Standard size (LxWxH)	800x600x640 mm
Wire Diameter	5 / 6 mm
Mesh	50×50 / 50×100 mm
Load Capacity	500 kg
Standard size (LxWxH)	1000x800x840 mm
Wire Diameter	5 / 6 mm
Mesh	50×50 / 50×100 mm
Load Capacity	1200 kg
Standard size (LxWxH)	1000x800x840 mm
Wire Diameter	5 / 6 mm
Mesh	50×50 / 50×100 mm
Load Capacity	800 kg
Standard size (LxWxH)	1200x800x890 mm
Wire Diameter	5 / 6 mm
Mesh	50×50 / 50×100 mm
Load Capacity	1500 kg
Standard size (LxWxH)	1200x800x890 mm
Wire Diameter	5 / 6 mm
Mesh	50×50 / 50×100 mm
Load Capacity	800 kg

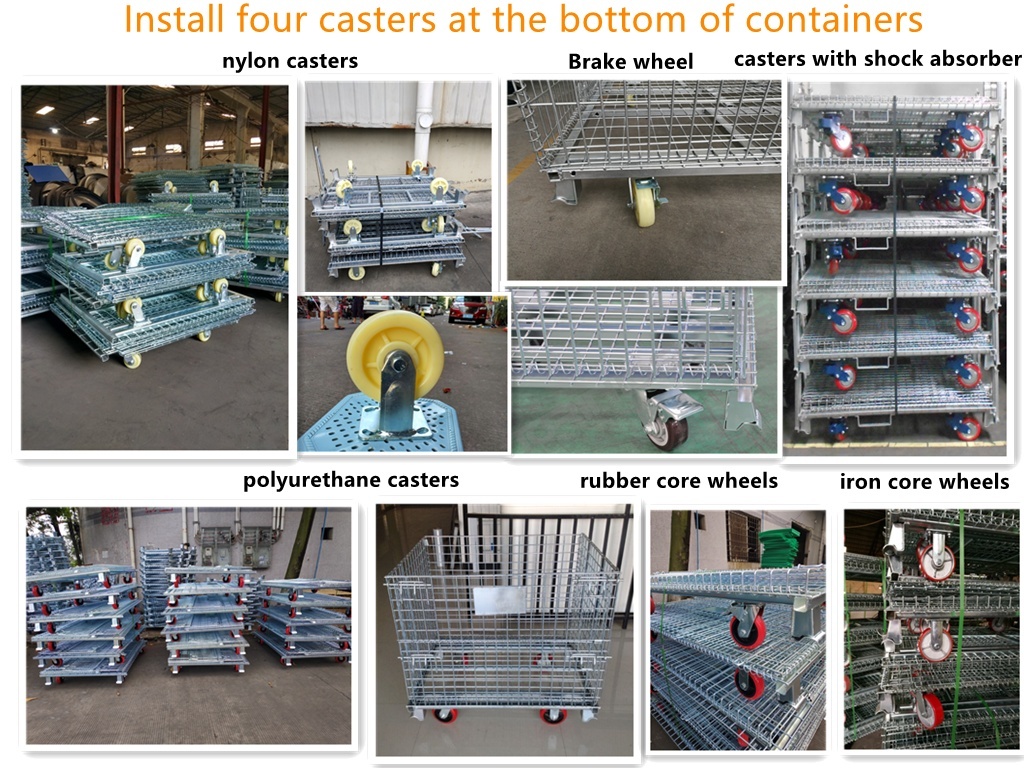

Wire mesh storage containers can be equipped with casters to provide ease of movement and maneuverability. Casters are wheels that are attached to the bottom of the container and allow it to be easily rolled and positioned as needed. Some common features of casters for wire mesh storage containers include:

1. Size: Casters come in a range of sizes, and the size of the caster needed will depend on the size and weight of the wire mesh storage container. Larger containers will typically require larger casters to ensure stability and ease of movement.

2. Type: Casters can be fixed or swivel, with swivel casters providing greater maneuverability. Some casters are also equipped with brakes to keep the container stationary when needed.

3. Material: Casters can be made from a range of materials, including rubber, nylon, or polyurethane. The choice of material will depend on the type of flooring the container will be rolling over and the weight of the load it will be carrying.

4. Load capacity: Casters come in a range of load capacities, and the load capacity of the caster must be matched to the weight of the wire mesh storage container and its contents.

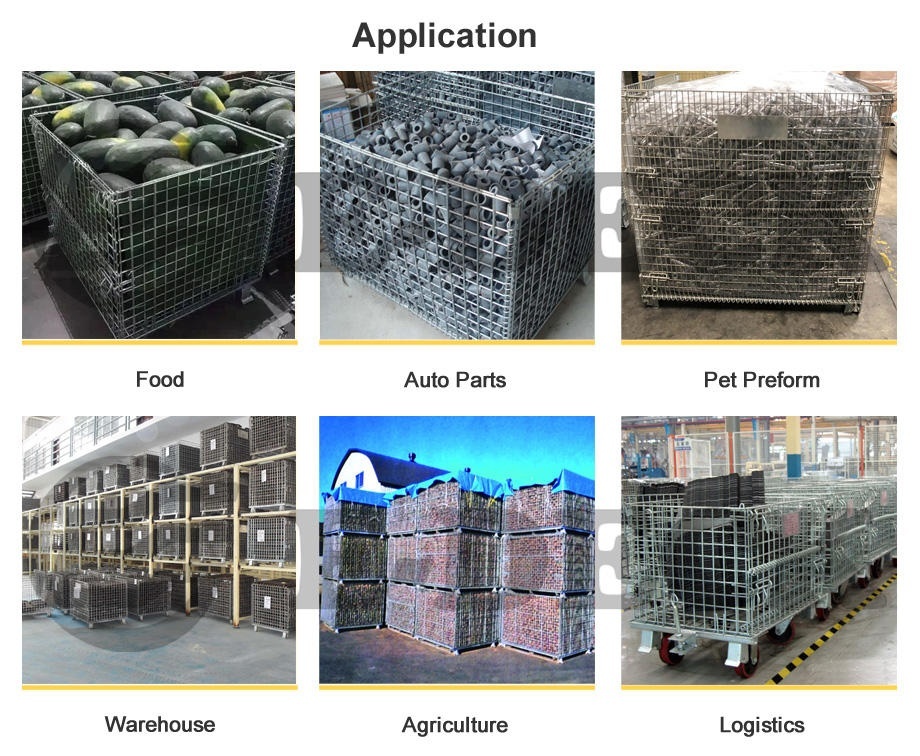

Wire mesh storage containers have a wide range of applications in various industries, including:

1. Warehousing and storage: wire mesh containers are commonly used in warehouses for storing and transporting items such as loose items, boxes, and pallets.

2. Logistics and transportation: wire mesh containers are used in logistics and transportation to transport goods and products from one location to another. They are ideal for use in trucks, cargo containers, and shipping containers.

3. Manufacturing: wire mesh containers are used in manufacturing for storing and transporting raw materials, finished products, and components.

4. Retail: wire mesh containers are used in retail stores for storing and displaying products, particularly in supermarkets and convenience stores.

5. Agriculture: wire mesh containers are used in the agricultural industry for storing and transporting crops, produce, and livestock.

6. Automotive: wire mesh containers are used in the automotive industry for storing and transporting parts and components.

7. Pharmaceuticals: wire mesh containers are used in the pharmaceutical industry for storing and transporting drugs and medical supplies.

8. Waste management: wire mesh containers are used in waste management for collecting and transporting waste materials.

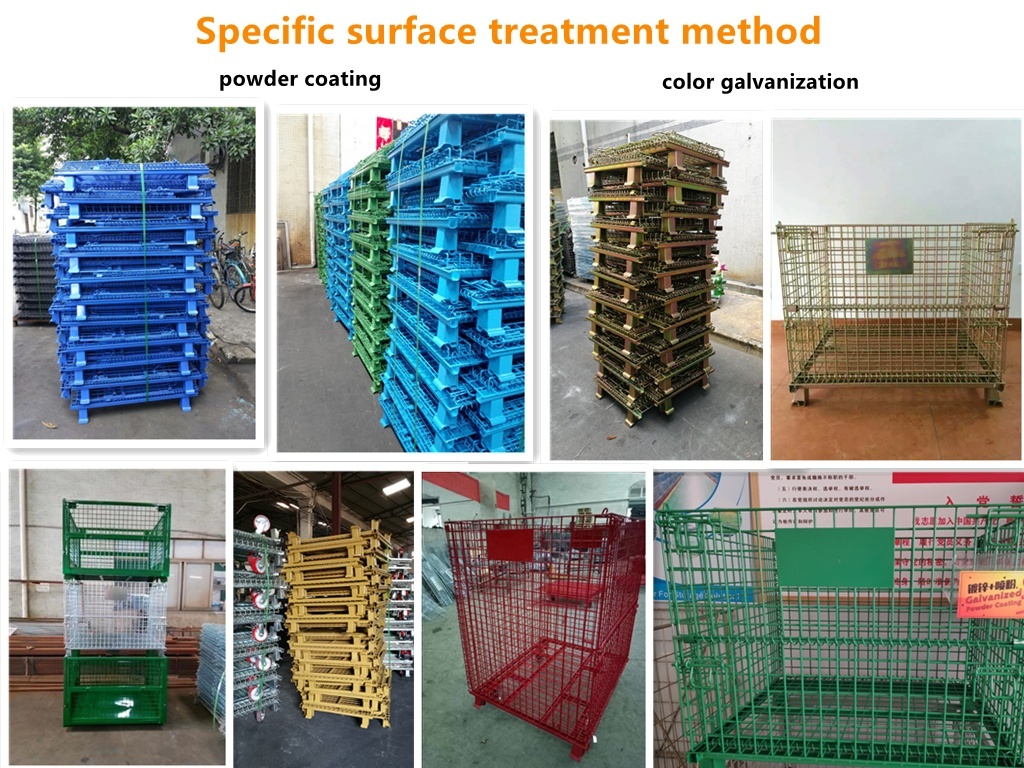

Surface Treatment

1. Galvanization: This is a process of coating the wire mesh with a layer of zinc to protect it from corrosion. Galvanization provides excellent protection and is commonly used for outdoor or harsh environment applications.

2. Powder coating: This involves spraying the wire mesh with a dry powder that adheres to the surface electrostatically and is then baked on. Powder coating provides a durable, attractive finish that can be customized in a range of colors.

3. Painting: Wire mesh storage containers can also be painted to protect them from corrosion and enhance their appearance. Paints come in a range of colors and can be applied with a spray gun or brush.

4. Electroplating: This is a process of depositing a thin layer of metal onto the wire mesh surface to improve its durability and resistance to corrosion. Common metals used for electroplating include nickel and chromium.

The choice of surface treatment for wire mesh storage containers will depend on the intended use and the environment in which they will be used. Galvanization is a popular choice for outdoor or harsh environment applications, while powder coating or painting is often used for indoor applications where aesthetics are important.

FAQ

Q: What are wire mesh storage containers made of? A: Wire mesh  containers are typically made of steel wire mesh or welded wire mesh, depending on the application and load capacity requirements.

Q: What is the load capacity of wire mesh containers? A: The load capacity of wire mesh  containers varies depending on the size, wire diameter, and mesh size. Load capacities typically range from 500 kg to 1500 kg.

Q: Are wire mesh containers stackable? A: Yes, wire mesh containers are stackable and can be securely stacked to save space in storage and during transport.

Q: Are wire mesh storage containers collapsible? A: Yes, many wire mesh  containers are collapsible, which allows them to be stored and transported more efficiently when not in use.

Q: What are the advantages of using wire mesh  containers? A: The advantages of using wire mesh containers include their durability, reusability, ease of cleaning, visibility of stored items, and ability to stack and collapse for efficient storage and transport.

Q: What industries commonly use wire mesh  containers? A: Wire mesh  containers are commonly used in industries such as warehousing and storage, logistics and transportation, manufacturing, retail, agriculture, automotive, pharmaceuticals, and waste management.

Q: Can wire mesh storage containers be used with forklifts? A: Yes, wire mesh  containers are designed to be easily moved by forklifts, even when fully loaded.

Q: Are wire mesh  containers eco-friendly? A: Yes, wire mesh storage containers are reusable and recyclable, making them an eco-friendly storage and transport solution.
