Flexible Stainless Steel Cable Mesh Netting: A Versatile and Durable Solution for Interior and Exterior Applications
Flexible Stainless Steel Cable Netting, also known as building stainless steel wire rope net, is a versatile and durable material that is suitable for a wide range of interior and exterior applications. Made from high-grade stainless steel wire rope, this mesh is available in various diameters and structures, and can be customized in widths and lengths to suit specific project requirements.
Construction and Design Flexible Stainless Steel Cable Netting
The construction of Flexible Stainless Steel Cable Netting involves twisting stainless steel wire ropes up and down and extruding them with steel sleeves. The steel wire ropes used in the mesh typically have diameters of 1.2mm, 1.5mm, 2.0mm, 3.0mm, or 4.0mm, and can have structures of 7x7 or 7x19. The materials used in the mesh are typically stainless steel alloys such as SS304, SS316, or SS316L, which provide excellent corrosion resistance and durability.
The finished mesh has a diamond-shaped pattern when stretched at a 60-degree angle, and can be produced in two types of mesh configurations: ferruled and knotted. Ferruled mesh is secured with small metal sleeves, or ferrules, that are crimped onto the ends of the cables to create a loop or an eyelet. The ferrules are then interwoven with adjacent cables, creating a flexible and durable mesh. Knotted mesh, on the other hand, uses knots to secure the cables at the intersections, resulting in a more rigid mesh structure.

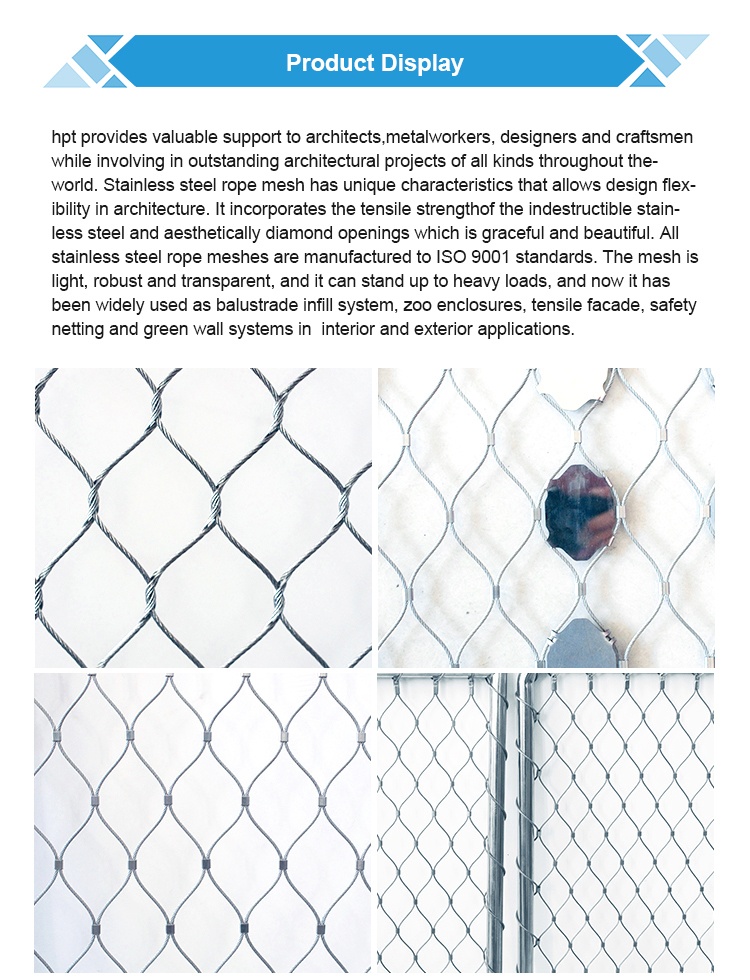

Applications
Flexible Stainless Steel Cable Netting is suitable for a wide range of interior and exterior applications, including:
- Balustrade and railing infill
- Facade cladding and sun shading
- zoo mesh and aviaries
- Safety barriers and fall protection
- Green wall and trellis systems
- Decorative and artistic installations
One of the advantages of Flexible Stainless Steel Cable Netting is its high strength-to-weight ratio, making it a popular choice for applications where strength and flexibility are essential. The mesh is also resistant to UV radiation, extreme temperatures, and harsh environmental conditions, making it suitable for use in outdoor and marine environments.
Conclusion
Flexible Stainless Steel Cable Netting is a versatile and durable material that offers a wide range of design options and applications. Its flexibility, strength, and durability make it suitable for a wide range of interior and exterior applications, and its customization options allow it to be tailored to specific project requirements. Whether used as a safety barrier, a decorative feature, or a green wall system, architectural stainless steel cable mesh is a reliable and long-lasting solution.

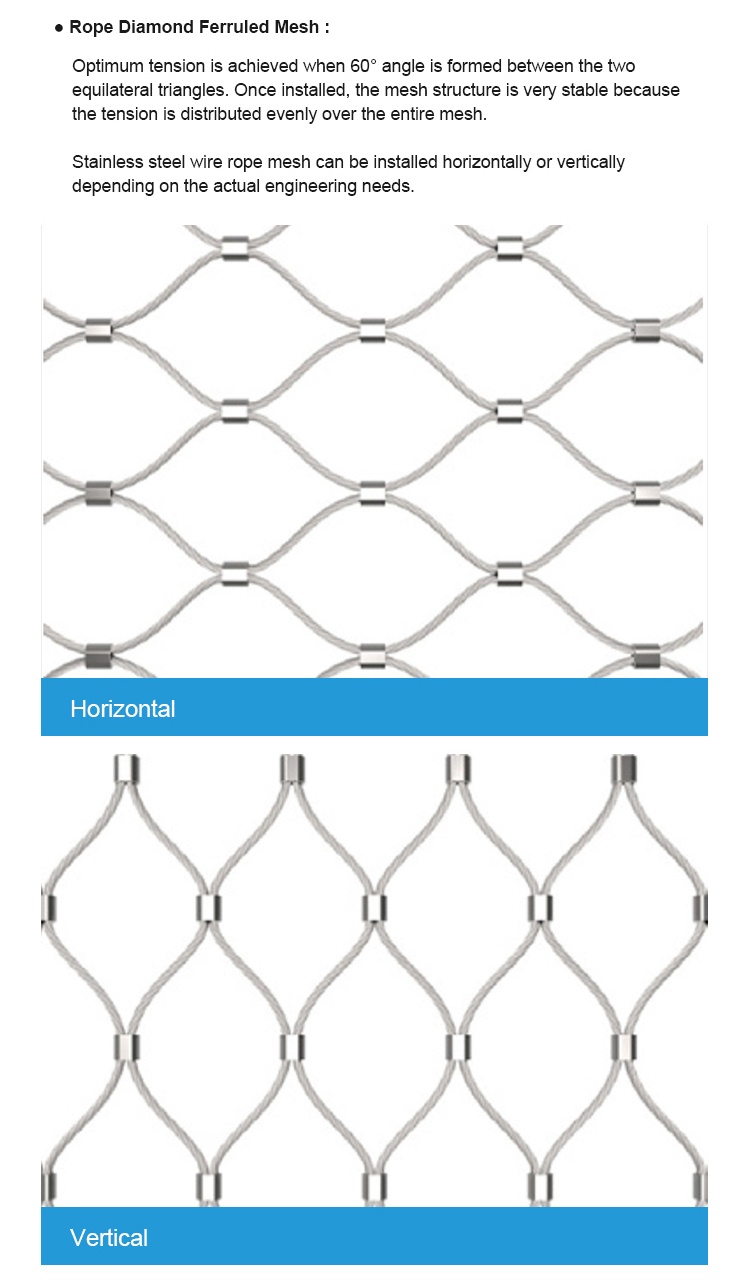

Ferrule Rope cable mesh netting
Flexible stainless steel ferrule cable netting is a type of mesh made from interwoven stainless steel cables that are secured with ferrule connectors. Ferrules are small metal sleeves that are crimped onto the ends of the cables to create a loop or an eyelet. The ferrules are then interwoven with adjacent cables, creating a flexible and durable mesh.
This type of netting is commonly used in a variety of applications where a strong and flexible mesh is required, such as in architectural and construction projects, animal enclosures, and safety barriers. The use of ferrules in the construction of the mesh provides additional strength and stability to the netting, making it suitable for applications where high load-bearing capacity is required.
The stainless steel cables used in the netting are typically made from high-grade stainless steel, such as AISI 304 or AISI 316, which provides excellent corrosion resistance and durability. The cables are woven together in a diamond-shaped pattern, creating a lightweight and flexible mesh that can be easily manipulated to fit a variety of shapes and sizes.
Flexible stainless steel ferrule cable netting can be custom designed and manufactured to meet specific project requirements. It can also be coated or painted to enhance its visual appeal or blend in with its surroundings. The use of ferrules in the construction of the mesh also allows for easy installation and maintenance of the netting.
Inter-woven Mesh
Flexible stainless steel inter-woven cable netting is a type of mesh made from interlocking stainless steel cables. Unlike ferrule cable netting, where the cables are secured with ferrules, the inter-woven cables are braided together in a continuous pattern, resulting in a strong and flexible mesh.
The stainless steel cables used in the netting are typically made from high-grade stainless steel, such as AISI 304 or AISI 316, which provides excellent corrosion resistance and durability. The cables are woven together in a diamond-shaped pattern, creating a lightweight and flexible mesh that can be easily manipulated to fit a variety of shapes and sizes.
Flexible stainless steel inter-woven cable netting is commonly used in a variety of applications where a strong and flexible mesh is required, such as in architectural and construction projects, animal enclosures, and safety barriers. The inter-woven construction of the mesh provides additional strength and stability to the netting, making it suitable for applications where high load-bearing capacity is required.
The netting is also suitable for outdoor and marine environments, as the stainless steel construction provides excellent resistance to UV radiation, extreme temperatures, and harsh environmental conditions.
Flexible stainless steel inter-woven cable netting can be custom designed and manufactured to meet specific project requirements. It can also be coated or painted to enhance its visual appeal or blend in with its surroundings. The flexibility and strength of the mesh allow it to be used in a wide variety of applications, from safety barriers to architectural features, making it a versatile and reliable solution.

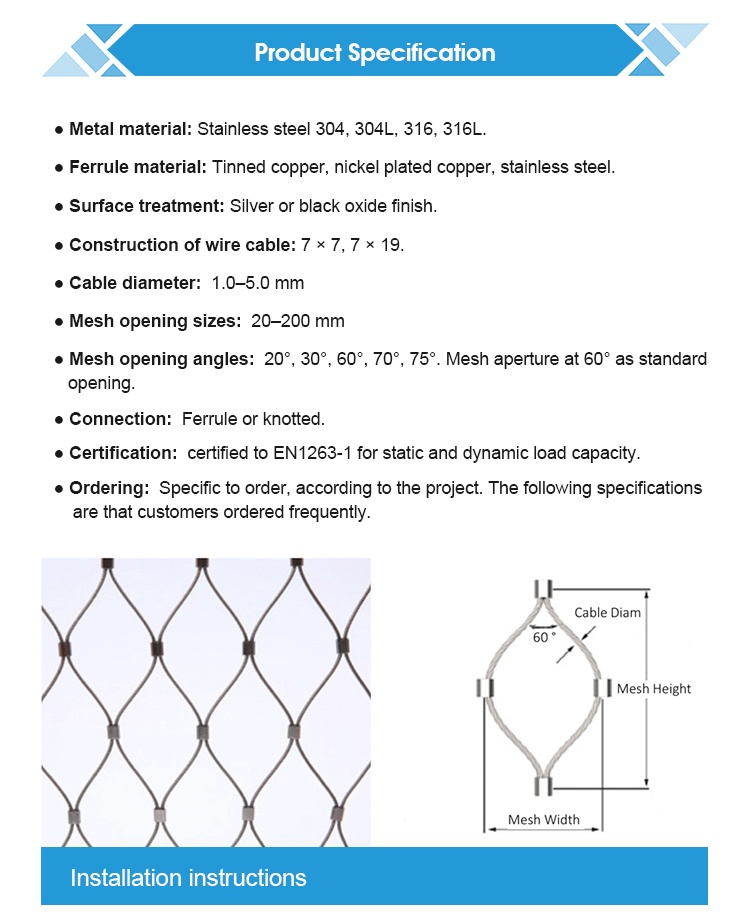

Specifications Flexible Stainless Steel Cable Netting
| Item No. | Cable Diameter | Mesh Aperture (W x H) | Normal Break |
|---|---|---|---|
| 3212F | 1/8 inch (3.2 mm) | 4.75 x 8.23 inch (120 x 207.8 mm) | 1600 lbs |
| 3210F | 1/8 inch (3.2 mm) | 4 x 6.9 inch (102 x 156 mm) | 1600 lbs |
| 3290F | 1/8 inch (3.2 mm) | 3.55 x 6.15 inch (90 x 156 mm) | 1600 lbs |
| 3276F | 1/8 inch (3.2 mm) | 3 x 5.2 inch (76 x 131.6 mm) | 1600 lbs |
| 3251F | 1/8 inch (3.2 mm) | 2 x 3.46 inch (51 x 88.3 mm) | 1600 lbs |
| 2410F | 3/32 inch (2.4 mm) | 4 x 6.9 inch (102 x 176.7 mm) | 920 lbs |
| 2490F | 3/32 inch (2.4 mm) | 3.55 x 6.15 inch (90 x 156 mm) | 920 lbs |
| 2476F | 3/32 inch (2.4 mm) | 3 x 5.2 inch (76 x 131.6 mm) | 920 lbs |
| 2460F | 3/32 inch (2.4 mm) | 2.4 x 4.16 inch (60 x 104 mm) | 920 lbs |
| 2451F | 3/32 inch (2.4 mm) | 2 x 3.46 inch (51 x 88.3 mm) | 920 lbs |
| 2076F | 5/64 inch (2.0 mm) | 3 x 5.2 inch (76 x 131.6 mm) | 676 lbs |
| 2060F | 5/64 inch (2.0 mm) | 2.4 x 4.16 inch (60 x 104 mm) | 676 lbs |
| 2051F | 5/64 inch (2.0 mm) | 2 x 3.46 inch (51 x 88.3 mm) | 676 lbs |
| 2038F | 5/64 inch (2.0 mm) | 1-1/2 x 2.6 inch (38 x 65.8 mm) | 676 lbs |
| 1676F | 1/16 inch (1.6 mm) | 1.2 x 2.08 inch (76 x 131.6 mm) | 480 lbs |
| 1651F | 1/16 inch (1.6 mm) | 2 x 3.46 inch (51 x 88.3 mm) | 480 lbs |
| 1638F | 1/16 inch (1.6 mm) | 1-1/2 x 2.6 inch (38 x 65.8 mm) | 480 lbs |

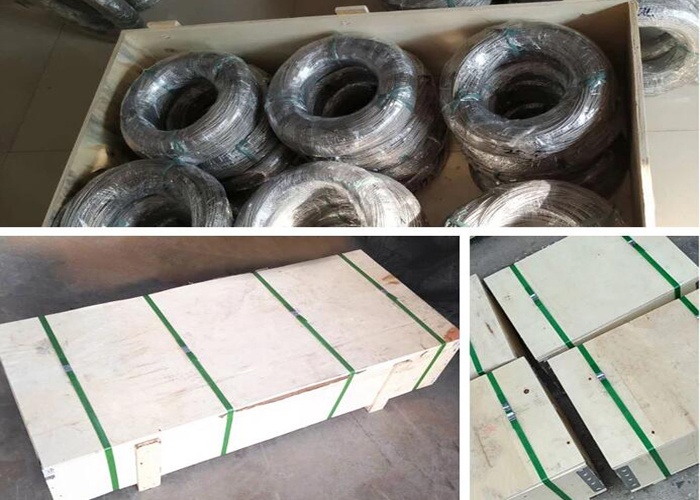

Packing
it is typically packaged in rolls or coils to make it easier to transport and handle. The rolls or coils may be wrapped in plastic or paper to protect the netting from dirt and moisture during shipping and storage. Some suppliers may also package the netting in custom-designed containers or crates for added protection during transit. It's best to check with the supplier or manufacturer for specific details about the packing of their flexible stainless steel cable netting.
