Our 316 stainless steel wire mesh has excellent resistance against acid, alkali, heat and corrosion, extensive uses in processing oils, chemicals, food, pharmaceuticals, and sorting and screening of solid, liquid and gas in mine metallurgy air space, machine making. Etc.
- 1. Material: Stainless steel 304/316/304L/316L/310, etc
- 2. Wire Dia: 0.02--2.0mm.
- 3. Mesh: 1-- 635mesh.
- 4. Aperture(micron): 25--500µm

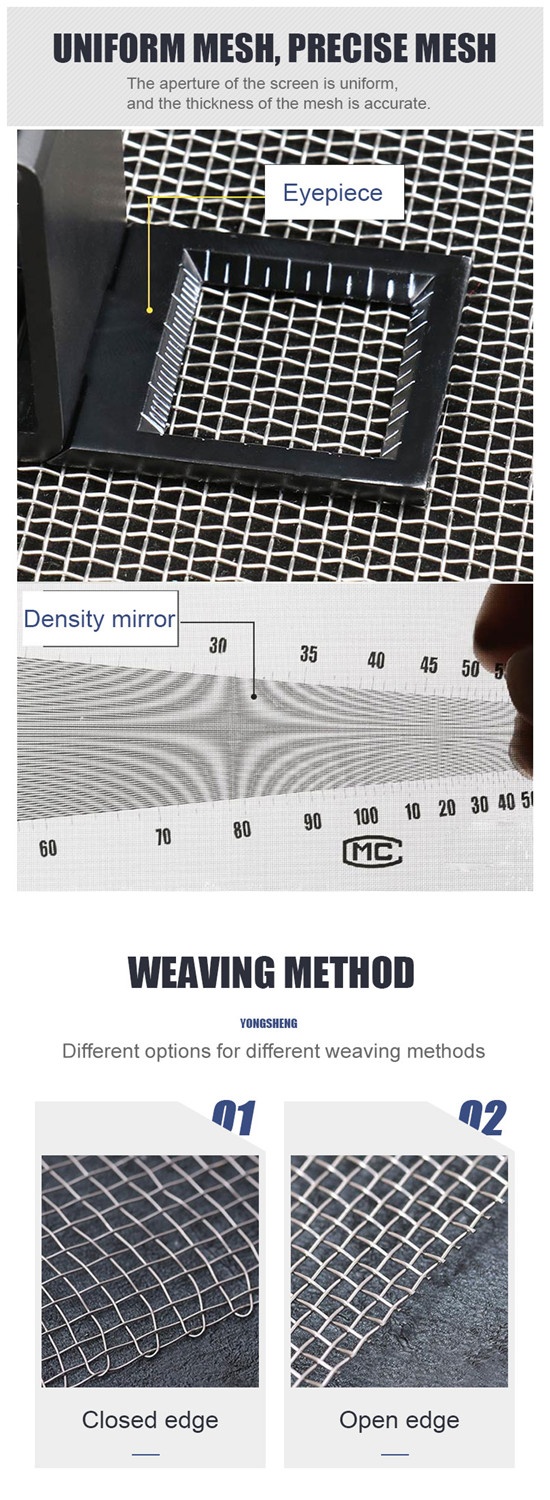

- 5. Weave pattern: plain woven, Dutch woven, twill woven, etc.
316 stainless steel mesh parameter
Pain woven stainless steel 316 wire mesh specification
Mesh | Wire Dia. | Aperture |
Aperture Area |
Weight(lbs) /100 ft2 | ||
Inch | mm | Inch | mm | |||
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
400X400 | .0010 | .0254 | .0015 | .0370 | 36.0 | 3.3 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Plain Dutch Weave-(Plain Hollander Weave)as follows:
Mesh | Wire Diameter | Absolute Filter Value ( μm ) | Nomina Filter Value ( μm ) |
8X85 | .014X.0126 | 318 - 340 | 250 - 255 |
12X64 | .024X.0165 | 270 - 285 | 200 - 205 |
14X88 | .020X.013 | 225 - 245 | 150 - 155 |
20X150 | .0098X.007 | 155 - 165 | 100 - 105 |
24X100 | .015X.010 | 115 - 125 | 80 - 85 |
30X150 | .009X.007 | 95 - 100 | 65 - 70 |
40X200 | .007X.0055 | 65 - 70 | 55 - 60 |
50X250 | .0055X.0045 | 55 - 60 | 40 - 45 |
80X400 | .0049X.0028 | 43 - 48 | 35 - 40 |
316 Twill Dutch Weave stainless steel wire mesh -(Plain Hollander Weave)as follows:
Mesh | Wire Dia. | Absolute Filter Value ( μm ) | Nomina Filter Value ( μm ) |
20x250 | .0098x.0079 | 110-120 | 98-105 |
30x360 | .0098x.0060 | 90-100 | 80-84 |
40x560 | .0070x.0040 | 70-75 | 47-52 |
120x400 | .0040x.0025 | 50-55 | 37-43 |
120x160 | .0040x.0025 | 40-45 | 28-32 |
80x700 | .0040x.0030 | 35-40 | 24-26 |
200x600 | .0024x.0018 | 28-32 | 19-21 |
165x800 | .0028x.0020 | 24-26 | 14-16 |
165x1400 | .0028x.0016 | 16-18 | 9-11 |
200x1400 | .0028x.0016 | 12-14 | 5-6 |
250x1400 | .0022x.0016 | 11-12 | 3-4 |
325x2300 | .0015x.0010 | 8-9 | 2-3 |

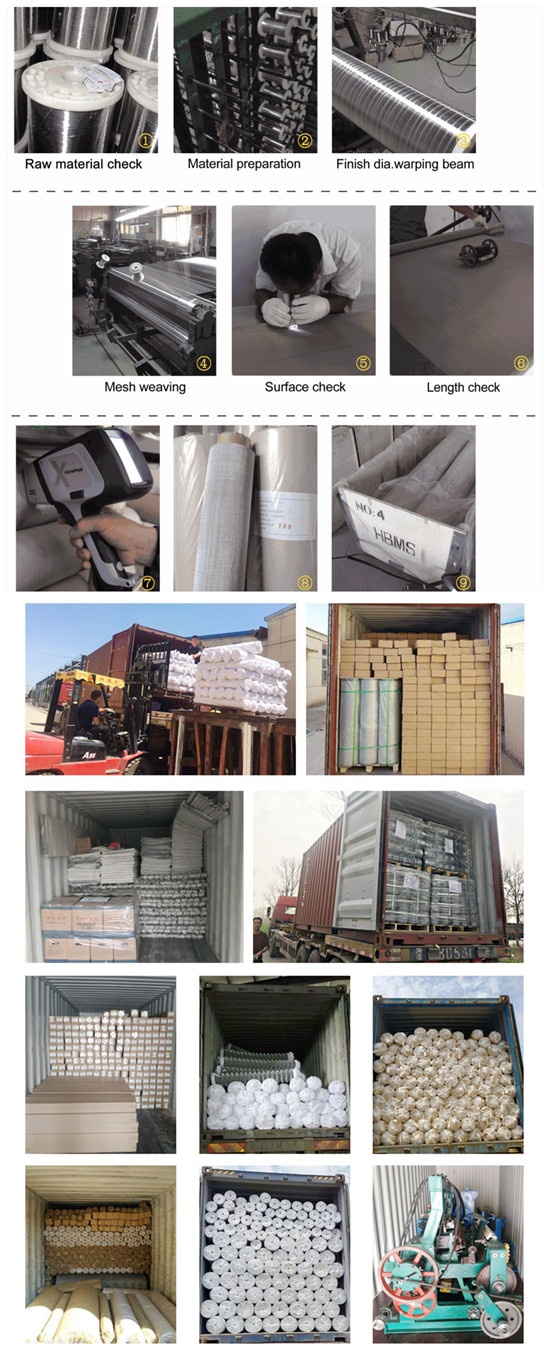

Quality control:
Certified with ISO 9001:2008
All of the products are scrutinized by QC before delivery
316 stainless steel mesh Packing details:
Water-proof paper inside, outside with bubble wrap
Plywood case
Special packing can be customized
Delivery time:
- The common size stainless steel wire mesh we have stock can be delivered within one week.
- Special size depends on the quantity
Min. Order 316 stainless steel mesh:
- If you have stock, any quantity is ok.
- If no Stock, 10 Square meters
- Payment terms: T/T, L/C ,Paypal ,West Union etc.
- Trade term: EXW or FOB Tianjin
