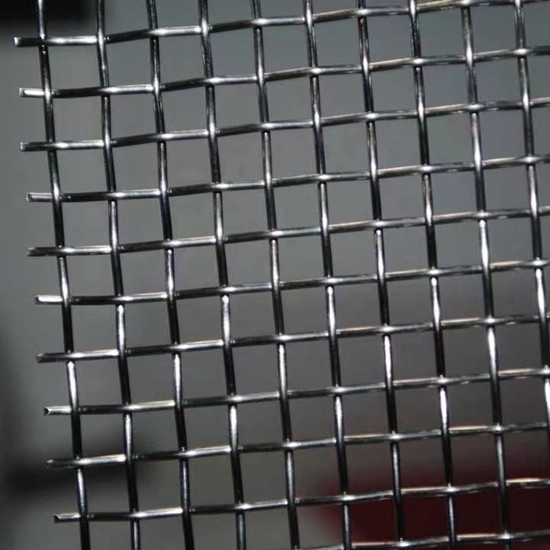

Stainless Steel Crimped Wire Mesh
Crimped wire mesh
Stainless Steel Crimped wire mesh, which we manufacture and supply, is worldwide used for its quality, performance and durability. Hence, we are one of China's leading Crimped Wire Mesh Manufacturers. Crimped wire mesh is made in a variety of materials that includes low and high carbon steel, galvanized steel, spring steel, mild steel, stainless steel, copper, brass and other nonferrous metals, through crimping mesh machine, a kind of universal wire product with accurate & consistent Square & Rectangular openings.
1) Pre Crimped Wire Mesh
The wire mesh made with pre-crimped wire can be made with extra roll length for particular uses. This extra-wide crimped mesh is woven chiefly of stainless steel wire materials. Our range of pre-crimped wire cloth is consisted of accurate openings and is woven much tighter than the standard weave. It is ideal for vibrating screens and many other applications where sizing becomes significant. Crimped mesh is made in square or rectangular mesh opening forms. Rectangular opening crimped mesh commonly refers to heavy type crimped mesh for mining, coal plant or pig breeding, which require big loading capacity.
2) Lock Crimped Wire Mesh
It is made in various materials through a crimping mesh machine, a universal wire product with square or rectangular openings. Our crimped wire mesh products are galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy and light types. Screening in mine and coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are roasting flour food.
3) Double Crimped Wire Mesh
Double Crimped Wire Mesh is made of carbon iron, galvanized steel, or stainless steel. Weaving Patterns: Weaving after crimping General Use: Mines Screens, coal factories, construction and other industries. Used for floor gratings, poultry protection, greenhouses, concrete reinforcement, building construction, paving, concrete pipes, precast components.
Specifications Stainless Steel Crimped Wire Mesh:
- Opening Sizes: from 5mm to 100mm.
- Wire Diameters: from 0.5mm to 8.0mm.
- Roll Width: 1m, 1.22m, 1.5m to 4m.
- Roll Length: 15m, 30m to 60m.
- Panel width: 0.5m, 0.914m, 1m, 1.22m to 2m.
- Panel Length: 1m, 1.22m, 1.5m to 6m.
Wire Diameter/Opening | Φ | Φ | Φ | Φ | Φ | Φ | Φ | Φ |
1.2 | 1.5 | 1.9 | 2.5 | 3 | 4 | 5 | 6 | |
10 mm openings | ◯ | ● | ● | |||||
12 mm openings | ● | ● | ◯ | |||||
15 mm openings | ● | ● | ◯ | ◯ | ||||
18 mm openings | ◯ | ◯ | ◯ | ◯ | ◯ | |||
20 mm openings | ● | ● | ◯ | ◯ | ◯ | |||
25 mm openings | ● | ● | ● | ◯ | ◯ | |||
30 mm openings | ◯ | ● | ● | ◯ | ◯ | ◯ | ||
40 mm openings | ◯ | ◯ | ◯ | ◯ | ◯ | |||
50 mm openings | ◯ | ◯ | ◯ | ◯ | ◯ |
Other Specifications according to your requirements.
Material:
Standard flat top crimped wire mesh materials are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.
Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel
Features:
This wire mesh is similar to standard wire mesh, but it has an additional feature of high rigidity, making it different and more usable. It can be used as a fence to partition a specific area. It can also be used as a guard for trees, machines and electrical types of equipment.
Usage:
Heavy Duty crimped wire mesh are primarily used in construction industries, cement industry, petroleum, minerals, pharmaceuticals, chemical industries, rubber industries, automobile industries, Industrial uses – filtering, sizing, grading, separating, shifting, Domestic uses- grid window, verandas, partitions, counter shelves, rack, lift, cages, guards, trays, and many more. Of all the Crimped Wire Mesh Manufacturers in India, we are the most sought after in the domain.

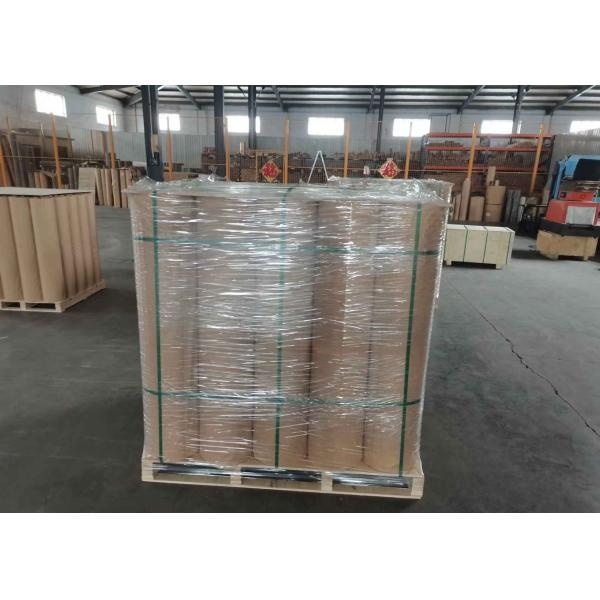

Packing:
