Stainless Steel Wire Rope Mesh Net

Products

Stainless Steel Wire Rope Mesh Net

  • Details

A high-quality stainless steel wire cable produces stainless steel wire rope mesh net material, and the stainless steel grade includes types 304, 304 L, 316 and 316L. Stainless Steel Wire Rope Fence Mesh structures have 7 x 7 and 7 x 19. All the materials for producing Stainless Steel Wire Rope Fence Mesh have super quality. The standard Stainless Steel Wire Rope Fence Mesh diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".Stainless steel wire rope mesh are mainly used in the hotels, shopping malls, supermarkets, office, indoor decoration, mechanical protective cover, electrical ventilation, aquaculture and many other industries. The rope diameter, mesh, and stainless steel cable mesh can be customized. Our factory will produce according to your requirements.

Specification Stainless Steel Wire Rope Mesh Net


Details
Material stainless steel ,304,316 grade
Rope stainless steel 7 x 7 and 7 x 19
Rope wire diameter 1.5mm,2.0mm,3.0mm,4.0mm etc
Size stainless steel wire rope mesh net as your requirement
Cable diameter Mesh opening size Nominal break
inch mm
inch


mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64-stainless steel wire rope mesh net 2.0 1-1/2x 1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x 1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x 1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64-stainless steel wire rope mesh net 1.2 4/5x4/5 20x20 270



Features

steel wire rope mesh net comes with the following features for example

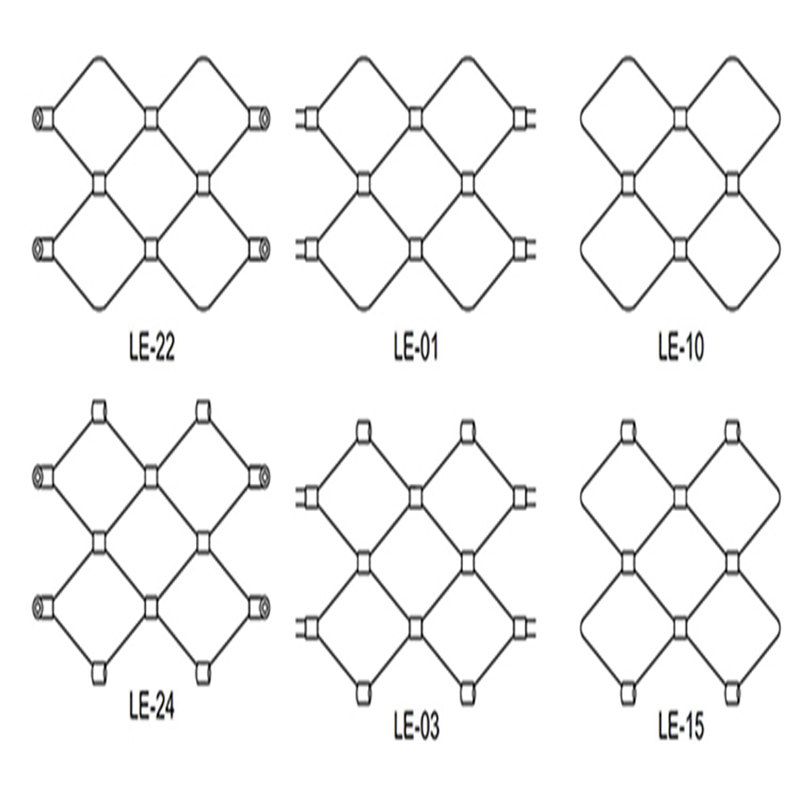

  • The flexible stainless steel cable mesh ferrule type is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, and hurricane. As the material is virtually indestructible stainless steel, it can safely contain any species on land.
  • The hole size and diameter can be modified.
  • It can be made to customer orders and statically tested – especially suitable for facades.
  • High strength, strong toughness, free-angle curving and fold, easy for transportation and installment.
  • Anti-corrosive, resist the rust and can be repeated use.
  • Resists chewing by rodents and other pests
  • This product can bear the heavy snow and the gale very much.
  • Without toxic material, safety, environmental protection.

In combination with architectural ropes, the mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stairwells, skylight protection, fall-stop nets, bridge protection, machine protection, and zoo wire mesh etc.

Packaging & Shipping

Delivery time:10~20 working days after payment receipt confirmed (based on actual quantity)
Packing: standard export packing or customized packing as your request.
professional goods shipping forwarder


Application

The application of stainless steel rope mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing

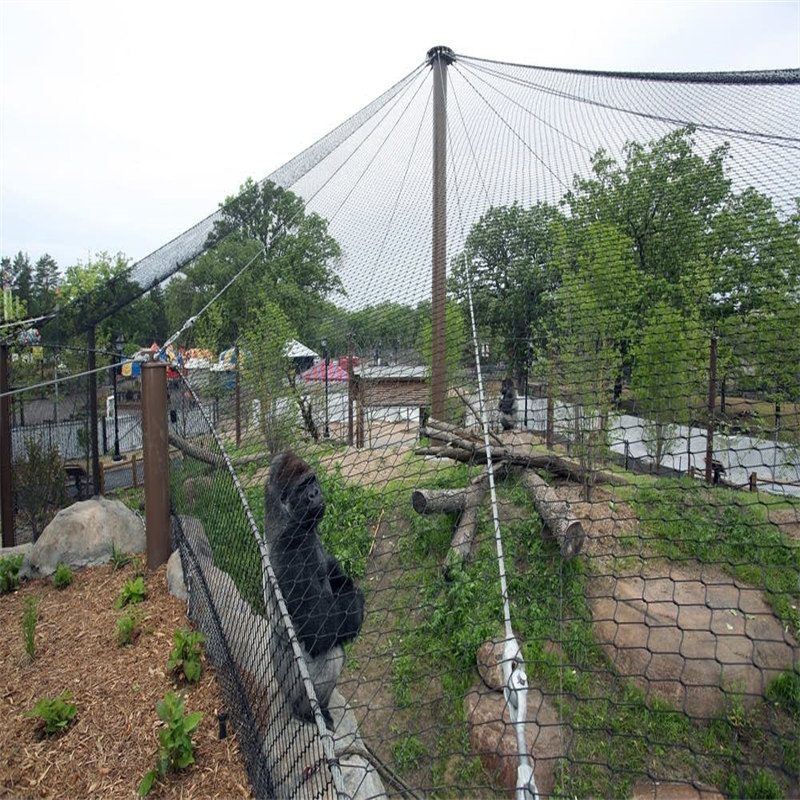

5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary stainless steel wire rope mesh - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

The advantage of the stainless steel wire rope mesh net

1. High strength, strong toughness, free-angle curving and fold, easy for transportation and installment.
2. Anti-corrosive, resist the rust, can be repeated use.
3. Resists chewing by rodents and other pests
4. This product can very much bear the heavy snow and gale.
5. Without toxic material, safety, environmental protection.
