Boss Metal And Plastic Co Limited
Wholesale stainless steel ferrule mesh net; Stainless steel cable ferrule type mesh is also called SS ferrule mesh or X-TEND mesh. The mainly material is stainless steel cable and stainless steel ferrule. It is produced by putting the ferrules tough the cable first and then pressing the ferrule using special molds. This kind of mesh has a stunning appearance, and it also has excellent strength and flexibility. We can produce various types of ferrule mesh in different cable diameters and mesh openings to meet our clients' requirements.
Features
supply install accessories include screw, wall anchor, track, bolt and others
Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc
Surface treatment support includes PVDF, PVD, and Spraying.
Characters

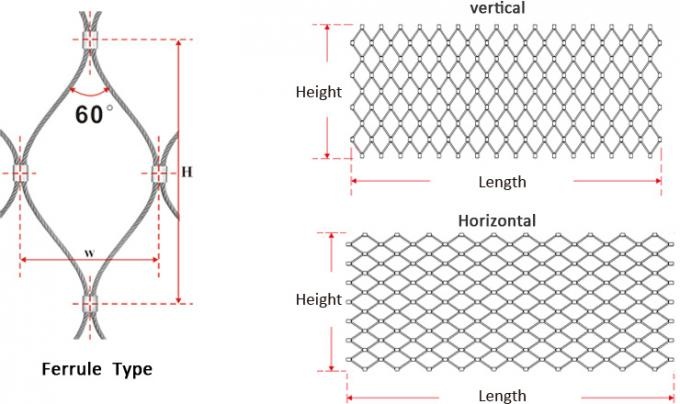

High-quality stainless steel cables and pressed ferrules are used to produce the mesh and connected to a load-bearing and flexible structure. The standard mesh angle is 60 degrees.
Wire Rope Mesh Fence is custom manufactured in widths and lengths to suit your fence, railing or architectural application. Diagonal and irregular shapes can also be supplied.
Webnet mesh can also be supplied in a black anodized or a galvanized finish.
wholesale stainless steel mesh net specifications
|
||||
| Item No.s | Cable Diameter | Mesh Opening Size(W×H) | ||
| inch | mm | inch | mm | |
| BM-32120F | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 |
| BM-32102F | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 |
| BM-3290F | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 |
| BM-3276F-wholesale stainless steel mesh net | 1/8 | 3.2 | Three x5.2 | 76 x 131.6 |
| BM-3251F | 1/8 | 3.2 | Two x3.46 | 51 x88.3 |
| BM-24102F | 3/32 | 2.4 | 4x6.9 | 102x176.7 |
| BM-2490F | 3/32 | 2.4 | 3.55x6.15 | 90x 156 |
| BM-2476F | 3/32 | 2.4 | 3 x 5.2 | 76x 131.6 |
| BM-2460F | 3/32 | 2.4 | 2.4x 4.16 | 60x 104 |
| BM-2451F | 3/32 | 2.4 | 2x3.46 | 51 x 88.3 |
| BM-2076F | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 |
| BM-2060F | 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 |
BM-2051F-wholesale stainless steel mesh net |
5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 |
| BM-2038F | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 |
| BM-1676F | 1/16 | 1.6 | 1.2 x2.08 | 76 x 131.6 |
| BM-1651F | 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 |
| BM-1638F | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 |
| BM-1630F | 1/16 | 1.6 | 1.2x2.08 | 30 x 52 |
| BM-1625F | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 |
| BM-1238F | 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 |
| BM-1230F | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 |
| BM-1225F- | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 |
| BM-1220F | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 |
Applications wholesale stainless steel mesh net
The stainless steel cable mesh, especially the ferrule stainless steel mesh net we wholesale, is more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product in architectural decoration and protection, stainless steel rope mesh has provided the modern architectural decoration and horticulture engineering with a new and stylish element, which is getting more and more appreciated by designers and clients worldwide
|
|
|

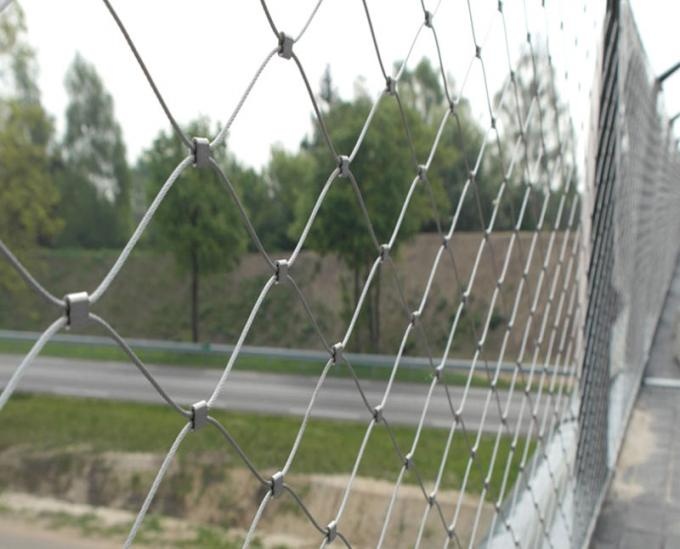

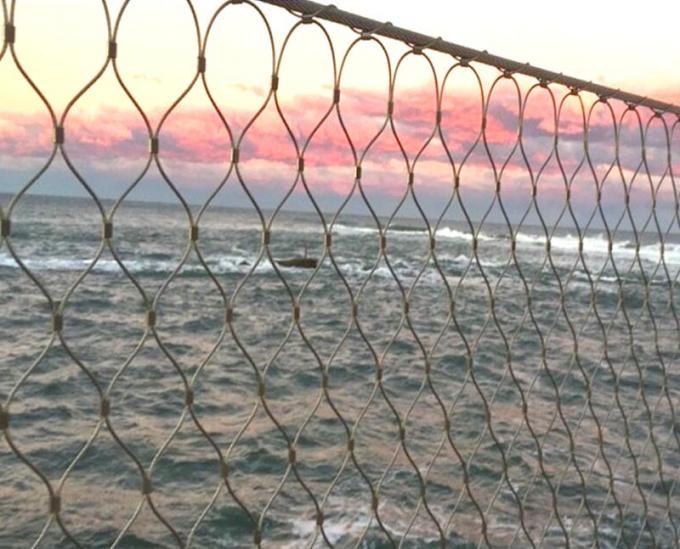

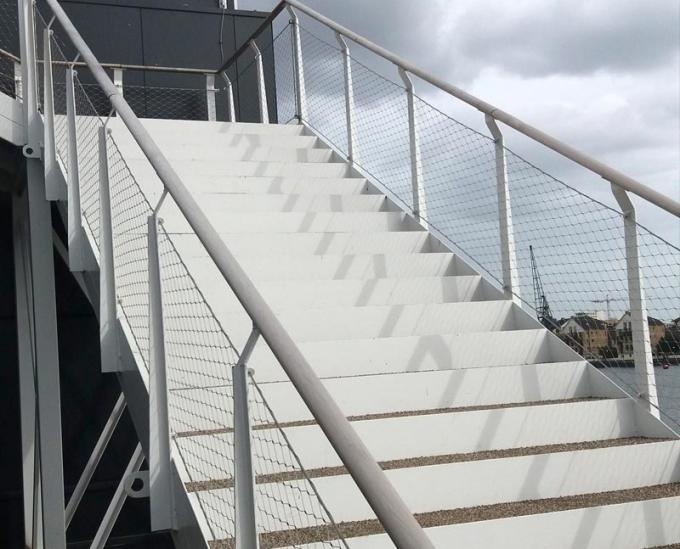

| Ferrule mesh handrail infills | safety mesh | protection mesh |
|
|
|

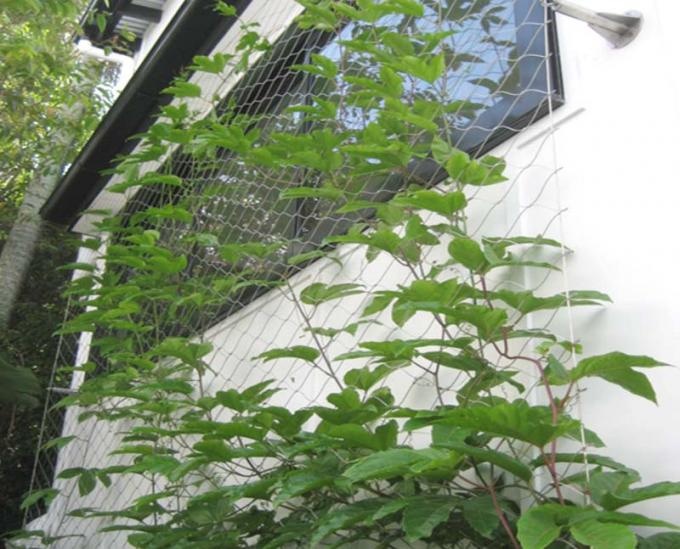

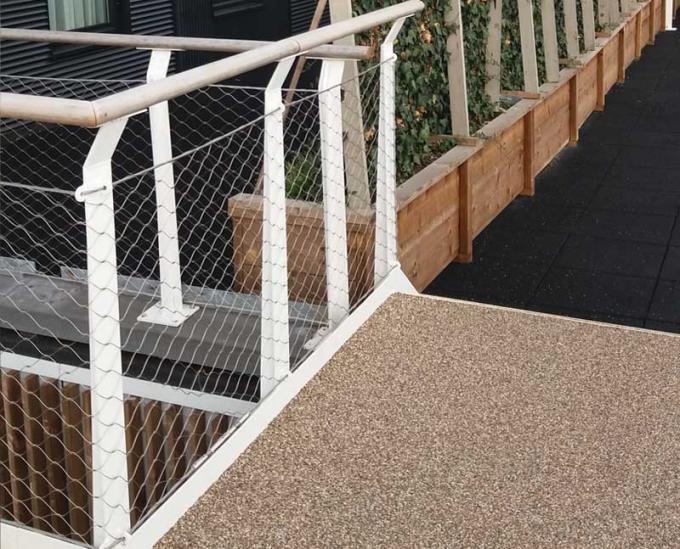

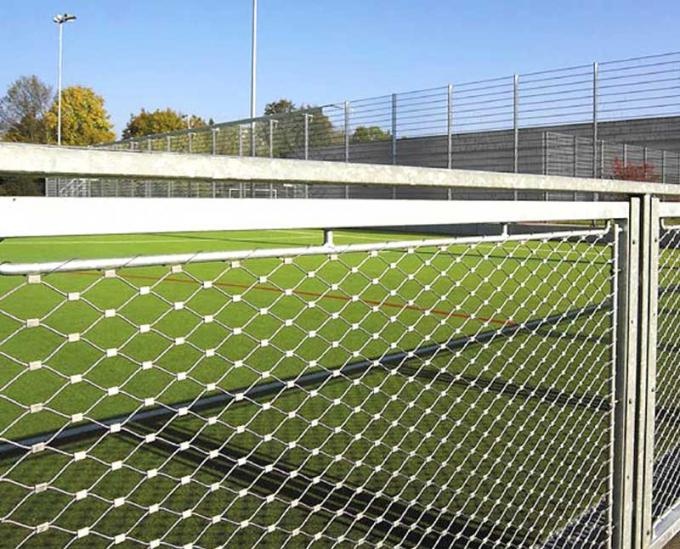

| Stainless steel cable mesh green wall | Ferrule mesh handrail infills | Ferrule mesh handrail infills |
