Boss Metal And Plastic Co Limited
edge protection barriers hire
Are you looking for edge protection barriers for your hire business? Edge protection fence, also named edge protection Barriers, Temporary edge protection, Safety Edge barriers, edge protection is thoroughly used in construction under buildings to protect people. The unique characteristics of the perimeter barrier make it a market leader, as these ingenious barriers combine guardrails, baseboards and debris nets into a single, thin steel mesh barrier. A light-duty edge protection barrier made of steel and designed to provide perimeter edge protection for excavation. The system is designed for two-person installation and has different panel lengths to improve flexibility.
Powder Coated Safty Temporary Edge Protection Barrier Fence
Hot-Dipped Galvanized Safty Temporary Edge Protection Barrier Fence
After confirm with Customers size,we will make CAD drawing for your confirm,incase of any mistake:

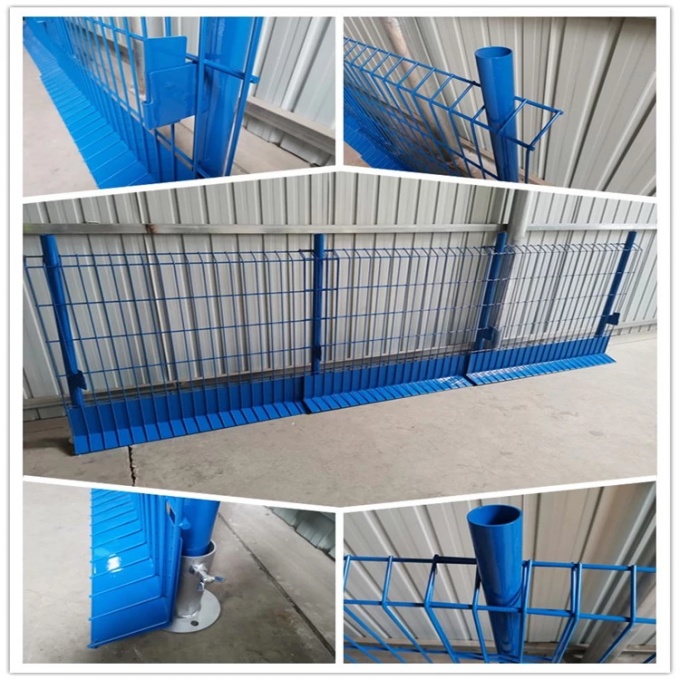

Featuring 90 degree bending top and bottom, incorporating a galvanised kickplate that helps prevent objects falling through the panel bottom.

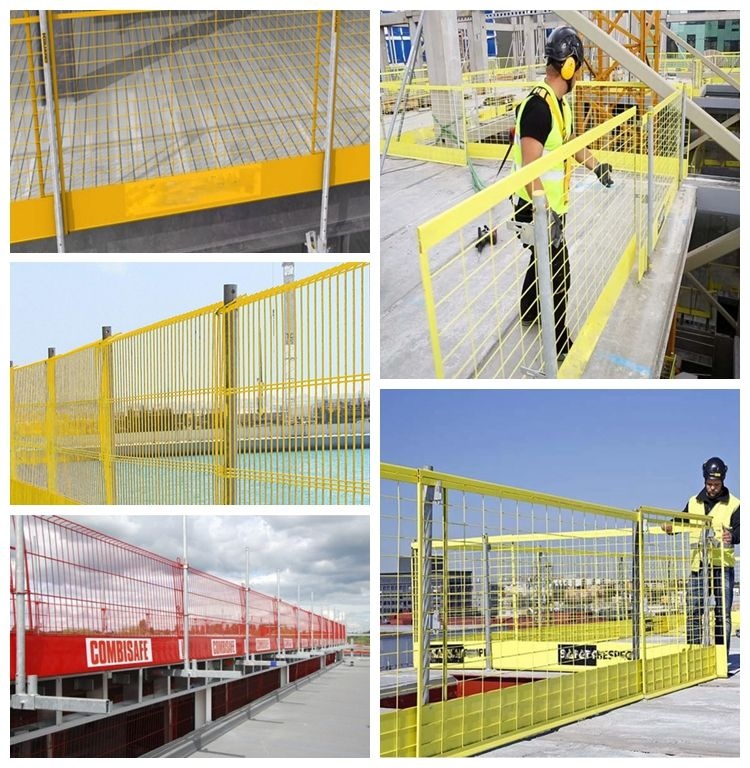

- Temporary Roof Edge Protection Barriers
- Pontoon Mesh Edge Protection System For Floating Platforms
- Fall Prevention of Edge Protection Fence
- Edge Protection Fence for Walls & Shafts
Specification of edge protection barriers hire
| Wire Diameter of Edge Steel Mesh Barrier |
It can be from 5.0mm to 8.0mm; usually, the horizontal Wire afford
more impact used thicker Wire.
|
| Mesh Hole of Edge Protection Fence | Common Mesh Aperture |
| Panel Size of Steel Mesh Fence | Standard Size: 1150*2600, Also can make customised |
| Toe Board at the bottom of the Fence | Length accord with Steel Mesh Panel Length |
| Raw Material of Steel Fence | Low Carbon Steel Wire or Galvanized Wire ( Q195 ) |
| Surface Treatment of Mesh Fence | Galvanized, Powder Coated |
| Colour after Powder Coated | Silver, Natural Color, Red, Blue, White and other RAL Series. |
| Package for Steel Barrier System | Usually in Metal Pallet or Customized |
| Type | Border Wire | Mesh Wire | Length | Width | Colour |
| Steel Mesh Barrier with Toeboard | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier Without Toeboard | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier Make-Up | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier 1.3M | 8.0mm | 5.0mm | 1300mm | 1150mm | RAL Series |
| Steel Mesh Barier Make Up 1.3M | 8.0mm | 5.0mm | 1300mm | 1150mm | RAL Series |
Advantages
1. reinforced sidebar for durability
2. returns no sharp edges on the top edge
3. Close and return to the kickboard for better debris control
4. These edge protection barriers hire made of Steel mesh protection with the impact absorption capacity
