Edge Protection Barriers are Lightweight, versatile Edge Protection fence that provides hard-mesh coverage with impact-absorbing capacity. Each weld can withstand a force of 500kg. Designed with closed return for more excellent debris containment and reinforced edges to prevent site damage. Guardrails, toeboard and debris mesh in one product.

Edge protection barriers, also named Steel Mesh Barrier, is a new simple update design from wire mesh fence. It is easier to operate, and fast installation can save time during construction. The steel mesh Barrier is prevalent among contractors as it can use more time, is portable, and is easy to install and remove. Many contractors located in the Middle East UK often use this kind of Fence and import it from our facility.

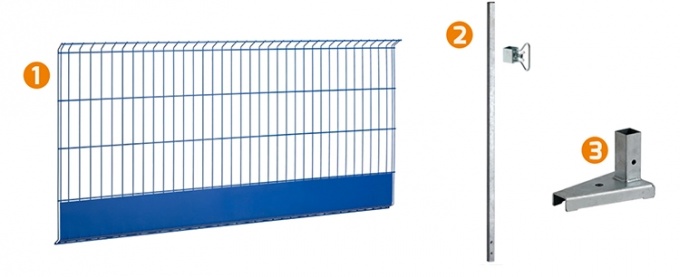

Simple Description for Edge Protection Steel Mesh Barrier

Wire Diameter of Edge Steel Mesh Barrier	It can be from 5.0mm to 8.0mm; usually, the horizontal Wire afford more impact used thicker Wire.
Mesh Hole of Edge Protection Fence	Common Mesh Aperture
Panel Size of Steel Mesh Fence	Standard Size: 1150*2600, Also can make customised
Toe Board at the bottom of the Fence	Length accord with Steel Mesh Panel Length
Raw Material of Steel Fence	Low Carbon Steel Wire or Galvanized Wire ( Q195 )
Surface Treatment of Mesh Fence	Galvanized, Powder Coated
Colour after Powder Coated	Silver, Natural Color, Red, Blue, White and other RAL Series.
Package for Steel Barrier System	Usually in Metal Pallet or Customized

Specification for Edge Protection Fence Barrier / Steel Mesh Barrier

Type	Border Wire	Mesh Wire	Length	Width	Colour
Steel Mesh Barrier with Toeboard	8.0mm	5.0mm	2600mm	1150mm	RAL Series
Steel Mesh Barrier Without Toeboard	8.0mm	5.0mm	2600mm	1150mm	RAL Series
Steel Mesh Barrier Make-Up	8.0mm	5.0mm	2600mm	1150mm	RAL Series
Steel Mesh Barrier 1.3M	8.0mm	5.0mm	1300mm	1150mm	RAL Series
Steel Mesh Barier Make Up 1.3M	8.0mm	5.0mm	1300mm	1150mm	RAL Series

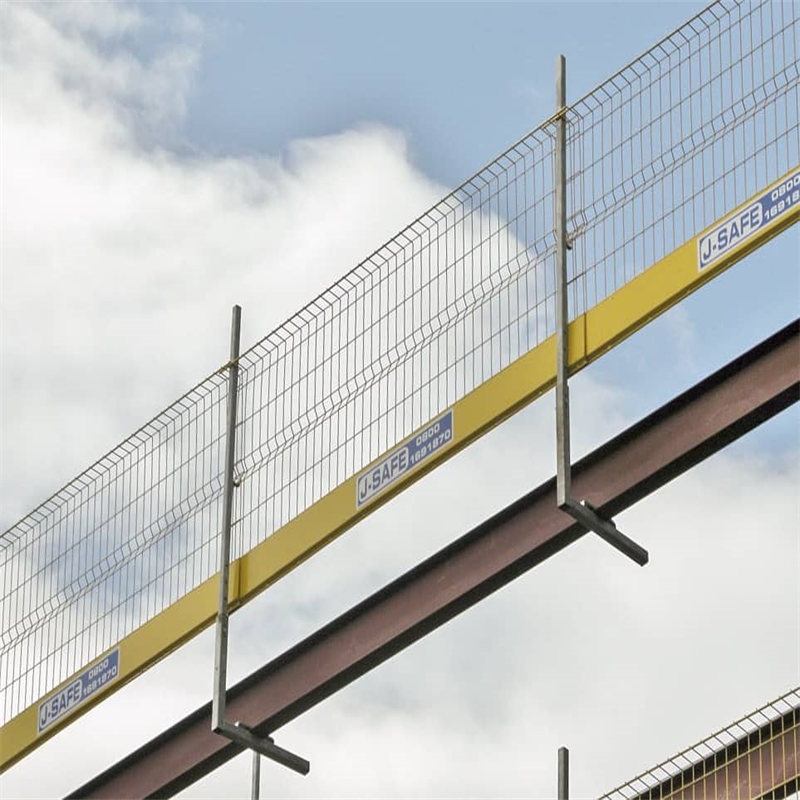

1. Temporary Roof Edge Protection Barriers Because it is easy to install and remove, It is often used as the protection Wall at the border of the building to protect people were falling, also.

Prevent items from falling.

2. Pontoon Mesh Edge Protection System For Floating Platforms Stand the Edge Protection Welded Fence around the Floating Platforms, to inform a small place, let people safer.

3. Fall Prevention of Edge Protection fence at the bottom of the Protection Barrier, Toeboard can prevent Sand small stones from Falling.

4. Edge Protection Fence for Walls & Shafts It also can act as a fence or a wall for protection.
