Clear Vu ( Clearvu Fence ) Fence High-security Mesh Anti Climb Fence
Technology:
·The welding strength of the clearvu fence is 75% of the minimum tensile strength of welding wire (tensile range 540-690 n / m2).
·The system combines anti-climbing and anti-cutting fence, which has good penetration visibility and anti destruction.
·Combined with steel mesh, various aesthetic images can be obtained.
·Clearvu Fence can be painted in the required color or galvanized.
·Additional panel length may be provided for burial at 300 mm underground to prevent excavation.
Clearvu Fence Barriers Metal column information
Clearvu Fencing Come With Column adopts RHS profile or C column: measurement. 50 × 50 mm, 60 × 60 mm or 60 × 80 mm, internal hot-dip galvanizing (40-60 g / m2)
·It's made up of solid and durable panels. The standard column size of a safety fence is 80-100-120-140-160-180-200-220-240 cm high.
·The Clearvu Fencing Post &column is coated with polyester-based 80-120 micron or PVC-based thermoplastic powder coating (200 microns). The Post covered by thermoplastic coating is guaranteed for ten years, and the Post covered by electrostatic coating is guaranteed for five years.
·The coating used in the process is not affected by ultraviolet rays and does not fade. It's 90 percent bright.
·For concrete applications, columns are mounted on concrete with steel pins. Place the flange under the column for direct application to the concrete floor.
·The utility model is used for soil application; it does not need to be polished, and long piles are used when the base is used.
·If the shaving thread is applied to the Clearvu Fencing column, the single curved neck or double-curved neck shall be used directly
·Using clips and clips, the Clearvu Fence Panel is attached to the Post. Accessories used in these applications can be plastic or metal.
Product Features:
♦Anti-climb and anti-cut
♦Difficult to move
Specification of Clearvu Fence
| ♦ Panel | |||||||||||||||||||||||||||||||||||
| Mesh Size | Hight | Width | Line Wire x CrossWire | (Nos. of Curves) | Post Length | Nos of Brackets | |||||||||||||||||||||||||||||
|
76.2x12.7
75x12.5
101.6x12.7
|
1800 | 2500/2750/3000 |
3.0x4.0
3.2x4.0
3.4x4.0
|
3 | 2600 | 6 | |||||||||||||||||||||||||||||
| 2000 | 2500/2750/3000 | 4 | 2700 | 7 | |||||||||||||||||||||||||||||||
| 2200 | 2500/2750/3000 | 4 | 2800 | 8 | |||||||||||||||||||||||||||||||
| 2400 | 2500/2750/3000 | 4 | 3000 | 9 | |||||||||||||||||||||||||||||||
| 2700 | 2500/2750/3000 | 5 | 3500 | 10 | |||||||||||||||||||||||||||||||
| 3000 | 2250/3000 | 5 | 4000 | 12 | |||||||||||||||||||||||||||||||
| 4000 | 2250 | 5 | 5200 | 14 | |||||||||||||||||||||||||||||||
|
♦The above description is the specifications of Mesh Panel-3D.

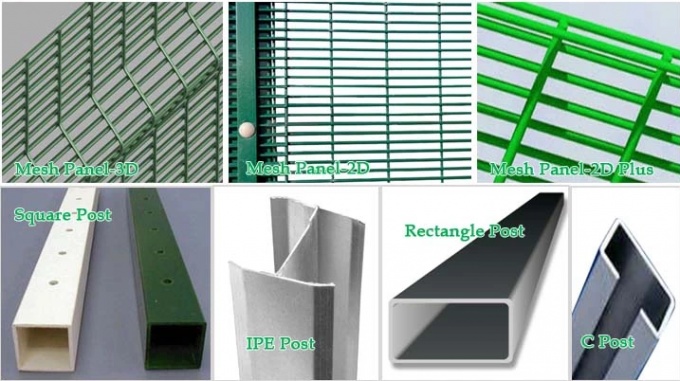

The security 358 fence is divided into Mesh Panel-3D, Mesh Panel-2D, and Mesh-2D Plus.
Clearvu Fencing 2D Panel without curves.
2D plus with one additional horizontal wire every 11 mesh.
The wire thickness, panel height, and panel width are different; please contact us for the details.
|
|||||||||||||||||||||||||||||||||||
| ♦ Clearvu Fencing Post | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||

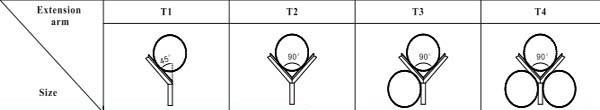

| ♦Razor wire and Angel's arm | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| ♦The angle arm is unnecessary; you can consider it to be more secure. | |||||||||||||||||||||||||||||||||||
| ♦Surface Treatment | |||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
|
♦PP: Polyester powder coated; EDG: Electric dip galvanized; HDG: Hot-dip galvanized;
♦ST2 PRE-HDG,zinc coating have 3classes(Classes one : 40-60g/sqm; Classes two : 80-100g/sqm; Classes three : 200-300g/sqm);
♦ST3 GALFAN ,zinc aluminum(95%ZN5%AL);
♦ST4 HDG, zinc layer thickness 75-100um.
|
|||||||||||||||||||||||||||||||||||
Clearvu Fence For Prison Mesh fence Application
- Bridge anti-climb guarding & guard safety screening
- Psychiatric hospital security fencing
- Prison security fencing
- Factory machine guards
- Walkway security fencing
- Airport security fencing
- Shipping Port Security fencing
- Electrical sub-station fencing
- Gas pipelines security fence
- High security living area and private field fence.

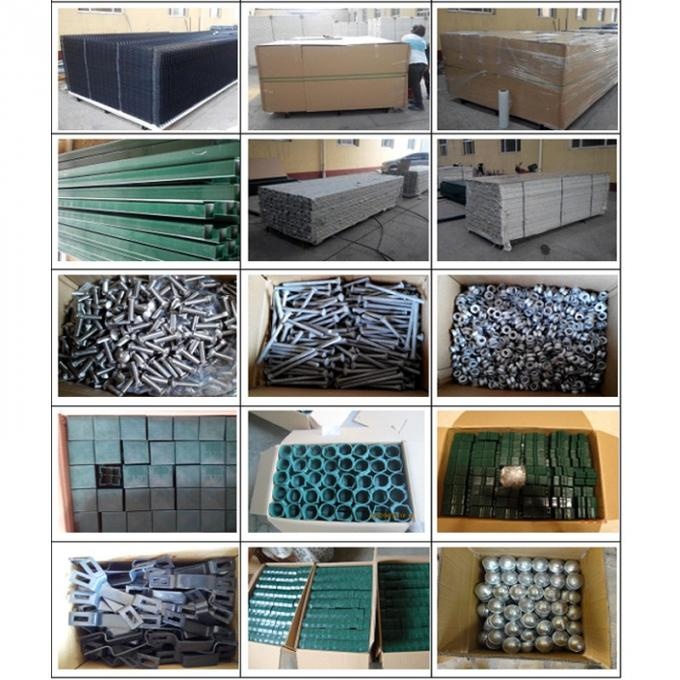

Packaging & Shipping
1, anti-climb wire mesh panel: on the pallet
2, Post: packed in a plastic bag and then wrapped by air bubble film
3, as your requirement.
- Panel: Metal pallet wrapped with cardboard plate and then wrapped with plastic film
- Post: Wrapped with PP bags, then put on a pallet, wrapped with plastic film
- Accessories: Carton box or Nylon bags
- Customized packing is available
