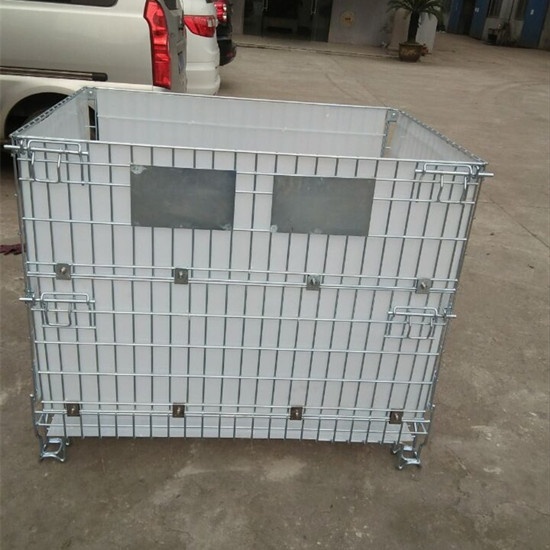

A mesh box wire cage metal bin storage container is a type of storage unit that is typically made from metal wires or mesh panels that are welded together to form a box-shaped structure. These containers are often used in industrial or commercial settings for storing and transporting goods and materials.

Mesh box wire cage metal bin storage containers are known for their durability and strength. They can withstand heavy loads and are resistant to rust and corrosion. They are also easy to clean and maintain, making them ideal for use in environments where cleanliness is important.

These containers come in various sizes and designs, with some featuring hinged or removable lids, doors, or sliding panels for easy access to stored items. They can also be stacked on top of one another to save space.

Mesh box wire cage metal bin storage containers are commonly used in industries such as manufacturing, warehousing, and logistics, as well as in retail and distribution settings. They are also used in residential settings for storing tools, sports equipment, and other household items.

features:

1. The mesh box wire cage metal bin storage container has a uniform size and fixed capacity, allowing for easy inventory and organized storage of goods.
2. The galvanized surface provides a beautiful appearance and oxidation resistance, ensuring a long service life.

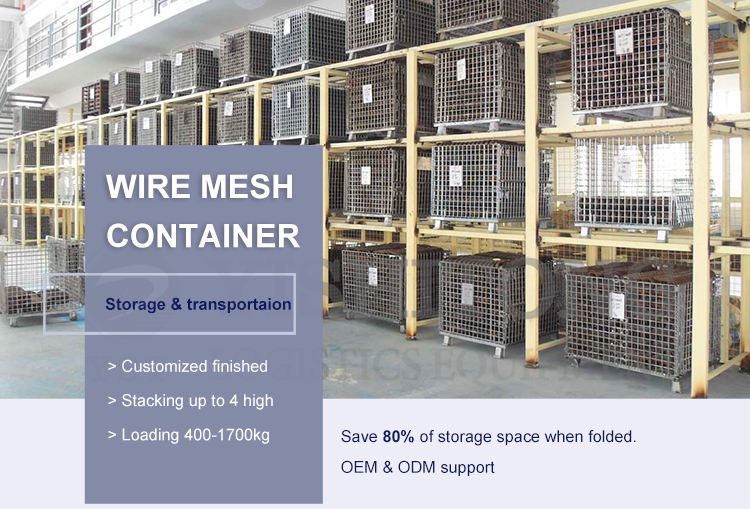

3. The containers can be stacked on top of each other up to four levels, enabling efficient three-dimensional storage.
4. The surface treatment is environmentally friendly and hygienic, ensuring that the flow and storage of items will not pollute the environment.

Brief Introduction:

A mesh box wire cage metal bin storage container is a vital container for logistics storage and transportation. It offers fixed capacity and a neat storage solution, making it easy to access inventory and improve warehouse space utilization. When not in use, the containers can be folded and stacked to save storage space. There are three types of storage cages: those with wheels, those with feet that can be stacked, and a combination of wheels and feet.

Characteristics of mesh box wire cage metal bin storage container:

1. Constructed from high-quality, cold-rolled steel, the containers have high strength and can handle large loads.
2. The containers have a uniform size and fixed capacity, allowing for easy inventory and organized storage of goods.
3. The galvanized surface is visually appealing, provides oxidation resistance, and ensures a long service life.
4. The containers can be stacked up to four levels, enabling efficient three-dimensional storage.
5. The surface treatment is environmentally friendly and hygienic, ensuring that the flow and storage of items will not pollute the environment.
6. The containers can be efficiently operated with forklifts, elevators, and crane equipment.
7. The containers have a folding structure, allowing for low-cost recovery and making them a more sustainable alternative to wooden packaging.
8. The containers can have wheels installed at the bottom, making internal factory turnover exceptionally convenient.

Standard Size mesh box wire cage metal bin storage container

Item No	Wire Diameter ( mm)	Wire Mesh(Grid) (mm)	External Size (mm)	The Height of the foot (mm)	Capacity (kg)
ATG-7-1	6.0	50*50	800*600*640	100	800
ATG-7-2	6.0	50*50	1000*800*840	100	1200
ATG-7-3	6.0	50*50	1200*1000*890	100	1500
ATG-7-4	6.4	50*50	1000*800*840	100	1500
ATG-7-5	6.4	50*50	1200*1000*890	100	2000
ATG-7-6	6.4	50*50	1000*800*500	100	1000
ATG-7-7	6.4	50*100	1000*80*840	100	1000
ATG-7-8	6.0	100*100	1200*1000*890	100	500
ATG-7-9	6.4	50*100	1200*1000*890	100	1000
ATG-7-10	4.8	50*50	1000*800*840	100	500
ATG-7-11	4.8	25*50	800*500*540	100	500

These sizes offer a fixed capacity for storing goods and materials in an organized and efficient manner. Some manufacturers may also offer custom sizes to meet specific storage and transportation needs.

When choosing a mesh box wire cage metal bin storage container, it's important to consider the size and weight of the items that will be stored, as well as any space limitations or stacking requirements. By selecting the appropriate size and design, these containers can provide a durable and versatile storage solution for a variety of industries and applications.

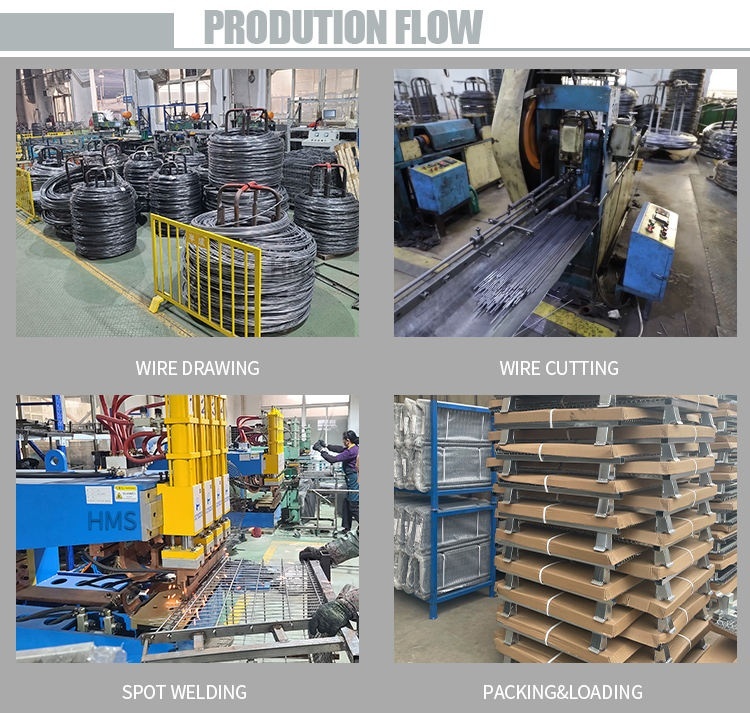

The production flow of a Mesh Box Wire Cage Metal Bin Storage Container typically includes the following steps:

1. Design: The first step in producing a mesh box wire cage metal bin storage container is designing it. This involves determining the size, shape, and specifications of the container based on the intended use.

2. Material selection: The next step is selecting the appropriate materials for the container. Typically, this involves using steel wire mesh and steel sheet metal for the cage and frame respectively.

3. Cutting: The materials are then cut into the appropriate sizes and shapes using machines such as laser cutting or plasma cutting machines.

4. Welding: The cut materials are welded together to form the frame and mesh cage. This is typically done using MIG welding machines.

5. Surface treatment: The container is then cleaned and treated to prevent corrosion or rust. This can include sandblasting, painting, or galvanizing.

6. Assembly: The frame and mesh cage are then assembled together, usually using bolts or welding.

7. Quality control: The finished container undergoes a series of quality control checks to ensure that it meets the required specifications and standards.

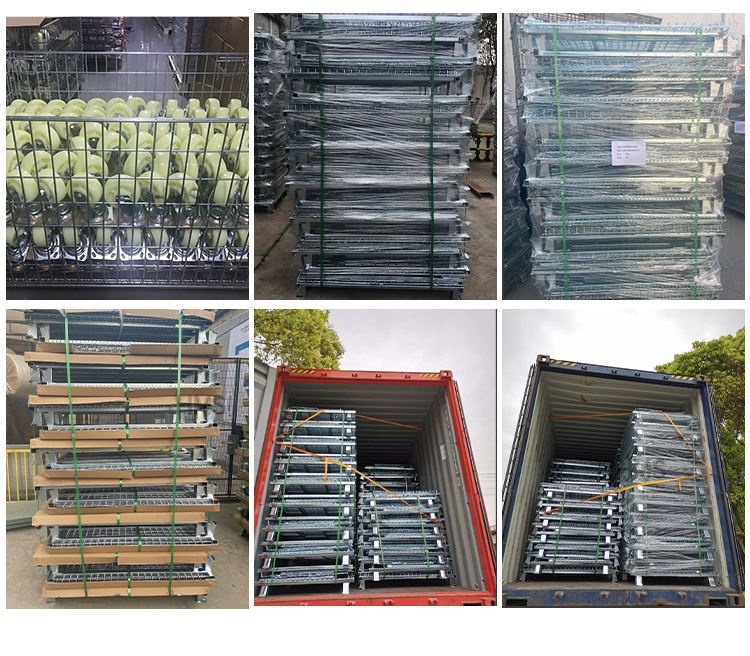

8. Packaging and shipping: The containers are packaged and shipped to their final destination.

Overall, the production flow of a mesh box wire cage metal bin storage container involves several steps, including design, material selection, cutting, welding, surface treatment, assembly, quality control, and packaging.
