Perforated Metal Sheets are made of high-quality stainless steel 304,316 or iron plate and aluminum after being perforated on the digital control perforated machines. Perforated mesh has an excellent strength-to-weight ratio, a wide range of open area percentages, accurate hole size, is available in corrosion-resistant materials, is available in lightweight material and is suitable for decorative applications.
Applications
Agricultural equipment. Appliances. Architecture. Audio. Automotive. Perforated baking trays. Decorative patterns. Electronic Enclosures. Filtration. HVAC. Medical. Noise control. Store fixtures & displays. Security ceilings and so on.
Specifications Perforated Metal
- perforated metal sheets Specifications:
- hole diameter(size): 0.1mm--200mm;
- thickness: 0.1mm--12mm
- pitch:> = 0.2mm
- plate size :1000x2000mm,1250x2500mm,1220x2440mm,or other
- pattern type(Arrangement):45°,60°,straight or custom patterns.
- Material: iron, stainless steel plate, stainless steel honeycomb panels, copper, aluminum, galvanized sheet and other sheet metal and other non-metallic
- Hole shape: round hole, square hole, slot, triangle hole, convex hole, diamond hole, hexagonal hole, cross-hole, custom patterns, etc.
- Value-added services: Degreasing(free of oil), PVC Coating(free of scratches), Shear to Size, or other requirements you want…..
Perforate metal sheet Pattern
Round perforations, square perforations, slotted perforations, fish scale perforations, hexagonal perforations, cross perforations, as well as some other particular patterns.

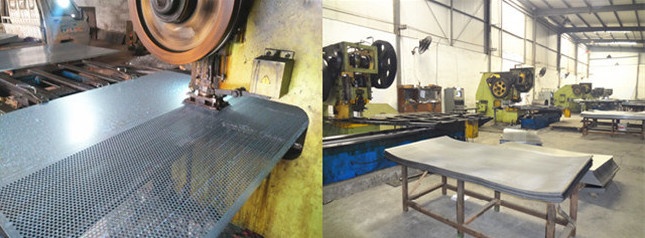

Production and stocking
We are a professional factory of perforated metal sheets and have a strict quality control system to guarantee quality. Our factory has passed ISO certificate, and each production processing have the responsible person and Traceable records
Package details:
wooden pallets with plastic films. Our packaging can protect the goods against damage during transport. Or we can pack as your requirements.
perforated metal sheet Steel Plate Details
Features: flat surface, smooth, beautiful, durable, has a wide range of uses. The product is easy to use since it's very malleable. It can be cut for specific surgical site adaptations, having the capacity to keep the regenerative space intact with the possibility of bone graft vascularization on both sides (periosteum and endosseous).
Plate material | Thickness of metal |
Hole Dia(mm) |
Pitch (mm) |
Sheet Width(m) |
Sheet Length(m) |
Porosity (%) |
Rolling plate |
0.2 | 6 | 2 | 1 | 20 | 44 |
0.35 | 5 | 4 | 1 | 20 | 24 | |
0.45 | 6 | 3 | 1 | 20 | 35 | |
0.8 | 3 | 3 | 1 | 20 | 19.6 | |
Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | |
0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | |
0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | |
0.8 | 2 | 3.4 | 1 | 2 | 30.78 | |
1.5 | 2 | 2 | 1 | 2 | 19.6 | |
1.5 | 5 | 2 | 1 | 2 | 35.39 | |
3 | 5 | 16 | 1 | 2 | 19.6 | |
Stainless steel; plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | |
1 | 2 | 2 | 1 | 2 | 19.6 | |
2 | 5 | 16 | 1 | 2 | 19.6 | |
Aluminum plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 |
0.8 | 3 | 3 | 1 | 2 | 19.6 | |
1.6 | 2 | 2 | 1 | 2 | 19.6 | |
3 | 4 | 16 | 1 | 2 |
19.6 |
