Boss Metal And Plastic Co Limited
Heavy-duty, galvanized Horse Fence Panels with pins are designed to be portable and can be easily hooked up on the uneven ground. The panels feature a 3- and 4-way pin connection that allows versatility in design and placement to best suit your needs. They are constructed from 20-gauge steel to ensure long-lasting performance. Regardless of the size of your herd, from 10 to 100 horses, a well-designed, functional set of yards is necessary for effective horse management. Your horse yards should allow safe, efficient handling of the animals for drafting and loading-out and the additional ability to restrain the animals for medical procedures. Furthermore, Horse Fence Panels are essential to consider the most appropriate materials for your horse yards. Horse handling products receive a lot of pressure from livestock, and as such, they need to be sturdy and well constructed.
Specification
Our Horse Fence Panels not only followed specifications. If you want to customize it, please feel free to contact us
- Size: 1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m and so on
- Pole Style: Round pipe or square tube, or oval tube
- Pole specification: 32mmO. D, 42mmO. D, RHS40mm, RHS50mm, and so on
- Package details: In steel pallet
Features Horse Fence Panels :
- 1 . Square vertical pipe/post, welding easy and firm, durable, and more beautiful.
- 2 . Oval horizontal rails, no sharp edge, can protect animals from getting hurt, high safety.
- 3 . Perfect spacing, protect the lambs or calf from running away and breaking legs.

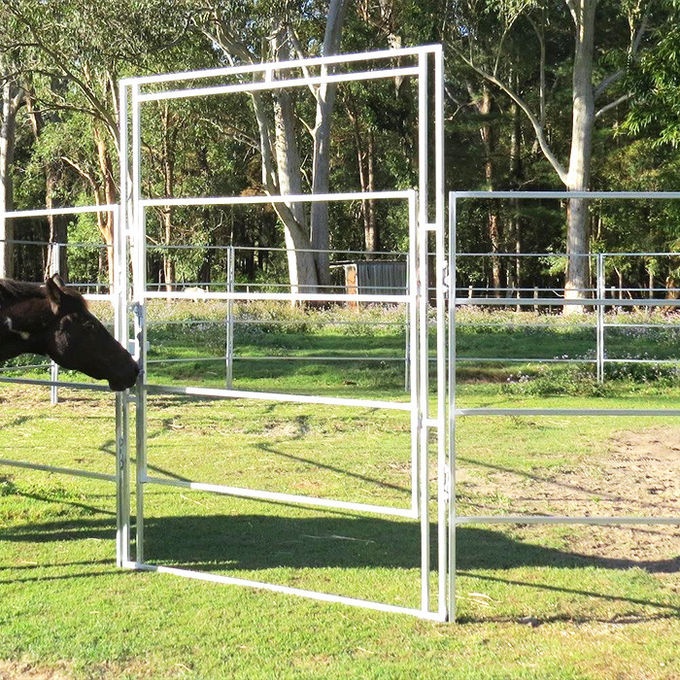

- 4 . Bow gate inserts have a quick connect loop and pin system to allow walk-through gates added to your panels for easy access to your animals.
- 5 . With welded top caps and footplates, water and dustproof.
- 6 . Welded "U" and "L" lugs for easy connection. The lugs are welded for all four sides, very durable and safe.
- 7 . The Horse Fence Panels' placement can cement the panels on the ground with pins.
Application
- 1 . Metal animal farm fence.
- 2 . Raising livestock (cattle/cow/dairy/horse/sheep/goats etc .
- 3 . Animal stall.
- 4 . Feedlot fence.
- 5 . Horse corral fence.
- 6 . Area fence.

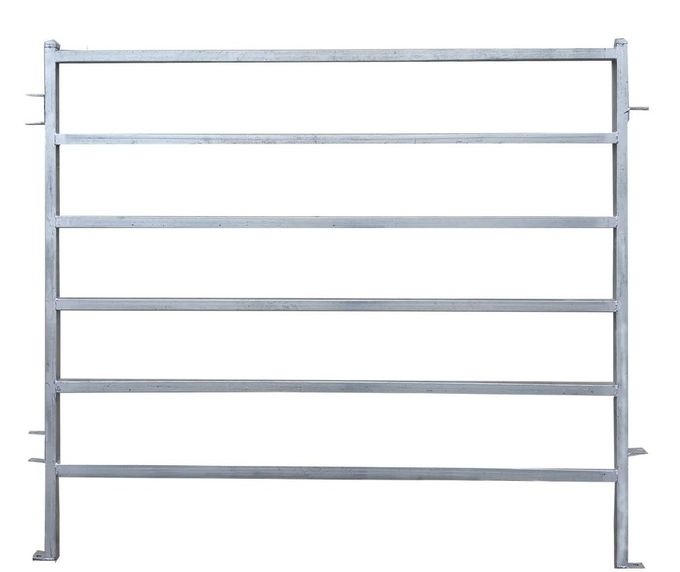

2>square tube style
| material | pre-hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness
|
| horizontal rails Horse Fence Panels |
50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness
(6 square rails)
|
| Welding | Fully welded post brackets |
| welds | bullbars are fully welded, each weld is protected with epoxy paint |
|
|
|
|
3> oval tube style
| material | pre-hot dipped galvanized steel pipe |
| finishing(zinc coating) Horse Fence Panels | more than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
50 x 50mm RHS x 1.6mm thickness
40 x 40mm RHS x 1.6mm thickness
|
| horizontal rails |
30x60mm oval rail x 1.6mm thickness
40x80mm oval rail x 1.6mm thickness
40x120mm oval rail x 1.6mm thickness
(6 oval rails)
|
| Welding | Fully welded post brackets |
| welds Horse Fence Panels | bullbars are fully welded, each weld is protected with epoxy paint |
|
|

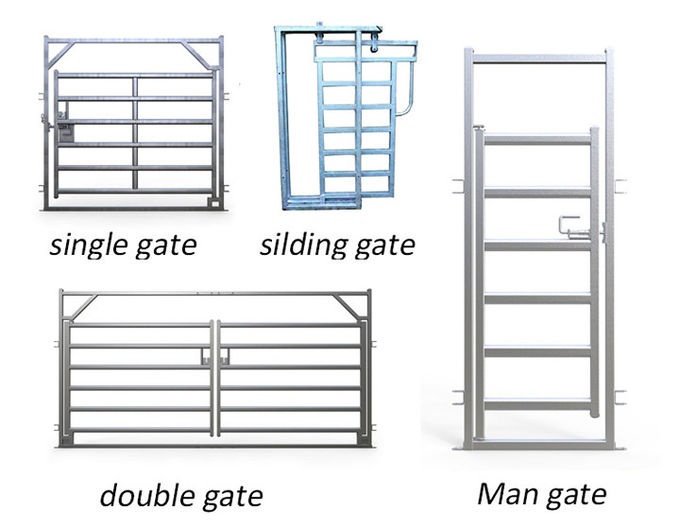

Horse Fence Panels gate
| Height x Length: | 2200mm x 2000mm |
| Frame: | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: |
Hot dipped galvanized, zinc coating: more than 15 microns.
Fully welded oval pipes, post &brackets, heavy-duty hinges
|
|
|
|
|
