twin wire mesh fencing

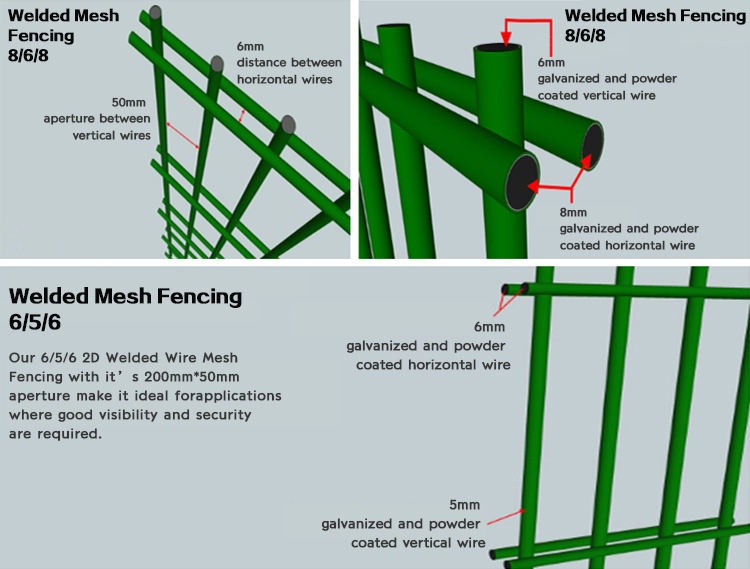

twin wire mesh fencing uses high-quality, low carbon stainless steel wire as raw material. It is welded with one vertical wire and two horizontal wires; this can be strong enough compared to the standard welded fence panel. The wire diameters are available, such as 6mm×2+5mm×1, 8mm×2+6mm×1. It obtains high solid powers to resist the construction.

Specification of twin wire mesh fencing

Material	Low carbon wire (Q195, Q235)
Wire diameter:	6mm2 (horizontal wire), 5mm1(vertical wire) 8mm2 (horizontal wire), 6mm1(vertical wire)
Fence size	Height: 1.8m, 2m, 2.2m, 2.4m; Length: 2.2m or 2.5m or as required
Post	Square post: 5050mm, 6060mm, Rectangular post: 80602.5mm, 120603mm

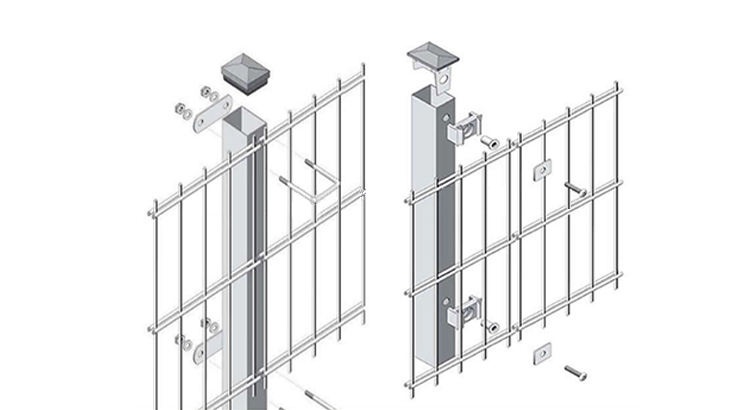

Double wire fence fastenings:

The twin wire mesh fencing and posts of the double wire fence are jointed together with bolts or rivets, using the flat steel bar or special steel clamps; all nuts are self-locking. This also can be designed for particular clients' requests.

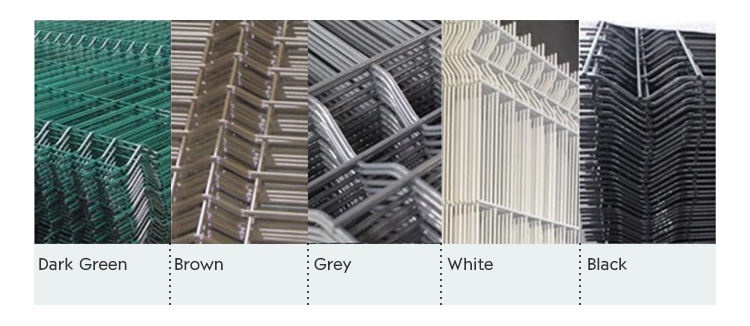

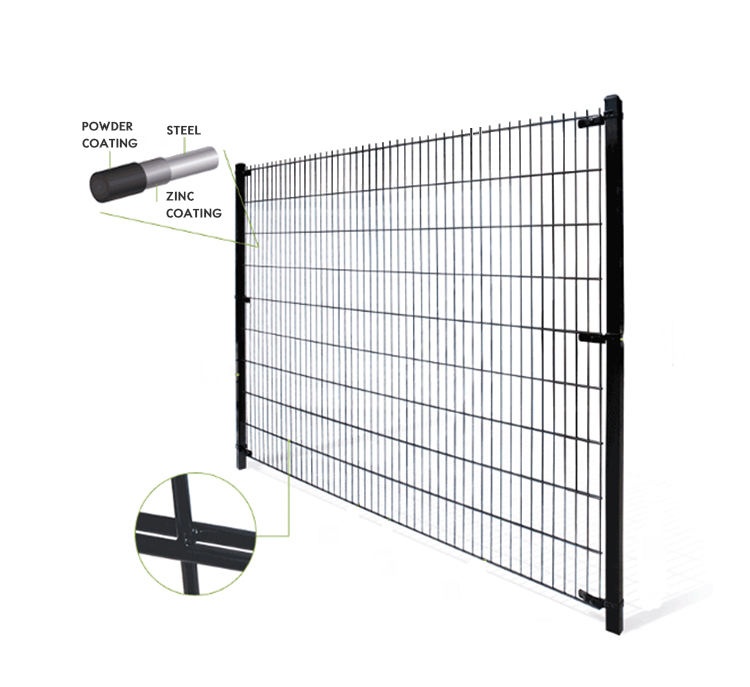

Treatment
hot dipped galvanized
powder spraying coated

Application twin wire mesh fencing :

Double wire fencing has the features of the grid structure, beauty and practical landscaping. In addition, double wire fencing is easy for plants to climb and is widely used in parks and living areas. Because of the double wire fencing features of easy transportation and installation without the limitations of a particular terrain. It is adjusted to mountain, hillside and winding zones. Double wire fencing as the professional fence is used in airports and military bases. While adding elbow, razor wire, barbed wire, and other security accessories can protect the enhanced sites further.

Specification

PRODUCT NAME	MESH SIZE	WIRE THICKNESS	COATING	PANEL WIDTH	PANEL HEIGHT	PANEL WEIGHT (~)
DOUBLE WIRE PANEL	50×200 mm	1xø5 mm Vertical wire & 2xø6 mm Horizontal wire	Galvanised and Electrostatic Polyester Coated	2.50 m	0.63 m	9.00 Kg
					0.83 m	11.50 Kg
					1.03 m	14.20 Kg
					1.23 m	16.80 Kg
					1.43 m	19.30 Kg
					1.63 m	21.90 Kg
					1.83 m	24.60 Kg
					2.03 m	27.10 Kg
					2.23 m	29.20 Kg
					2.43 m	31.70 Kg

Size B-(8/6/8)

PRODUCT NAME	MESH SIZE	WIRE THICKNESS	COATING	PANEL WIDTH	PANEL HEIGHT	PANEL WEIGHT (~)
twin wire mesh fencing	50×200 mm	1xø6 mm Vertical wire& 2xø8 horizontal wire	Galvanised and Electrostatic Polyester Coated	2.50 m	0.63m	14.60 kg
					0.83m	18.80 kg
					1.03m	23.00 kg
					1.23m	27.10 kg
					1.43m	31.30 kg
					1.63m	35.40 kg
					1.83m	39.50 kg
					2.03m	43.70 kg
					2.23m	48.00 kg
					2.43m	52.00 kg

Fencing Post

Type A -RHS Pipe

Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x40mm	2.0mm 2.5mm	Galvanized and Electrostatic polyester powder coated	Based on the panel height	Available	Plastic Or metal
80x40mm

Type B-Peach post

Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x90mm	1.2mm 1.5mm	Galvanized and Electrostatic polyester powder coated	Based on the panel height	Available	Plastic
70x100mm

Variations

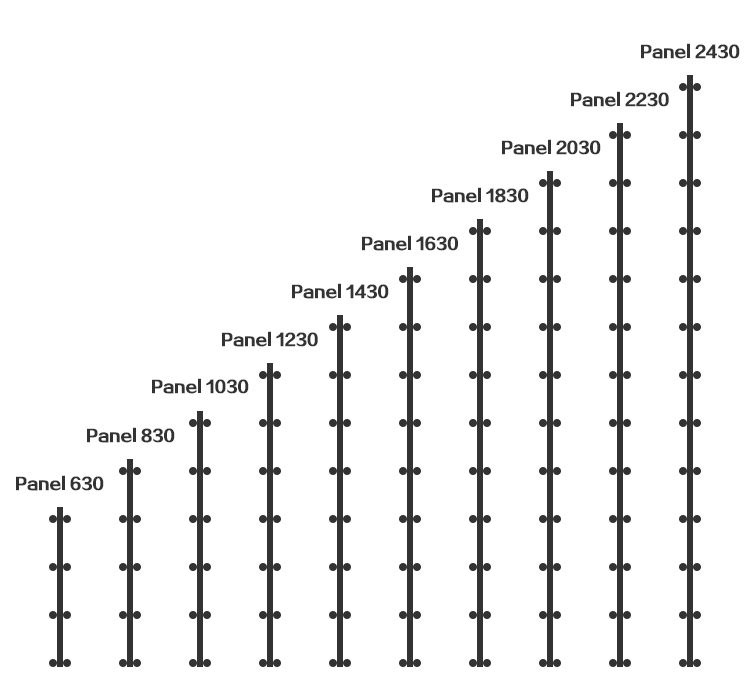

The twin wire mesh fencing posts are available in lengths to accommodate panel heights and ground conditions. In addition, many variations are available:
wall fixing plates, cranked posts or base plated
cranked or straight extensions for barbed or razor wire
cranked panels
