Clear View Fencing

Clear View Fencing is security welded wire mesh fence barrier designed to bring maximum perimeter protection and excellent visibility through the mesh. V-Bends in the clear view fence panels create strength and rigidity. As a high-security barrier, clear view security fencing forms a physical and psychological deterrent to unauthorized entry and break-ins.

Our high-density mesh Clearvu Fencing is the most common perimeter barrier or control for the architectural profession and defence protection. We design three standard fence panels according to different secure grades: high security, medium security, and low security.

Clear View Fencing specification

Mesh panel heights: 1.8 m, 2.0 m, 2.2 m, 2.4 m, 3.0 m, larger sizes by special request.
Mesh panel width: 2.515 m.
Coatings: Hot dipped galvanized before welded, then polyester coated black, green, or white colour.
Panel bends: 45 mm rigidity bends.
Post with the plastic top cap.
Fixing: clamps and blot.
Security fencing toppings: fence spikes, razor wire, electrified fencing.
Clear view fencing panels options: high security, medium security, low security.

Parameters -1 clear view fencing

Security options	Aperture	Vertical Wire Thickness	Horizontal Thickness	Features
High Security	76 mm × 12.5 mm	4 mm	3.5 mm	most secure, anti-cut, anti-climb, highly visible
Medium Security	76 mm × 25 mm	4 mm	4 mm	anti-cut, and highly visible
Low Security	76 mm × 50 mm	4 mm	4 mm	anti-cut, and highly visible, cost-effective

Table-2: Clear view fencing installation posts and clamps

Fence height	Panel size height × width	Posts section	Post length	No.of bends	No. of clamps
1800 mm	1800 mm × 2515 mm	60 × 60 × 2 mm	2400 mm	4	16
2000 mm	2000 mm × 2515 mm	60 × 60 × 2 mm	2600 mm	4	16
2200 mm	2200 mm × 2515 mm	60 × 60 × 2 mm	2800 mm	4	16
2400 mm	2400 mm × 2515 mm	80 × 80 × 3 mm	3000 mm	4	16
3000 mm	3000 mm × 2515 mm	80 × 80 × 3 mm	3600 mm	5	20

Parameters -2

Panel Dimensions wire centre to wire centre	Mesh Configuration wire centre to wire centre	Wire diameter	Approx Panel Weight	Pallet Quantities	Galvanised Wire Panels (class D*) Standard Sizes	Galfan Coated Wire Panel (Class A**) Standard Sizes
2515 x 1207mm	76.2 x 12.7mm	3.95mm	27.2kg	50	Y	Y
2515 x 1270mm	76.2 x 12.7mm	3.95mm	28.6kg	50	Y	Y
2515 x 1829mm	76.2 x 12.7mm	3.95mm	41.1kg	25	Y	Y
2515 x 2134mm	76.2 x 12.7mm	3.95mm	47.8kg	25	Y	Y
2515 x 2438mm	76.2 x 12.7mm	3.95mm	54.6kg	25	Y	Y
2515 x 2705mm	76.2 x 12.7mm	3.95mm	60.6kg	25	Y	Y
2515 x 2997mm	76.2 x 12.7mm	3.95mm	67.1kg	20	Y	Y
2515 x 3302mm	76.2 x 12.7mm	3.95mm	73.9kg	20		Y
2515 x 4204mm	76.2 x 12.7mm	3.95mm	94.0kg	15		Y
2515 x 5207mm	76.2 x 12.7mm	3.95mm	116.4kg	10		Y

Our clear view fence advantages

Anti-climb, anti-cut and 85% - 90% see-thru.
HD Galv and polyester coated for corrosion and rust resistance.
High to low-security fencing options.
V-Bends in the Clearvu Fencing panels create more strength and rigidity.
Clear view fence panels fixing to square tube post maximum security and strength.

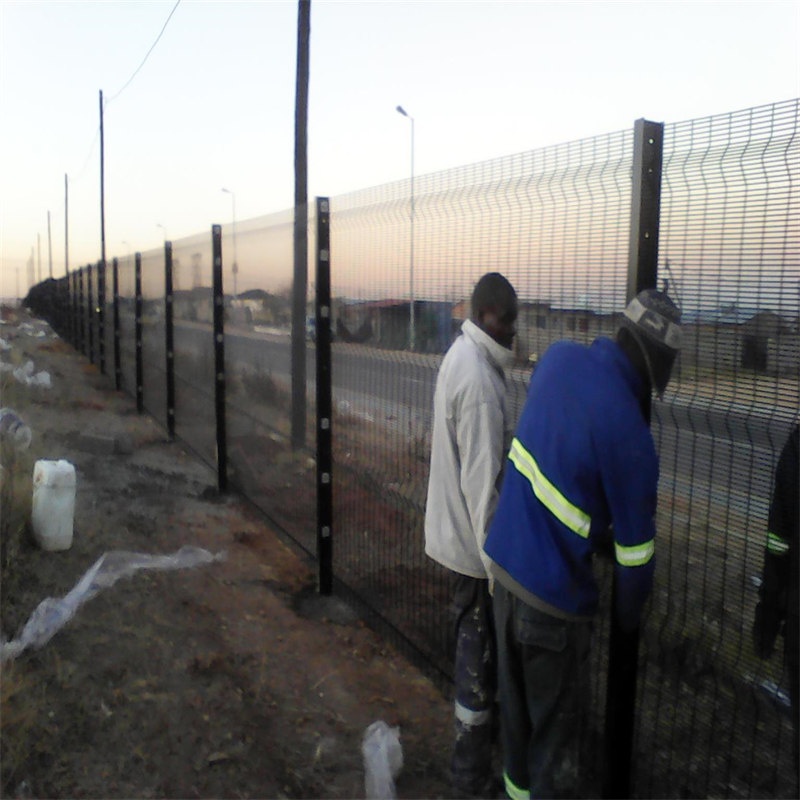

We have professional installations teams.

Applications

A clear view fence is suitable for high, medium, and low-security applications as the following:

Warehousing isolation, workshop segmentation.
Road, railway, airport fence.
Prison, military security fence.
Medical facilities, educational school, recreational fencing.
Residential areas, business districts, government agencies, fences or gates.
Industrial area, farmhouse fence.
It can be suitable for flat or slope areas.

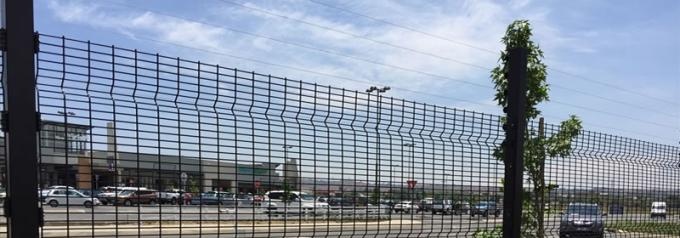

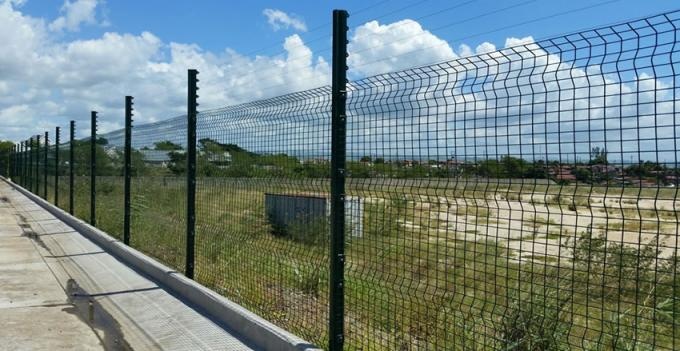

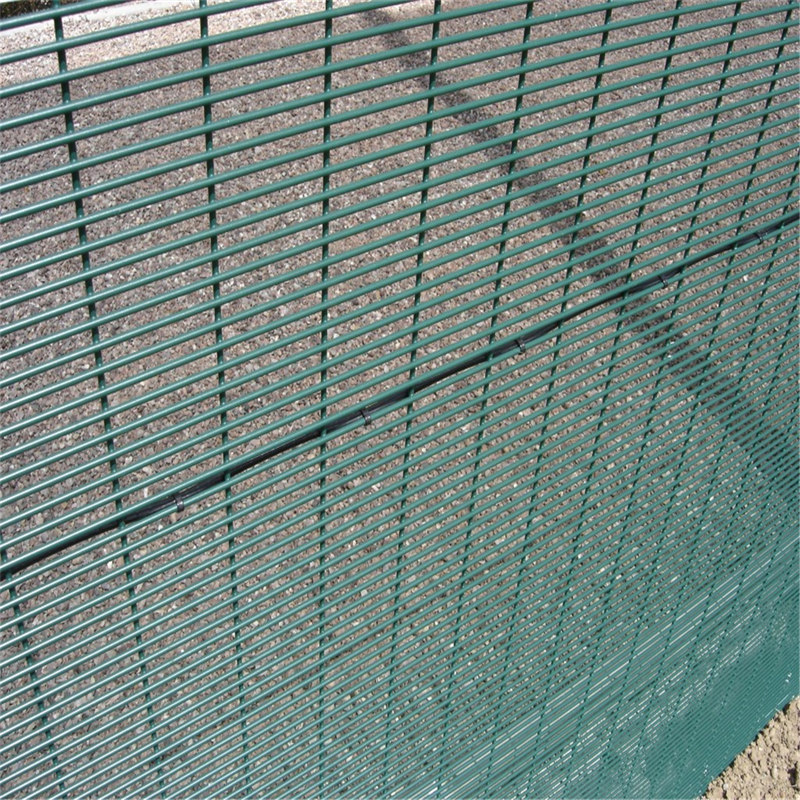

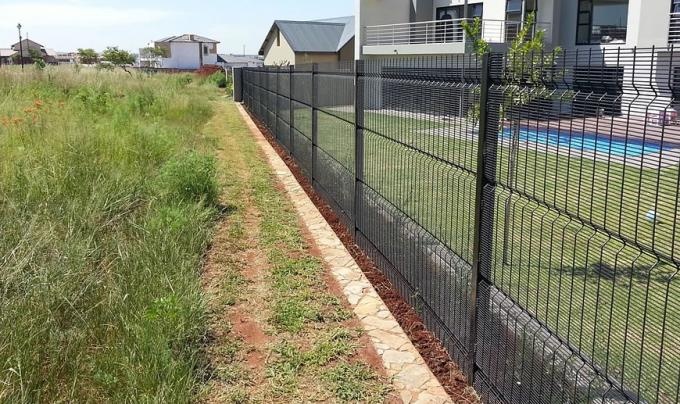

High-Security clear fencing with the most secure, anti-climbing, and highly visible residential fencing.	Medium Security clear view fencing with anti-cut and obvious features.	Low-security clear Vu fence for road fencing.

What effect the Clear view fence price

Due to different mesh apertures, clear view fence panels in different security grades have different prices.
High-security clear view fencing panels with the most density mesh has the highest price. But it is for the most secure and most attractive application.
Low-security clear view fencing panels with the largest mesh opening is cost-effective fencing.
In short, according to your actual fencing application and budget costs, choose the most suitable for your fence.

Panel Finish Options

Standard Galvanised wire finish (typically 80-100g/m² of Zincprior to Welding / fabrication)
Galfan wire finish (typically 275-300g/m2 of Zn/Al alloy before Welding / fabrication)
All panels can be offered with triple coat anti-corrosion architectural finish consisting of Galvanised / Galfan wire + ZincPhosphate pre-treatment + 100-micron Polyester coating to give long-lasting protection against the elements.
