temporary fencing Dunedin

The main quality problem of temporary fencing Dunedin panels is rusting; hot-dipped galvanized is the leading solution to avoid corrosion of temp fence,84 microns equal to 600 gram/sqm. The temporary panels can withstand at least seven years, even in the highest extreme salt spray climate. At the same time, even with an excellent quality recent five-year people from Australia seldom buy them due to most importers are temp fence hire or rental companies in AU long term rental run out of their stock to decrease the pressure of cash flow,w, so they revert to 42 microns temporary construction fencing even 14 microns was acceptance in the market. Still, most of the customers from NZ all like 84 microns, and they said: “it is a better standard products “ suit New Zealand any climates can work many years.

Specifications

84 microns HDG temporary fencing Dunedin, and hot-dipped galvanized after fabricated
Dimensions	2100mm(H)*2400mm(W)
Tubing	OD 32mm*2.00mm thick
Mesh Spacing	60mm*150mm
Infill mesh size	1736mm*2336mm
V wire number	36 sticks wire 4.00mm
H wire number	17 sticks wire 4.00mm
Finished	84 microns /600 gram/SQM
Weight of panels	20.5kg-22.0kg
Service life	Salt spray Testing results in at least 15 years
40HC container	560 unit if covered clamp and base
Packing	Metal Pallet Wrapped with plastic film
Productions Time	All stocked
Ocean time	25 days to 35 days to any port of AU & NZ
What papers do you provide after shipping containers
Main :P packing list, Commercial Invoice, bill of lading copy or draft for telex release one, balance papers Plus For NZ: Containers Declaration For AU:P KD - Packing Declaration 2016 and Certificated of Original

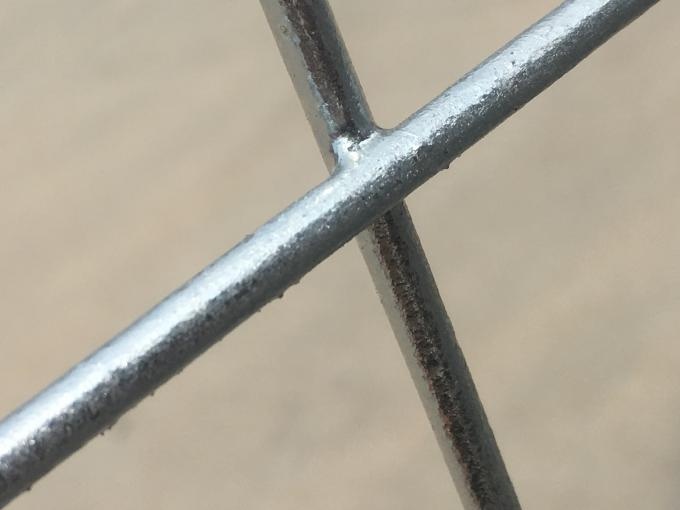

Wire and Tubing of full hot dipped galvanized temporary fencing Dunedin

temporary fencing Dunedin 0

temporary fencing Dunedin 1

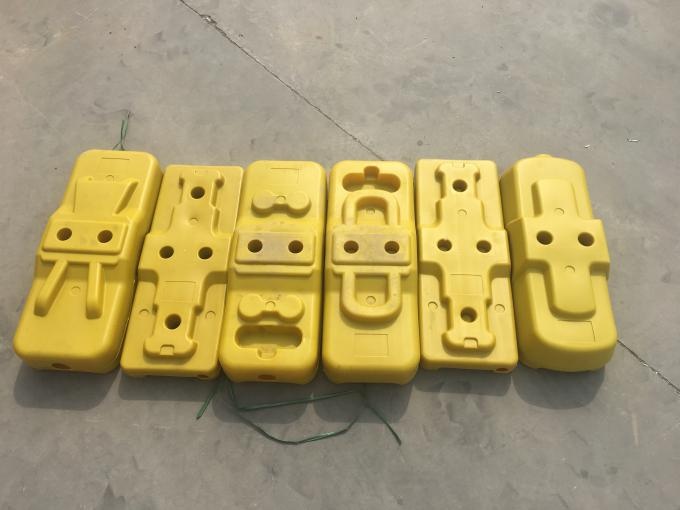

Accessories of temporary fencing Dunedin

BMP is proud of supplying temp fence HDPE base by we owed blow molding facilities provided comprehensive of fencing base you saw in the market of NZ and AU compare others you saw in market ours only empty base weight up to 1.20kg. Still, most of the other suppliers from you local or china weight just 0.9kg if no special requirements the base was filled concrete in our factories. Our one can even drop from a 2.0m height without any broken if you are interested.

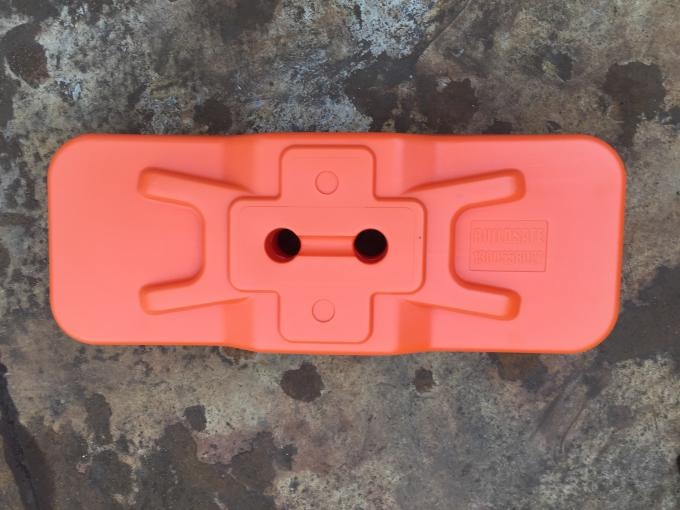

Fence Blocks

Blow molding Base Version HDPE materials						Suit Pipes
Size	600 x 228 x 150mm	Size	620 x 230 x 130mm	Size	600 x 228mm x 150mm	25mm to 60mm
Materials	HDPE 5502	Materials	HDPE 5502	Materials	HDPE 5502
Finish	UV 2002/531 BHT	Finish	UV2002/531 BHT	Finish	UV2002/531 BHT
Colors	Orange, Green, Yellow etc	Colors	Orange, green, yellow etc	Colors	Orange, Green, Yellow etc
Weight	After filled 27kg-29kg	Weight	After filled 27kg-28kg	Weight	29kg
Design	Australia	Design	Australia	Design	Australia
Clamp	100mm center to center	Clamp	90mm center to center	Clamp	80mm

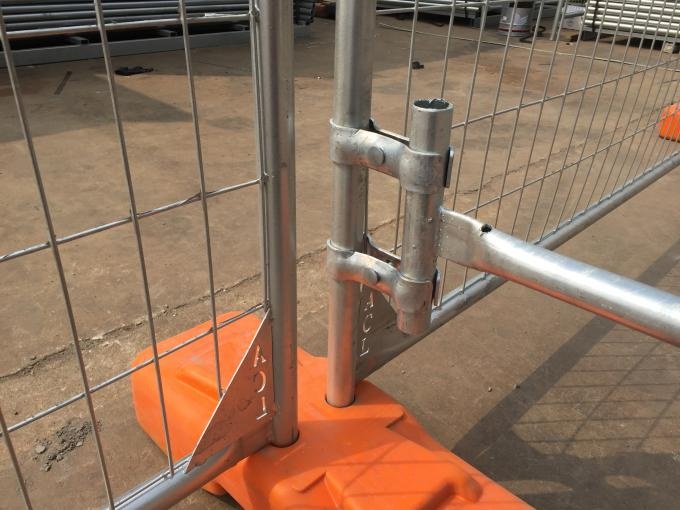

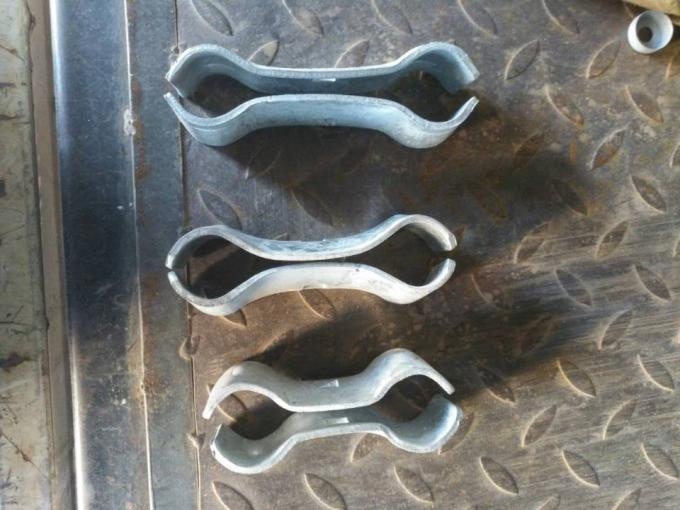

Clamps temporary fencing Dunedin

Temporary Fencing clips are indispensable accessories secured with neighbor fencing panels or temp fence gates and braces to make the fencing in the same line and stand sturdy and extra stability; ln co-developed three clips all of them meet AS NZS standards since your local market-tested 2007 years. clips we supplied four side edge was punched in an ARC design; the excellent small design compare square and sharp one is more acceptance by local install workers .4.00mm thickness same like the diameter of fencing panels heavy-duty and reliable

Temporary Fencing Clamp-100TYPE
	Thickness	4.00mm
	Center distance	100mm ( pipes center to center) /OVERALL LENGTH120MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns,42 microns hot dipped galvanized electrostatic powder-coated
	Application	Secured Temporary Fence panel, and Bracket, Stay, Gate
	Weight	0.45kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-90TYPE
	Thickness	4.00mm
	Center distance	90mm ( pipes center to center) /OVERALL LENGTH 110MM
	Technical	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns,42 microns hot dipped galvanized electrostatic powder-coated
	Application	Secured Temporary Fence panels, and Bracket, Stay, Gate
	Weight	0.40kg /set 2 pairs included big caps bolt and nuts

Temporary Fencing Clamp-80TYPE
	Thickness	4.00mm
	Center distance	80mm ( pipes center to center) /OVERALL LENGTH 100MM
	Technical temporary fencing Dunedin	Punched
	Materials	Q195 Q235 steel
	Design	Australia
	Made Country	China
	Treatment	14 microns,42 microns hot dipped galvanized electrostatic powder-coated
	Application	Secured Temporary Fence panels, an Bracket, Stay, Gate
	Weight	0.35kg /set 2 pairs included big caps bolt and nuts

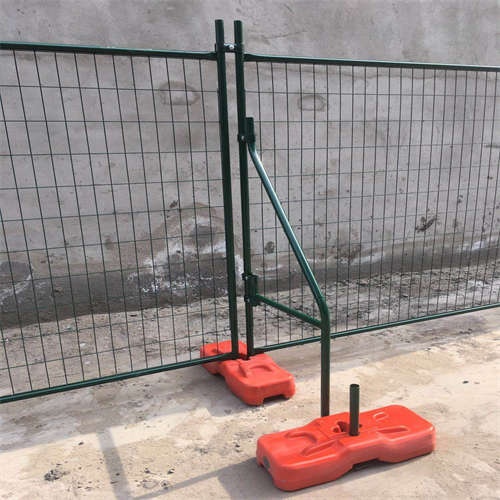

Brace

temporary fencing Dunedin braces for recewerethree years was emphasized use in the whole system to withstand high wind, and it is a reasonable solution to fix the problem of fencing panels not standing well in extreme wind climates

temporary fencing panels 2100mm x 2400mm 14 microns zinc layer hot dipped galvanized
