Prison Mesh

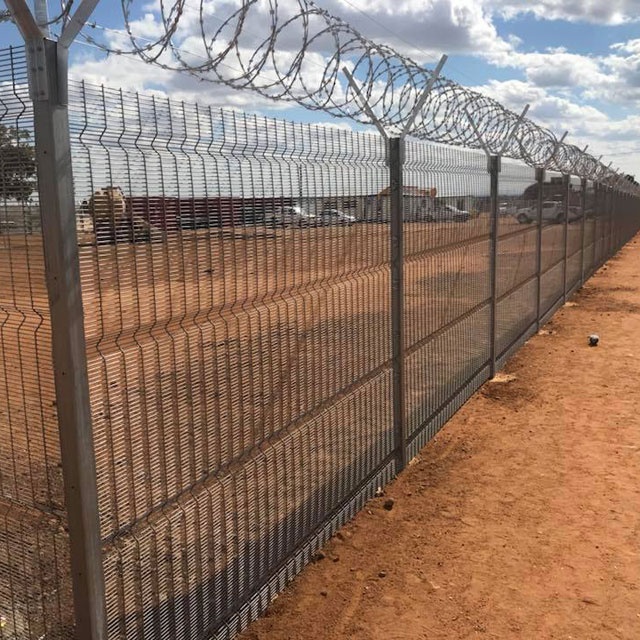

High-Security Prison Mesh Fence, also known as Anti-Climb Fence, “358 Prison Mesh” or “358 security fence”, is a special fencing panel. “358” comes from its measurements 3”*0.5”*8 gauge, which is approx. 76.2mm*12.7mm*4mm in metric. It is a professional structure combined with a steel framework coated with zinc or RAL color power. It is worth mentioning that the 358 fence is also called Clearvu Fence in African and some American areas.

Advantage and Feature

358 high-security prison wire mesh are complicated to penetrate, with the small mesh aperture being effectively finger proof and extremely difficult to attack using conventional hand tools. As a result, 358 fence panels are recognized as one of the most difficult to break through the barrier because it is difficult to climb. It is called security fencing and high-strength fencing. 358 security fencing panel can be bent to enhance the aesthetic effect. While 3510 Security Fencing has many of the attributes of 358 Fencing, its main strength is lighter. Because since the 2020 year, the steel price constancy increasing continuously, so some prison wire mesh Using 3mm wire instead of 4mm allows even better visibility allowing a wider variety of applications. It’s lighter and cheaper, so it's ideal for commercial applications.

Anti-climb: More small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult.
High-strength: The superior welding technique and process control create a stronger fusion between the prison mesh wires.

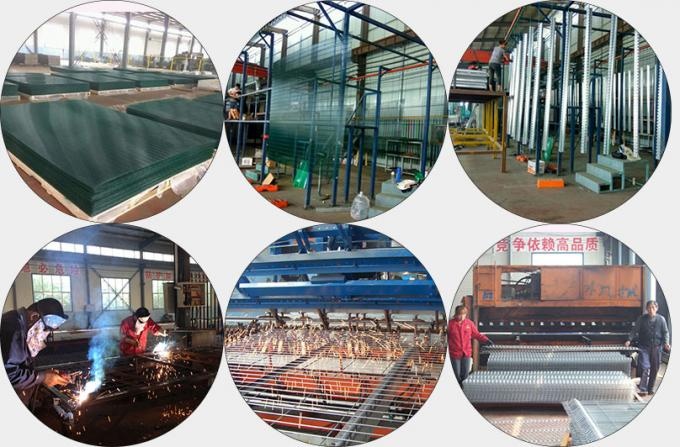

Production of 358 Prison Mesh

South Africa Clearvu Fence 358 Security Mesh Fencing / Security 358 Clearvu Anti Climb Prison Fences

Applications:

358 Prison Mesh Anti-Climb, safety screening; Sub-station security, hospital security fencing, factory machine guards; Walkway security fencing; Airport security fencing; 358 wire mesh fence gates; shipping port security, etc.

Applications:

Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security Prison fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
Gas pipelines security fence
High security living area and private field fence.

Specification

Panels		Post
Fence	Panel Size	Post Size	Post Height	Total Number of Fixings
Height	Height/Width	Length/Width/Thickness		Inters- 1 clamp	Corners-2 clamp
m	mm	mm	mm
2.0	2007 × 2515	60×60×2.5mm	2700	7	14
2.4	2400 × 2515	60×60×2.5mm	3100	9	18
3.0	2997 × 2515	80×80×2.5mm	3800	11	22
3.3	3302 × 2515	80×80×2.5mm	4200	12	24
3.6	3607 × 2515	100×60×3mm	4500	13	26
3.6	3607 × 2515	100×100×3mm	4500	13	26
4.2	4204 × 2515	100×100×4mm	5200	15	30
4.5	4496 × 2515	100×100×5mm	5500	16	32
5.2	5207 × 2515	120×120×5mm	6200	18	36
