358 fence panels

358 fence panels are galvanized after fabrication. This guarantees all welded joints are protected from exposure to moisture, effectively eliminating the chance of weld-point rust to occur, ensuring unparalleled product quality and enhanced longevity. Our 358 fence panels are available from 3.00mm to 6.00mm and tensile strenth 500MPA-625MPA the Wire coated complied with AS/NZS4534-2006 Class W10DZ - 260g/m2

(1)358 fence panels Mesh pattern: 76.2mm (3") × 12.7mm (0.5") resistance welded well at each intersection
(2)Wire diameter: 4mm horizontal Wire and vertical Wire.
(3)Weld strength: range 540-690 N/m2
(4)Surface treatment: 358 mesh fencing panels made from GALVAN wire, PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.
(5)Colors: Green RAL 6005 or Black RAL 9005.

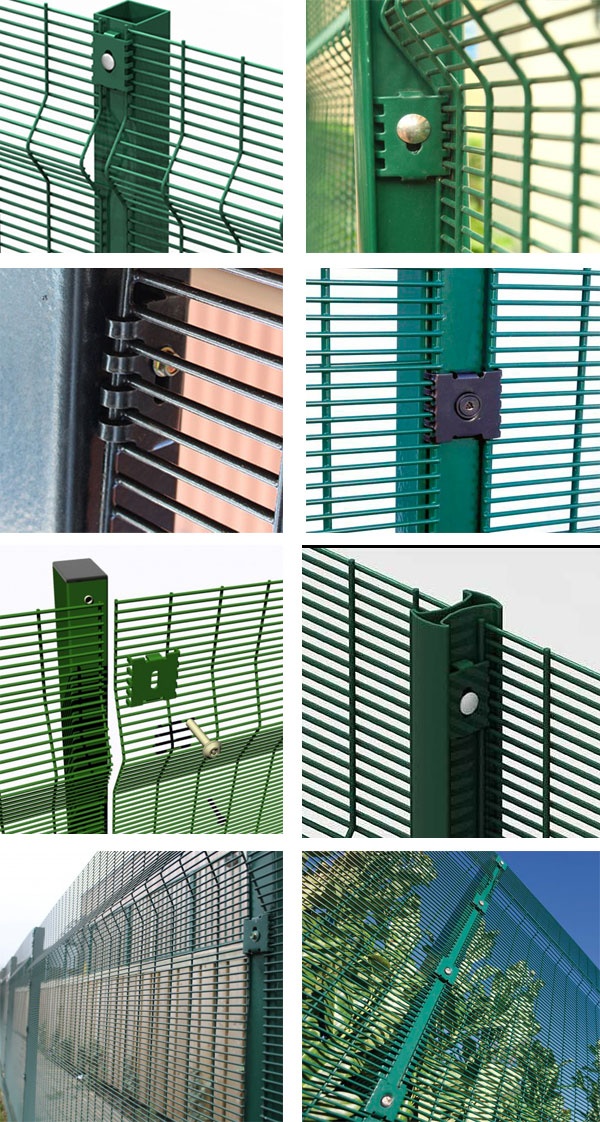

(6)Installation: Overlapped 75mm minimum at each post (shown as the two following pictures below) for securing with slotted clamp bars and M8 diameter bolts

Features:

(a) 358 fence panels Anti-climbing: more small openings, no toe or finger holds.
(b)Anti-cut: robust Wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
(c)High strength welded at each intersection.
(d)Durable: covering Galvan and polymer powder coating ensure long service life.
(e)Mesh fencing specially configured to provide maximum visibility, primarily used for emergency and electronic detection systems.

358 fence panels specification

Fence height m	Panel size (Height × Width)	Fence Post (Height × Size × Thick )	Clamp Bar (Height × Width × Thick )	Inter or corner Clamp No (PCS)
2.0	2007mm ×2515mm	2700mm ×60×60×2.5mm	2007mm ×60mm ×5.00mm	7 or 14
2.4	2400mm × 2515mm	3100mm×60×60×2.5mm	2400mm ×60mm ×5.00mm	9 or 18
3.0	2997mm ×2515mm	3800mm×80×80×2.5mm	2997mm ×80mm ×6.00mm	11 or 22
3.3	3302mm ×2515mm	4200mm×80×80×2.5mm	3302mm ×80mm ×6.00mm	12 or 24
3.6	3607mm ×2515mm	4500mm×100×60×3.0mm	3607mm×100mm×7.00mm	13 or 26
3.6	3607mm ×2515mm	4500mm×100×100×3.0mm	3607mm×100mm×7.00mm	13 or 26
4.2	4204mm × 2515mm	5200mm ×100 ×100 × 4.0mm	4204mm ×100mm × 8.00mm	15 or 30
4.5	4496mm × 2515mm	5500mm × 100 ×100 × 5.0mm	4496mm × 100mm ×8.00mm	16 or 32
